DASH PANEL

CONFIGURATION DIAGRAMS

80-12

37DB227A

Connector

symbol

C

CONNECTOR COLOR

CODE

B: BLACK

BR: BROWN

G: GREEN

GR: GRAY

L: BLUE

NONE: MILK WHITE

O: ORANGE

R: RED

V: VIOLET

Y: YELLOW

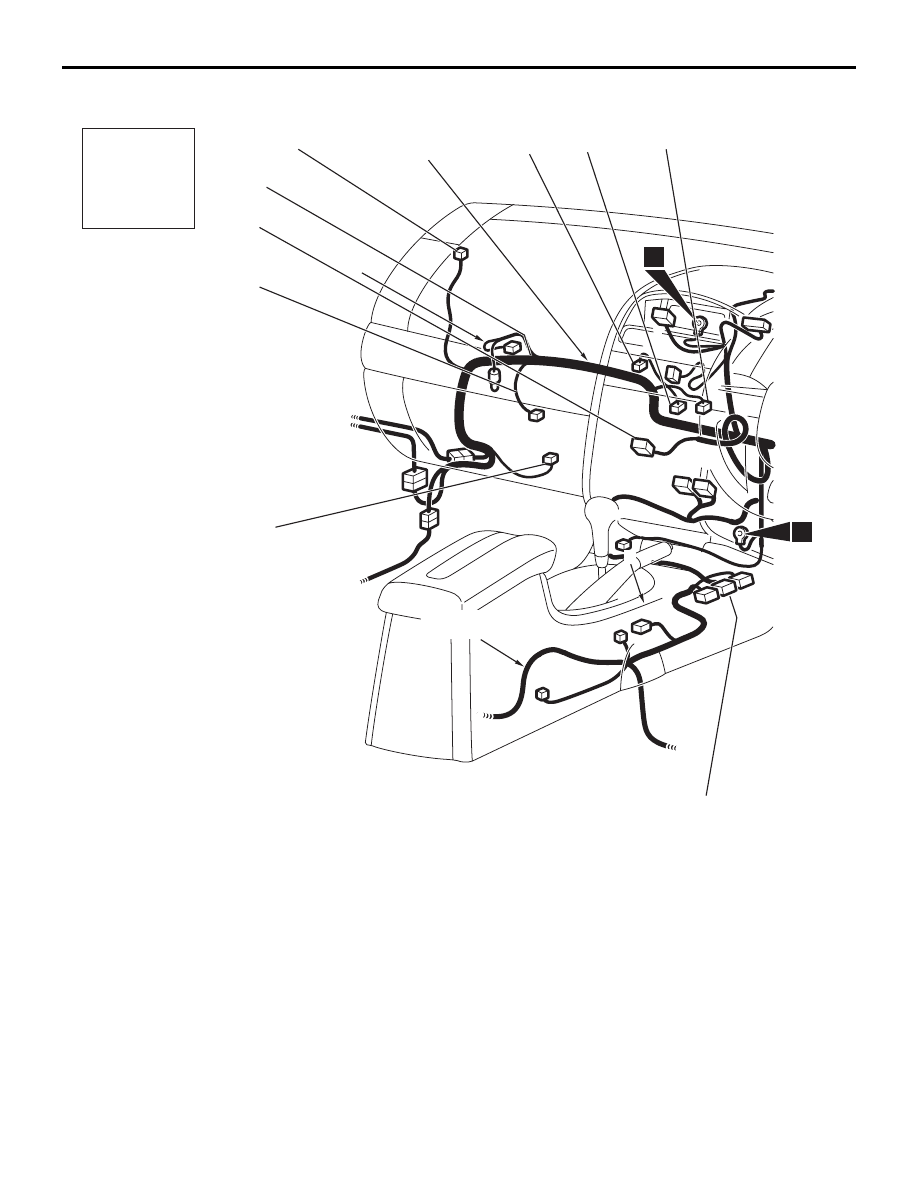

INSTRUMENT PANEL

WIRING HARNESS

ROOF WIRING

HARNESS

JUNCTION

BLOCK

6

C-101

C-102

C-131

C-128

C-126

C-125

C-123

C-108

C-101  ->

C-101 (22)

COMBINATION METER

C-102 (7)

MODE SELECTION DAMPER
CONTROL MOTOR AND
POTENTIOMETER

C-104 (4)

POWER TRANSISTOR <A/C>

C-105 (7)

AIR MIXING DAMPER CONTROL
MOTOR AND POTENTIOMETER

C-106 (5)

OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL MOTOR

C-108 (2-B)

TWEETER SPEAKER (RH)

C-110 (2-Y)

AIR BAG MODULE (SQUIB)
(PASSENGER’S SIDE)

C-111 (14)

RADIO, CD PLAYER AND MP3
PLAYER OR RADIO, 6-CD PLAYER
CHANGER AND MP3 PLAYER

C-112 (2)

GLOVE BOX LAMP

DASH PANEL

CONFIGURATION DIAGRAMS

80-13

37DB228A

Y

C-105

C-110

C-111

C-112

C-115

C-121

C-129

Connector

symbol

C

Y

5

3

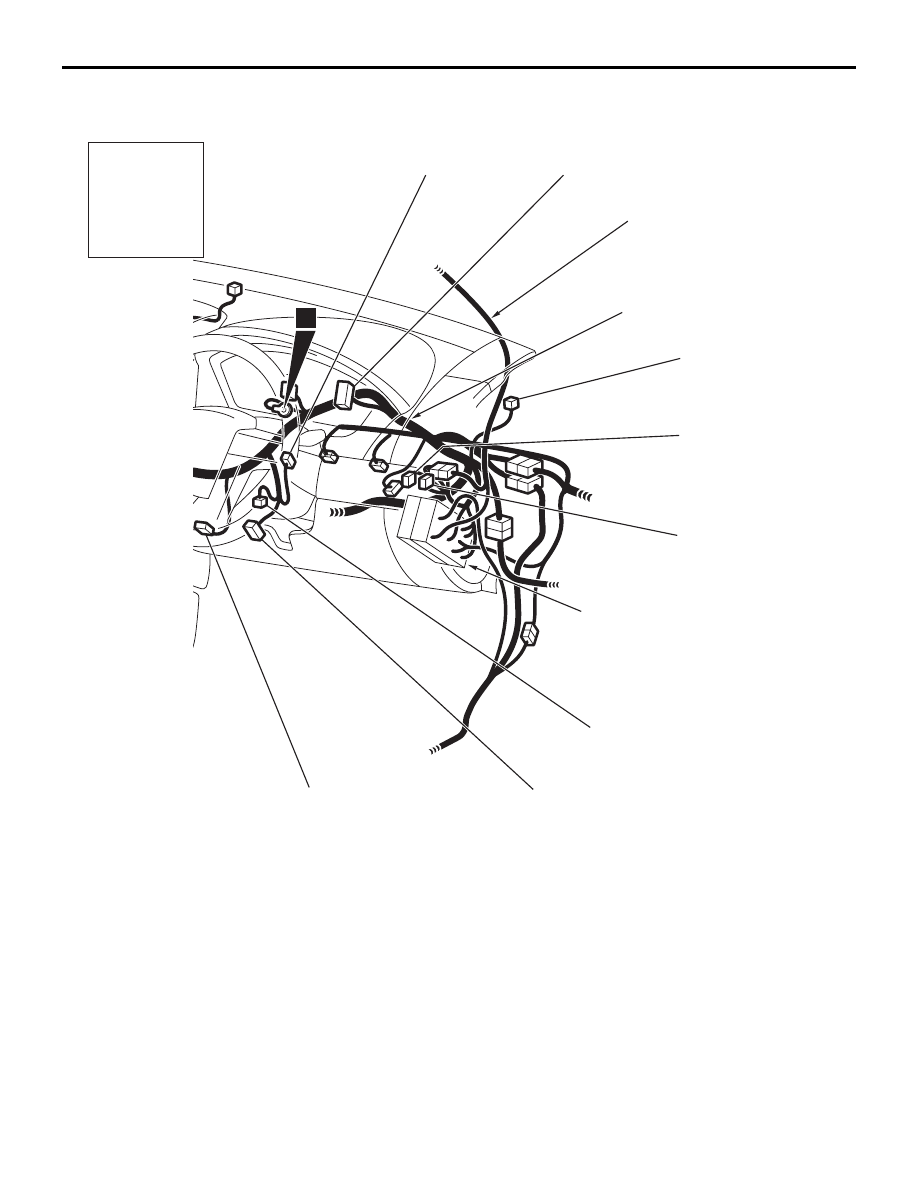

FLOOR WIRING

HARNESS

INSTRUMENT PANEL

WIRING HARNESS

C-104

<-  C-131

C-106

C-115 (2)

BLOWER MOTOR

C-121 (28-Y)

SRS-ECU (INSTRUMENT PANEL
HARNESS)

C-123 (2)

INTERIOR TEMPERATURE SENSOR

C-125 (16-B)

DATA LINK CONNECTOR

C-126 (2)

AIR THERMO SENSOR

C-128 (6)

FOG LAMP SWITCH

C-129 (2-B)

TWEETER SPEAKER (LH)

C-131 (6-GR)

TCL SWITCH

DASH PANEL

CONFIGURATION DIAGRAMS

80-14

DASH PANEL (CONTINUED)

37DB229A

Connector

symbol

C

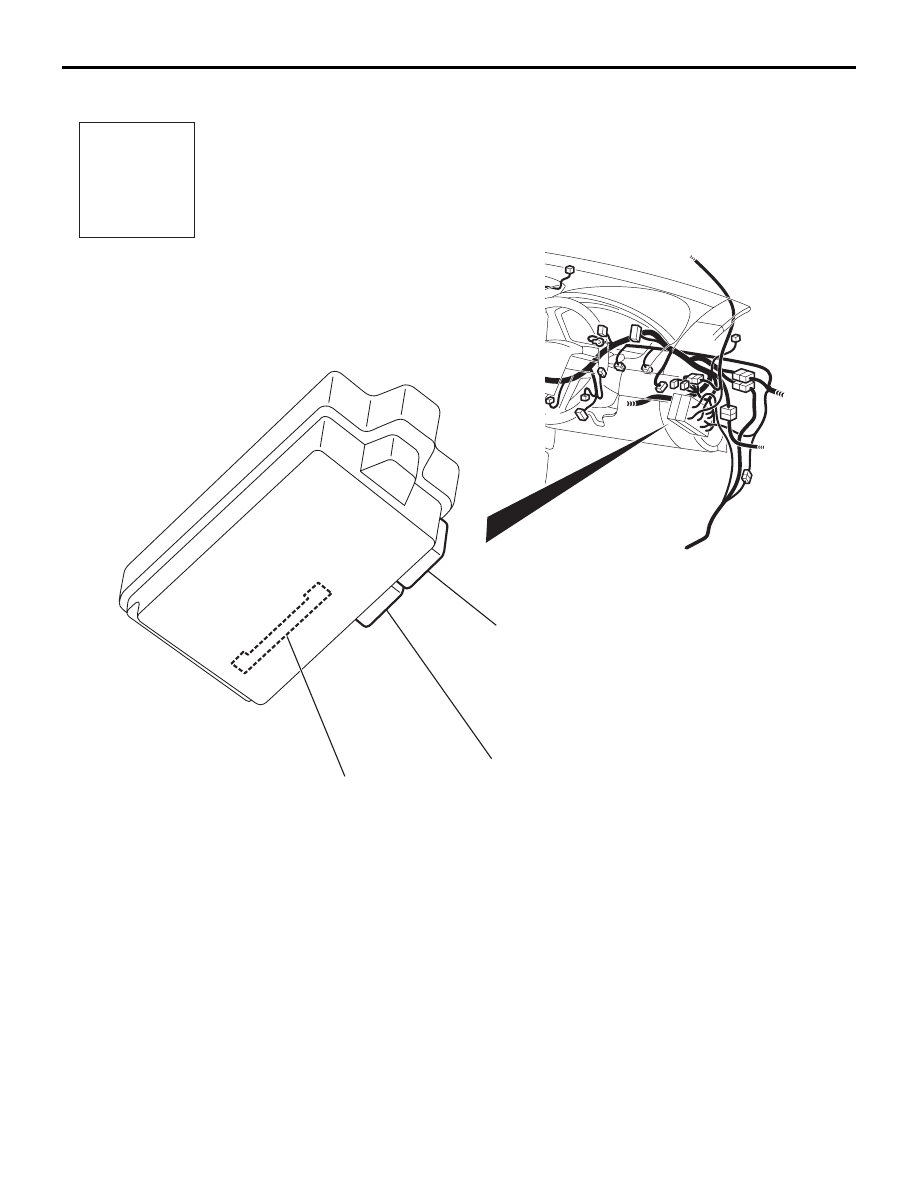

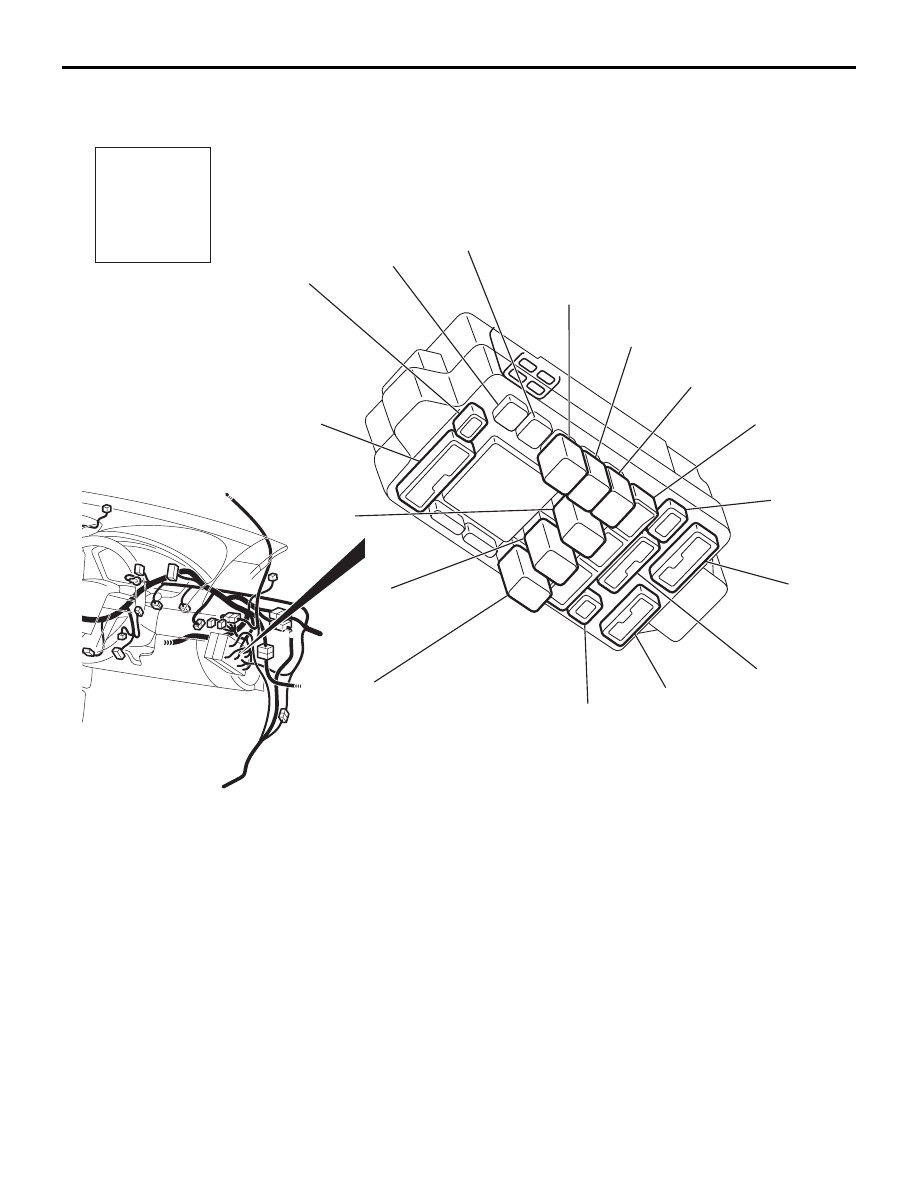

JUNCTION BLOCK (FRONT VIEW)

C-201

C-202

C-203

C-204

C-205

C-206

C-207

C-208

C-209

C-210

C-211

C-212

C-213

C-214

C-215

C-216

C-201  ->

C-201 (5)

REAR WINDOW DEFOGGER RELAY

C-202 (5)

BLOWER RELAY

C-203 (5)

POWER WINDOW RELAY

C-204 (15)

FLOOR WIRING HARNESS AND
JUNCTION BLOCK COMBINATION

C-205 (3)

ROOF WIRING HARNESS AND
JUNCTION BLOCK COMBINATION

C-206 (4)

NO CONNECTION

C-207 (4)

NO CONNECTION

C-208 (4)

FUEL PUMP RELAY (2)

C-209 (4)

ACCESSORY SOCKET RELAY

C-210 (4)

FUEL PUMP RELAY (1)

C-211 (28)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

DASH PANEL

CONFIGURATION DIAGRAMS

80-15

37DB230A

JUNCTION BLOCK (REAR VIEW)

C-217

C-218

C-219

CONNECTOR COLOR CODE

B: BLACK

BR: BROWN

G: GREEN

GR: GRAY

L: BLUE

NONE: MILK WHITE

O: ORANGE

R: RED

V: VIOLET

Y: YELLOW

Connector

symbol

C

<-  C-219

C-212 (2)

FRONT WIRING HARNESS AND
JUNCTION BLOCK COMBINATION

C-213 (13)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-214 (14)

FRONT WIRING HARNESS AND
JUNCTION BLOCK COMBINATION

C-215 (6)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-216 (1-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-217 (24)

ETACS-ECU

C-218 (24-GR) ETACS-ECU
C-219 (20)

ETACS-ECU
