ENGINE COMPARTMENT

CONFIGURATION DIAGRAMS

80-4

ENGINE COMPARTMENT

M1801000301403

37DB224A

Connector

symbol

A

CONNECTOR COLOR

CODE

B: BLACK

BR: BROWN

G: GREEN

GR: GRAY

L: BLUE

NONE: MILK WHITE

O: ORANGE

R: RED

V: VIOLET

Y: YELLOW

8

1

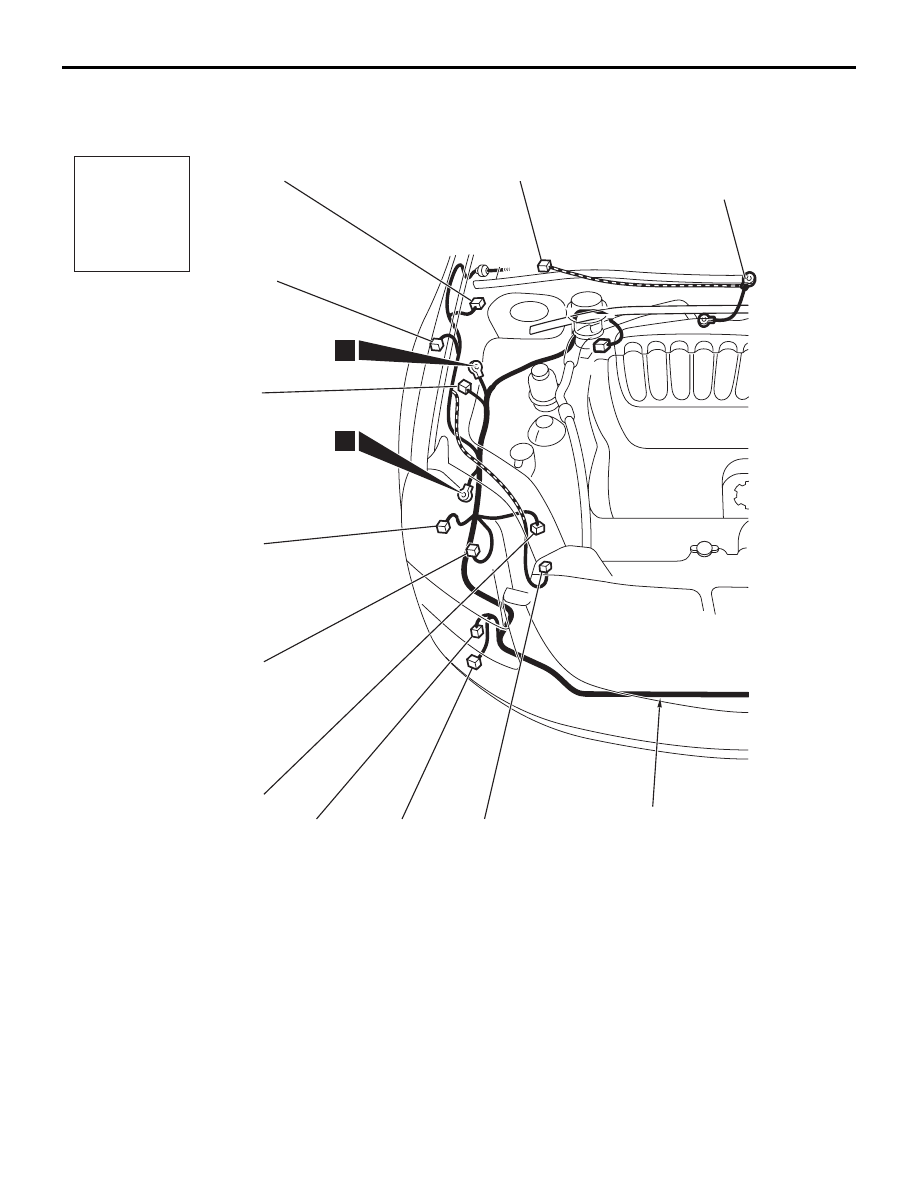

FRONT WIRING

HARNESS

A-03

A-01

A-35

A-34

A-32

A-30

A-29

A-28

A-27

A-26

  A-01  ->

GROUNDING

CABLE

Body No.

>000250

A-01

(2-B)

WHEEL SPEED SENSOR (FRONT:
RH)

A-02

(26-B)

ABS-ECU OR ABS/TCL-ECU

A-03

(5-B)

WINDSHIELD WIPER MOTOR

A-04

(2-B)

WHEEL SPEED SENSOR (FRONT:
LH)

A-05X (4)

FOG LAMP RELAY

A-06X (4)

HORN RELAY

A-10X (4)

FAN CONTROL RELAY

A-11X (11)

FRONT-ECU

A-12X (11)

FRONT-ECU

A-13

(17-GR) FRONT WIRING HARNESS AND

CONTROL WIRING HARNESS
COMBINATION

A-14

(6-GR)

GROUNDING CONNECTOR

A-17

(2)

SIDE TURN SIGNAL LAMP (LH)

A-18

(2)

FRONT TURN SIGNAL LAMP (LH)

A-20

(6)

HEADLAMP COMBINATION (LH)

ENGINE COMPARTMENT

CONFIGURATION DIAGRAMS

80-5

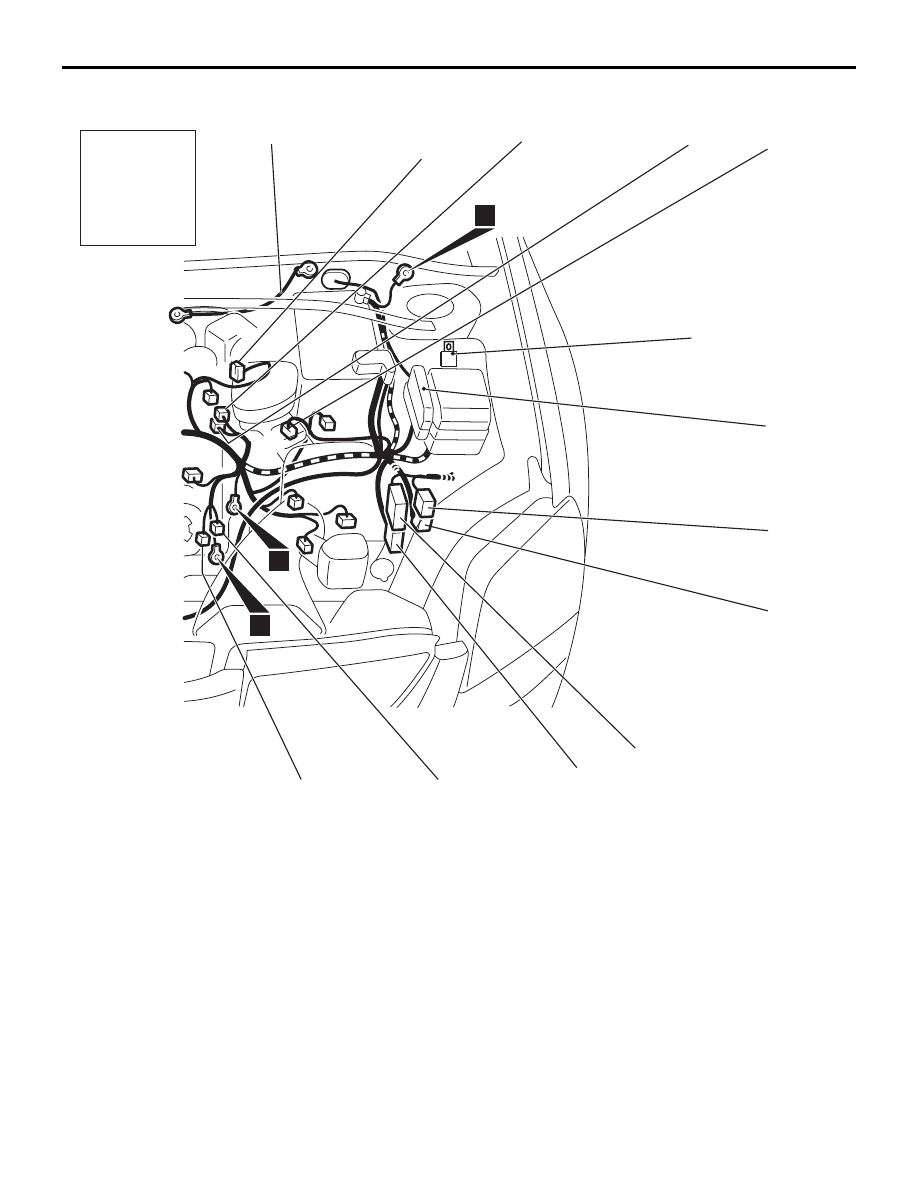

37DB223A

11

12

13

A-04

A-05X

A-06X

A-10X

A-11X

A-12X

A-13

A-14

A-17

A-18

A-20

A-38

A-22

A-23

A-25

A-02

20 A

A-24

A-37

A-36

Connector

symbol

A

<-  A-39

GROUNDING

CABLE

Body No.

<000250

A-22

(2-B)

FOG LAMP (LH)

A-23

(2-Y)

FRONT IMPACT SENSOR (LH)

A-24

(3-B)

RADIATOR AND CONDENSER FAN
CONTROLLER MODULE

A-25

(2-BR)

AMBIENT TEMPERATURE SENSOR

A-26

(2-B)

HOOD SECURITY SWITCH

A-27

(2-Y)

FRONT IMPACT SENSOR (RH)

A-28

(2-B)

FOG LAMP (RH)

A-29

(2)

WINDSHIELD WASHER MOTOR

A-30

(3-B)

A/C PRESSURE SENSOR

A-32

(6)

HEADLAMP COMBINATION (RH)

A-34

(2)

FRONT TURN SIGNAL LAMP (RH)

A-35

(2)

SIDE TURN SIGNAL LAMP (RH)

A-36

(1-B)

HORN (LOW)

A-37

(1-B)

HORN (HIGH)

A-38

(2)

CONDENSOR FAN CONNECTION
TO CONTROLLER MODULE

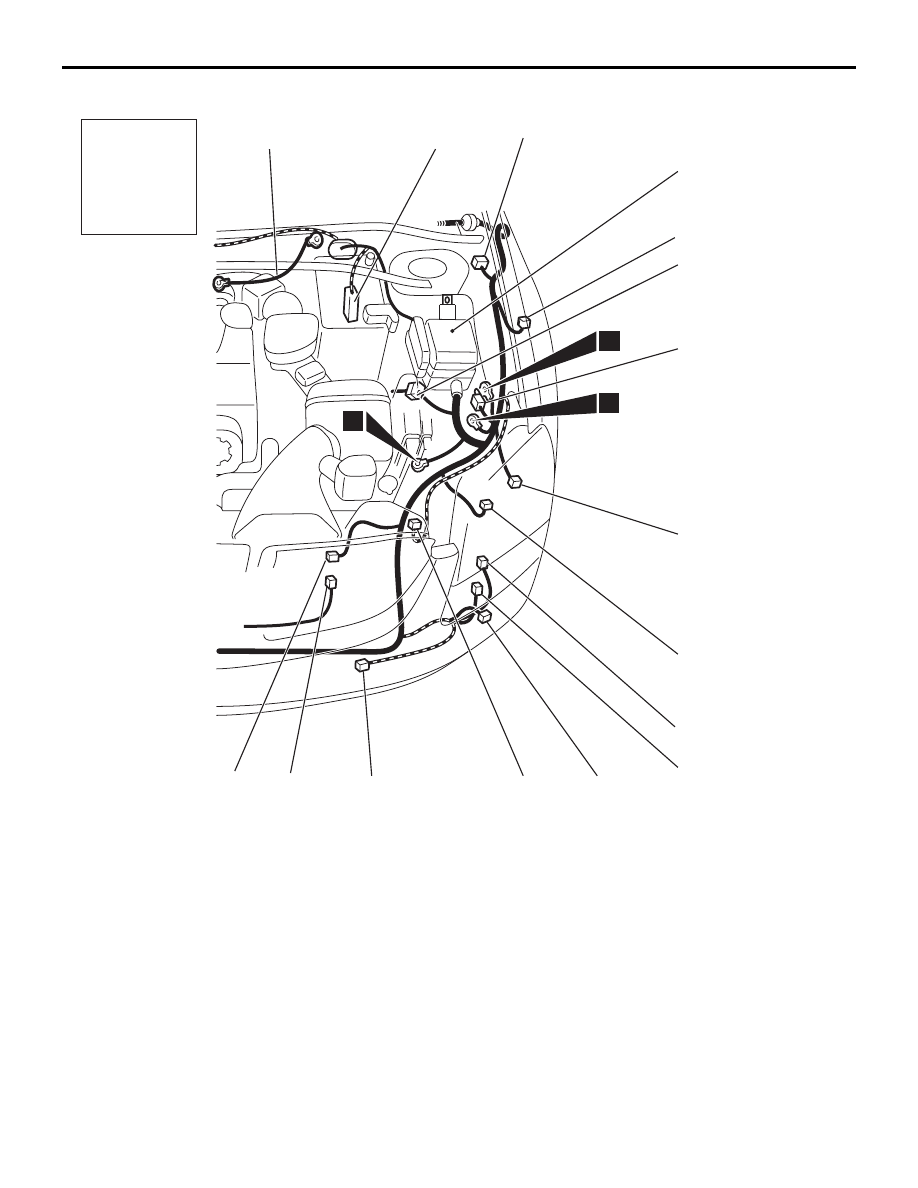

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-6

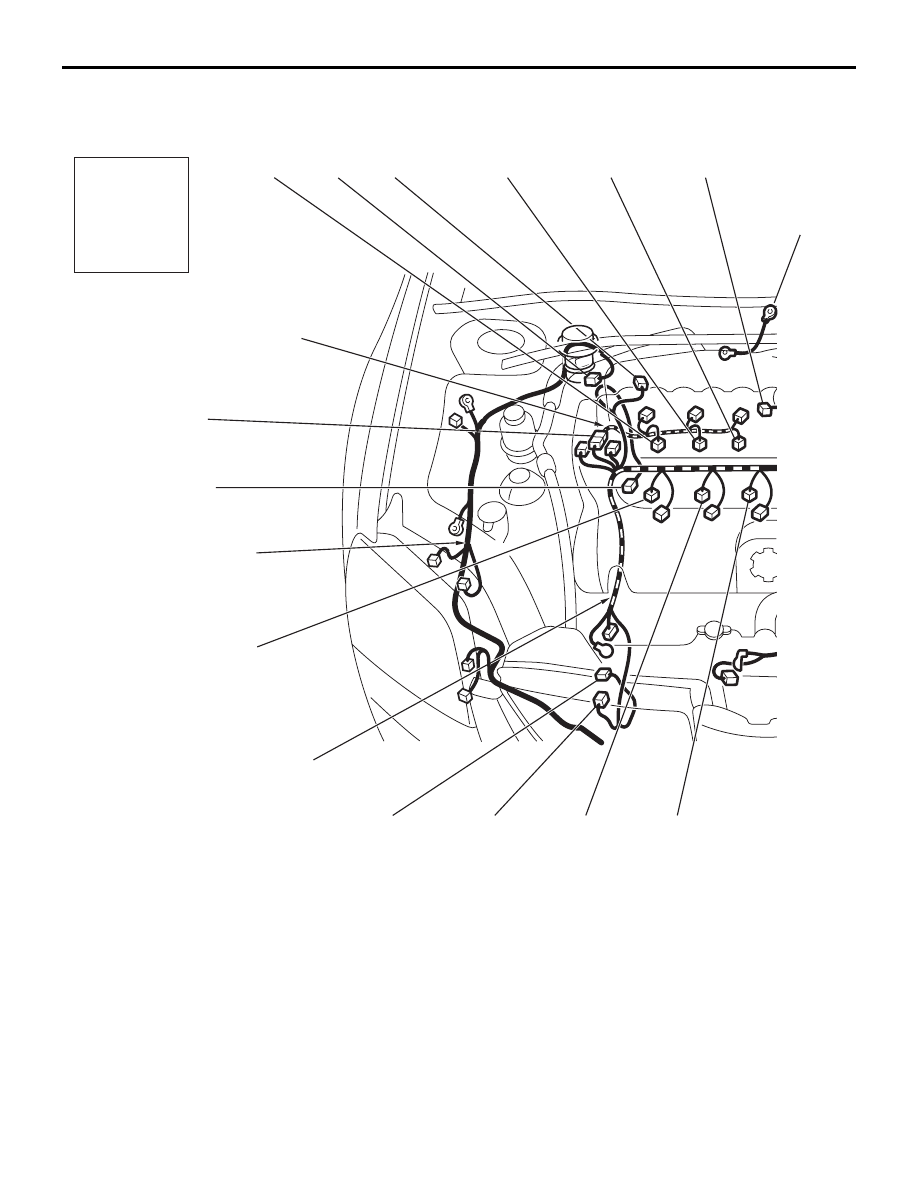

ENGINE AND TRANSMISSION

M1801000401079

37DB236A

CONNECTOR COLOR

CODE

B: BLACK

BR: BROWN

G: GREEN

GR: GRAY

L: BLUE

NONE: MILK WHITE

O: ORANGE

R: RED

V: VIOLET

Y: YELLOW

Connector

symbol

B

INJECTOR

WIRING

HARNESS

CONTROL

WIRING

HARNESS

B-01

B-02

B-03

B-04

B-05

B-32

B-31

B-30

B-29

B-28

B-27

B-26

B-07

FRONT

WIRING

HARNESS

B-01  ->

GROUNDING

CABLE

Body No.

>000250

B-01

(2-GR)

INJECTOR 1

B-02

(3-B)

MANIFOLD ABSOLUTE PRESSURE
SENSOR

B-03

(2-GR)

INJECTOR 3

B-04

(2-GR)

INJECTOR 5

B-05

(2-B)

EVAPORATIVE EMISSION PURGE
SOLENOID

B-06

(6-B)

THROTTLE BODY ASSEMBLY

B-07

(2-GR)

BRAKE FLUID LEVEL SWITCH

B-08

(4-GR)

RIGHT BANK HEATED OXYGEN
SENSOR (REAR)

B-09

(4-B)

RIGHT BANK HEATED OXYGEN
SENSOR (FRONT)

B-10

(5)

MASS AIRFLOW SENSOR

B-16X (4)

A/T CONTROL RELAY

B-17X (4)

MPI RELAY

B-18X (4)

A/C COMPRESSOR CLUTCH RELAY

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-7

20 A

37DB225A

9

10

14

B-06

B-08

B-09

B-10

B-19

B-20

B-21

B-22

B-24

B-25

Connector

symbol

B

B-16X

B-17X

B-18X

ABS FUSIBLE LINK (26)

 SOLENOID VALVE

<-  B-32

GROUNDING

CABLE

Body No.

<000250

B-19

(34)

A/T-ECU

B-20

(60)

ENGINE-ECU

B-21

(94)

ENGINE-ECU

B-22

(26)

A/T-ECU

B-24

(4-GR)

LEFT BANK HEATED OXYGEN
SENSOR (REAR)

B-25

(4-B)

LEFT BANK HEATED OXYGEN
SENSOR (FRONT)

B-26

(2-GR)

INJECTOR 6

B-27

(2-GR)

INJECTOR 4

B-28

(1-B)

A/C COMPRESSOR ASSEMBLY

B-29

(1-B)

ENGINE OIL PRESSURE SWITCH

B-30

(2-GR)

INJECTOR 2

B-31

(1-B)

POWER STEERING PRESSURE
SWITCH

B-32

(10-B)

CONTROL WIRING HARNESS AND
INJECTOR WIRING HARNESS
COMBINATION
