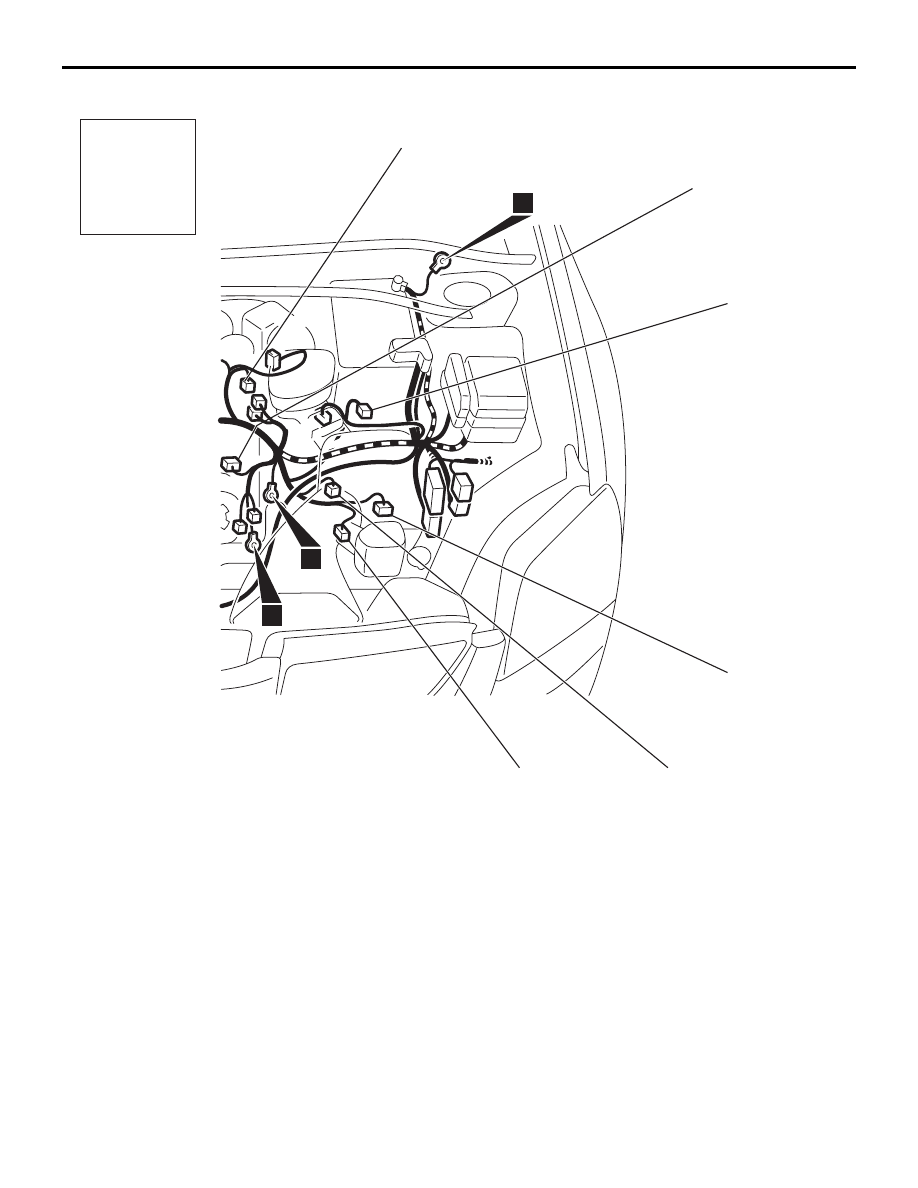

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-8

37DB237A

CONNECTOR COLOR

CODE

B: BLACK

BR: BROWN

G: GREEN

GR: GRAY

L: BLUE

NONE: MILK WHITE

O: ORANGE

R: RED

V: VIOLET

Y: YELLOW

Connector

symbol

B

INJECTOR

WIRING

HARNESS

CONTROL

WIRING

HARNESS

B-101

B-102

B-103

B-120

B-119

B-118

B-117

B-116

B-115

B-114

B-113

B-112

B-101  ->

B-101 (3-GR)

IGNITION COIL 1

B-102 (3-GR)

IGNITION COIL 3

B-103 (3-GR)

IGNITION COIL 5

B-104 (2-B)

ENGINE COOLANT TEMPERATURE
SENSOR

B-106 (3-B)

CAMSHAFT POSITION SENSOR

B-107 (3-GR)

OUTPUT SHAFT SPEED SENSOR

B-108 (10-GR) A/T CONTROL SOLENOID VALVE

ASSEMBLY

B-109 (3-B)

INPUT SHAFT SPEED SENSOR

B-110 (10-B)

TRANSMISSION INHIBITOR
(RANGE) SWITCH

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-9

37DB226A

9

10

14

B-104

B-106

B-107

B-108

B-109

B-110

Connector

symbol

B

<-  B-120

B-112 (1)

STARTER

B-113 (1-B)

STARTER

B-114 (3-GR)

IGNITION COIL 6

B-115 (1)

ALTERNATOR

B-116 (2)

ALTERNATOR

B-117 (3-GR)

IGNITION COIL 4

B-118 (3-GR)

IGNITION COIL 2

B-119 (3-B)

CRANKSHAFT POSITION SENSOR

B-120 (2-GR)

KNOCK SENSOR

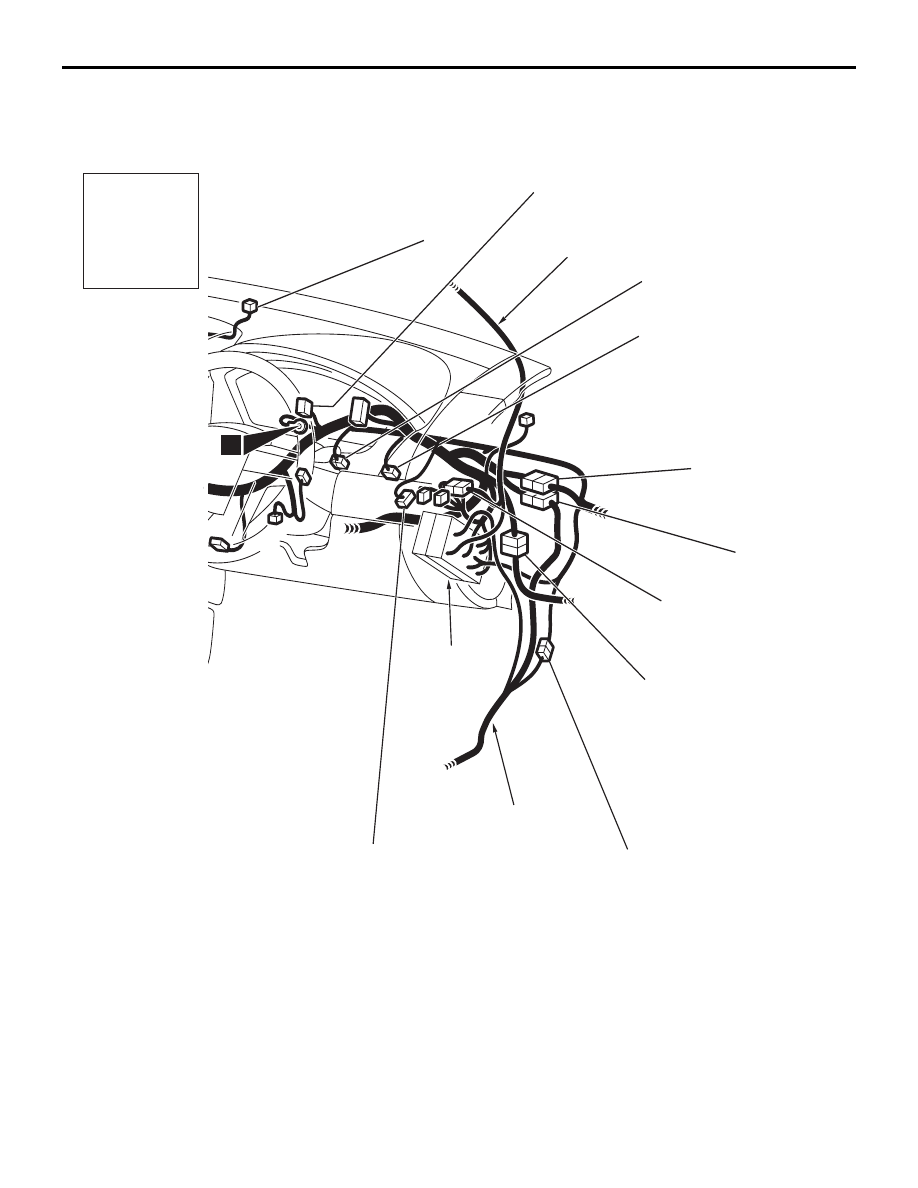

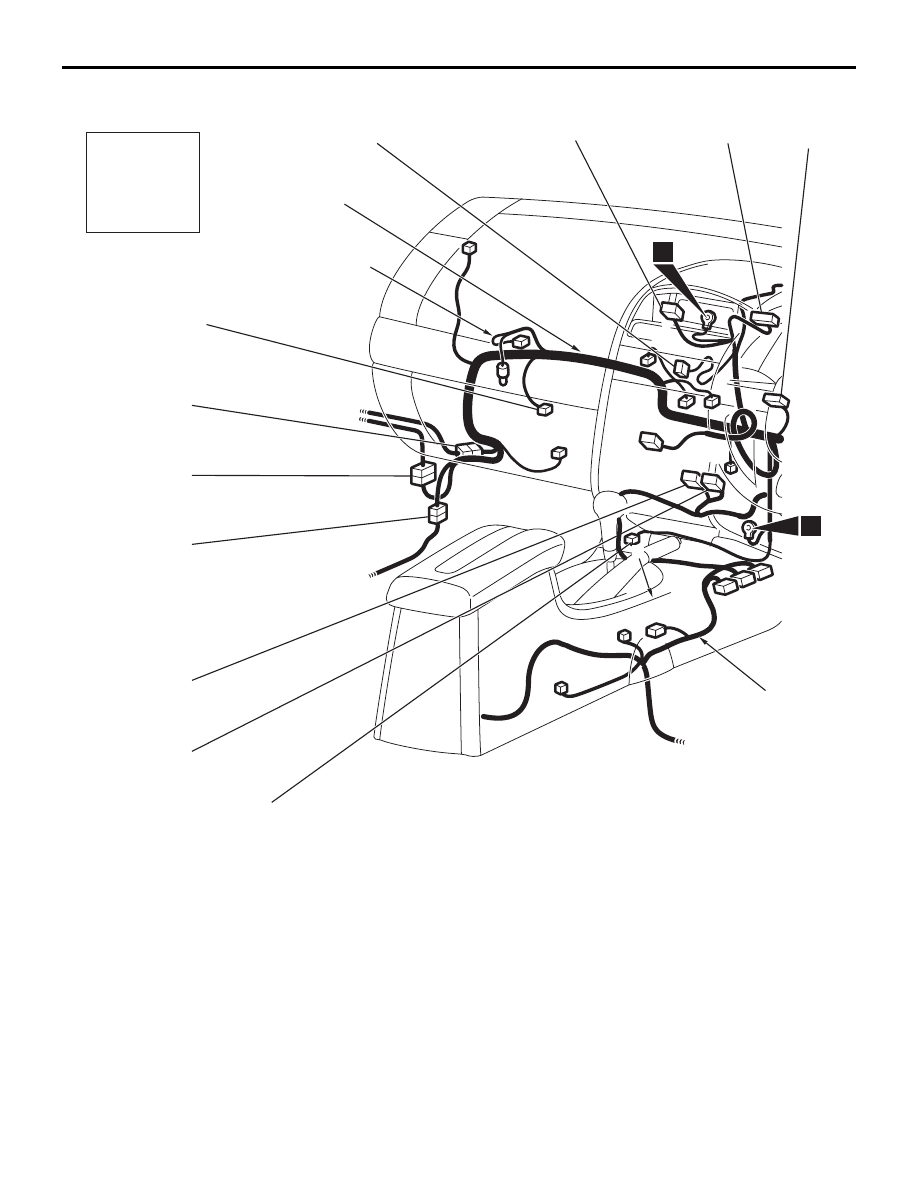

DASH PANEL

CONFIGURATION DIAGRAMS

80-10

DASH PANEL

M1801000601147

37DB220A

CONNECTOR COLOR

CODE

B: BLACK

BR: BROWN

G: GREEN

GR: GRAY

L: BLUE

NONE: MILK WHITE

O: ORANGE

R: RED

V: VIOLET

Y: YELLOW

Connector

symbol

C

ROOF WIRING

HARNESS

JUNCTION

BLOCK

FLOOR WIRING

HARNESS

6

C-02

C-04

C-24

C-25

C-27

C-28

C-29

C-30

C-12

C-02  ->

C-07

C-02

(22)

J/C (3)

C-04

(4)

PHOTO SENSOR <A/C> AND
SECURITY LED

C-05

(20-B)

MULTI CENTRE DISPLAY UNIT

C-06

(4)

CLOCK DISPLAY <WITHOUT MULTI
CENTRE DISPLAY>

C-07

(2)

CLUTCH SWITCH (M/T)

C-08

(4)

HAZARD WARNING LIGHT SWITCH

C-11

(2)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATION

C-12

(22)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR
WIRING HARNESS (RH)
COMBINATION

C-13

(8)

INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION

C-15

(20-B)

A/C-ECU

C-16

(16-B)

A/C-ECU

C-17

(2)

ACCESSORY SOCKET (1)

DASH PANEL

CONFIGURATION DIAGRAMS

80-11

37DB221A

Y

INSTRUMENT PANEL

WIRING HARNESS

Y

5

3

C-05

C-08

C-11

C-13

C-15

C-16

C-17

C-26

C-06

C-21

Connector

symbol

C

<-  C-32

FLOOR WIRING

HARNESS

C-32

C-21

(2)

TRUNK OPEN SWITCH

C-24

(6-B)

ACCELERATOR PEDAL POSITION
SENSOR

C-25

(16)

FRONT WIRING HARNESS AND
FLOOR WIRING HARNESS
COMBINATION

C-26

(14)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR
WIRING HARNESS (LH)
COMBINATION

C-27

(4)

INSTRUMENT PANEL WIRING
HARNESS AND ROOF WIRING
HARNESS COMBINATION

C-28

(43)

INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION

C-29

(38)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATION

C-30

(4)

STOPLAMP SWITCH

C-32

(6)

MODE SELECT SWITCH
