Mitsubishi 380. Manual - part 136

REAR SEAT BACK TRIM COVER

INTERIOR

52A-52

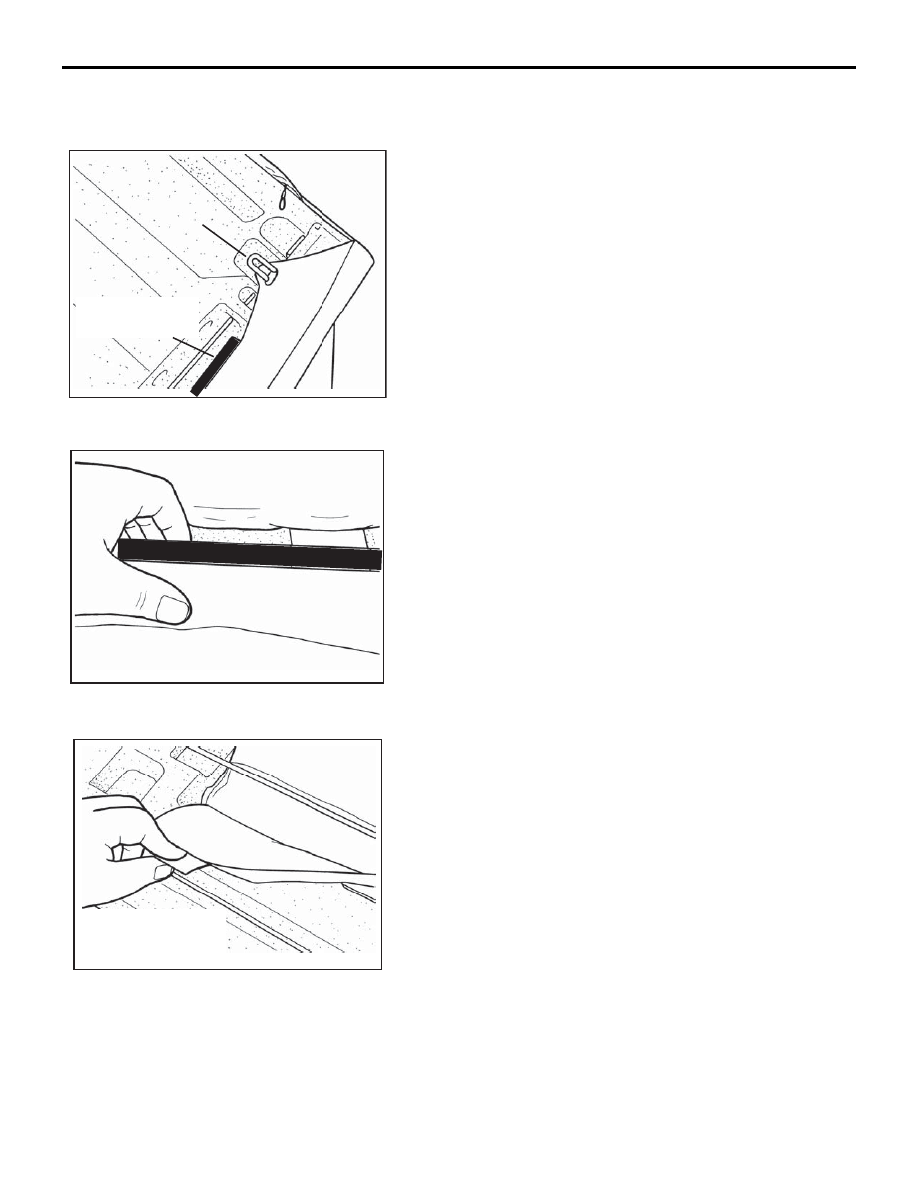

4. Reattach the upper trim holding points including the plastic

clips.

5. Attach the centre lower trim hold points.

6. Attach the clips around the arm rest as shown.

Reattach plastic
clips over wire

Holding
Point

19DB046A

Seat Cover
     Trim

Cushion Pad

19DB047A

Bring lower arm rest trim
panel through this gap
and clip to wire

19DB048A

REAR SEAT BACK TRIM COVER

INTERIOR

52A-53

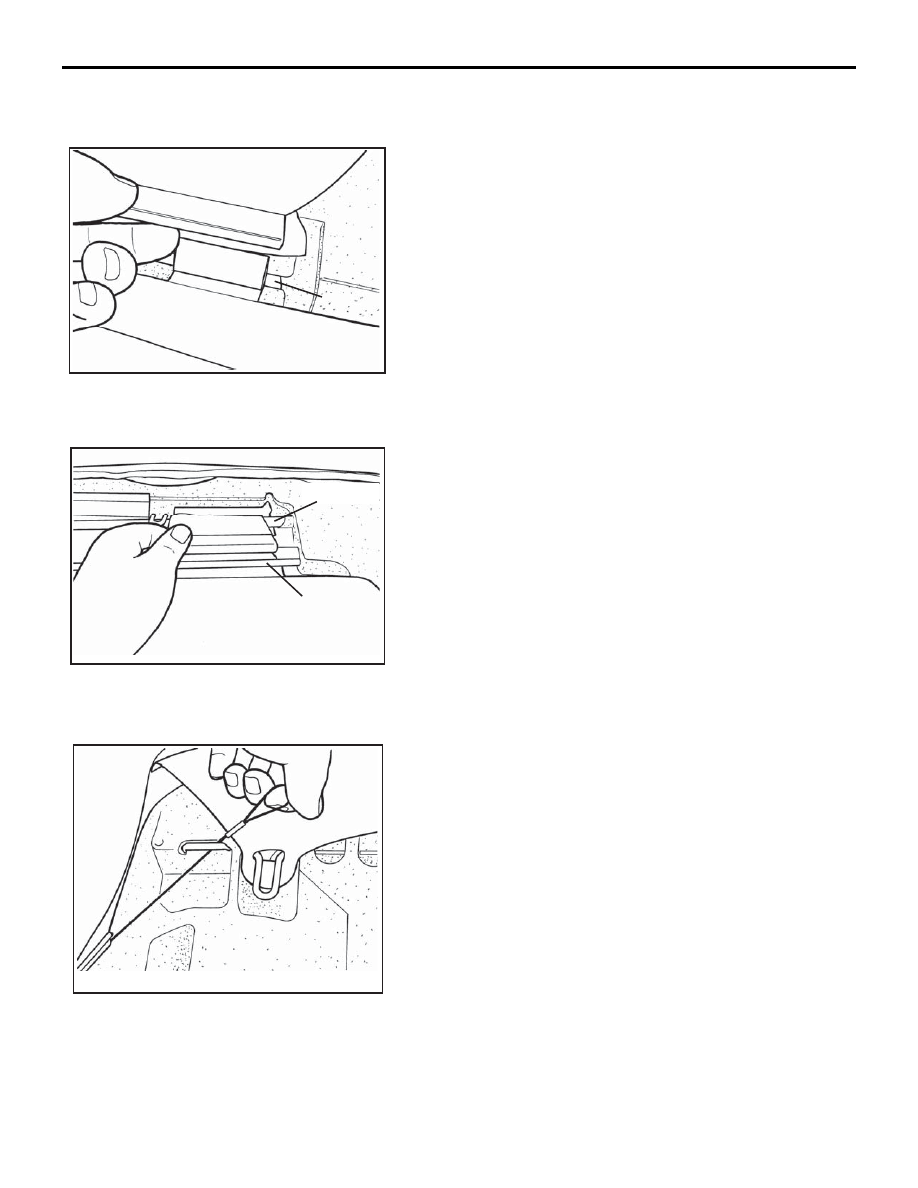

7. Pull inner lower arm rest trim through the hole and clip to

retainer attached to the lower part of the trim cover.

8. Pull the upper arm rest trim through the hole over the large

wire and clip to the small wire as shown.

9. Pull the draw string and attach to the wire attachment points

shown.

WIRE

Lower part of
trim cover

Inner lower arm rest trim

19DB049A

Large Wire

Small Wire

Seat Cover Trim

19DB050A

19DB041A

REAR SEAT BACK TRIM COVER

INTERIOR

52A-54

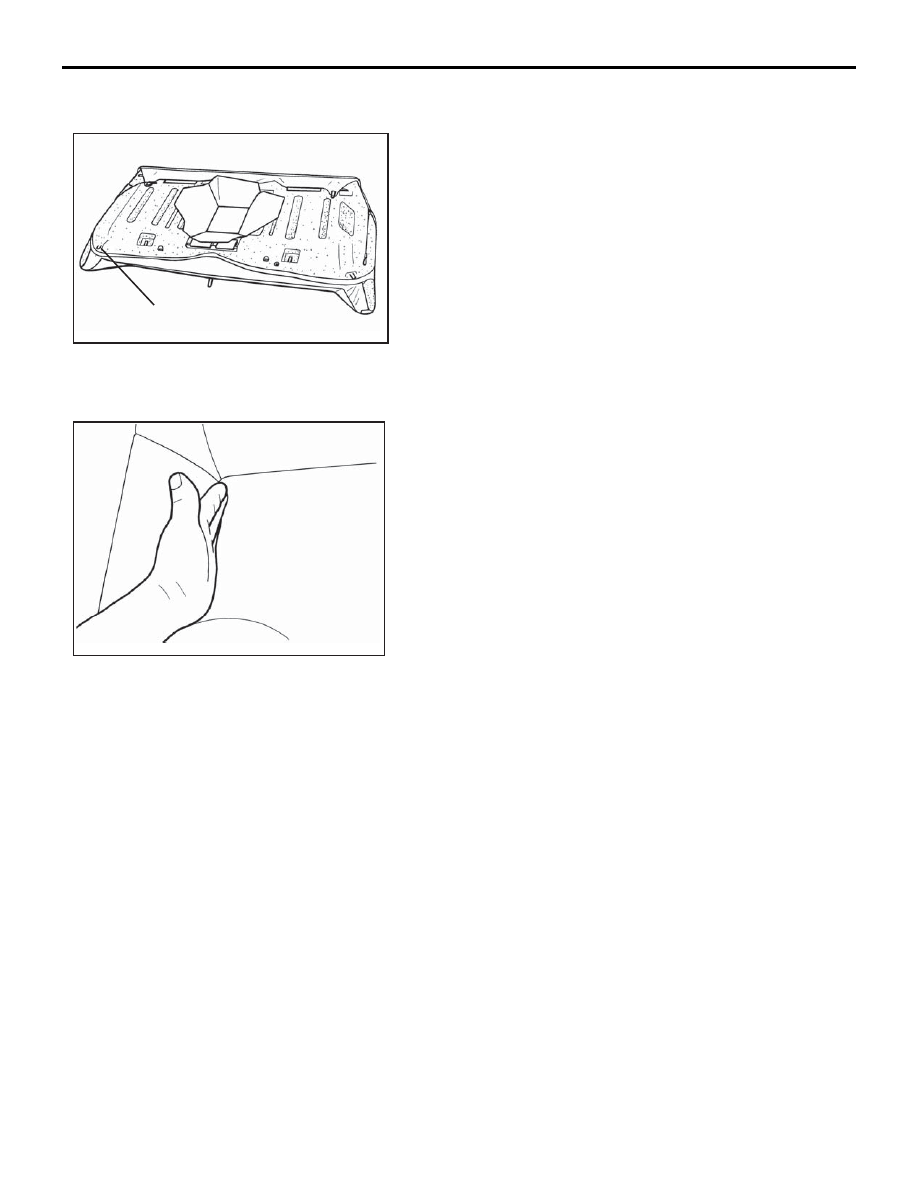

10.Attach all the outer trim attachment points.

11.Work in all the seams, and adjust as required to remove any

creases.

12.Fit seat back to vehicle in reverse order of removal.

19DB051A

Outer trim attachment points

19DB040A

REAR SEAT ASSEMBLY

INTERIOR

52A-55

REAR SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522001800297

INSTALLATION SERVICE POINTS

.

>>A<< INSTALLATION OF REAR SEATBACK
ASSEMBLY

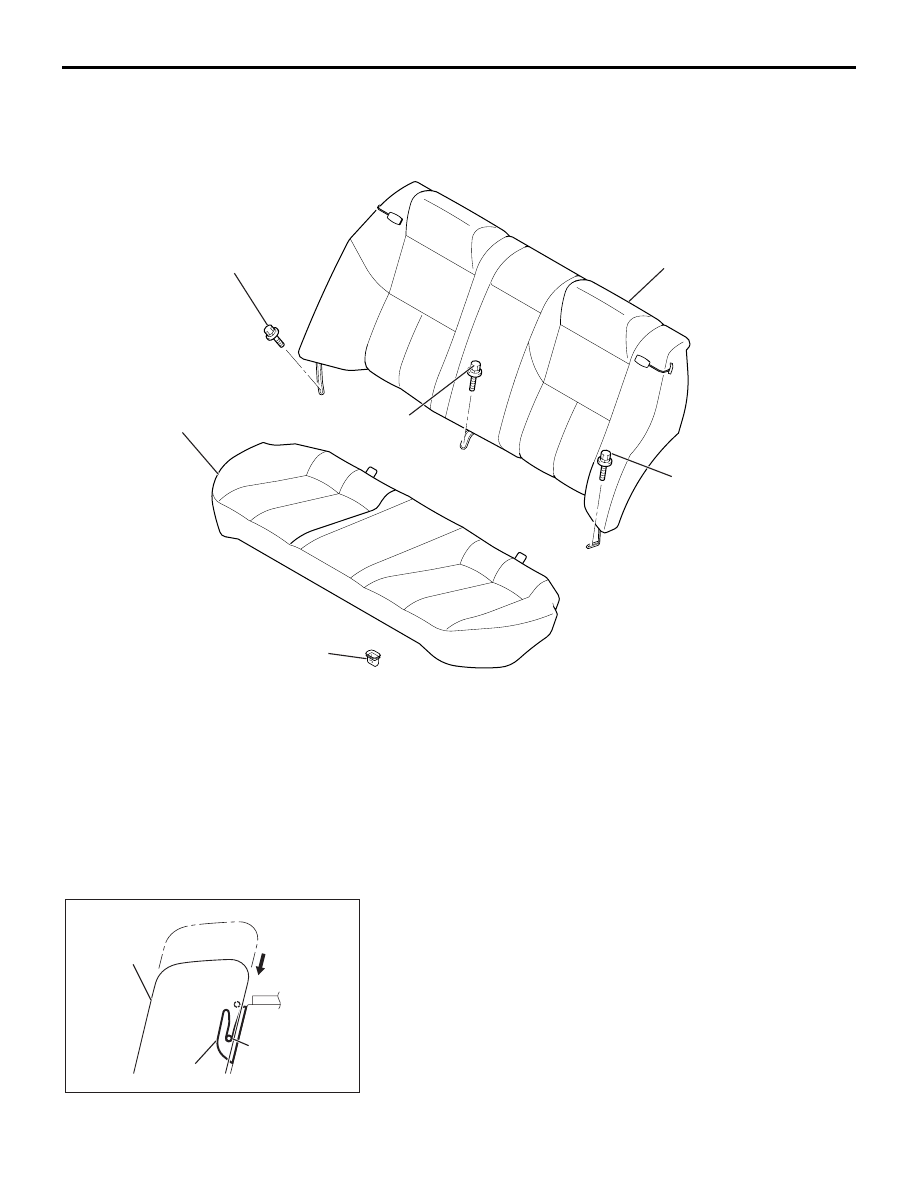

Press the rear seatback assembly in the direction shown in the
illustration and fit the attachment wire into the hook securely to
install the rear seatback assembly.Confirm that back is hooked
and secured by pulling forward.

.

AC306948

1

3

2

22 ± 4 N·m
16 ± 3 ft-lb

22 ± 4 N·m
16 ± 3 ft-lb

22 ± 4 N·m
16 ± 3 ft-lb

AB

REMOVAL STEPS

>>B<<

1.

REAR SEAT CUSHION
ASSEMBLY

>>A<<

2.

REAR SEATBACK ASSEMBLY

3.

REAR SEAT HOOK

REMOVAL STEPS (Continued)

AC005519AG

HOOK

REAR
SEATBACK
ASSEMBLY

ATTACHMENT
WIRE
