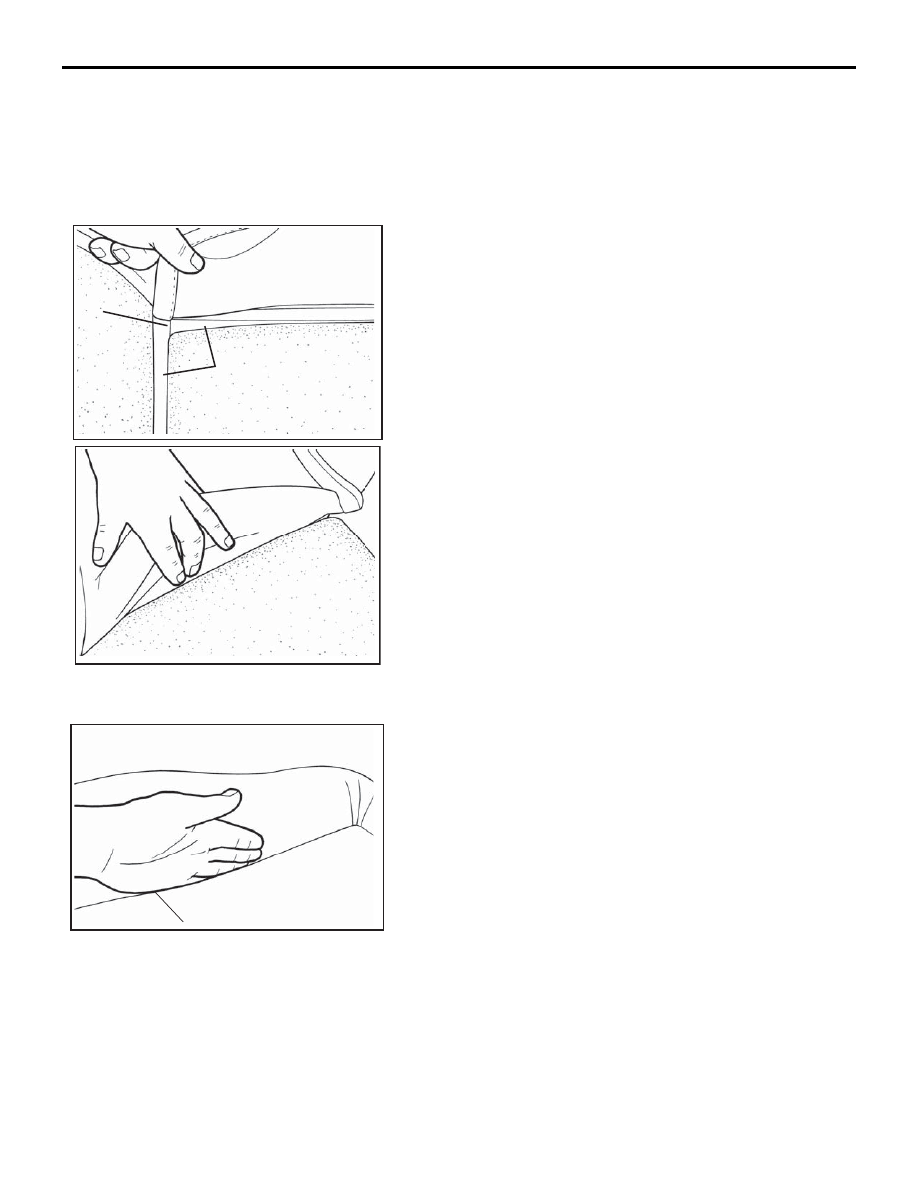

FRONT SEAT TRIM COVER

INTERIOR

52A-44

FITMENT

.

1. Locate the new trim onto the pad by aligning the Velcro strip

with the grooves. Use an intersection in order to align both
directions. Whenever possible work from the centre of the
trim toward the outside.

2. Push the Velcro strips into place along all the grooves.

19DB027A

BLUE VELCRO
STRIP

Align trim velcro
in the pad grooves

Intersection

SEAT TRIM

19DB028A

SEAT TRIM

SEAT CUSHION PAD

19DB029A

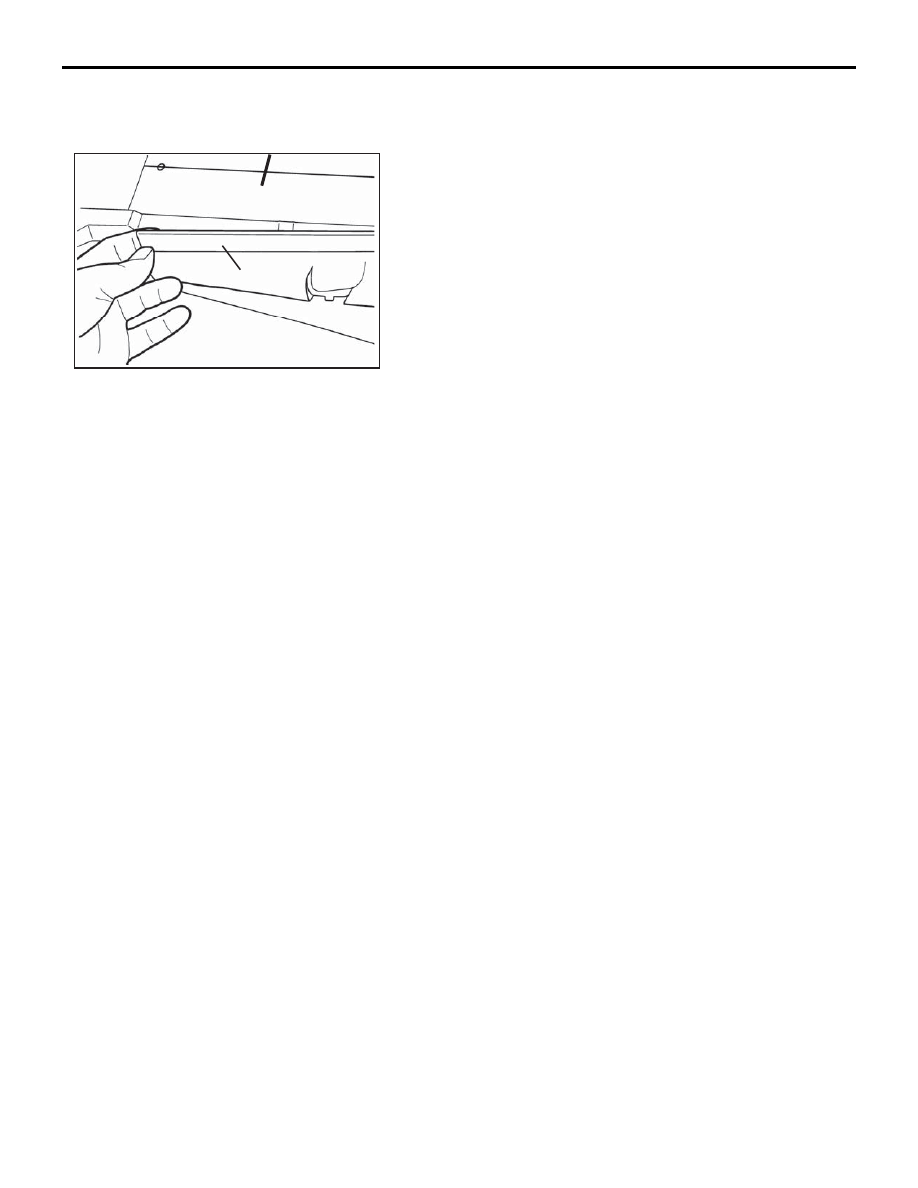

FRONT SEAT TRIM COVER

INTERIOR

52A-45

3. Pull the cover over the outside of the pad and reattach the

retaining clips where required.

NOTE: It may be necessary to make some adjustment and
work the cover into position to remove creases. Reassemble
seat and fit to vehicle.

19DB030A

Seat trim
retaining clip

Underneath seat

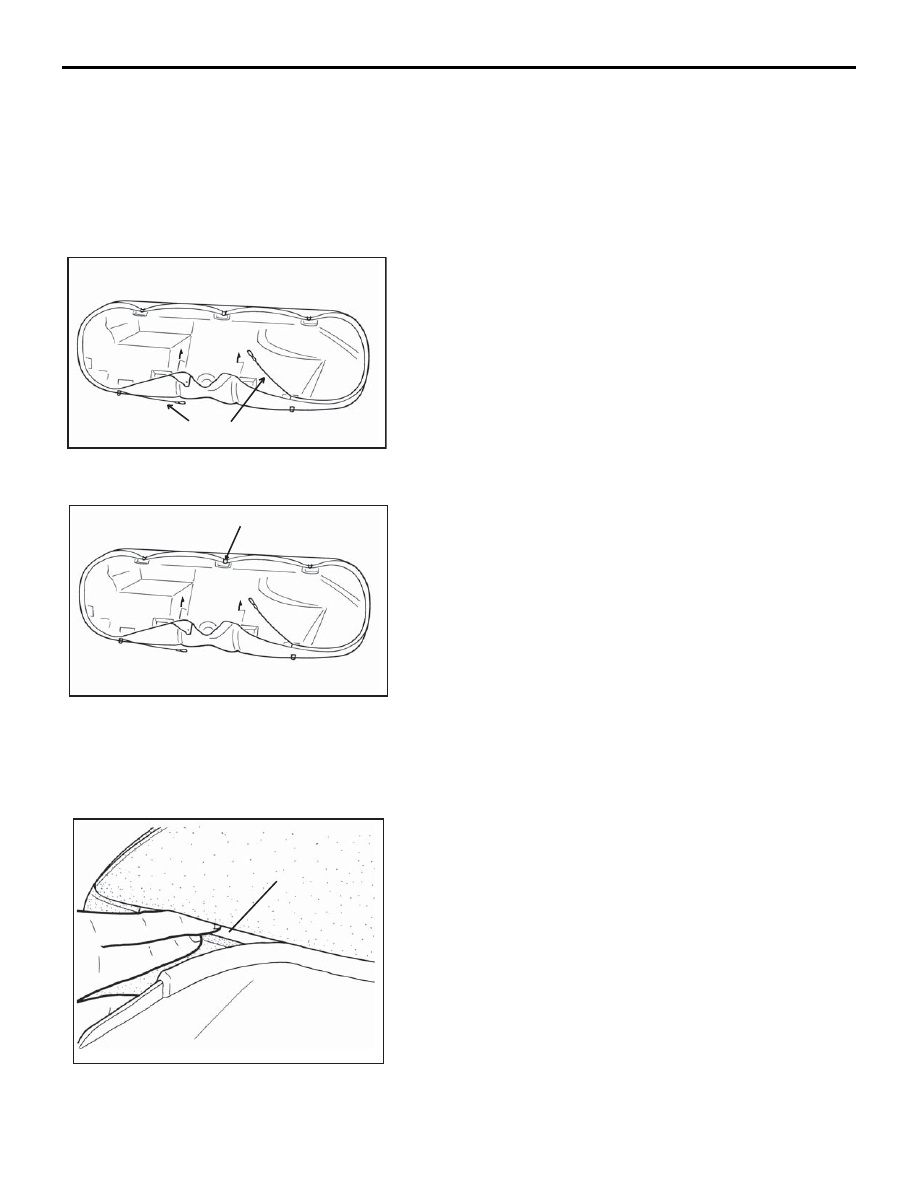

REAR SEAT CUSHION TRIM COVER

INTERIOR

52A-46

REAR SEAT CUSHION TRIM COVER

REMOVAL AND  FITMENT

REAR SEAT CUSHION TRIM REMOVAL

.

1. Remove rear seat cushion from vehicle.

2. Release the trim cover draw string.

3. Release all outer cover attachment points.

4. Peel cover away from the foam pad.

NOTE: Place a finger on the Blue Velcro strip when peeling
the cover to prevent the strip being pulled out of the foam
pad.

Draw String

19DB032A

Outer Attachments

19DB033A

Blue Velcro Strip

19DB034A

Seat Trim Cover

REAR SEAT CUSHION TRIM COVER

INTERIOR

52A-47

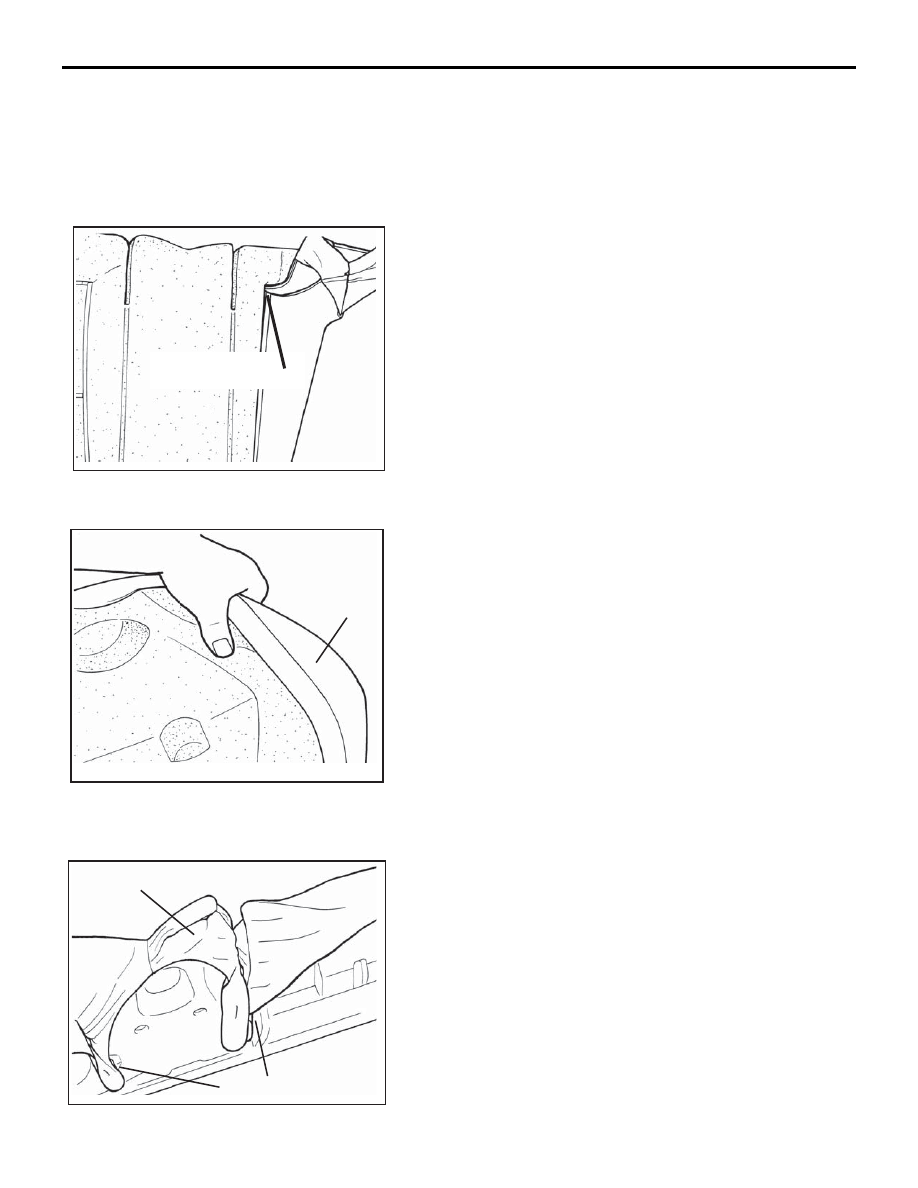

REAR SEAT CUSHION TRIM FITMENT

.

1. Locate the new trim onto the pad by aligning the Velcro strip

with the grooves. Use an intersection in order toalign both
directions. Whenever possible work from the centre of the
trim toward the outside.

2. Pull the cover around the sides of the pad.

3. Pull trim through the seat belt slots as shown and attach to

wires

19DB035A

Align trim at internal
corner of pad shown here

19DB036A

Cushion Pad

Seat Trim
Cover

19DB037A

Cushion Pad

Trim Cover

Seat Belt slots
