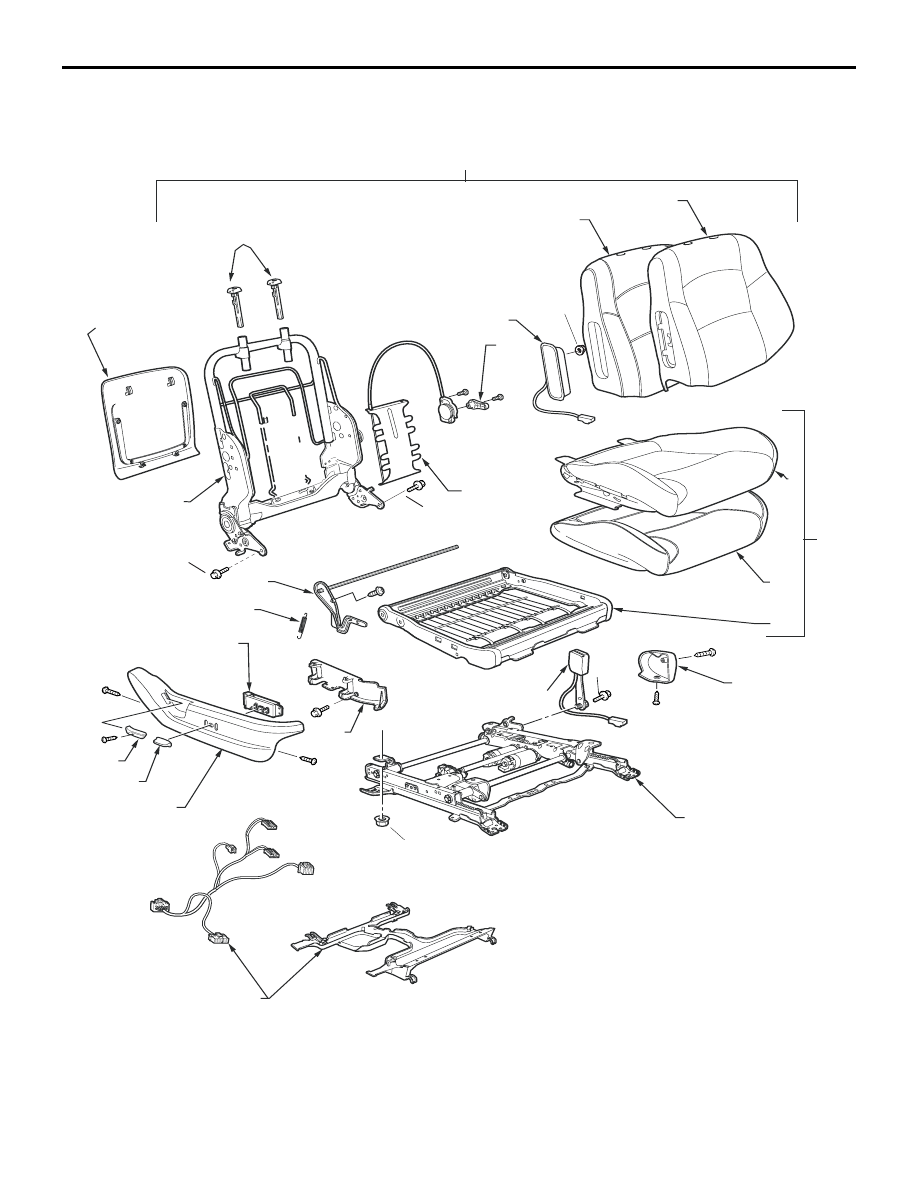

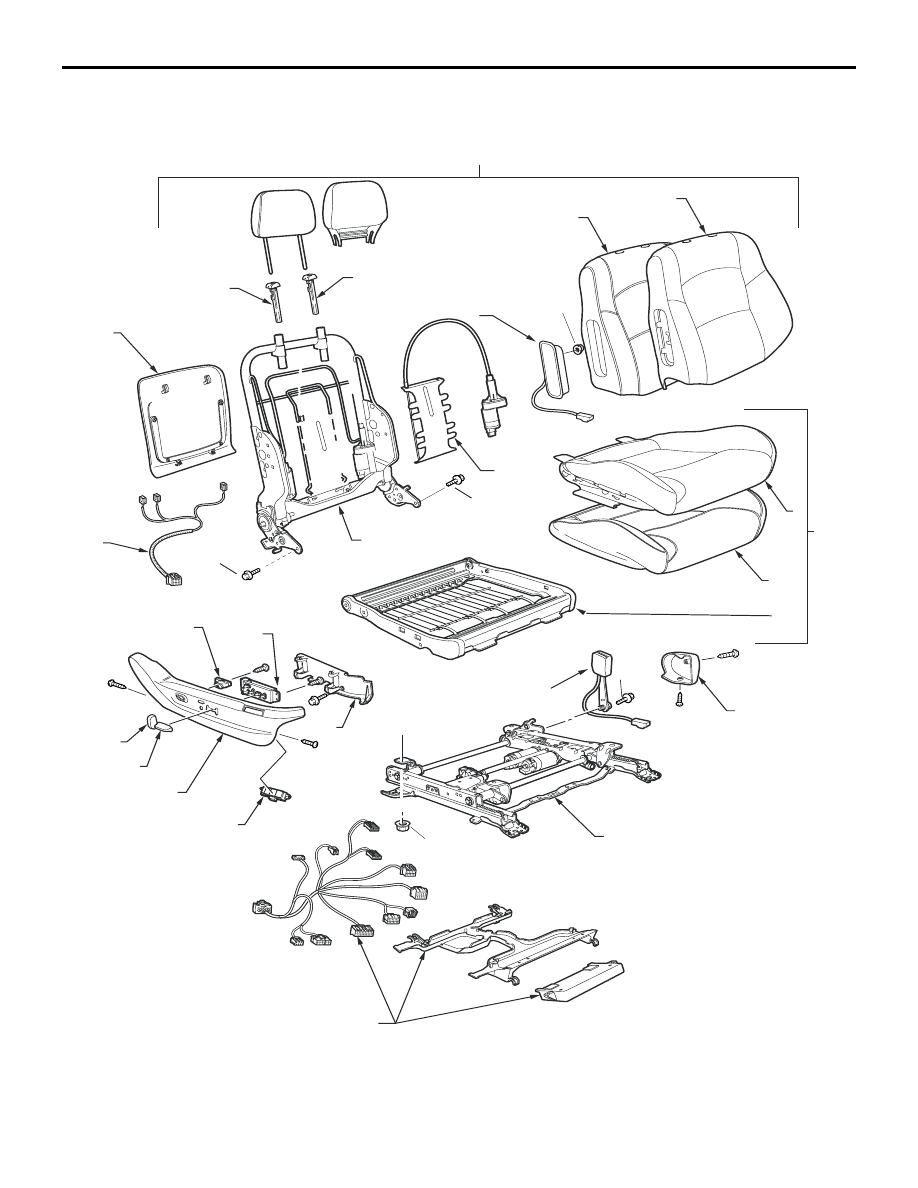

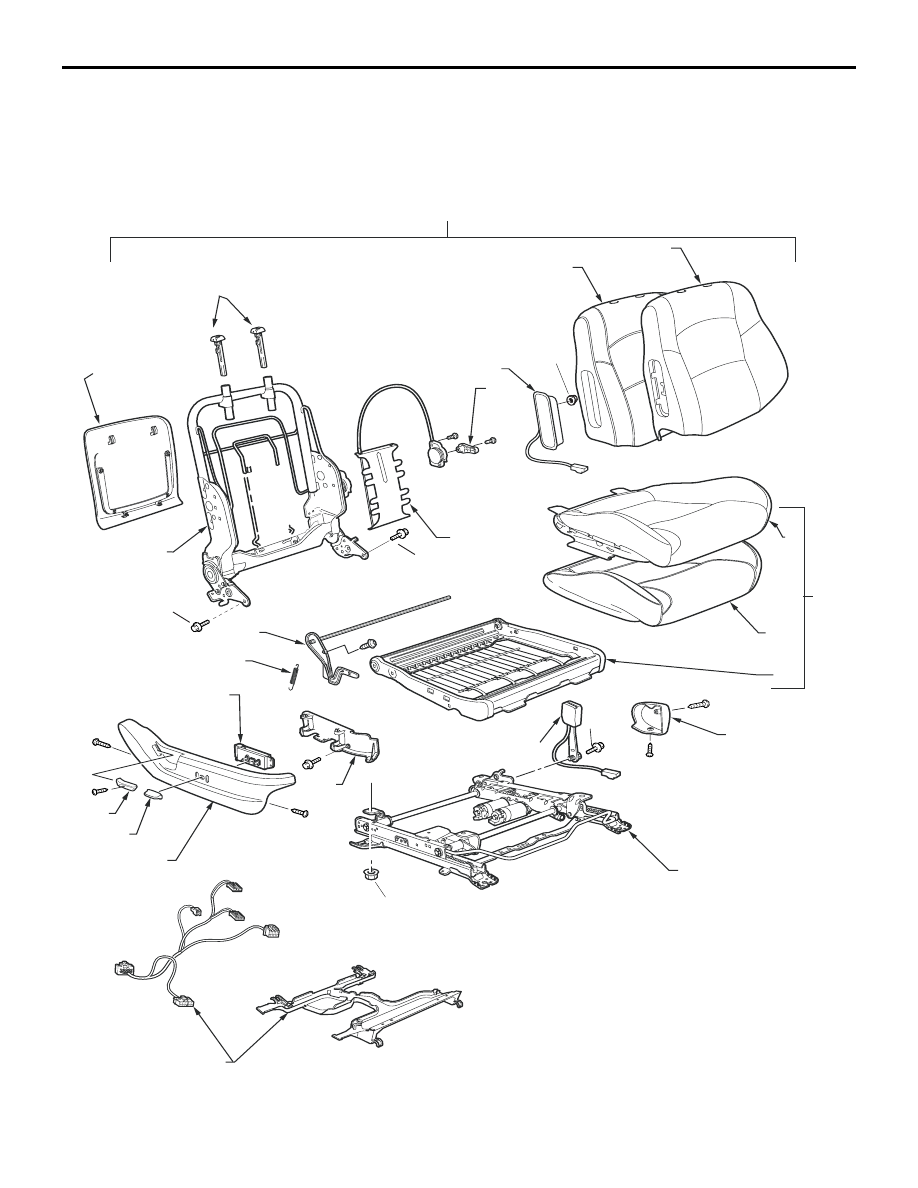

FRONT SEAT ASSEMBLY
INTERIOR
52A-32
CIRCUIT DIAGRAMS:
• Refer to circuit diagrams GROUP-
• Refer to configuration diagrams GROUP-
NOTE: Check connectors and terminals for damage or
loose connections at the seat harness and all supply
circuits connections to seat. Repair or replace wiring
harness if damaged.
ERASING DIAGNOSTIC TROUBLE CODES (DTC’s)
The Memory Seat Controller will temporarily store DTC’s when
incorrect operating conditions are detected. The DTC’s are
self-clearing as soon as each fault condition is rectified and
returns to normal operating function.
LED FLASH
SEQUENCE
FAULT CONDITION
DETECTED
POSSIBLE CAUSE
2 then 1
No fore lift motor sensor
Connection at motor sensor
or open/ short circuit in
wiring harness.
2 then 2
No aft lift motor sensor
Connection at motor sensor
or open/ short circuit in
wiring harness.
2 then 3
No track motor sensor
Connection at motor sensor
or open/ short circuit in
wiring harness.
2 then 4
No pedal motor sensor
Connection at motor sensor
or open/ short circuit in
wiring harness.
2 then 5
No recliner motor sensor
Connection at motor sensor
or open/ short circuit in
wiring harness.
2 then 6
No lumbar motor sensor
Connection at motor sensor
or open/ short circuit in
wiring harness.
3 then 1
Button stuck MEMORY
Button switch cap stuck on
side cover
3 then 2
Manual Button stuck position
Button switch cap stuck on
side cover
6 then 3
Power relay welded shut
Grime on contact
