FRONT SEAT ASSEMBLY

INTERIOR

52A-28

ACTIVATION OF A MEMORY RECALL

All memory button seat position recalls will be refused while the
vehicle is in any other gear select position other than "PARK" or
"NEUTRAL". Memory recalls are also disabled if vehicle is in
"PARK" or "NEUTRAL" but the vehicle speed is greater than
15km/h (see table below).

  IGNITION

    PARK

  NEUTRAL

   >15km/h

MEMORY
RECALL
POSSIBLE

        N

         X

         X

         N

           Y

        N

         X

         X

         Y

           N

        Y

         N

         N

         X

           N

        Y

         Y

         N

         N

           Y

        Y

         Y

         N

         Y

           N

        Y

         N

         Y

         N

           Y

        Y

         N

         Y

         Y

           N

FRONT SEAT ASSEMBLY

INTERIOR

52A-29

OPERATION CHECK OF POWER SEAT MOTOR

CIRCUIT DIAGRAMS:

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

NOTE: Check connectors and terminals for damage or
loose connections at the seat harness and all supply
circuits connections to seat. Repair or replace wiring
harness if damaged.

            MOTOR

       DESCRIPTION

TERMINAL

    MEASUREMENT

TRACK/ SLIDE MOTOR

BACKWARD

1

MOTOR ON= 12V

MOTOR OFF = GROUND.

FORWARD

2

MOTOR ON= 12V

MOTOR OFF = GROUND.

FRONT LIFT MOTOR

UP

1-  non memory
5-  memory

MOTOR ON= 12V

MOTOR OFF = GROUND.

DOWN

5-  non memory
1-  memory

MOTOR ON= 12V

MOTOR OFF = GROUND.

REAR LIFT MOTOR

UP

1

MOTOR ON= 12V

MOTOR OFF = GROUND.

DOWN

5

MOTOR ON= 12V

MOTOR OFF = GROUND.

RECLINER MOTOR

FORWARD

1

MOTOR ON= 12V

MOTOR OFF = GROUND.

BACKWARD

5

MOTOR ON= 12V

MOTOR OFF = GROUND.

LUMBAR MOTOR

SOFTER

1

MOTOR ON= 2.5V - 5V

MOTOR OFF = GROUND.

HARDER

2

MOTOR ON= 2.5V - 5V

MOTOR OFF = GROUND.

FRONT SEAT ASSEMBLY

INTERIOR

52A-30

1.If abnormality was found, check the power seat
adjuster assembly.

CIRCUIT DIAGRAMS:

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

NOTE: Check connectors and terminals for damage or
loose connections at the seat harness and all supply
circuits connections to seat. Repair or replace wiring
harness if damaged.

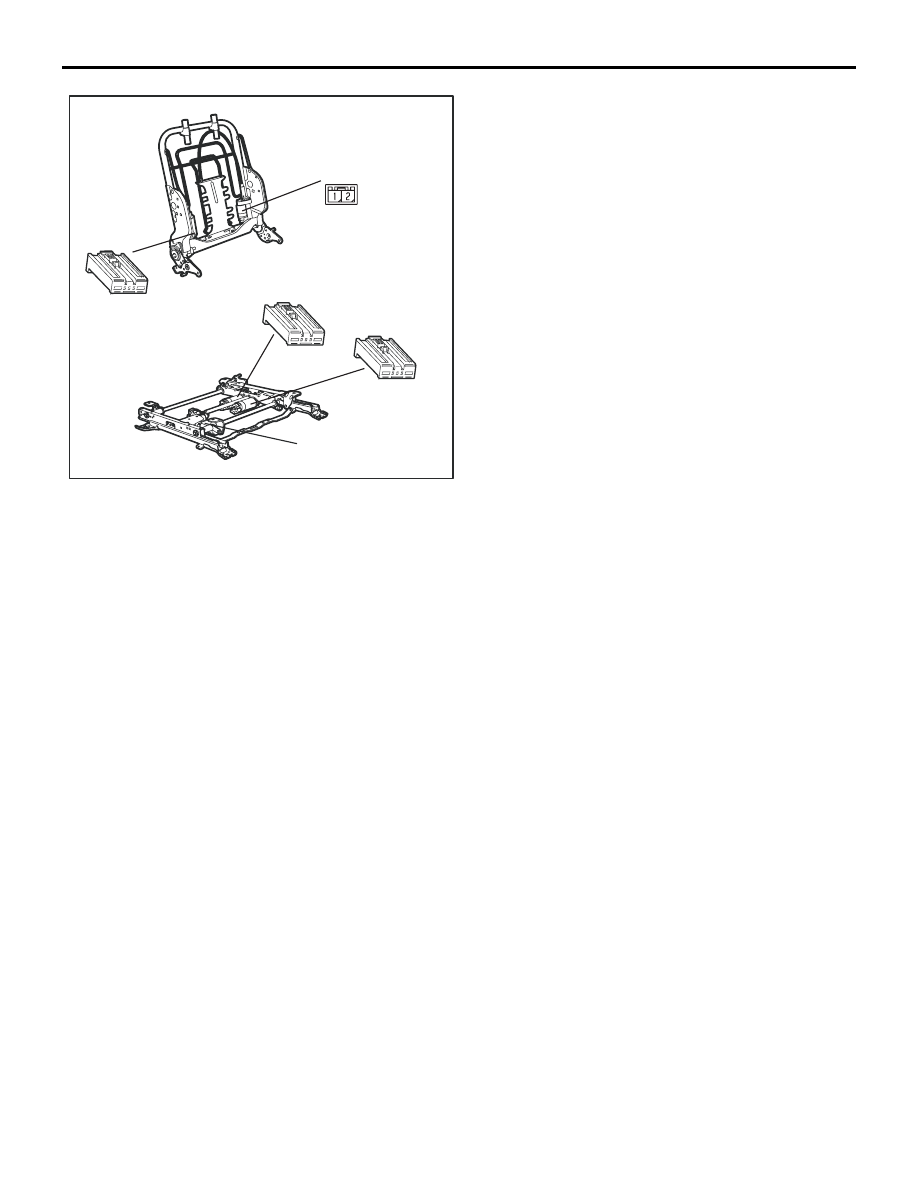

19DB023A

FRONT LIFT MOTOR
CONNECTOR (D-25-1)
   (WHITE)

REAR LIFT MOTOR
CONNECTOR (D-25-2)
      (BLACK)

RECLINER MOTOR
CONNECTOR (D-25-4)

LUMBAR MOTOR
CONNECTOR

TRACK/ SLIDE MOTOR
CONNECTOR (D-25-3)

FRONT SEAT ASSEMBLY

INTERIOR

52A-31

FAULT DIAGNOSIS

MEMORY SEAT CONTROLLER (MSC)

OPERATION OF DIAGNOSTICS:

The memory seat controller (MSC) stores specific fault codes
for all functions of the (MSC). The diagnostics are specifically
used to identify faults within the seat assembly, and as such will
hinder the operation of the seat.
When a fault is detected in the (MSC), the system will automat-
ically enter into diagnostic mode.
The indicator lamp (LED) will begin to flash in certain sequence
to indicate a diagnostic trouble code (DTC) as shown in the
table below. The indicator lamp (LED) will stop flashing when
the faults have been resolved.

DIAGNOSTIC TROUBLE CODES (DTC’s)

The indicator lamp (LED) transmits a certain sequence flash to
distinguish faults.The DTC sequence for the most recent cur-
rent trouble is flashed twice only. If there are multiple faults
present, you can display the next current DTC by pressing the
memory button 2 before the MSC goes into the sub-active
mode. Once all DTC’s have been cycled through, the most
recent current DTC will be displayed. There will be no history of
DTC’s displayed.

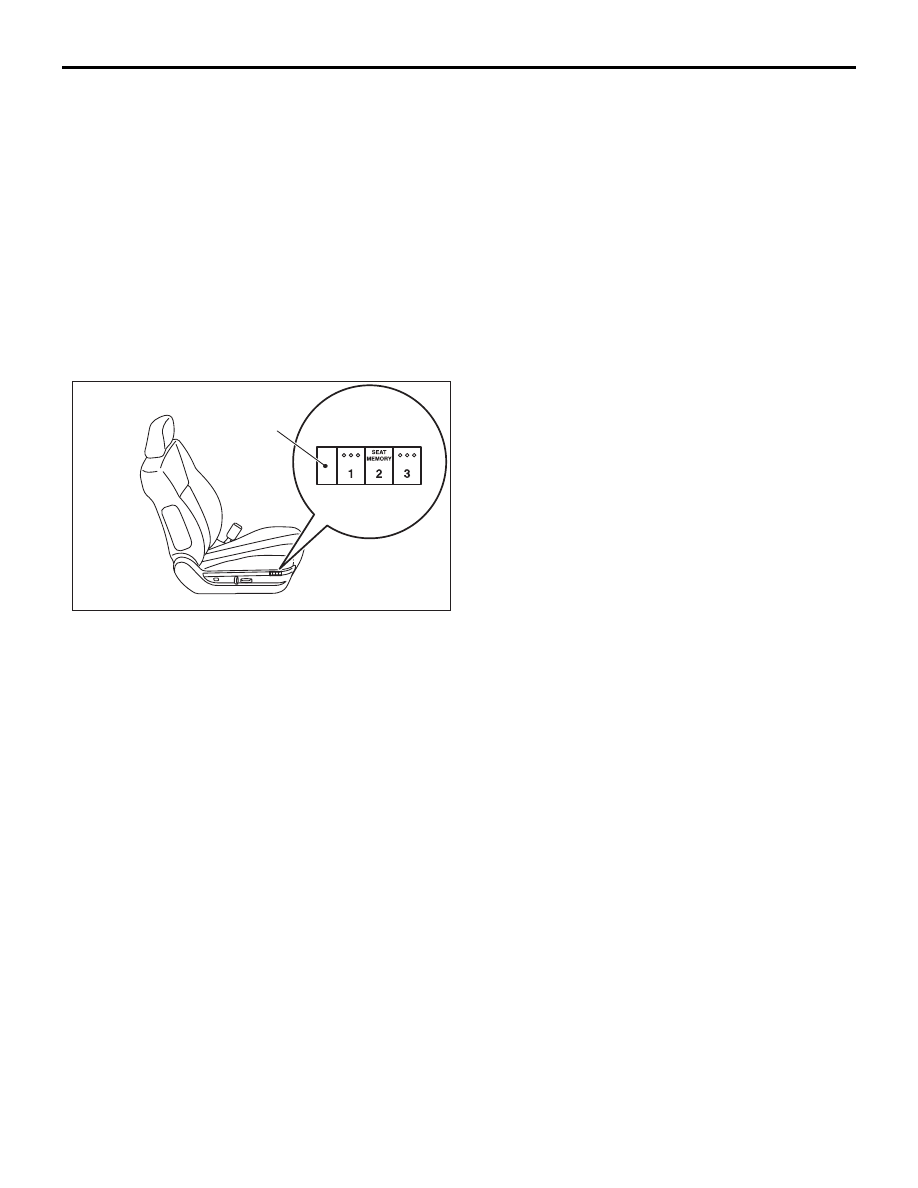

Indicator lamp
    (LED)

19DB022A
