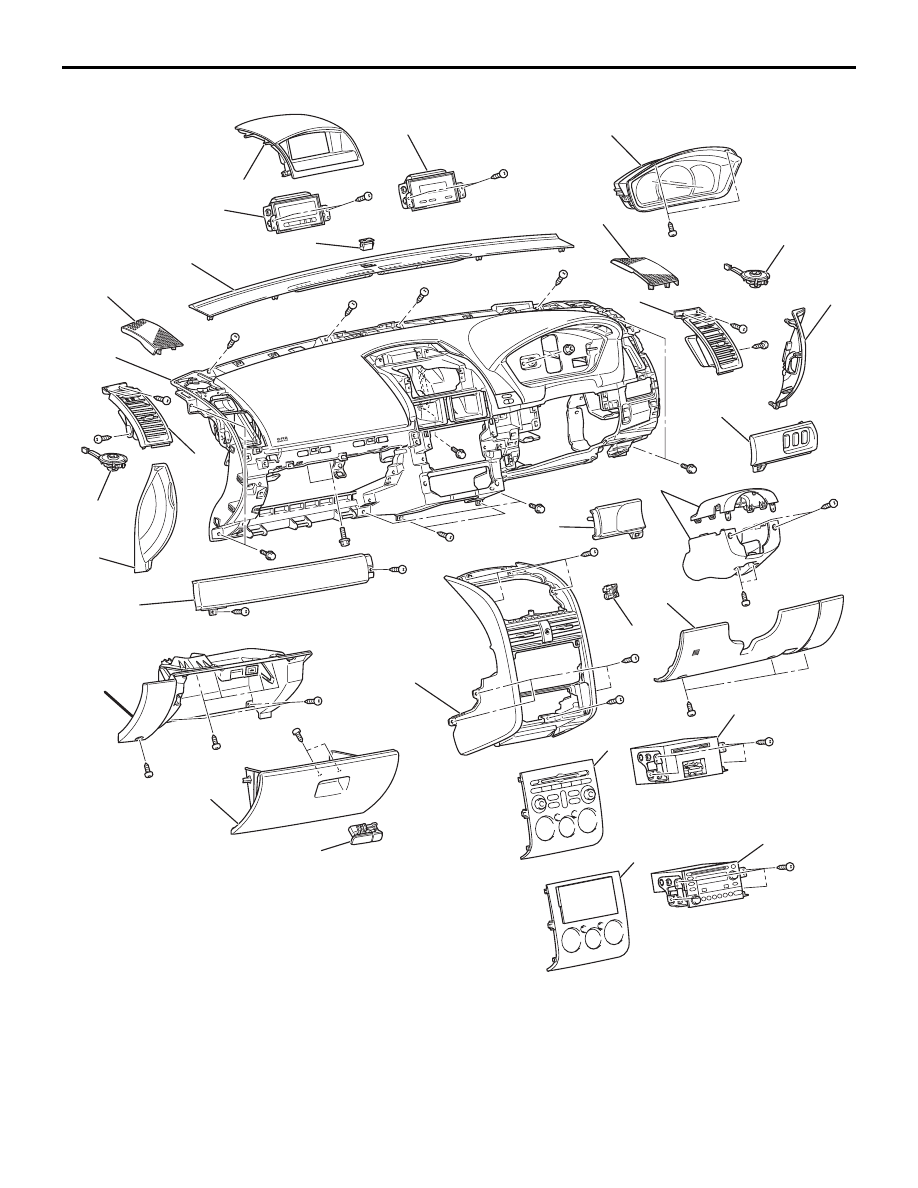

INSTRUMENT PANEL ASSEMBLY

INTERIOR

52A-4

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

M1521001700684

CAUTION

• Refer to GROUP 52B, SRS Service Precautions

P.52B-16

 and Air bag Module and Clock Spring

P.52B-237

 before removing the passenger side air bag module.

• Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

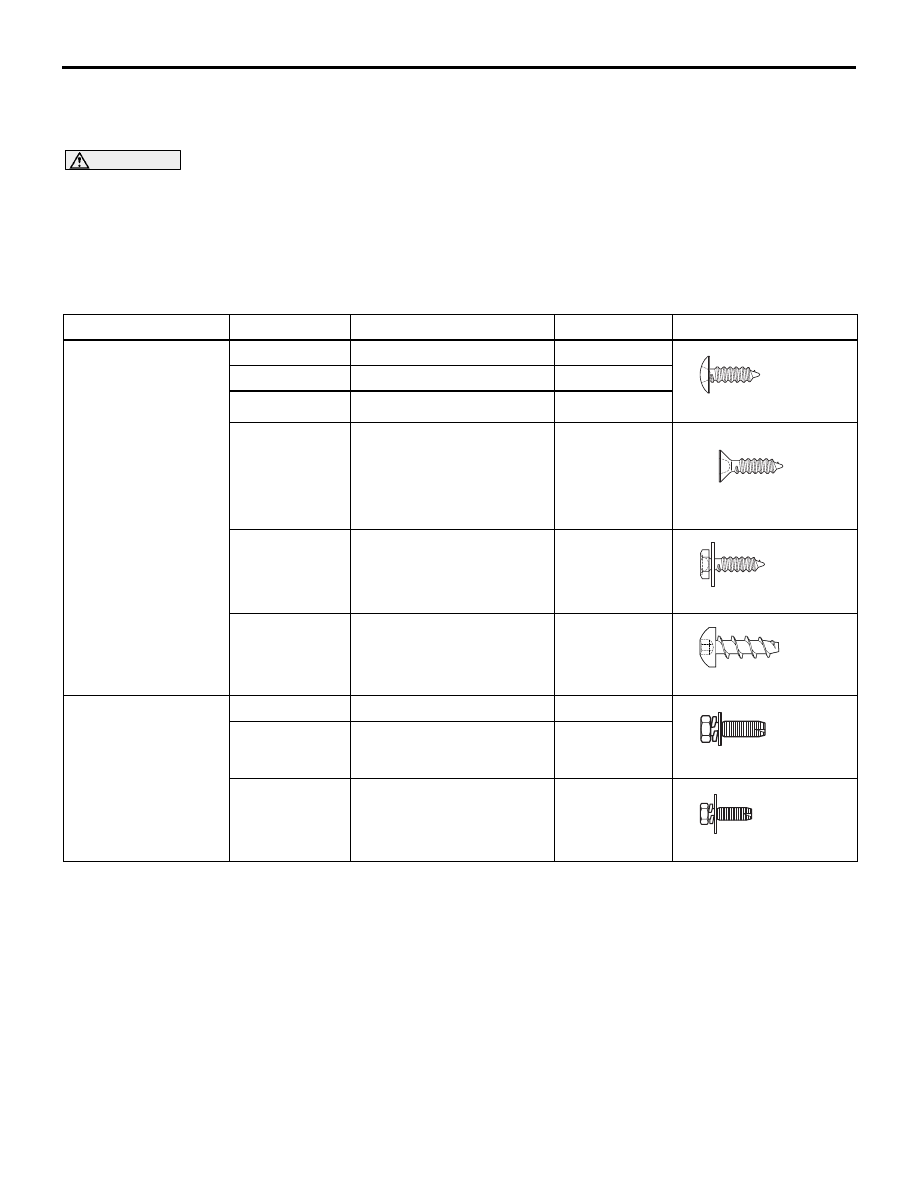

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as
marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assem-
bly."

NAME

SYMBOL

SIZE (D

× L) mm

COLOR

SHAPE

TAPPING SCREW

a

5

× 12

BLACK

b

5

× 16

-

c

5

× 20

-

d

5

× 20

BLACK

e

6

× 16

GREEN

f

8

× 15

-

WASHER
ASSEMBLY BOLT

g

6

× 16

-

h

6

× 25

-

i

6

× 16

-

AC104450

AC104448

AC104426

AC307531

AC104416

AC104417

INSTRUMENT PANEL ASSEMBLY

INTERIOR

52A-5

19DB004A

2

1

3

4

5

6

7

8

11

12

13

14

14

14

15

16

17

18

19

20

21

22

23

25

16

17

18

19

a

b

b

b

b

b

b

b

b

b

b

b

b

b

c

d

e

e

e

e

f

i

i

i

i

i

b

b

c

5

REMOVAL STEPS

1.

GLOVEBOX ASSEMBLY

2.

INSTRUMENT PANEL PARCEL
BOX

3.

GLOVEBOX LOCK

•

HOOD LOCK RELEASE HANDLE
(REFER TO GROUP 42, HOOD

P.42-8

.)

4.

INSTRUMEN LOWER PANEL

5.

INSTURMENT CENTER PANEL
ASSEMBLY

REMOVAL STEPS (Continued)

INSTRUMENT PANEL ASSEMBLY

INTERIOR

52A-6

6.

RADIO AND CD PLAYER,
ASSEMBLY

7.

RADIO, CD PLAYER AND CD
CHANGER ASSEMBLY

8.

CONSOLE METER HOOD

11. MULTI-CENTER DISPLAY

ASSEMBLY

12. INSTRUMENT DIGITAL CLOCK

ASSEMBLY

13. CENTER CONSOLE ASSEMBLY
14. INSTURMENT PANEL GARNISH
15. COMBINATION METER

ASSEMBLY

•

FRONT PILLAR TRIM (REFER TO

P.52A-11

.)

16. FRONT SPEAKER GARNISH
17. TWEETER
18. INSTRUMENT PANEL SIDE

COVER

19. INSTRUMETN PANEL SIDE AIR

OUTLET

•

AIR BAG MODULE ASSEMBLY
(DRIVER’S SIDE) (REFER TO
GROUP 52B, AIR BAG MODULE
AND CLOCK SPRING

P.52B-237

.)

•

STEERING WHEEL ASSEMBLY
(REFER TO GROUP 37,
STEERING WHEEL

P.37-23

.)

20. STEERING COLUMN COVER

REMOVAL STEPS (Continued)

<<A>>

•

CLOCK SPRING CONNECTOR

<<A>>

•

COLUMN SWITHC CONNECTOR

•

CLOCK SPRING AND COLUMN
SWITCH ASSEMBLY (REFER TO
GROUP 37, STEERING SHAFT

P.37-25

.)

21. INTERIOR TEMPERATURE

SENSOR (GROUP 55B,
SENSORS

55-160

.)

22. INSTRUMENT PANEL FRONT

END GARNISH

23. PHOTO SENSOR  (GROUP 55B,

SENSORS

55-160

.) AND

SECURITY LED.

•

FLOOR CONSOLE ASSEMBLY
(REFER TO

P.52A-10

.)

•

COWL SIDE TRIM (REFER TO

P.52A-11

.)

<<A>>

•

AIR BAG MODULE CONNECTOR
(PASSENGER’S SIDE) (REFER
TO GROUP 52B, AIR BAG
MODULE AND CLOCK SPRING

P.52B-237

.)

25. INSTRUMENT PANEL ASSEMBLY

REMOVAL STEPS (Continued)

INSTRUMENT PANEL ASSEMBLY

INTERIOR

52A-7

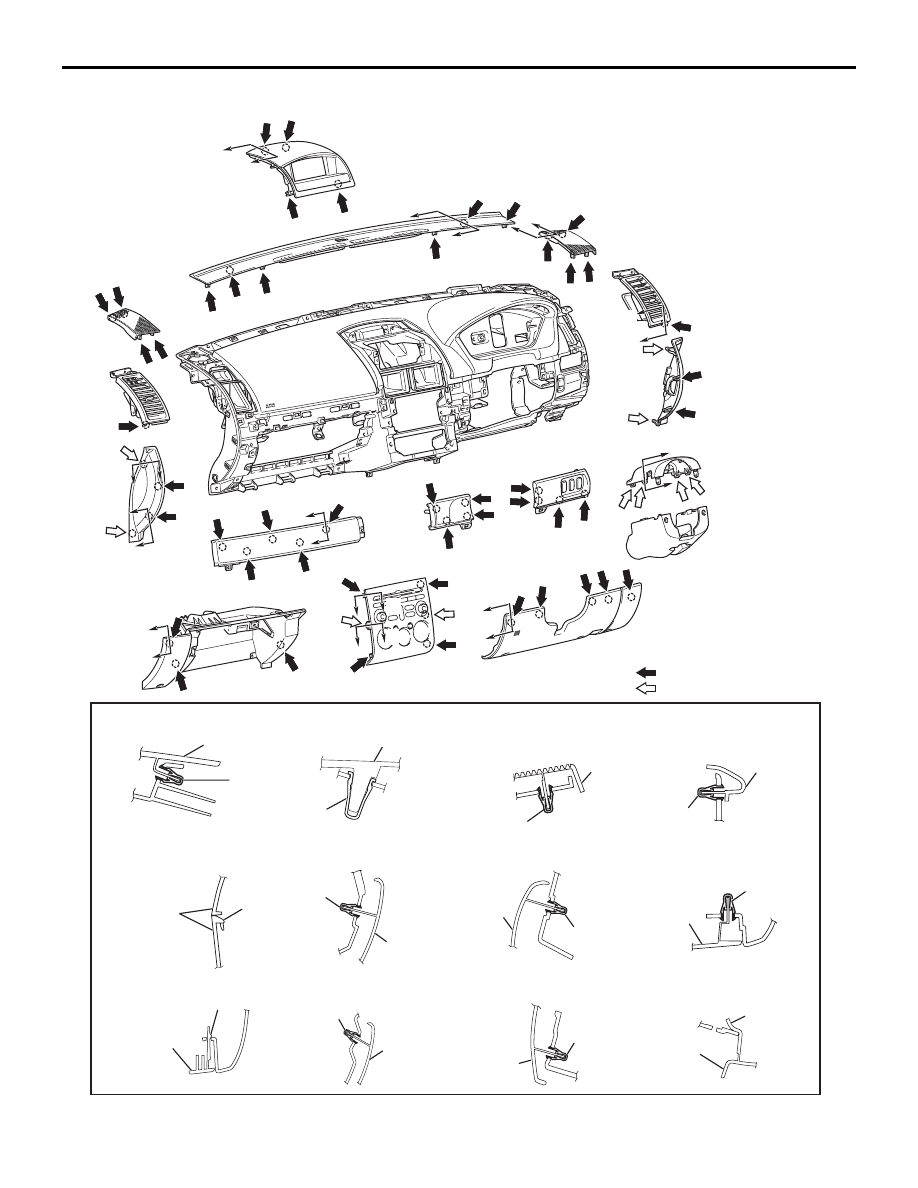

CLIP AND CLAW POSITIONS

19DB005A

NOTE
(1)          : CLIP POSITION
(2)          : CLAW POSITION

SECTION A – A

SECTION E – E

SECTION F – F

SECTION G – G

SECTION H– H

SECTION K – K

SECTION L – L

SECTION J – J

SECTION I – I

SECTION B – B

SECTION C – C

SECTION D – D

A

A

C

B

B

C

D

D

E

E

F

F

H

H

I

I

G

G

J

J

K

K

L

L

CLIP

CONSOLE METER
HOOD

CLIP

INSTRUMENT PANEL
FRONT  END GARNISH

FRONT SPEAKER
GARNISH

CLIP

CLIP

INSTURMENT
PANEL SIDE
AIR OUTLET

CLIP

INSTRUMENT
CENTER PANEL
ASSEMBLY

CLIP

INSTRUMENT
PANEL GARNISH

CLIP

INSTRUMENT

LOWER PANEL

STEERING
COLUMN
COVER

CLAW

INSTRUMENT
CENTER PANEL
ASSEMLBY

CLAW

CLIP

INSTRUMENT

PANEL PARCEL

BOX

CLIP

INSTRUMENT PANLE
SIDE COVER

CLAW

INSTRUMENT

PANEL SIDE

COVER
