CHECK AT ECU TERMINAL

SIMPLIFIED WIRING SYSTEM (SWS)

54B-485

SUNROOF-ECU

AC306356

D-04

AB

TERMINAL
NO.

INSPECTION ITEM

INSPECTION CONDITION

NORMAL VALUE

1

Battery power supply (for motor) Always

Battery positive voltage

2

Power supply to ignition switch
(IG2)

Ignition switch: ON

Battery positive voltage

3, 4

5

Ground

Always

0  V

6

Input signal ("CLOSE/DOWN")
from the sunroof switch

Sunroof switch: "CLOSE/DOWN" 0 V

7

Input signal ("UP") from the
sunroof switch

Sunroof switch: "UP"

0 V

8

Input signal ("OPEN") from the
sunroof switch

Sunroof switch: "OPEN"

0 V

9

10

SWS communication line

Always

− 12 V (pulse signal)

ON-VEHICLE SERVICE

SIMPLIFIED WIRING SYSTEM (SWS)

54B-486

ON-VEHICLE SERVICE

CONFIGURATION FUNCTION

M1549002500861

ADJUSTMENT BY OPERATING THE
MULTI CENTER DISPLAY

The following function and system customizations
are possible by using the multi center display.

ON-VEHICLE SERVICE

SIMPLIFIED WIRING SYSTEM (SWS)

54B-487

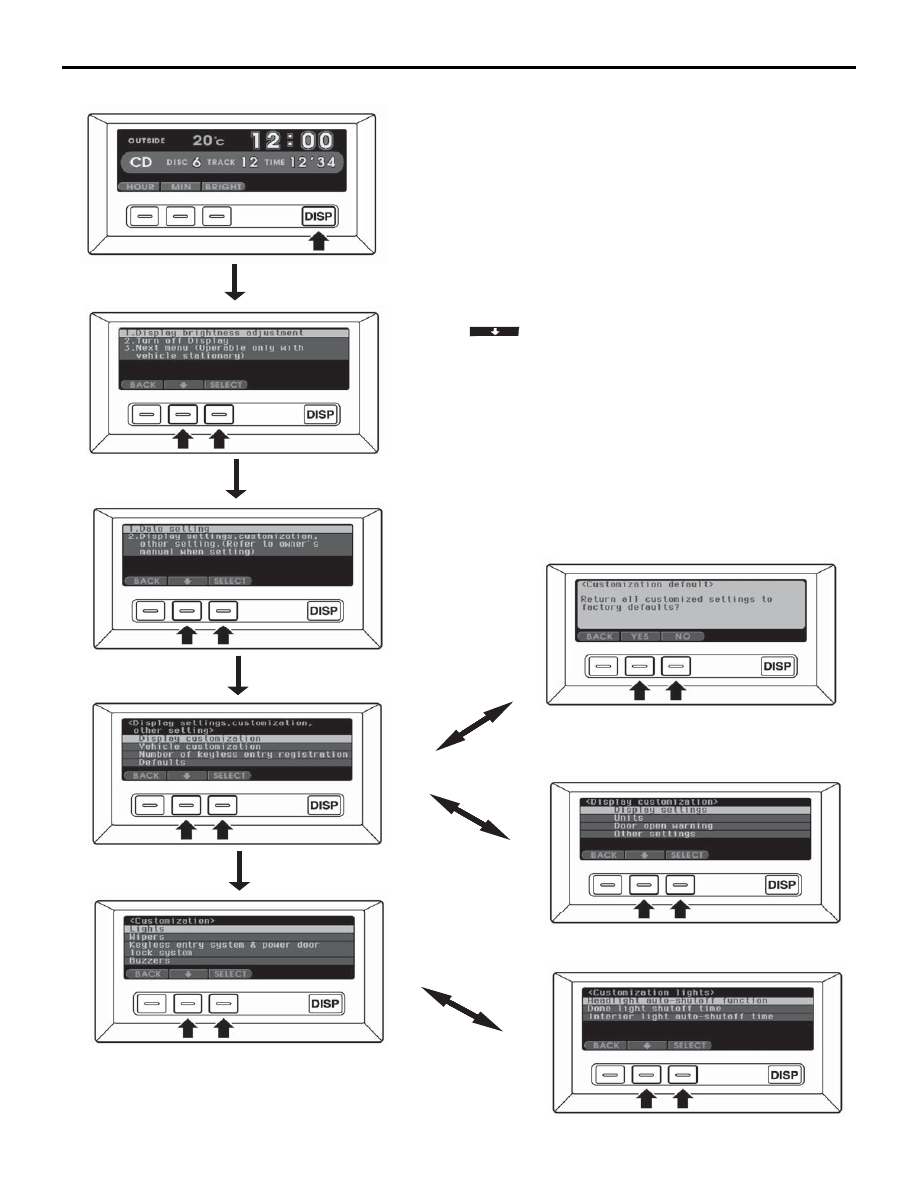

PRESS AND HOLD THE “DISP”  BUTTON FOR AT LEAST 2 SECONDS
TO CHANGE THE DISPLAY

PRESS THE                         FUNCTION BUTTON AND SCROLL DOWN

CURSOR WITH DESIRED SETTING AND PRESS THE “SELECT” BUTTON

SELECT :  “ 3.  NEXT MENU ( Operable only with vehicle stationary)

To return all customized settings to their
initial conditions, press the “YES” function
button. If you press the “NO” button, the
monitor will return to the “DEFAULTS” display.

SELECT :  “ 2. DISPLAY SETTINGS, CUSTOMIZATION, OTHER SETTINGS.

(refer to owner’s manual when setting)

SELECT : VEHICLE
          CUSTOMIZATION

SELECT : DISPLAY
          CUSTOMIZATION

SELECT : DEFAULTS

SELECT : LIGHTS

select function you wish to change.

select function you wish to change.

16DB524A

   ( for more information on display settings refer
      to owner’s manual).

ON-VEHICLE SERVICE

SIMPLIFIED WIRING SYSTEM (SWS)

54B-488

ITEM (multi-center display)

ADJUSTMENT DETAILS

Lamps

Headlamp auto-cutout function

The headlamp automatic shutoff function can
be set in the following ways.

a. Auto-cutout only when the ignition is turned

OFF and drivers side door is open while
lamps are on (default- 1 minute timer)

b. Auto-cutout when ignition is turned OFF

and driver side door is open at any time
(adjustable- 3 minute timer)

c. No auto-cutout (adjustable)

Dome lamp cutout time

The interior dimmer delay period can be set in
the following ways.

a. 0 second
b. 15 seconds
c. 30 seconds (default)
d. 60 seconds
e. 120 seconds
f. 180 seconds

Interior lamp auto-cutout time

The period before the interior illumination is
turned off automatically can be set in the
following ways.

a. 3 minutes
b. 30 minutes (default)
c. 60 minutes
d. No auto-cutout

Wipers

Windshield wiper speed-sensitive
operation

The speed-sensitive wiper function can be
activated or deactivated. (ON by default)
