SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-285

STEP 21. Check the wiring harness between front
combination lamp (LH) connector A-20 (terminal 5) and
ground.
Q: Is the wiring harness between front combination lamp

(LH) connector A-20 (terminal 5) and ground in good
condition?
YES : Replace the front combination lamp socket (LH).

Verify that the front parking lamp (LH) illuminates
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front park lamp (LH) illuminates normally.

STEP 22. Check the wiring harness between front
combination lamp (LH) connector A-20 (terminal 2) and
front-ECU connector A-11X (terminal 4).
Q: Is the wiring harness between front combination lamp

(LH) connector A-20 (terminal 2) and front-ECU
connector A-11X (terminal 4) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front park lamp (LH) illuminates normally.

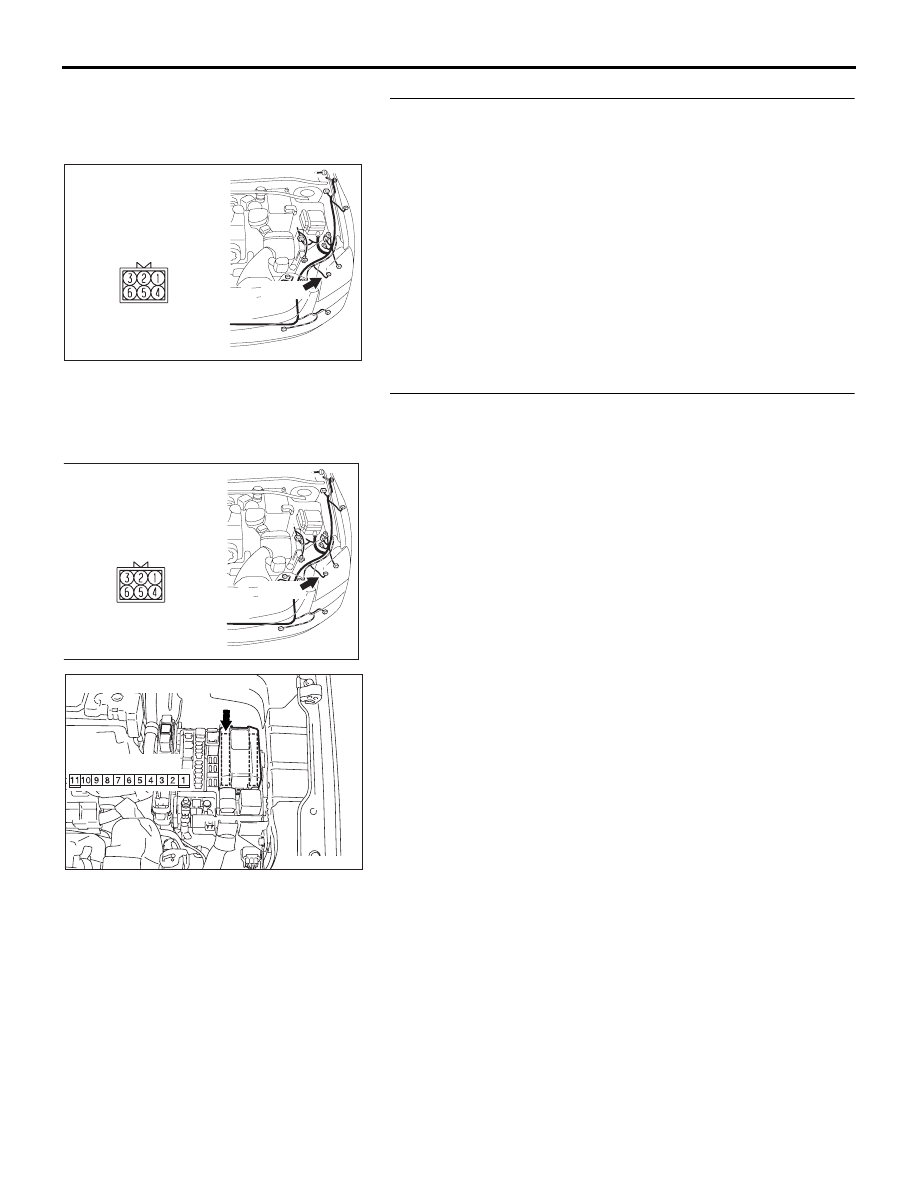

16DB434A

A-20

CONNECTOR: A-20

16DB434A

A-20

CONNECTOR: A-20

AC305977AH

CONNECTOR: A-11X

RELAY BOX SIDE

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-286

STEP 23. Check front combination lamp (RH) connector
A-32 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is front combination lamp (RH) connector A-32 in good

condition?
YES : Go to Step 24.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the front park lamp (RH)

illuminates normally.

STEP 24. Check the front parklamp bulb (RH).
(1) Remove the front park lamp bulb (RH).
(2) Verify that the front park lamp bulb (RH) is not damaged or

burned out.

Q: Is the front park lamp bulb (RH) in good condition?

YES : Go to Step 25.
NO :  Replace the front park lamp bulb (RH). Verify that the

front park lamp (RH) illuminates normally.

STEP 25. Check the ground circuit to the front parking
lamp (RH). Measure the resistance at front combination
lamp (RH) connector A-32.
(1) Disconnect front combination lamp (RH) connector A-32,

and measure the resistance available at the harness side of
the connector.

(2) Measure the resistance value between terminal 5 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 27.
NO :  Go to Step 26.

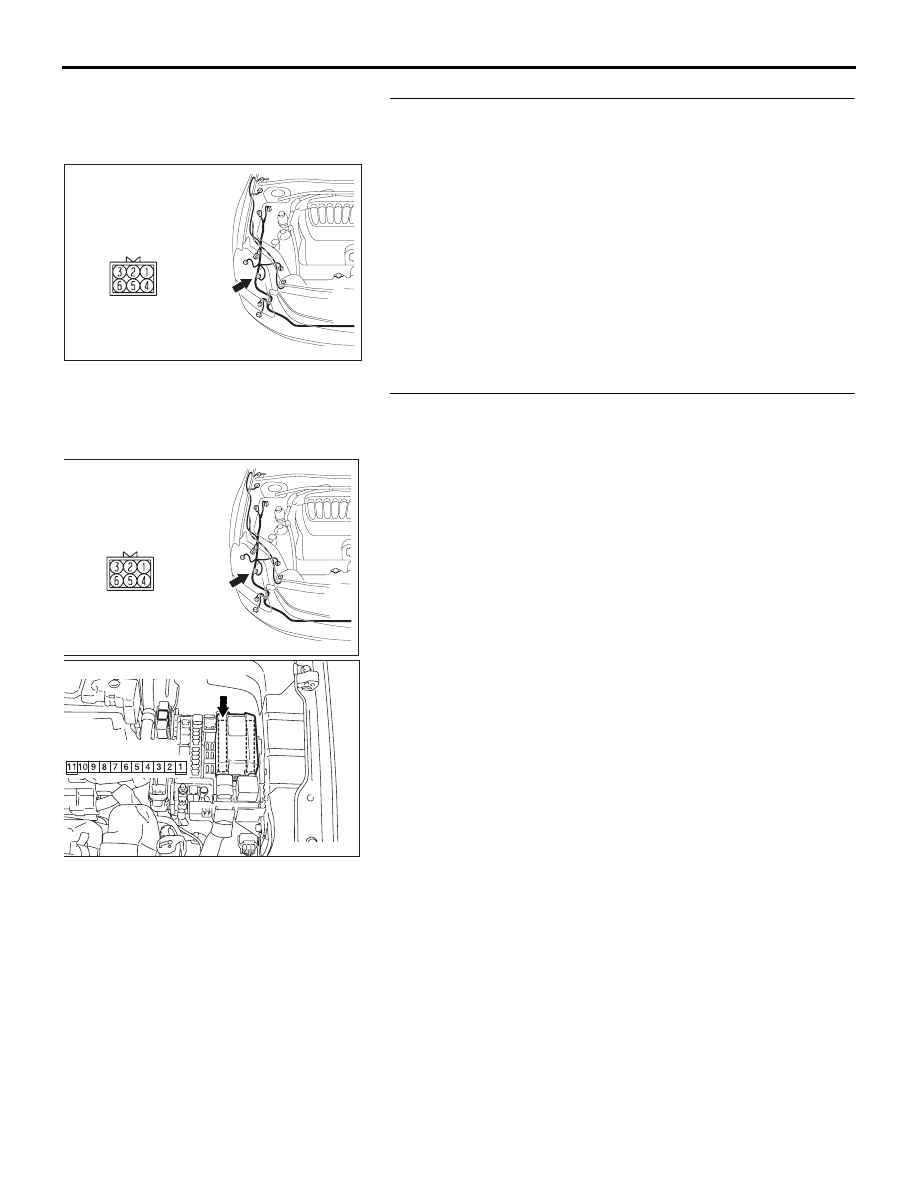

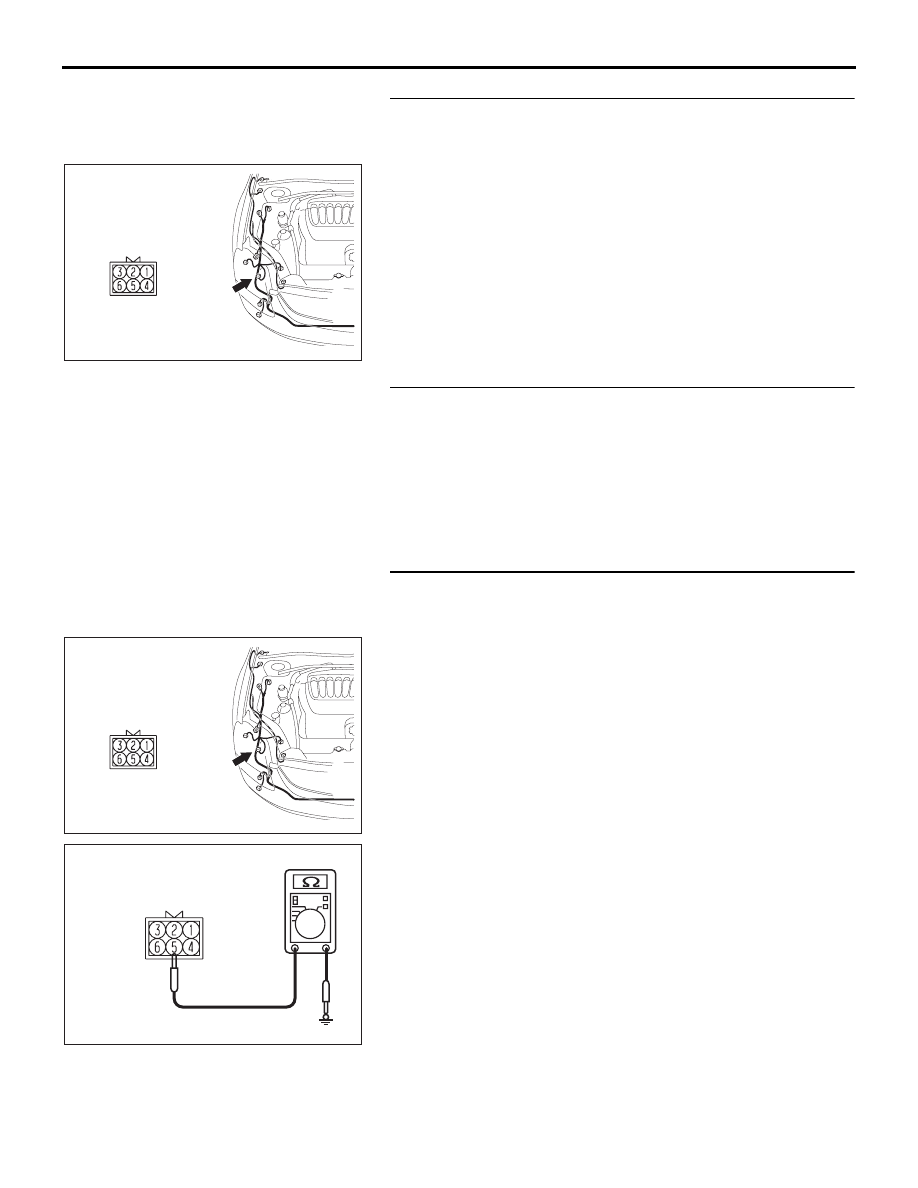

16DB433A

A-32

CONNECTORS:   A-32

16DB433A

A-32

CONNECTORS:   A-32

16DB437A

CONNECTOR A-32

(HARNESS SIDE)

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-287

STEP 26. Check the wiring harness between front
combination lamp (RH) connector A-32 (terminal 5) and
ground.
Q: Is the wiring harness between front combination lamp

(RH) connector A-32 (terminal 5) and ground in good
condition?
YES : Replace the front combination lamp socket (RH).

Verify that the front park lamp (RH) illuminates
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front park lamp (RH) illuminates normally.

STEP 27. Check the wiring harness between front
combination lamp (RH) connector A-32 (terminal 2) and
front-ECU connector A-11X (terminal 4).
Q: Is the wiring harness between front combination lamp

(RH) connector A-32 (terminal 2) and front-ECU
connector A-11X (terminal 4) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the front parking lamp (RH) illuminates normally.

16DB433A

A-32

CONNECTORS:   A-32

16DB433A

A-32

CONNECTORS:   A-32

AC305977AH

CONNECTOR: A-11X

RELAY BOX SIDE

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-288

STEP 28. Check licence plate lamp connector F-06 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is licence plate lamp connector F-06 in good condition?

YES : Go to Step 29.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the licence plate lamps

illuminate normally.

STEP 29. Check the licence plate lamp bulbs.
(1) Remove the licence plate lamp bulbs.
(2) Verify that both licence plate lamp bulbs are not damaged

or burned out.

Q: Are both licence plate lamp bulbs in good condition?

YES : Go to Step 30.
NO :  Replace the licence plate lamp bulbs. Verify that the

licence plate lamps illuminate normally.

STEP 30. Check the ground circuit to the licence plate
lamp. Measure the resistance at licence plate lamp
connector F-06.
(1) Disconnect licence plate lamp connector F-06 and measure

the resistance available at the wiring harness side of the
connector.

(2) Measure the resistance value between terminal 1 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 32.
NO :  Go to Step 31.

16DB438A

HARNESS SIDE

CONNECTOR: F-06

16DB438A

HARNESS SIDE

CONNECTOR: F-06

16DB439A

CONNECTOR F-06
(HARNESS SIDE)
