SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-277

STEP 3. Check the wiring harness between intermediate
connector C-25 (terminal 10) and front-ECU connector
A-11X (terminal 4).
Q: Is the wiring harness between intermediate connector

C-25 (terminal 10) and front-ECU connector A-11X
(terminal 4) in good condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The front
parking lamp (LH), taillamp (LH),and the licence plate
lamp should illuminate normally.

STEP 4. Check intermediate connector C-25 and front-ECU
connector A-11X for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are intermediate connector C-25 and front-ECU

connector A-11X in good condition?
YES :
Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The front parking lamp (RH), and the

taillamp (RH) should illuminate normally.

AC305977AH

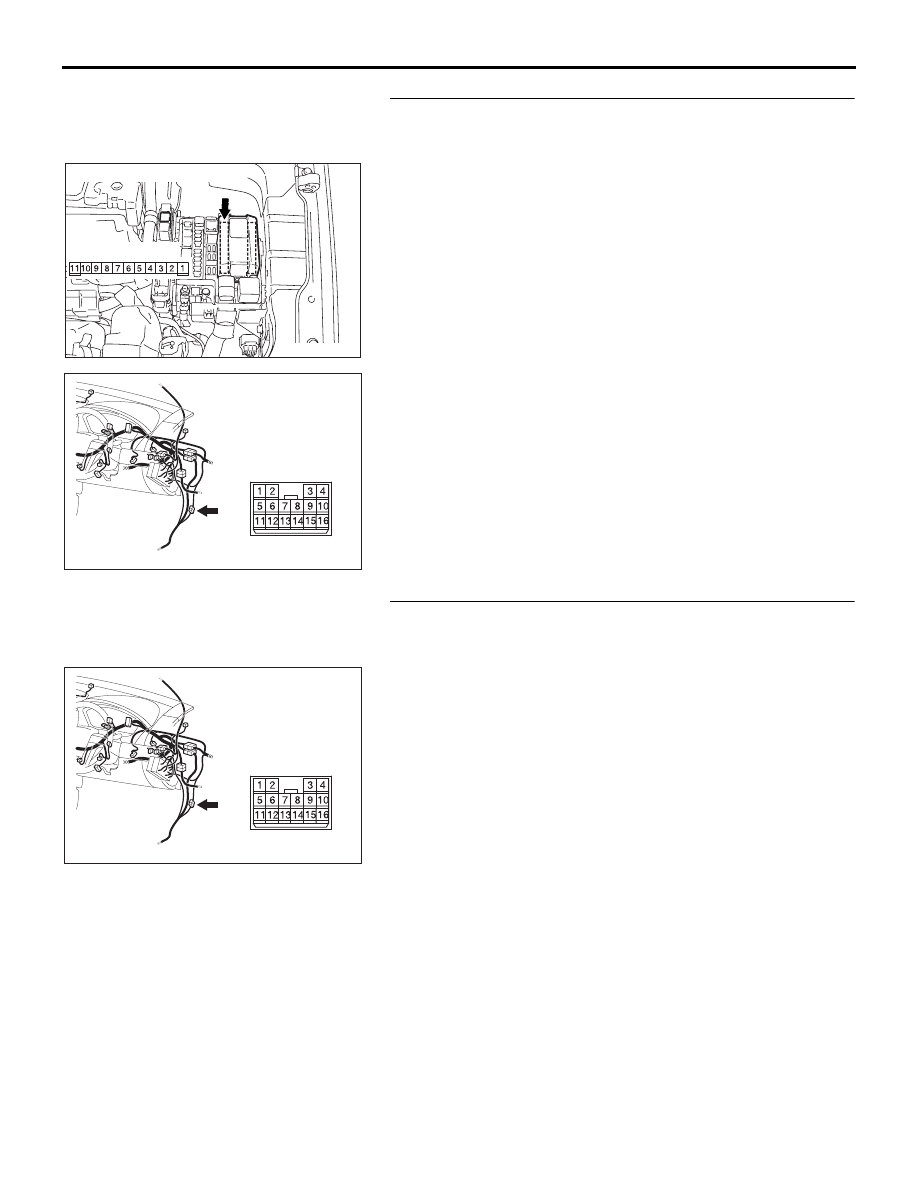

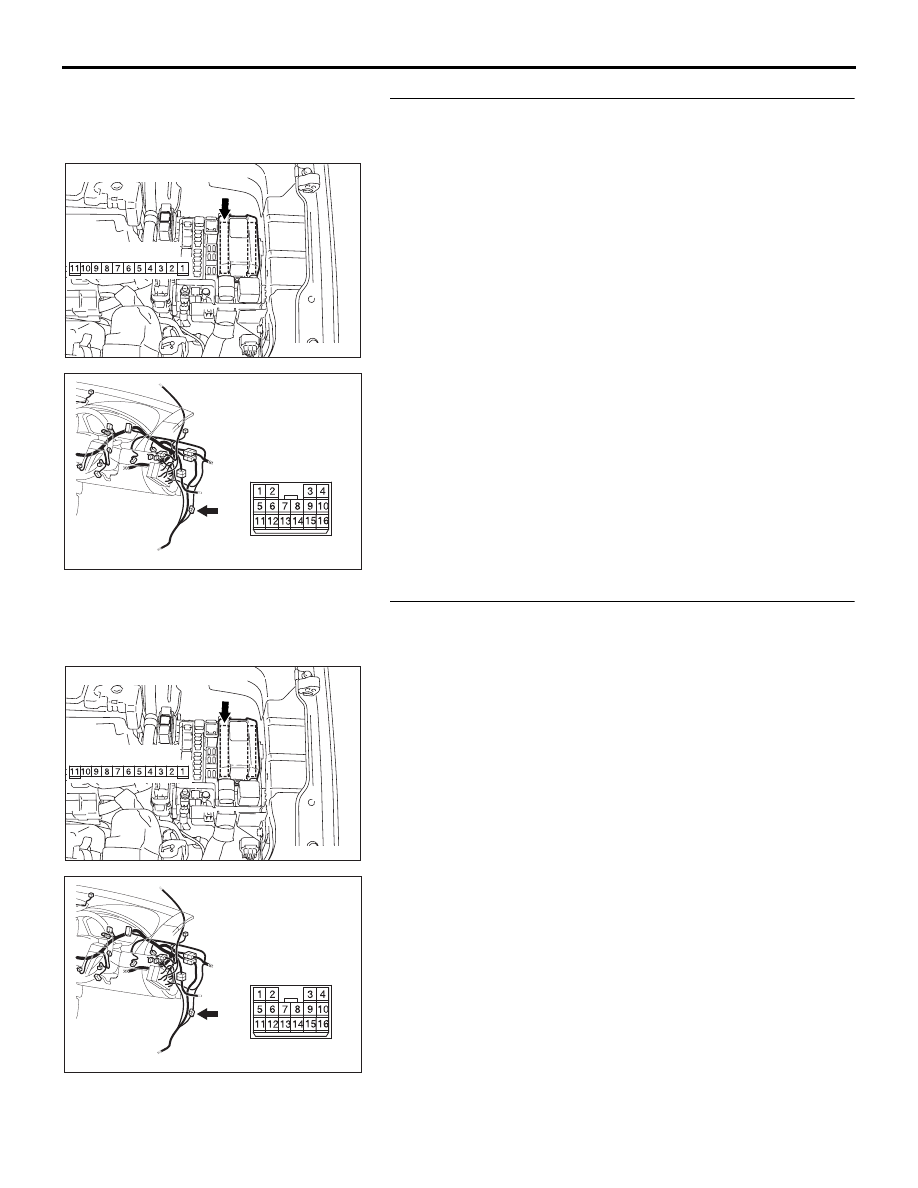

CONNECTOR: A-11X

RELAY BOX SIDE

16DB435A

CONNECTOR: C-25

AC305977AH

CONNECTOR: A-11X

RELAY BOX SIDE

16DB435A

CONNECTOR: C-25

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-278

STEP 5. Check the wiring harness between intermediate
connector C-25 (terminal 8) and front-ECU connector
A-11X (terminal 4).
Q: Is the wiring harness between intermediate connector

C-25 (terminal 8) and front-ECU connector A-11X
(terminal 4) in good condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The front
parking lamp (RH), and the taillamp (RH) should
illuminate normally.

STEP 6. Check intermediate connector C-25 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is intermediate connector C-25 in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The taillamp (LH) and the licence plate lamp

should illuminate normally.

AC305977AH

CONNECTOR: A-11X

RELAY BOX SIDE

16DB435A

CONNECTOR: C-25

16DB435A

CONNECTOR: C-25

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-279

STEP 7. Check the wiring harness between intermediate
connector C-25 (terminal 10) and rear combination lamp
(LH) connector F-09 (terminal 4).

NOTE: Check intermediate connector C-25 for loose, corroded,
or damaged terminals, or terminals pushed back in the connec-
tor. If intermediate connector C-25 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between intermediate connector

C-25 (terminal 10) and rear combination lamp (LH)
connector F-09 (terminal 4) in good condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The taillamp
(LH) and the licence plate lamp should illuminate
normally.

STEP 8. Check rear combination lamp (LH) connector F-09
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is rear combination lamp (LH) connector F-09 in good

condition?
YES :
Go to Step 9.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the taillamp (LH) illuminates

normally.

STEP 9. Check the stop/taillamp bulb (LH).
(1) Remove the stop/taillamp bulb (LH).
(2) Verify that the stop/taillamp bulb (LH) is not damaged or

burned out.

Q: Is the stop/taillamp bulb (LH) in good condition?

YES : Go to Step 10.
NO :  Replace the stop/taillamp bulb (LH). Verify that the

taillamp (LH) illuminates normally.

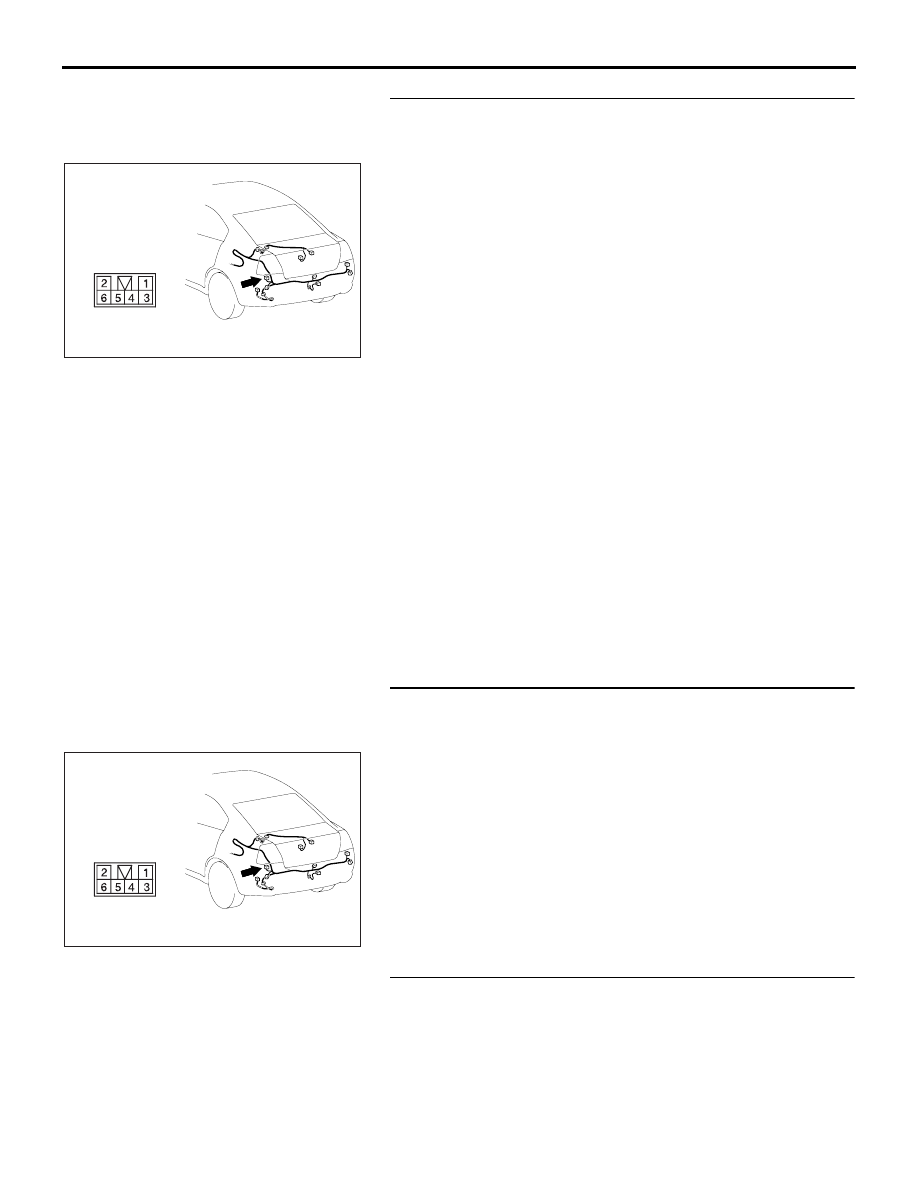

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-280

STEP 10. Check the ground circuit to the rear combination
lamp (LH). Measure the resistance at rear combination
lamp (LH) connector F-09.
(1) Disconnect rear combination lamp (LH) connector F-09 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 12.
NO :  Go to Step 11.

STEP 11. Check the wiring harness between rear
combination lamp (LH) connector F-09 (terminal 2) and
ground.
Q: Is the wiring harness between rear combination lamp

(LH) connector F-09 (terminal 2) and ground in good
condition?
YES :
Replace the rear combination lamp socket (LH).

Verify that the taillamp (LH) illuminates normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the taillamp (LH) illuminates normally.

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK

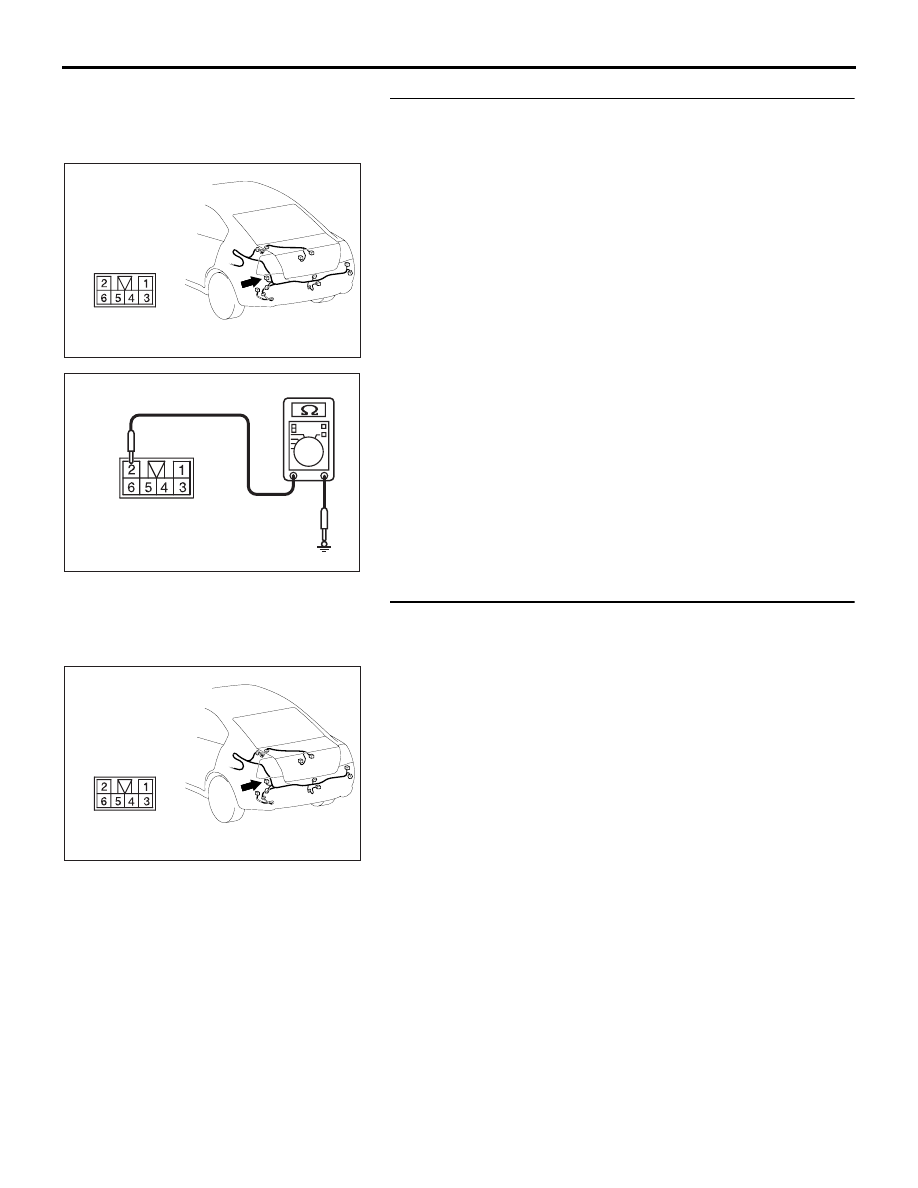

AC209364HF

CONNECTOR F-09
(HARNESS SIDE)

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK
