SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-249

STEP 1. Using Diagnostic Tool MB991958, diagnose the
CAN bus line.

CAUTION

To prevent damage to Diagnostic Tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting Diagnostic Tool
MB991958.
(1) Connect Diagnostic Tool MB991958.Refer to "How to

connect SWS monitor

P.54B-13

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO : Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-15

STEP 2. Using Diagnostic Tool MB991958, read the
combination meter diagnostic trouble code.
Check whether the combination meter-related DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Check whether the combination meter-related DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Diagnose the combination meter. Refer to

P.54A-48

NO : Go to Step 3.

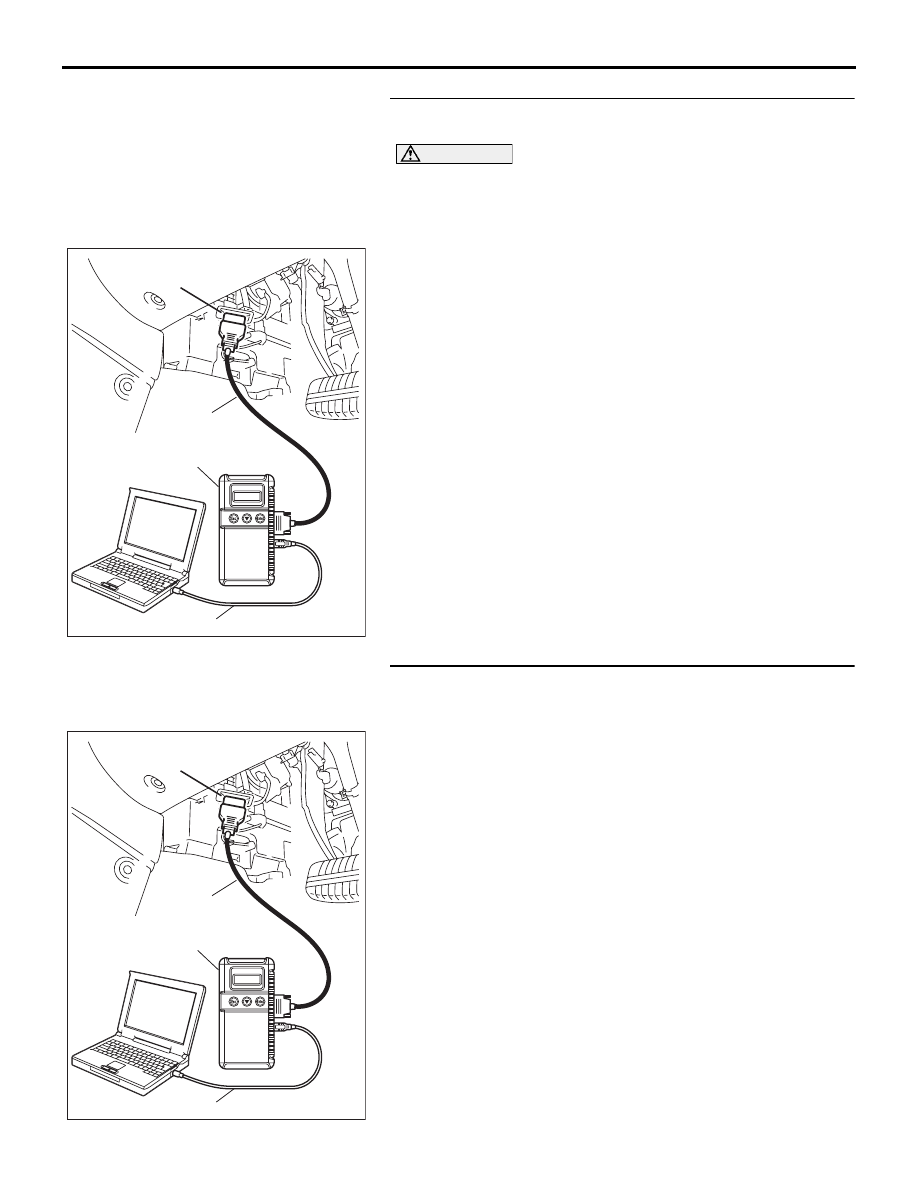

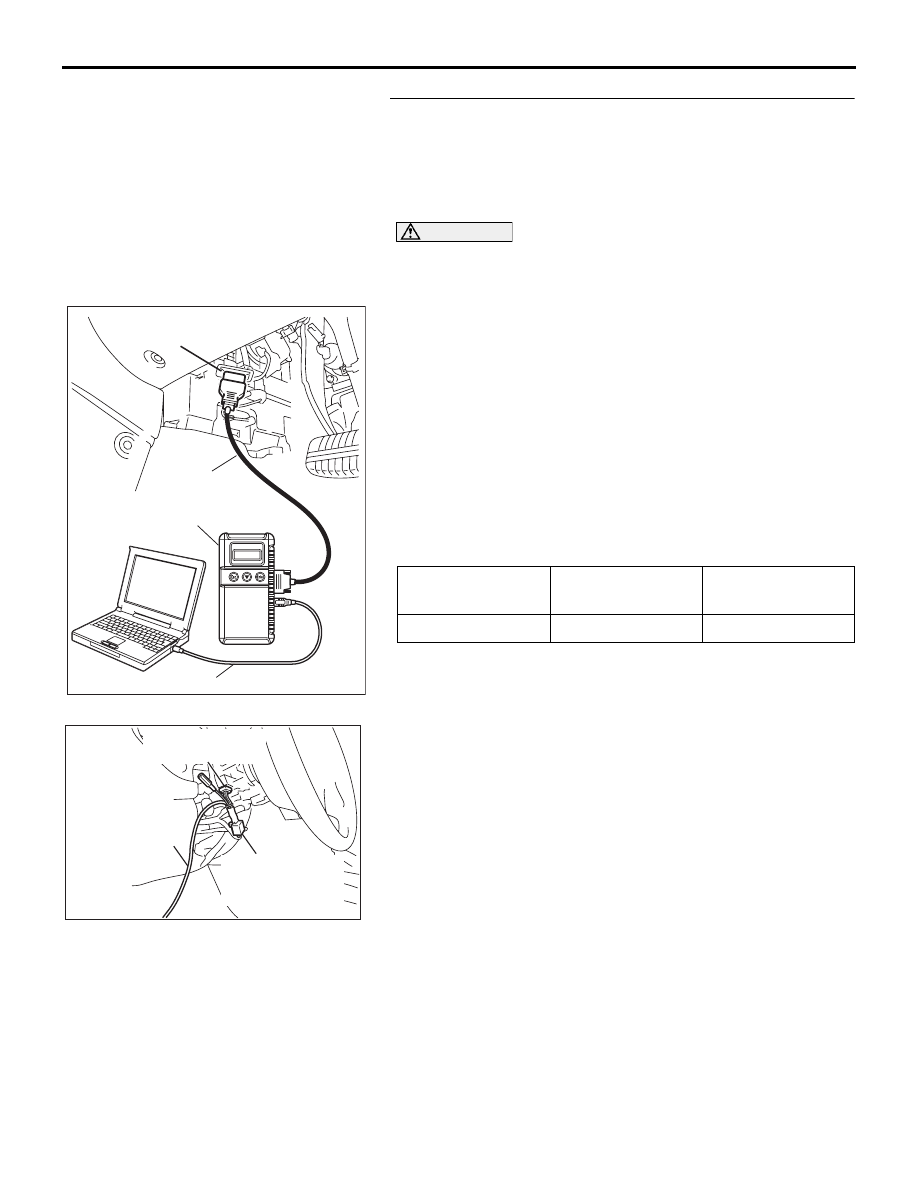

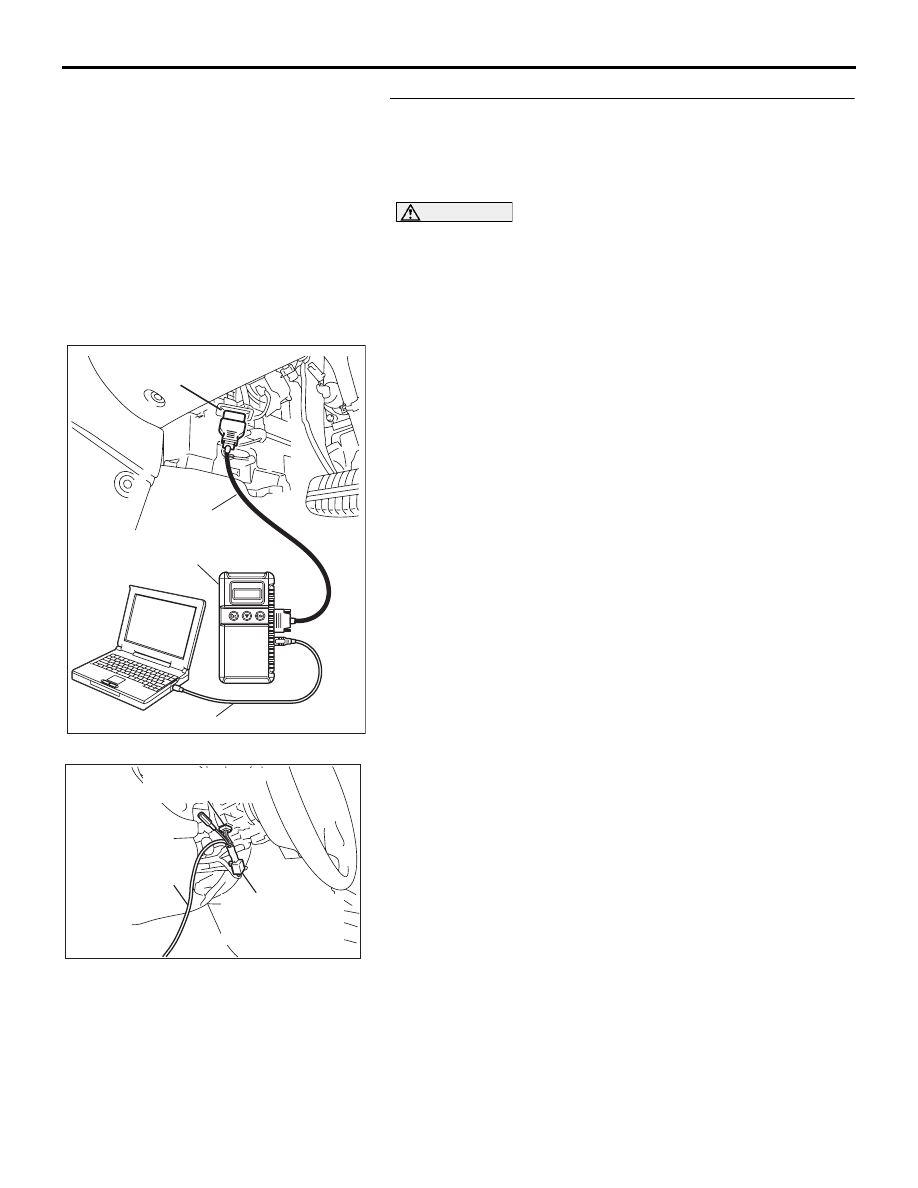

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-250

STEP 3. Check the input signal by using "DATA LIST"
menu of the SWS monitor.
Check the input signals from the following switches:

• Ignition switch: ACC

• Windshield wiper switch: INT

• Intermittent wiper control: slow side

CAUTION

Connect special tool MB991910 before connecting special
tool MB991812. Be sure to connect special tool MB991806
after turning on special tool MB991824.
(1) Operate the Diagnostic Tool MB991958 according to the

procedure below to display "F.WIPER INT."
a. Select "System select."
b. Select "SWS."
c. Select "SWS MONITOR."
d. Select "Function Diag."
e. Select "WIPER."
f.

Select "F.WIPER INT."

(2) Check that normal conditions are displayed for the items

described in the table below.

NOTE: Also check that the wiper interval changes smoothly
when the vehicle is accelerated from 0 km/h (0 mph) to 60
km/h (37.5 mph).

Q: Does the value change within the normal range when

the variable intermittent wiper control switch is rotated?
YES : Replace the front-ECU. The windshield intermittent

wiper interval should change according to the vehicle
speed.

NO : Replace the ETACS-ECU. The windshield intermittent

wiper interval should change according to the vehicle
speed.

ITEM NO.

ITEM NAME

NORMAL
CONDITION

ITEM 37

INT WIPER TIME

14.0

− 19.0 s

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-251

INSPECTION PROCEDURE G-7: Windshield Wiper and Washer: The windshield washer does not
work.

NOTE: This troubleshooting procedure requires use
of Diagnostic Tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to connect SWS monitor

P.54B-13

CIRCUIT OPERATION

The windshield washer switch sends a signal
through the column-ECU (incorporated in the column
switch) to the front-ECU. If the column-ECU sends a
windshield washer switch "ON" signal to the
front-ECU, the front-ECU turns on the relay (incorpo-
rated in the front-ECU), thus causing the windshield
washer motor to be turned on.

TECHNICAL DESCRIPTION (COMMENT)

If the windshield washer does not work normally, the
windshield washer motor, the column switch (wind-
shield wiper and washer switch) or the front-ECU
may be defective.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

• Refer to configuration diagrams GROUP-

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The windshield washer motor may be defective

• The column switch may be defective

• The front-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Test Probe Harness

STEP 1. Verify the windshield wiper operation.

Q: Does the windshield wiper operate normally?

YES : Go to Step 2.
NO : Refer to Inspection Procedure G-1 "The windshield

wiper do not work at all

P.54B-226

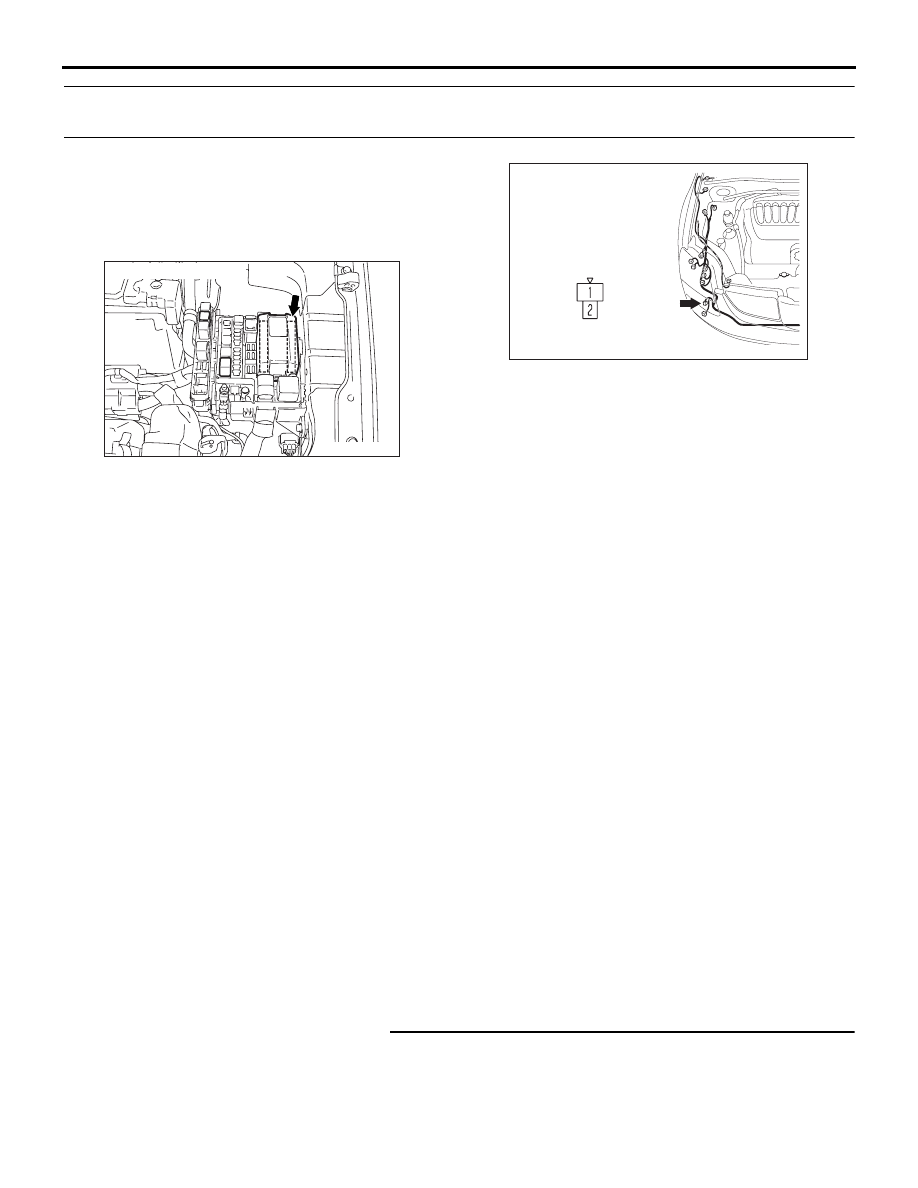

AC305977

CONNECTOR: A-12X

16DB430A

CONNECTOR: A-29

HARNESS SIDE

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-252

STEP 2. Use Diagnostic Tool MB991958 to select "ECU
COMM Check" on the SWS monitor display.
Check the following ECUs:

• Column-ECU

• Front-ECU

CAUTION

To prevent damage to Diagnostic Tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting Diagnostic Tool
MB991958. Connect special tool MB991910 before con-
necting special tool MB991812. Be sure to connect special
tool MB991806 after turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

(2) Turn the ignition switch to the "ON" position.
(3) Operate Diagnostic Tool MB991958 according to the

procedure below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Diagnostic Tool MB991958 should show "OK" on the "ECU

COMM Check" menus for both the "COLUMN ECU" and
the "FRONT ECU" menus.

Q: Is "OK" displayed for the "COLUMN ECU" and "FRONT

ECU" menu?
"OK" is displayed for all the items : Go to Step 3.
"NG" is displayed for the "COLUMN ECU" menu : Refer

to Inspection Procedure A-2 "Communication with the
column switch (column-ECU) is not possible

P.54B-68

"NG" is displayed for the "FRONT ECU" menu : Refer to

Inspection procedure A-4 "Communication with the
front-ECU is not possible

P.54B-80

00DB076A
