SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-253

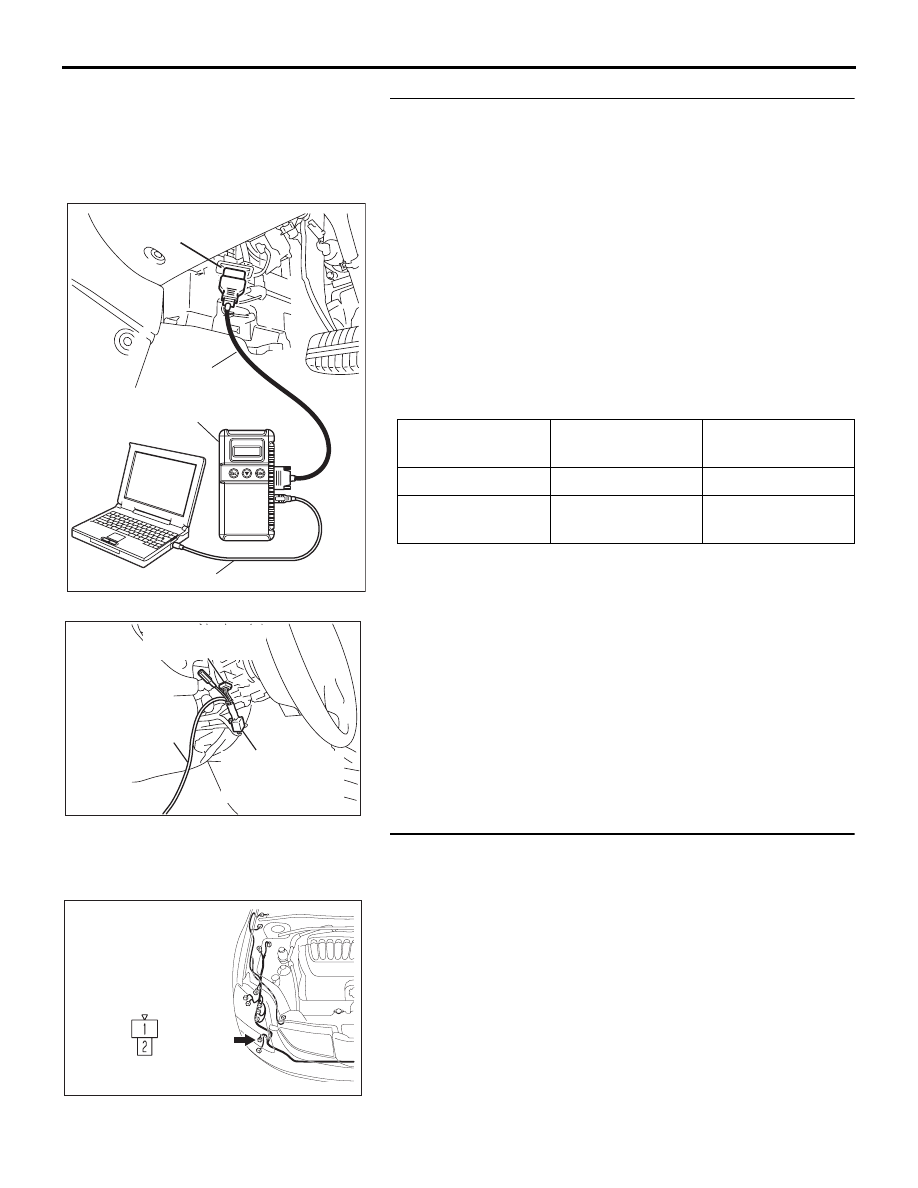

STEP 3. Check the input signal by using "FUNCTION
DIAG." menu of the SWS monitor.
Check the input signals from the following switches:

• Ignition switch: ACC

• Windshield washer switch: ON

(1) Operate the Diagnostic Tool MB991958 according to the

procedure below to display "F.WIPER WASH."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "Function Diag."
f.

Select "WIPER."

g. Select "F.WIPER WASH."

(2) Check that normal conditions are displayed for the items

described in the table below.

Q: Are normal conditions displayed for "FRONT

WASH.SW" and "FRONT ECU ACK"?
Normal conditions displayed for all the items : Go to

Step 4.

Normal condition is not displayed for the "FRONT
WASH.SW" : Replace the column switch. Verify that the

windshield washer works normally.

Normal condition is not displayed for the "FRONT ECU
ACK" : Replace the front-ECU. Verify that the windshield

washer works normally.

STEP 4. Check windshield washer motor connector A-29
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is windshield washer motor connector A-29 in good

condition?
YES : Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the windshield washer works

normally.

ITEM NO.

ITEM NAME

NORMAL
CONDITION

ITEM 09

FRONT WASH.SW ON

ITEM 70

FRONT ECU ACK

NORMAL ACK or
HI-BEAM ACK

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB

16DB430A

CONNECTOR: A-29

HARNESS SIDE

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-254

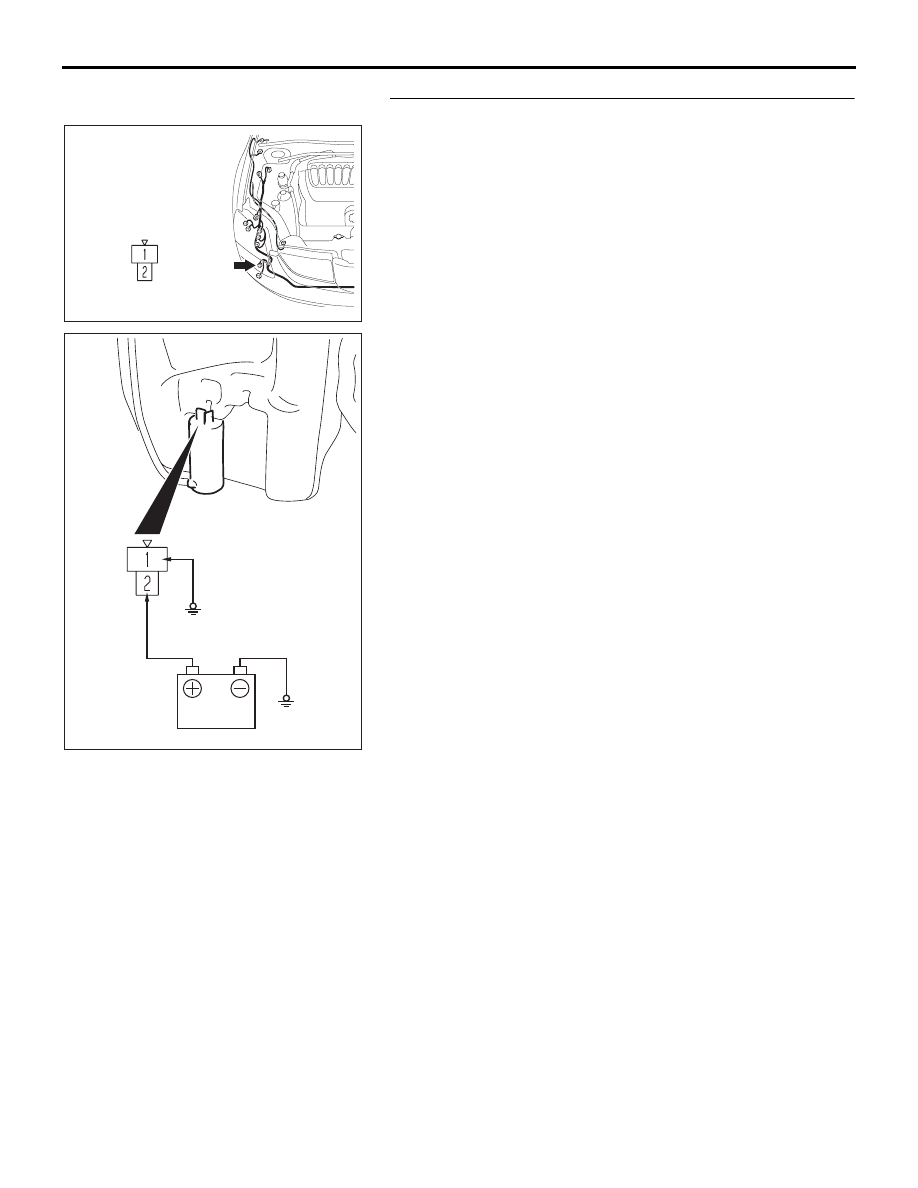

STEP 5. Check the windshield washer motor.
(1) Disconnect windshield washer motor connector A-29, and

check at windshield washer motor connector side.

(2) Fill the windshield washer tank with washer fluid.

(3) When battery voltage is applied between terminals 1 and 2,

washer fluid should spray out.

Q: Does the windshield washer motor operate normally?

YES : Go to Step 6.
NO :  Replace the windshield washer motor. Verify that the

windshield washer works normally.

16DB430A

CONNECTOR: A-29

HARNESS SIDE

16DB431A

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-255

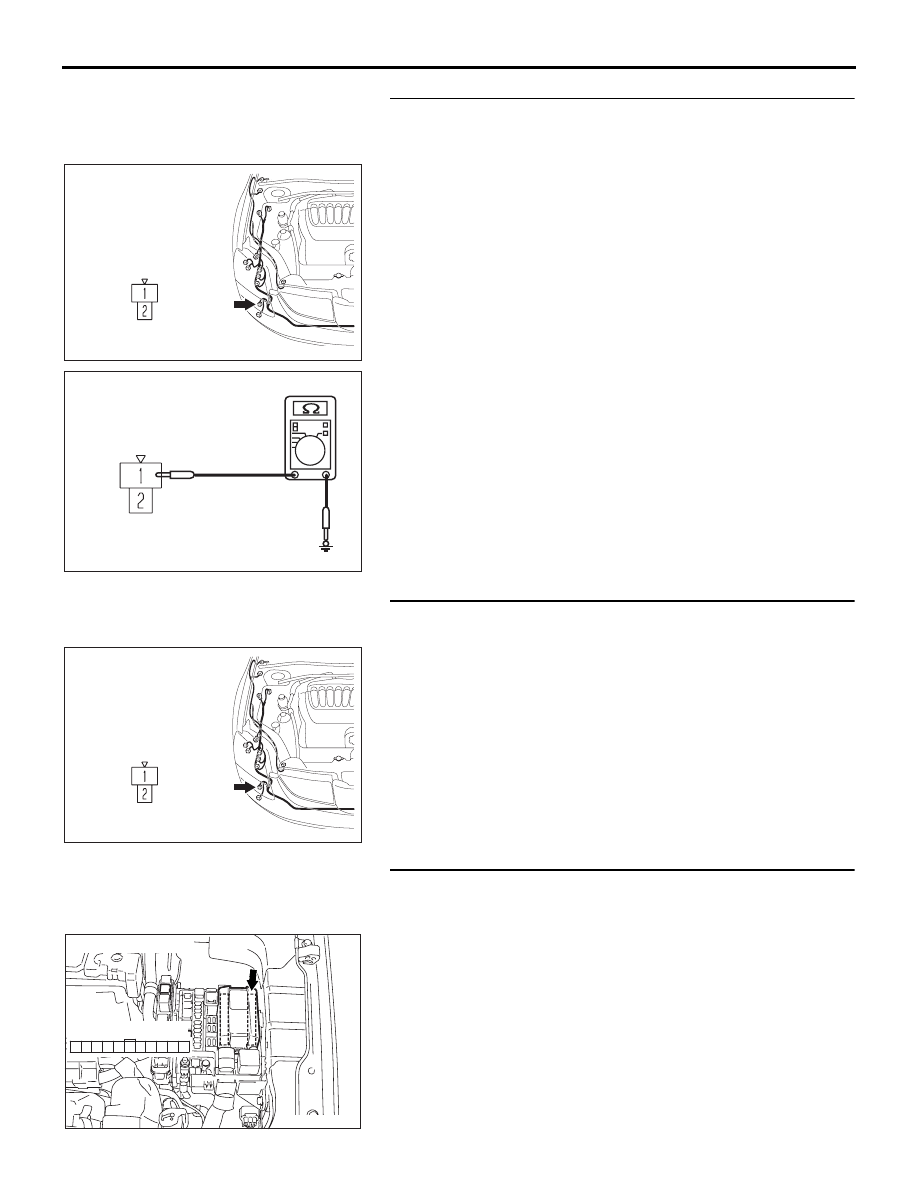

STEP 6. Check the ground circuit to the windshield washer
motor. Measure the resistance at the windshield washer
motor connector A-29.
(1) Disconnect windshield washer motor connector A-29 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 1 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 8.
NO :  Go to Step 7.

STEP 7. Check the wiring harness between windshield
washer motor connector A-29 (terminal 1) and ground.
Q: Is the wiring harness between windshield washer motor

connector A-29 (terminal 1) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the windshield washer works normally.

STEP 8. Check front-ECU connector A-12X for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is front-ECU connector A-12X in good condition?

YES : Go to Step 9.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the windshield washer works

normally.

16DB430A

CONNECTOR: A-29

HARNESS SIDE

16DB432A

CONNECTOR A-29
(HARNESS SIDE)

16DB430A

CONNECTOR: A-29

HARNESS SIDE

AC305977

CONNCTOR: A-12X

AI

21

22

23

24

25

26

27

28

29

30

31

RELAY BOX SIDE

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-256

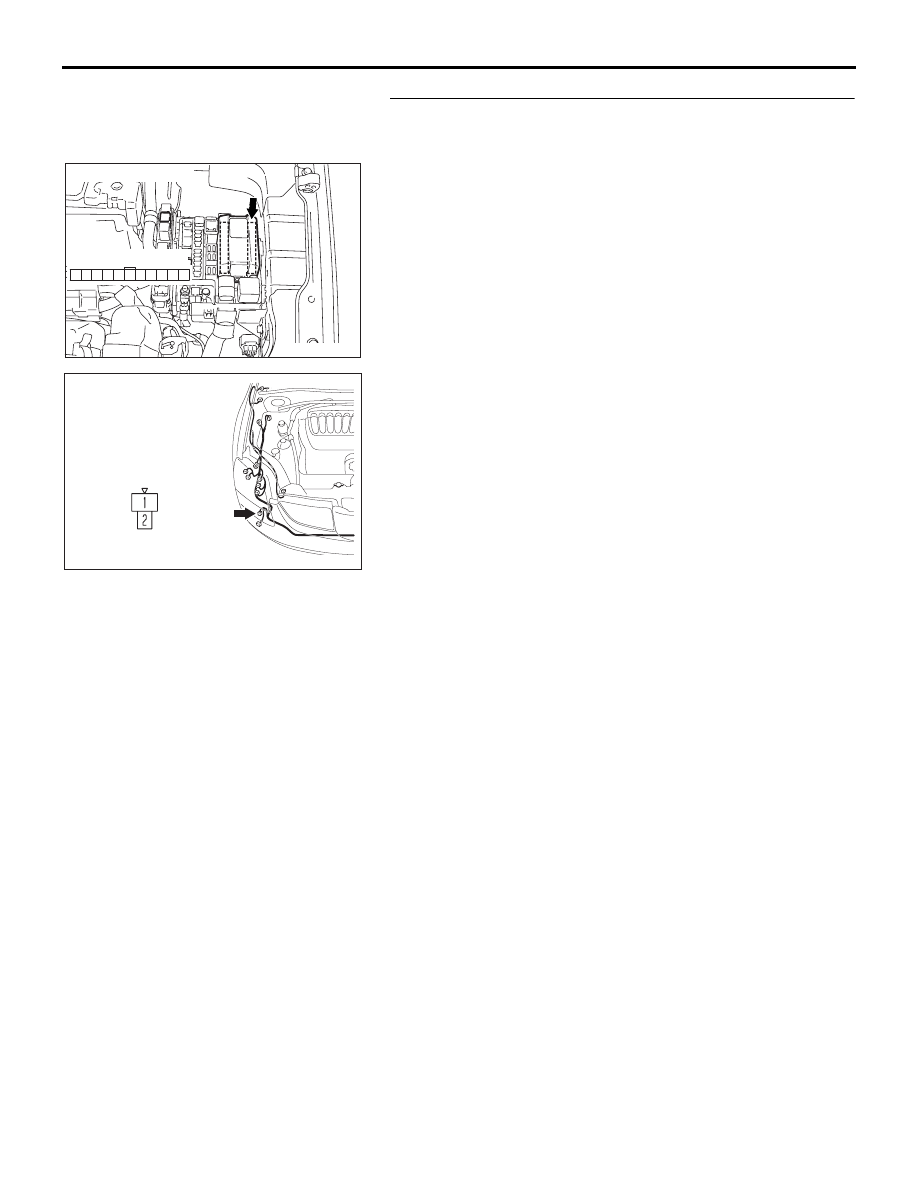

STEP 9. Check the wiring harness between windshield
washer motor connector A-29 (terminal 2) and front-ECU
connector A-12X (terminal 31).
Q: Is the wiring harness between windshield washer motor

connector A-29 (terminal 2) and front-ECU connector
A-12X (terminal 31) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the windshield washer works normally.

AC305977

CONNCTOR: A-12X

AI

21

22

23

24

25

26

27

28

29

30

31

RELAY BOX SIDE

16DB430A

CONNECTOR: A-29

HARNESS SIDE
