Mitsubishi Grandis. Manual - part 988





52B-4

CHECK CHART FOR TROUBLE SYMPTOMS

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-199

SYMPTOM PROCEDURES . . . . . . . . . . . .

52B-200

Inspection Procedure 1: Communication between Scan

Tool and the SRS-ECU is not possible.  . . .

52B-200

INSPECTION PROCEDURE 2: Power Supply Circuit
System  . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-201

Inspection Procedure 3: When the Ignition Switch is
Turned to "ON" (Engine Stopped), the SRS Warning
Lamp does not Illuminate.

INSPECTION PROCEDURE 4: The SRS Warning
Lamp Remains Illuminated after the Engine is Started.

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-206

DATA LIST REFERENCE TABLE  . . . . . . .

52B-207

ACTUATOR TEST REFERENCE TABLE. .

52B-207

FAIL-SAFE FUNCTION  . . . . . . . . . . . . . . .

52B-207

SRS MAINTENANCE. . . . . . . . . . . . .

52B-207

POST-COLLISION DIAGNOSIS  . . . .

52B-214

INDIVIDUAL COMPONENT SERVICE

52B-218

WARNING/CAUTION LABELS . . . . .

52B-218

FRONT IMPACT SENSORS  . . . . . . .

52B-220

REMOVAL AND INSTALLATION . . . . . . . .

52B-220

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

52B-222

SRS CONTROL UNIT (SRS-ECU). . .

52B-223

REMOVAL AND INSTALLATION . . . . . . . .

52B-223

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

52B-224

DRIVER'S, FRONT PASSENGER'S AIR BAG
MODULE(S) AND CLOCK SPRING. .

52B-225

REMOVAL AND INSTALLATION  . . . . . . . .

52B-225

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52B-230

SIDE AND CURTAIN AIR BAG MODULE(S)

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-231

REMOVAL AND INSTALLATION  . . . . . . . .

52B-231

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52B-234

SIDE IMPACT SENSOR . . . . . . . . . . .

52B-236

REMOVAL AND INSTALLATION  . . . . . . . .

52B-236

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52B-238

SEAT BELTS WITH PRE-TENSIONER

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-239

REMOVAL AND INSTALLATION  . . . . . . . .

52B-239

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52B-241

SEAT SLIDE SENSOR . . . . . . . . . . . .

52B-242

REMOVAL AND INSTALLATION  . . . . . . . .

52B-242

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52B-244

PASSENGER AIR BAG CUT OFF SWITCH

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-244

REMOVAL AND INSTALLATION  . . . . . . . .

52B-244

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52B-246

AIR BAG MODULE AND SEAT BELT
PRE-TENSIONER DISPOSAL PROCEDURES

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-246

GENERAL INFORMATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-5

GENERAL INFORMATION

M1524000100570

The Supplemental Restraint System (SRS) and seat
belt with pre-tensioner is designed to supplement the
driver's and front passenger's seat belts to help
reduce the risk or severity of injury to the driver and
front passenger by activating and deploying both
front air bags in certain frontal collisions.
The SRS and seat belt pre-tensioner systems
consist of air bag modules, SRS-ECU, two front
impact sensors, four side impact sensors, SRS
warning lamp, clock spring, seat slide sensor,
passenger air bag cut off switch, passenger air bag
off indicator lamp and seat belt pre-tensioner. Airbag
modules are installed at the centre of the steering
wheel, on the globe box, front seatback and the
roof-side area (from the front pillars of driver- and
passenger-side to the rear pillar in rear area of
vehicle). Each air bag has a safing folded air bag and
an inflator. SRS-ECU, installed at the depths of the
centre console, monitors the system. The front

impact sensor is assembled in the radiator support
panel to monitor collision upon frontal impact. The
side impact sensor is assembled in the centre pillar
and quarter panel lower to monitor collision upon
side impact. The warning lamp on the instrument
panel indicates the operational status of the SRS.
The clock spring is installed in the steering column.
The seat slide sensor is attached to the seat rail and
provides the air bag control unit with information on
the seat position. The passenger air bag cut off
switch is located above inside the glove box. The
passenger air bag off indicator lamp is located above
the central vents in the instrument panel. The seat
belt pre-tensioner is incorporated in the seat belt
retractor.
Only authorized service personnel should do work on
or around the SRS components. Those service
personnel should read this manual carefully before
starting any such work.

GENERAL INFORMATION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-6

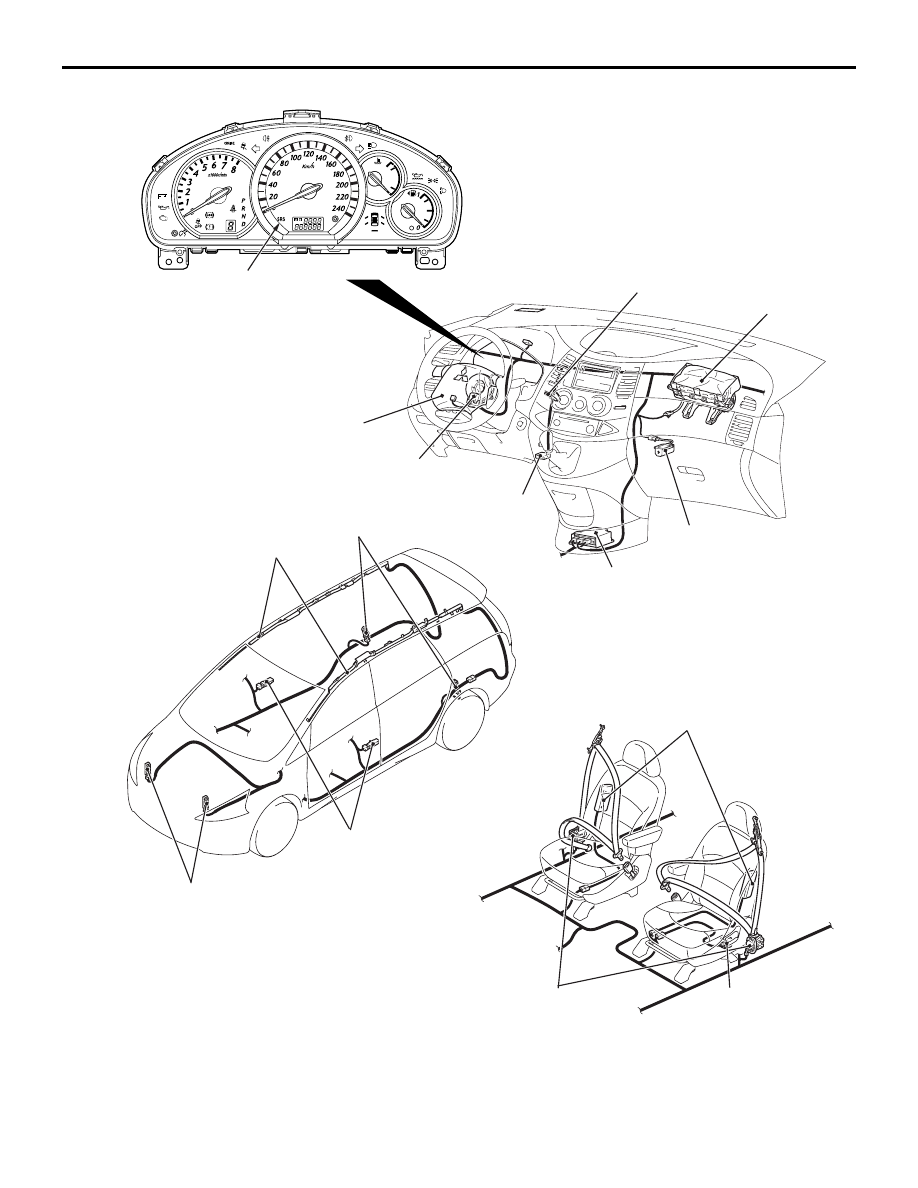

AC312274

AC310397

AC312028

AC312027

AC312026

SRS-ECU

AB

SRS warning lamp

Driver's air bag
module

Clock spring

Passenger's (front)
air bag module

Side-airbag module

Side impact sensor
(front)

Front impact sensor

Side impact sensor
(rear)

Seat belt with
pre-tensioner

Curtain air bag module

Passenger's air bag
cut off switch

Diagnosis
connector

Seat slide
sensor
<Driver's seat>

Passenger's air bag
off indicator lamp

SERVICE PRECAUTIONS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-7

SERVICE PRECAUTIONS

M1524000300604

DANGER

In order to avoid injury to yourself or others
from accidental deployment of the air bag
during servicing, read and carefully follow all
the precautions and procedures described in
this manual.

CAUTION

• Do not use any electrical test equipment on or

near SRS components, except those specified
on

P.52B-12

.

• Never Attempt to Repair the Following

Components:

• SRS air bag control unit (SRS-ECU)
• Clock spring
• Driver's and passenger's (front) air bag

modules

• Side-airbag module
• Curtain air bag module
• Front impact sensor
• Side impact sensors
• Seat belt with pre-tensioner
• Seat slide sensor
• Passenger’s air bag cut off switch

NOTE: If any of these components are diagnosed as
faulty, they should only be replaced, in accordance
with the INDIVIDUAL COMPONENTS SERVICE
procedures in this manual, starting at page

P.52B-218

.

CAUTION

Do not attempt to repair the wiring harness
connectors of the SRS. If a defective wiring
harness is found, repair or replace it by referring
to the table below.

63

55

51

69

61

66

58

65

64

56 57

68

60

67

59

70

62

53

52 B

A

54

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

AC313619

SRS-ECU connector

AB

SRS-ECU terminal No.

Destination of harness

Remedy

1, 2

Floor wiring harness

 Seat slide

sensor

Correct or replace the floor wiring
harness.

5, 6

Floor wiring harness

 Rear floor

wiring harness

 Curtain air bag

module (LH)

Correct or replace each wiring
harness.

7, 8

Floor wiring harness

 Seat belt

pre-tensioner (LH)

Correct or replace the floor wiring
harness.

9, 10

Floor wiring harness

 Side-airbag

module (LH)

Correct or replace the floor wiring
harness.

15, 16

Floor wiring harness

 Side impact

sensor (rear) (LH)

Correct or replace the floor wiring
harness.

19, 20

Floor wiring harness

 Side impact

sensor (front) (LH)

Correct or replace the floor wiring
harness.

21

Instrument panel wiring harness



Passenger’s air bag off indicator
lamp

Correct or replace the instrument
panel wiring harness.
