Mitsubishi Grandis. Manual - part 985





POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-30

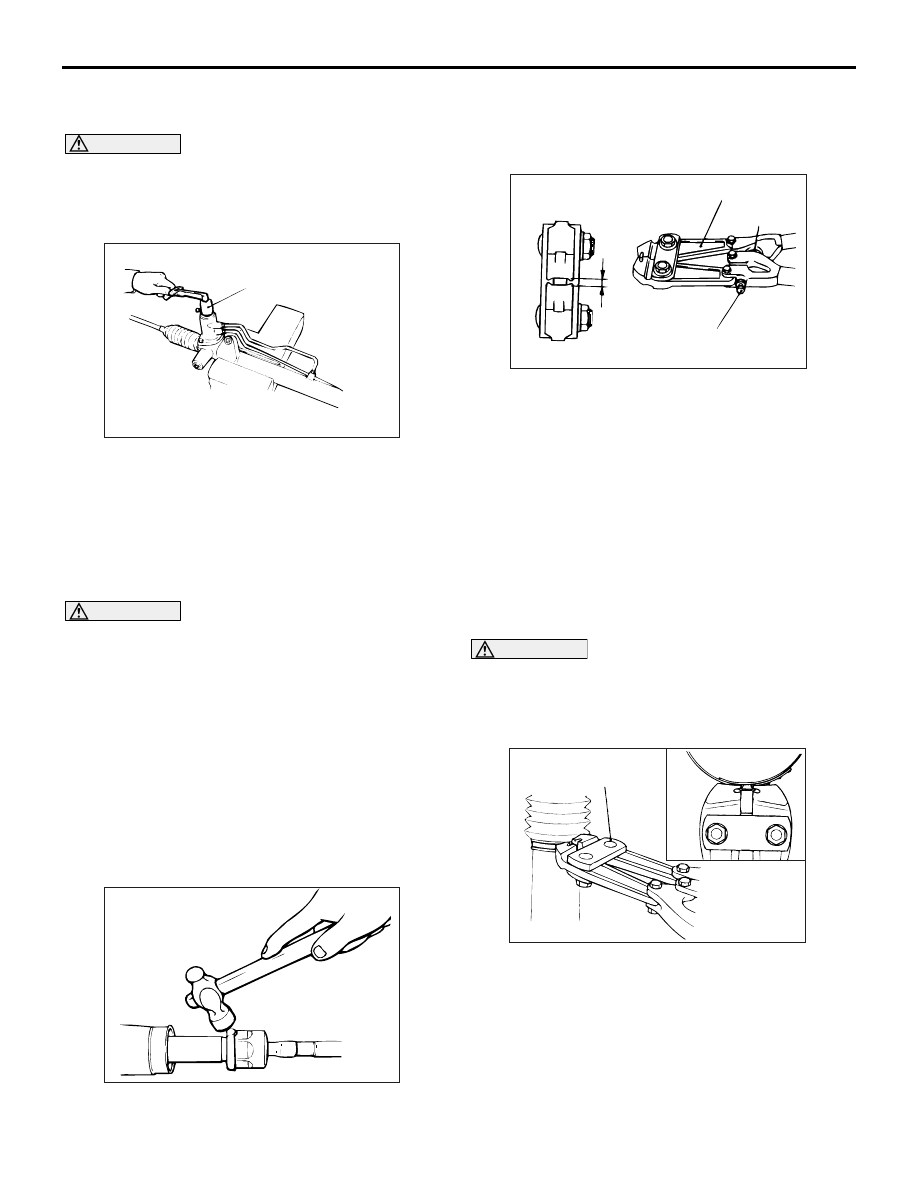

>>H<< TOTAL PINION TORQUE
ADJUSTMENT

CAUTION

• Be sure there is no ratcheting or catching

when operating the rack towards the shaft.

• Measure the total pinion torque through the

whole stroke of the rack.

1. Using special tool preload socket (MB991006),

rotate the pinion shaft at the rate of one rotation in
4 to 6 seconds to check the total pinion torque and
the change in torque.

Standard value:

Total pinion torque: 0.8

 2.1 Nm [Change in

torque: 0.6 N

m or less]

CAUTION

When adjusting, set at the highest value of the
standard value range.

NOTE: If the total pinion toque cannot be adjusted
to the standard value within the specified return
angle, check the rack support cover components
and replace any parts if necessary.

2. If the total pinion torque or the change in torque is

outside the standard value, move the rack support
cover 0

− 30°, and adjust the pinion torque again.

>>I<< TAB WASHER/TIE ROD
INSTALLATION

After installing the tie rod to the rack, fold tab washer
end (two locations) to tie rod notch.

>>J<< BELLOWS BAND INSTALLATION

1. Turn the adjusting bolt of special tool boot band

crimping tool (MB991561) to adjust the opening
dimension (W) to the standard value.
NOTE: The dimension (W) is adjusted by
approximately 0.7 mm per one turn.
NOTE: Do not turn the adjusting bolt more than
one turn.

Standard value (W): 2.9 mm
<When more than 2.9 mm>: Screw in the
adjusting bolt.
<When less than 2.9 mm>: Loosen the
adjusting bolt.

CAUTION

• Hold the rack housing, and use special tool to

crimp the bellows band securely.

• Crimp the bellows band until special tool

touches the stopper.

2. Use special tool boot band crimping tool

(MB991561) to crimp the bellows band.

AC100274AB

MB991006

ACX01163 AB

ACX01164 AB

W

MB991561

Adjusting bolt

Stopper

ACX01165 AB

MB991561

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-31

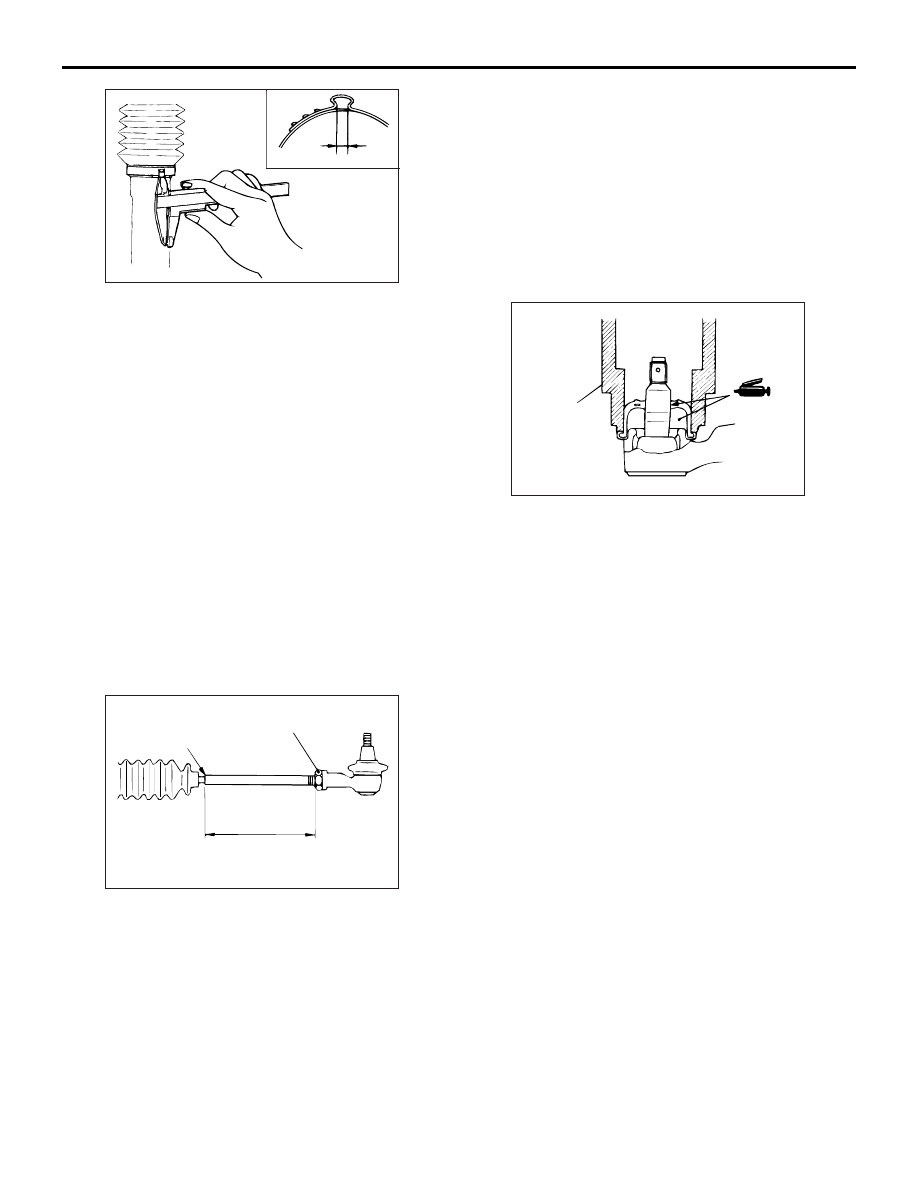

3. Check that crimped width (A) is within the

standard value.

Standard value (A): 2.4

 2.8 mm

<When more than 2.8 mm>: Readjust the
dimension (W) of step (1) to the value
calculated by the following equation, and
repeat step (2).
 W = 5.5 mm

 A [Example: if (A) is 2.9 mm,

(W) is 2.6 mm.]
<When less than 2.4 mm>: Remove the
bellows band, readjust the dimension (W) of
step (1) to the value calculated by the
following equation, and use a new bellows
band to repeat steps (2) to (3).
W = 5.5 mm

 A [Example: if (A) is 2.3 mm,

(W) is 3.2 mm.]

>>K<< TIE ROD END/LOCK NUT
INSTALLATION

Screw in the tie rod end to achieve the right and left
length as illustrated. Lock with the lock nut.
NOTE: The lock nuts must be tightened securely
only after the steering gear is installed to the vehicle
and toe-in is adjusted.

TIE ROD END BALL JOINT DUST COVER
REPLACEMENT

M1372008200402

If the dust cover is damaged accidentally during
service work, replace the dust cover as follows:

1. Apply specified grease to the lip and inside of the

dust cover.

Specified grease:
Multipurpose grease SAE J310, NLGI No.2 or
equivalent

2. Drive in the dust cover with special tool front axle

base (MB990776) until it is fully seated.

3. Check the dust cover for cracks or damage by

pushing it with your finger.

ACX01166 AB

A

AC001011AP

Lock nut

Edge of bellows
assembly groove

208.6 ± 1 mm <LH drive vehicles>
213.4 ± 1 mm <RH drive vehicles>

AC001012AB

MB990776

POWER STEERING OIL PUMP ASSEMBLY

POWER STEERING

37-32

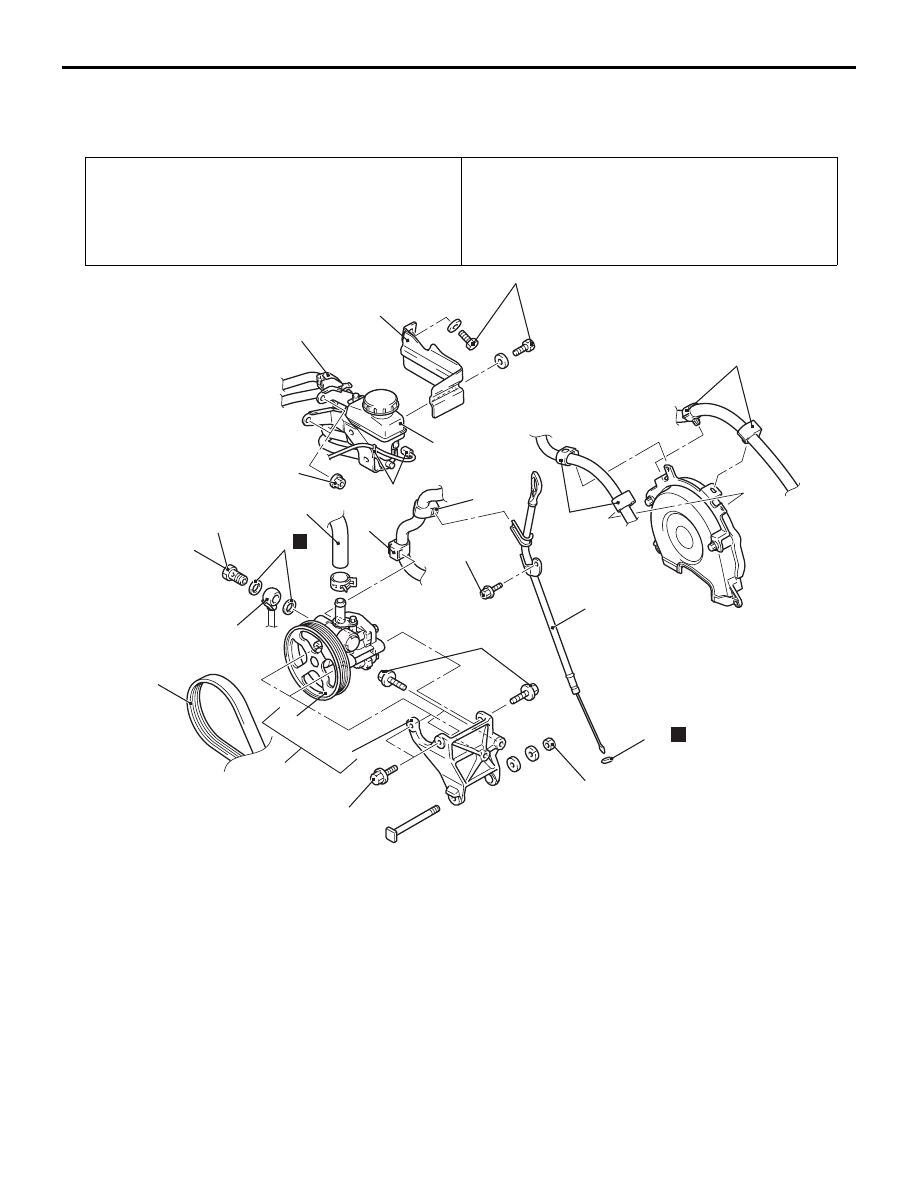

POWER STEERING OIL PUMP ASSEMBLY

REMOVAL AND INSTALLATION

M1372005200481

Pre-removal Operation
• Power Steering Fluid Draining (Refer to

P.37-11

.)

• Under cover (RH) removal

Post-installation Operation
• Under cover (RH) installation
• Power steering fluid refilling and air bleeding (Refer to

P.37-11

).

• Drive belt tension adjustment (Refer to GROUP 11A,

Engine adjustment

P.11A-7

.)

AC303048AC

N

8

7

10

11

9

1

2

3

4

5

6

5.0 ± 1.0 N·m

12

13

14

16

17

44 ± 10 N·m

N

29 ± 4 N·m

29 ± 4 N·m

13 ± 1 N·m

12

13 ± 1 N·m

57 ± 7 N·m

15

Removal steps

1.

Drive belt (Refer to GROUP 11A,
Timing belt

P.11A-33

.)

>>A<<

2.

Suction hose connection

3.

Brake fluid level switch connector and
clamp

4.

Heat protector <RH drive vehicles>

5.

Hose clip <RH drive vehicles>

6.

Brake fluid reservoir assembly <RH
drive vehicles>

7.

Eye bolt

8.

Gasket

9.

Pressure hose connection

10.

Power steering oil pressure sensor
harness clamp (Oil pump side)

11.

Control harness clamp (2 clamps at
engine side)

12.

Battery harness clamp (two clamps at
engine side, a clamp at level gauge
side)

13.

Level gauge

14.

O-ring

15.

Oil pump bracket and oil pump
assembly

16.

Oil pump bracket

17.

Oil pump assembly

Removal steps (Continued)

POWER STEERING OIL PUMP ASSEMBLY

POWER STEERING

37-33

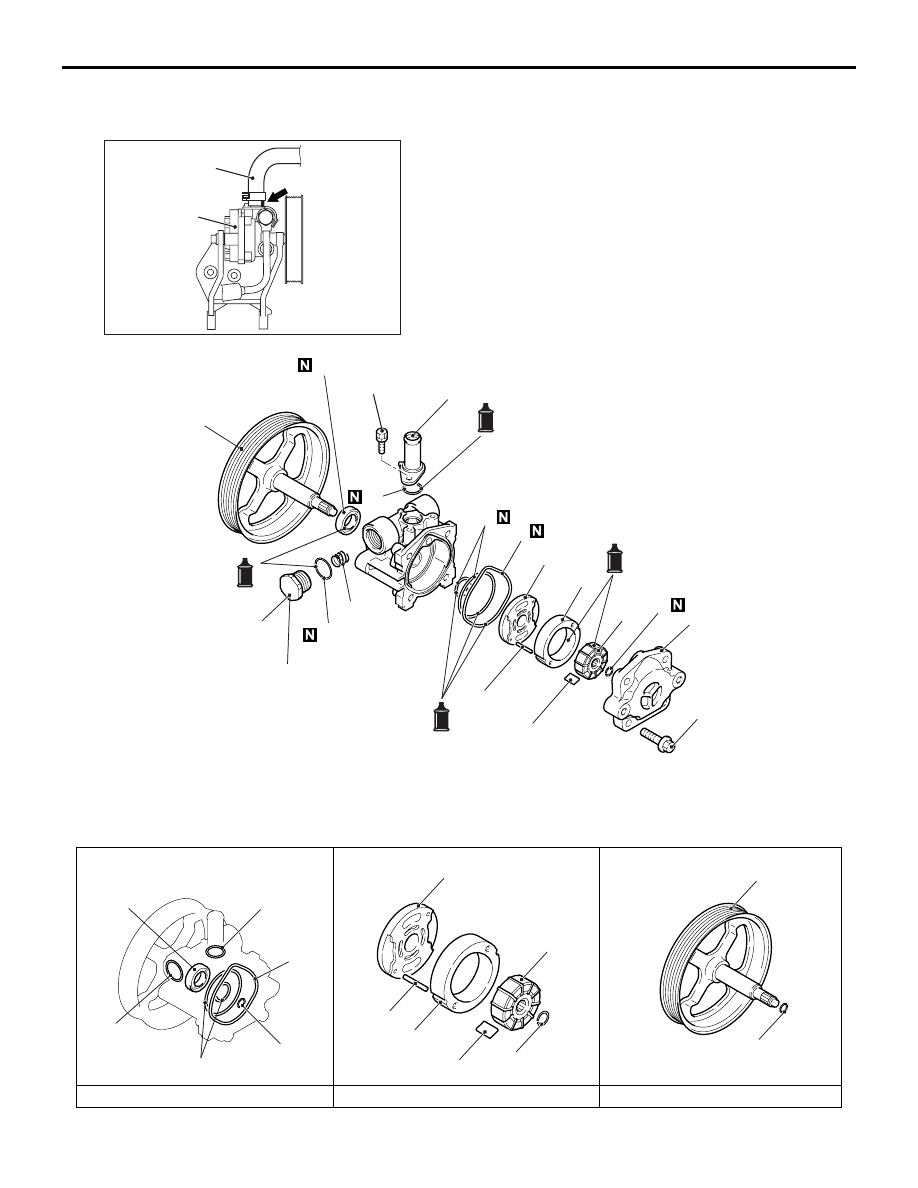

INSTALLATION SERVICE POINT
>>A<< SUCTION HOSE INSTALLATION

Align the suction hose marking (yellow) as shown
and connect the suction hose.

INSPECTION

M1372005300273

• Check the drive belt for cracks.

• Check the pulley for uneven rotation.

DISASSEMBLY AND ASSEMBLY

M1372005400429

AC302812 AG

Suction hose

Making

Oil pump

AC303143

AC

4

11

13

16

10

2

9

8

6

5

7

3

1

16

2

11

13

10

3

9

8

6

5

7

3

4

3

28 ± 1 N·m

15

12 ± 1 N·m

14

12

59 ± 9 N·m

Oil pump seal kit

Oil pump cartridge kit

Oil pump pulley and shaft kit

ATF DEXRON III or
DEXRON II

ATF DEXRON III or
DEXRON II

ATF DEXRON III or
DEXRON II

ATF DEXRON III or
DEXRON II
