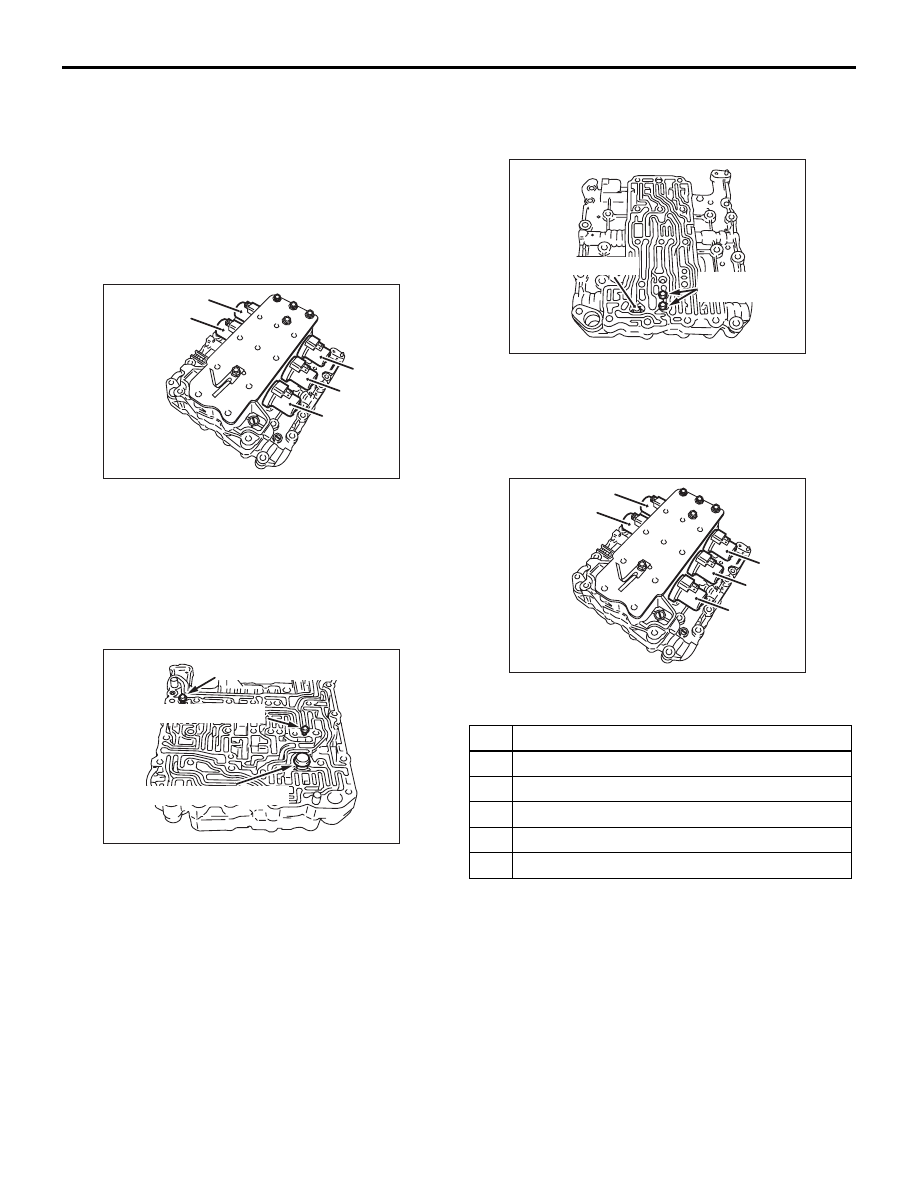

VALVE BODY

AUTOMATIC TRANSMISSION OVERHAUL

23B-56

DISASSEMBLY SERVICE POINT
<<A>> SOLENOID VALVE REMOVAL

Mark each solenoid valve with white paint to identify
its location.

REASSEMBLY SERVICE POINTS
>>A<< SPRING/STEEL BALL/DAMPING
VALVE/DAMPING VALVE SPRING
INSTALLATION

Install the springs, steel balls, damping valve, and
damping valve spring into the locations indicated in
the drawing.

>>B<< SPRING/STEEL BALLS
INSTALLATION

Install the springs and steel balls into the locations
indicated in the drawing.

>>C<< SOLENOID VALVES
INSTALLATION

Install the solenoid valves according to the markings
that have been made during disassembly.

58. Second pressure control valve

sleeve

59. Second pressure control valve
60. Second pressure control valve

spring

61. Outside valve body

Disassembly steps (Continued)

AK300548AC

1

2

3

4

5

AK300546AC

Steel ball and spring

Steel ball and spring

Damping valve and spring

No. Solenoid valve
1

Underdrive solenoid valve

2

Second solenoid valve

3

Damper clutch control solenoid valve

4

Overdrive solenoid valve

5

Low-reverse solenoid valve

AK300547AC

Steel ball

Steel balls
and springs

AK300548AC

1

2

3

4

5

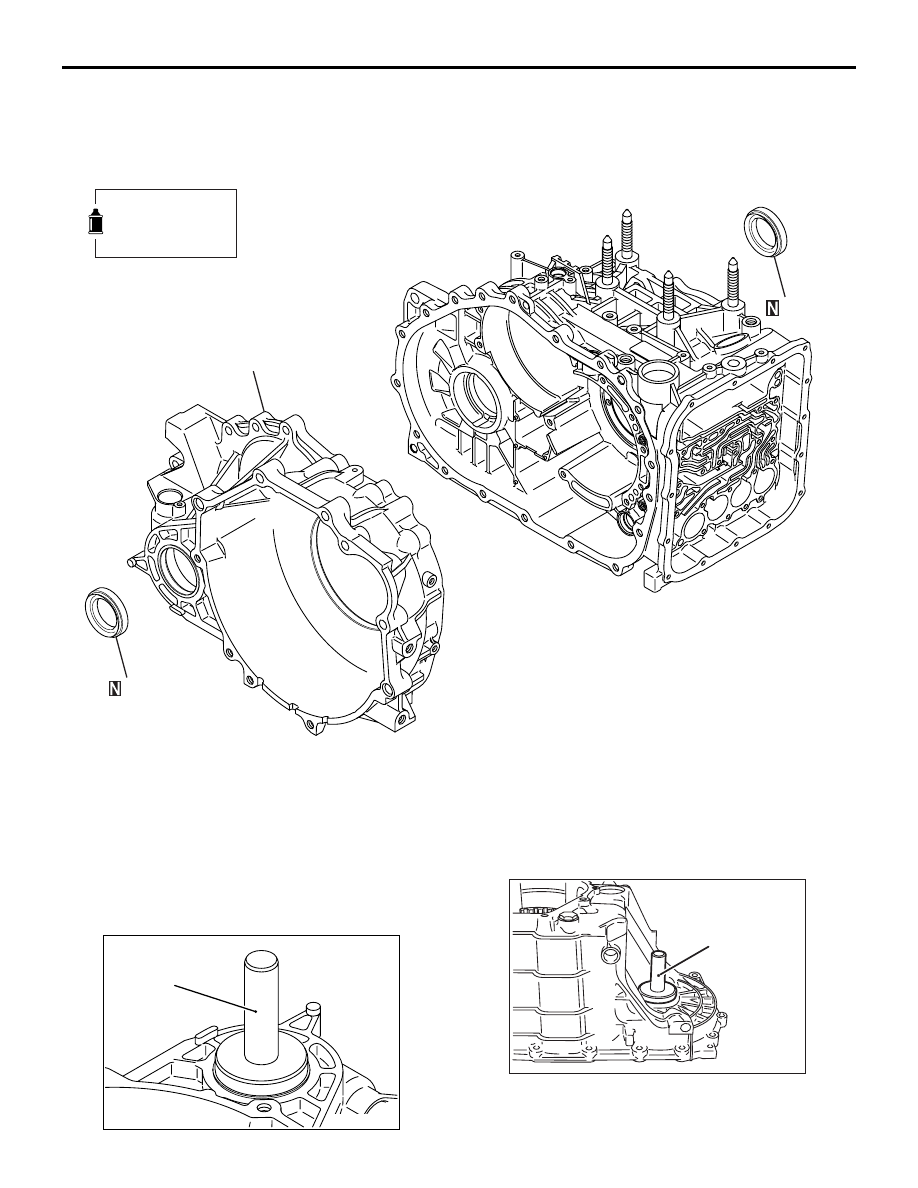

DRIVE SHAFT OIL SEAL

AUTOMATIC TRANSMISSION OVERHAUL

23B-57

DRIVE SHAFT OIL SEAL

DISASSEMBLY AND REASSEMBLY

M1233004300131

REASSEMBLY SERVICE POINT
>>A<< OIL SEAL INSTALLATION

Use the special tool to Oil seal installer (MD998800)
install the oil seal.

>>B<< OIL SEAL INSTALLATION

Use the special tool Oil seal installer (MD998800) to
install the oil seal.

AK300508AC

1

2

3

Apply automatic
transmission fluid
to all moving parts
before installation.

Disassembly steps

>>A<<

1.

Oil seal

2.

Converter housing

>>B<<

3.

Oil seal

AK301290AB

MD998800

AK300549AC

MD998800

31-1

GROUP 31

WHEEL AND TYRE

CONTENTS

GENERAL INFORMATION . . . . . . . .

31-2

SERVICE SPECIFICATIONS. . . . . . .

31-2

TROUBLESHOOTING . . . . . . . . . . . .

31-3

DIAGNOSIS  . . . . . . . . . . . . . . . . . . . . . . . .

31-3

WHEEL BALANCE ACCURACY  . . . . . . . .

31-4

ON-VEHICLE SERVICE. . . . . . . . . . .

31-8

TYRE INFLATION PRESSURE CHECK . . .

31-8

TYRE WEAR CHECK . . . . . . . . . . . . . . . . .

31-8

WHEEL RUNOUT CHECK  . . . . . . . . . . . . .

31-8

WHEEL AND TYRE  . . . . . . . . . . . . . .

31-8

INSTALLATION SERVICE POINT  . . . . . . .

31-8

SPARE TYRE CARRIER  . . . . . . . . . .

31-9

REMOVAL AND INSTALLATION  . . . . . . . .

31-9

GENERAL INFORMATION

WHEEL AND TYRE

31-2

GENERAL INFORMATION

M1311000100167

The wheels and tyres of the following specifications
have been established.

SPECIFICATIONS

ROAD WHEEL AND TYRE

SPARE WHEEL AND TYRE

NOTE:

.

•

The * mark indicates optional item.

•

PCD (Pitch Circle Diameter) indicates the pitch circle diameter of the wheel installation holes.

SERVICE SPECIFICATIONS

M1311000300484

Item

Specification

Wheel

Type

Steel type or Aluminium type*

Size

16

× 6 1/2JJ or 17 × 7JJ*

Amount of wheel offset mm

46

PCD mm

114.3

Tyre

Size

215/60R16 95H or 215/55 R17 94V*

Item

Specification

Wheel

Type

Steel type

Size

16

× 4T

Amount of wheel offset mm

40

PCD mm

114.3

Tyre

Size

T135/90D16 102M

ITEM

LIMIT

Tread depth of tyre mm

Minimum 1.6

Wheel runout
<Aluminium wheel>

Radial runout mm

1.0 or less

Lateral runout mm

1.0 or less

Wheel runout
<Steel wheel>

Radial runout mm

1.2 or less

Lateral runout mm

1.2 or less
