LOW-REVERSE BRAKE

AUTOMATIC TRANSMISSION OVERHAUL

23B-48

LOW-REVERSE BRAKE

DISASSEMBLY AND REASSEMBLY

M1233003700170

REASSEMBLY SERVICE POINTS

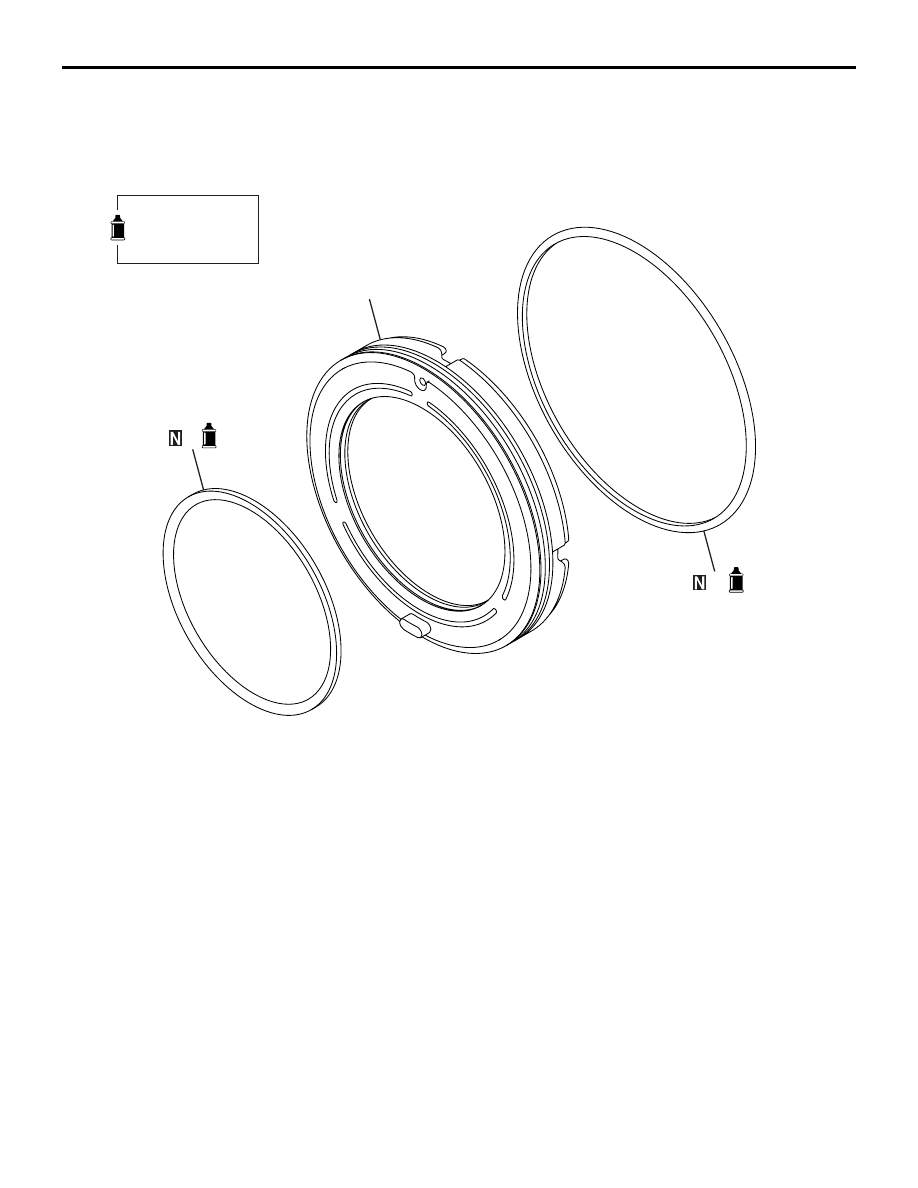

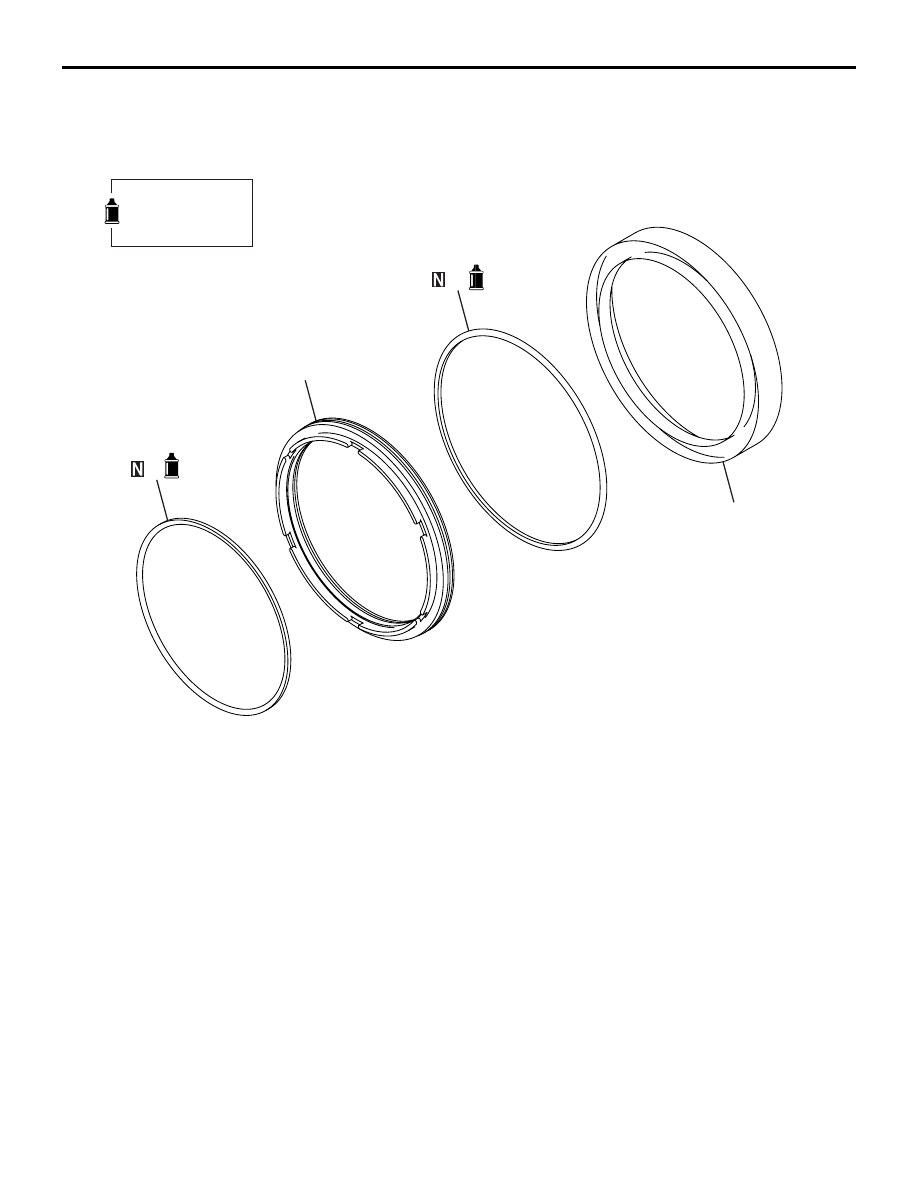

>>A<< D-RING INSTALLATION

Apply ATF, blue petrolatum jelly or white Vaseline to
the D-rings before installation, and handle them
carefully not to damage them during installation.

AK301040AC

1

2

3

Apply automatic
transmission fluid
to all moving parts
before installation.

Disassembly steps

>>A<<

1.

D-ring

>>A<<

2.

D-ring

3.

Low-reverse brake piston

SECOND BRAKE

AUTOMATIC TRANSMISSION OVERHAUL

23B-49

SECOND BRAKE

DISASSEMBLY AND REASSEMBLY

M1233021800117

REASSEMBLY SERVICE POINT
>>A<< D-RING INSTALLATION

Apply ATF, blue petrolatum jelly or white Vaseline to
the D-rings, and handle them carefully to avoid
damage during installation.

AK301039AC

1

2

3

4

Apply automatic
transmission fluid
to all moving parts
before installation.

Disassembly steps

1.

Second brake retainer

>>A<<

2.

D-ring

3.

Second brake piston

>>A<<

4.

D-ring

OUTPUT SHAFT

AUTOMATIC TRANSMISSION OVERHAUL

23B-50

OUTPUT SHAFT

DISASSEMBLY AND REASSEMBLY

M1233022100081

DISASSEMBLY SERVICE POINTS

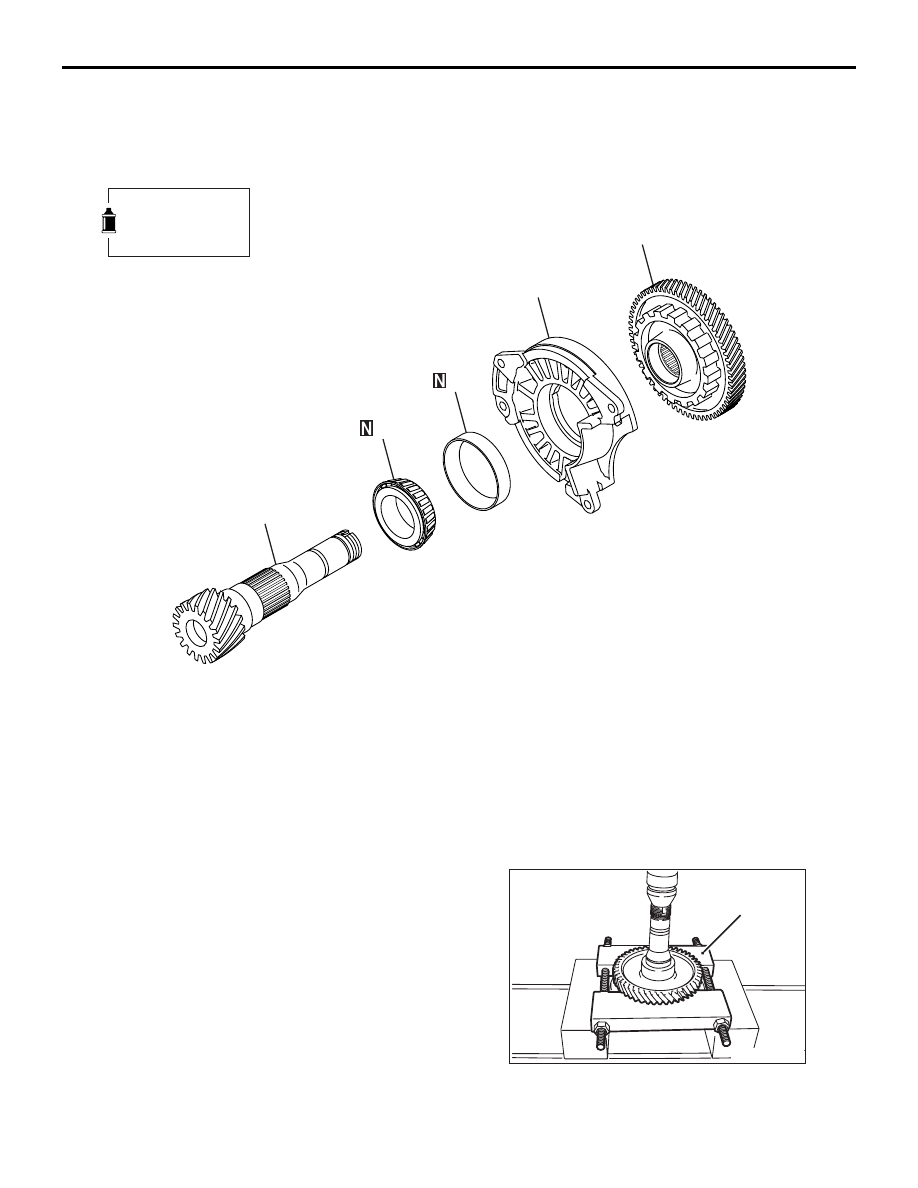

<<A>> TRANSFER DRIVEN GEAR
REMOVAL

Use the special tool Bearing remover (MD998917) to
remove the transfer driven gear.

AK301036AC

1

2

3

4

5

Apply automatic
transmission fluid
to all moving parts
before installation.

Disassembly steps

<<A>>

>>C<<

1.

Transfer driven gear

2.

Bearing retainer

>>B<<

3.

Outer race

<<B>>

>>A<<

4.

Taper roller bearing

5.

Output shaft

AK300530AC

MD998917

OUTPUT SHAFT

AUTOMATIC TRANSMISSION OVERHAUL

23B-51

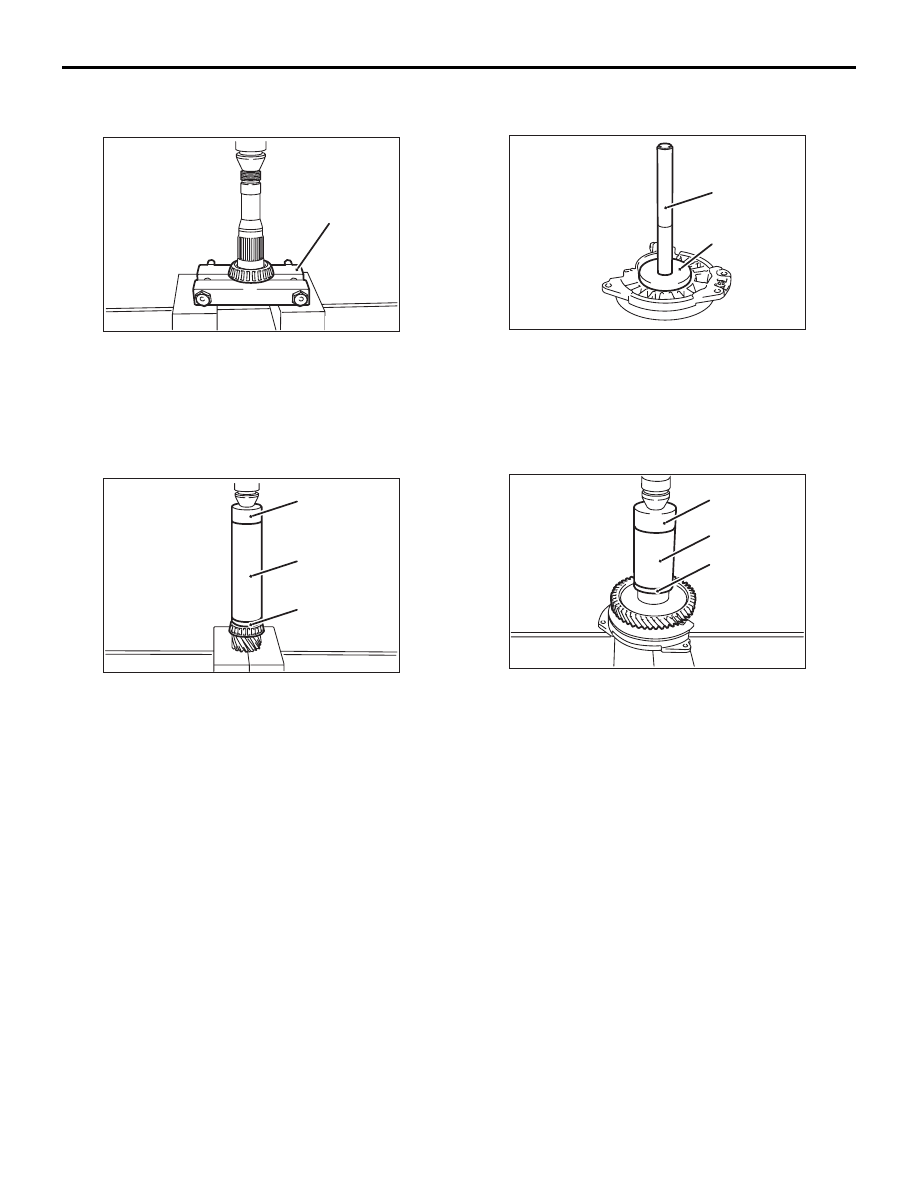

<<B>> TAPER ROLLER BEARING
REMOVAL

Use the special tool Bearing remover (MD998801) to
remove the taper roller bearing.

REASSEMBLY SERVICE POINTS
>>A<< TAPER ROLLER BEARING
INSTALLATION

Use the special tools to install the taper roller
bearing.

• Installer cap (MD998812)

• Installer 200 (MD998814)

• Installer adapter (MD998823)

>>B<< OUTER RACE INSTALLATION

Use the special tools to install the outer race.

• Installer adapter (MB990936)

• Handle (MB990938)

>>C<< TRANSFER DRIVEN GEAR
INSTALLATION

Use the special tools to install the transfer driven
gear.

• Installer cap (MD998812)

• Installer 100 (MD998813)

• Installer adapter (MD998823)

AK300531AC

MD998801

AK300533AC

MD998812

MD998814

MD998823

AK300534

MB990938

MB990936

AC

AK300535AC

MD998812

MD998813

MD998823
