TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-65

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-66

STEP 5. Check the harness wire between
TCL/ASC-ECU connector A-04 terminal 6 and G
and yaw rate sensor connector C-117 terminal 1.

TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-67

NOTE: After inspecting the TCL/ASC-ECU
connector A-04, intermediate connector A-16 and G
and yaw rate sensor connector C-117, inspect the
wire. If any of these connector is damaged, repair or
replace it. Then go to Step 10.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair it and go to Step 10.

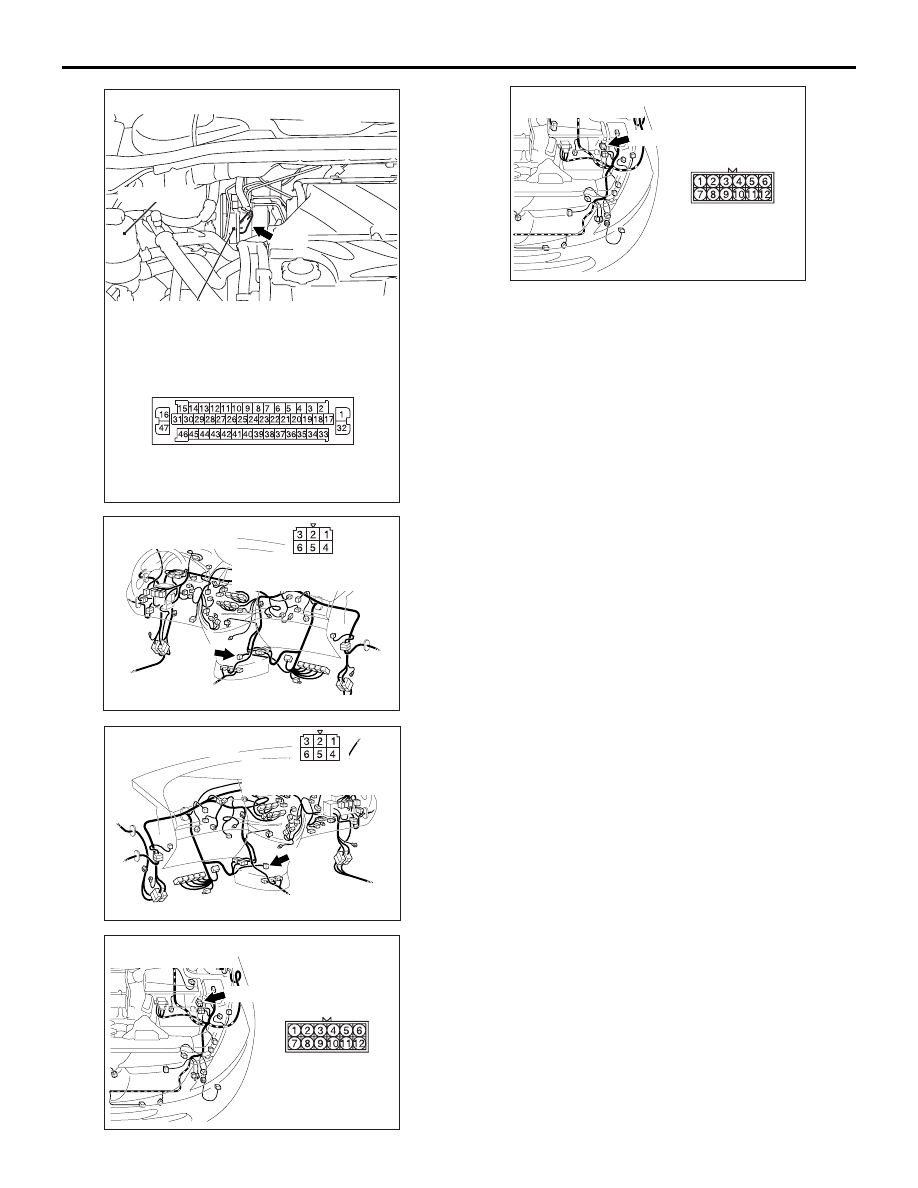

AC312621

Oil reservoir

Connector: A-04

AB

A-04

Hydraulic unit
(with built-in TCL/ASC-ECU)

A-04 Harness connector
(harness side)

AC312624AF

Connector: C-117
<L.H.drive vehicles>

C-117

C-117 Harness connector
(harness side)

AC312625AF

Connector: C-117
<R.H.drive vehicles>

C-117

C-117 Harness connector
(harness side)

AC312617AC

Connector: A-16
<L.H.drive vehicles>

A-16(B)

AC312619AC

Connector: A-16
<R.H.drive vehicles>

A-16(B)

TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-68

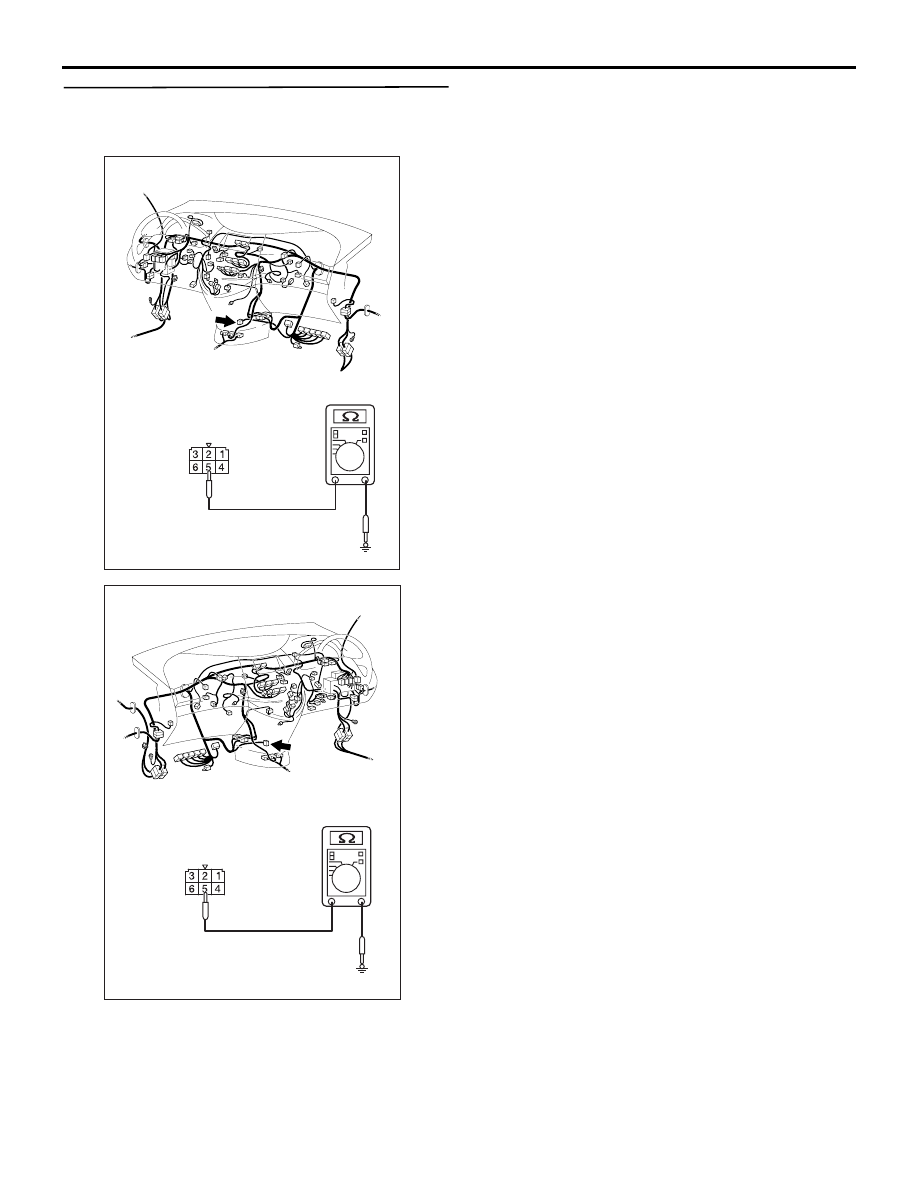

STEP 6. Resistance measurement the harness
wire between G and yaw rate sensor connector
C-117 terminal 5 and ground.

(1) Disconnect the G and yaw rate sensor connector

C-117, and measure at the harness side
connector.

(2) Measurement the resistance between terminal 5

and ground.

OK: 2 ohms or less

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 7.

AC313186

AC

Connector: C-117
<L.H.drive vehicles>

C-117

C-117 Harness connector
(harness side)

AC313188AC

Connector: C-117
<R.H.drive vehicles>

C-117

C-117 Harness connector
(harness side)
