Mitsubishi Grandis. Manual - part 828





DOOR MIRROR

EXTERIOR

51-47

AC302386

AC302754

AC304052

AC304053

AC304054

C

C

C

C

C

C

A

A

B

B

A

A

2

2

AB

2

2

Section A – A

Section C – C

Section B – B

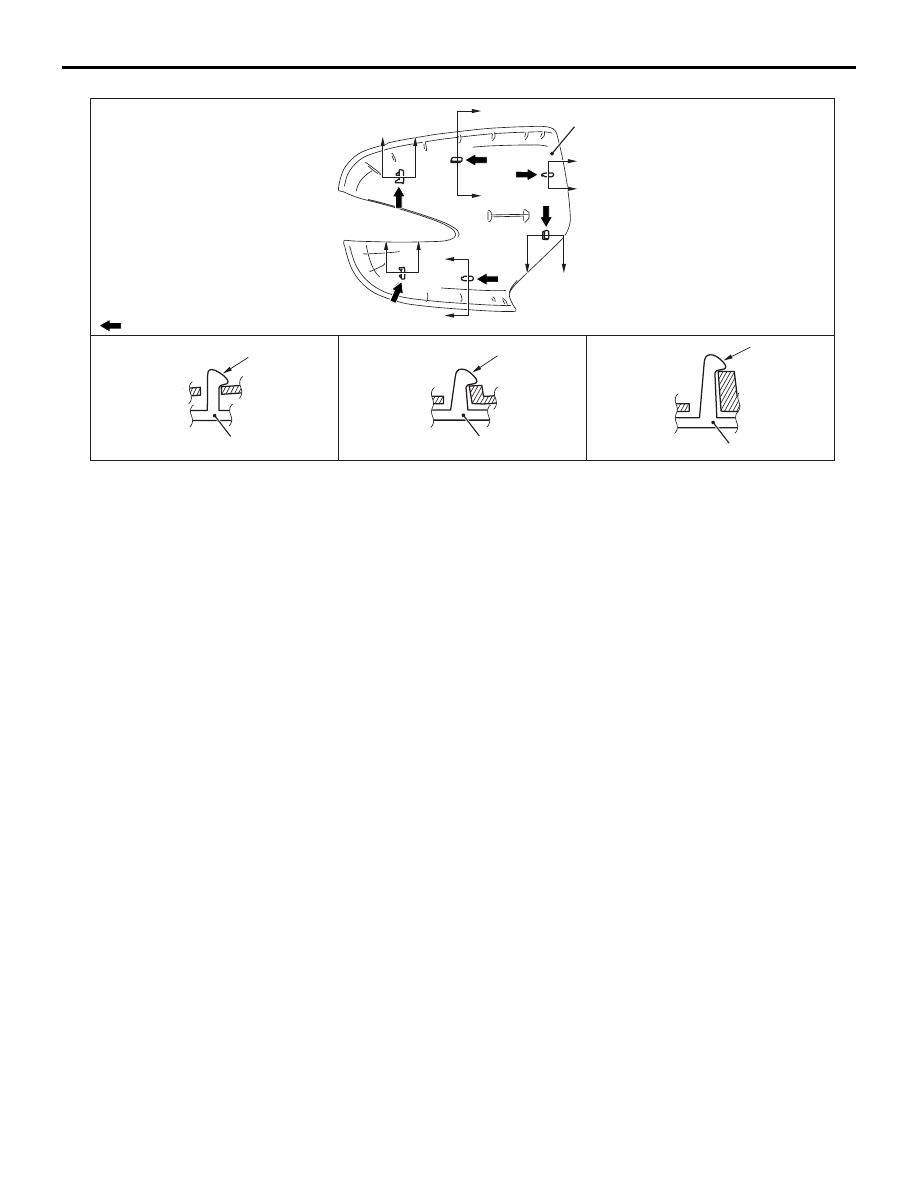

Door mirror outer cover claw positions

Note

: Claw positions

Claw

Claw

Claw

<<A>>

1.

Mirror
Door mirror outer cover removal
steps

<<A>>

1.

Mirror

<<B>>

>>A<<

2.

Door mirror outer cover

3.

Side turn-signal lamp
Door mirror assembly removal
steps

Front door trim (Refer to group 52A,
Door trim

P.52A-12

.)

4.

Door mirror assembly

5.

Clip
Remote controlled mirror switch
removal steps

Instrument panel under cover
(Refer to group 52A, Instrument
panel assembly

P.52A-2

.)

6.

Remote controlled mirror switch

Door mirror assembly removal
steps (Continued)

DOOR MIRROR

EXTERIOR

51-48

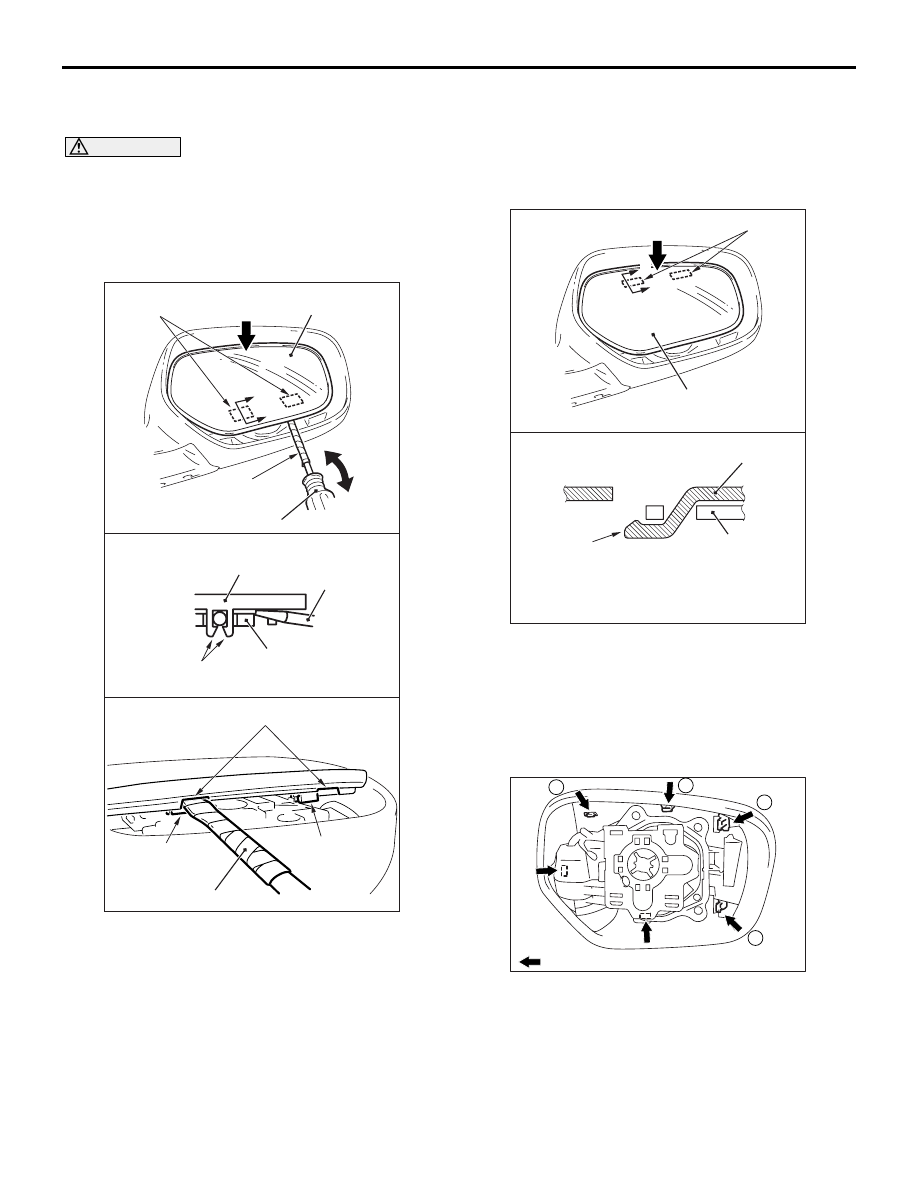

REMOVAL SERVICE POINT
<<A>> MIRROR REMOVAL

CAUTION

The tab of the mirror is prone to breakage when
working in cold temperatures. Always use a hair
drier or the like to warm up the mirror tab and its
periphery to 20

°C or higher prior to works. When

the mirror is heated too quickly from its cold
state, it may be broken.

1. Slant the mirror upward with your hands. Then

insert (

−) screwdriver wrapped with protective

tape between the pivot plate and mirror through
the cut-out from behind the mirror. Now pry off the
mirror tab and release the lower side of the mirror
as shown in the illustration.

2. Release the upper side of the mirror from the tab

as shown while pulling out the mirror.

3. Disconnect the connector of the heated mirror.

<<B>> DOOR MIRROR OUTER COVER
REMOVAL

Remove the door mirror outer cover by disengaging
the tabs in the numerical order of the illustration from
the mirror body side.

AC302711

AC302282

A

A

AB

Section A – A

Claw positions

Claws

Claw

Claw

Pivot plate

Recesses

Mirror

Mirror

Minus screwdriver

Minus screwdriver

Minus screwdriver

Protective tape

AC302415

AC303105

AC302282

A

A

AB

Claw positions

Claw

Pivot plate

Mirror

Mirror

Section A – A

AC302933AB

1

2

3

4

Note

: Claw positions

DOOR MIRROR

EXTERIOR

51-49

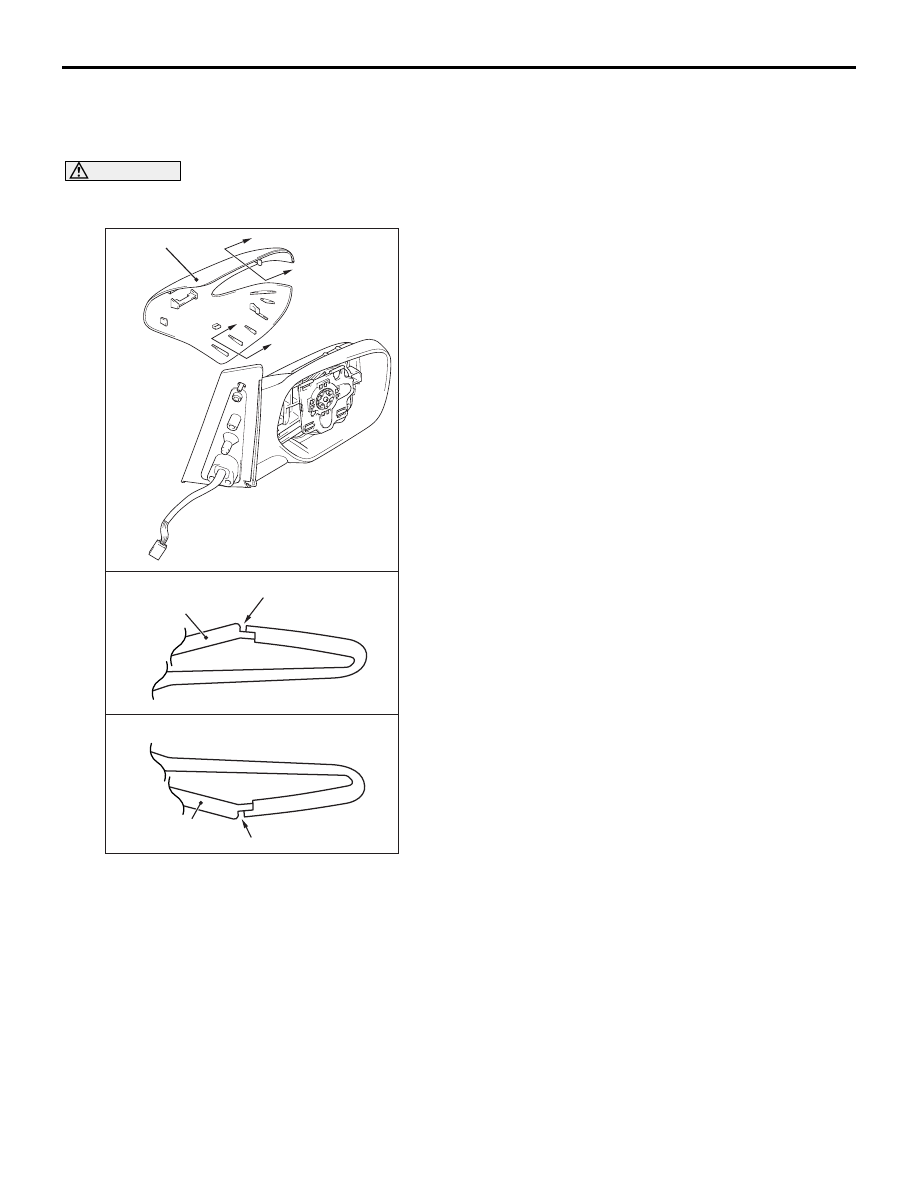

INSTALLATION SERVICE POINT
>>A<< DOOR MIRROR OUTER COVER
INSTALLATION

CAUTION

Tap the six tab positions securely to confirm that
they are engaged securely.

There should be a space between the door mirror
outer cover and the rain gutter as shown.

AC303547

AC303080

AC303080

AC303217

A

A

B

B

AB

Rain gutter

Rain gutter

Door mirror outer
cover

Door mirror outer
cover

Door mirror outer
cover

Section A – A

Section B – B

DOOR MIRROR

EXTERIOR

51-50

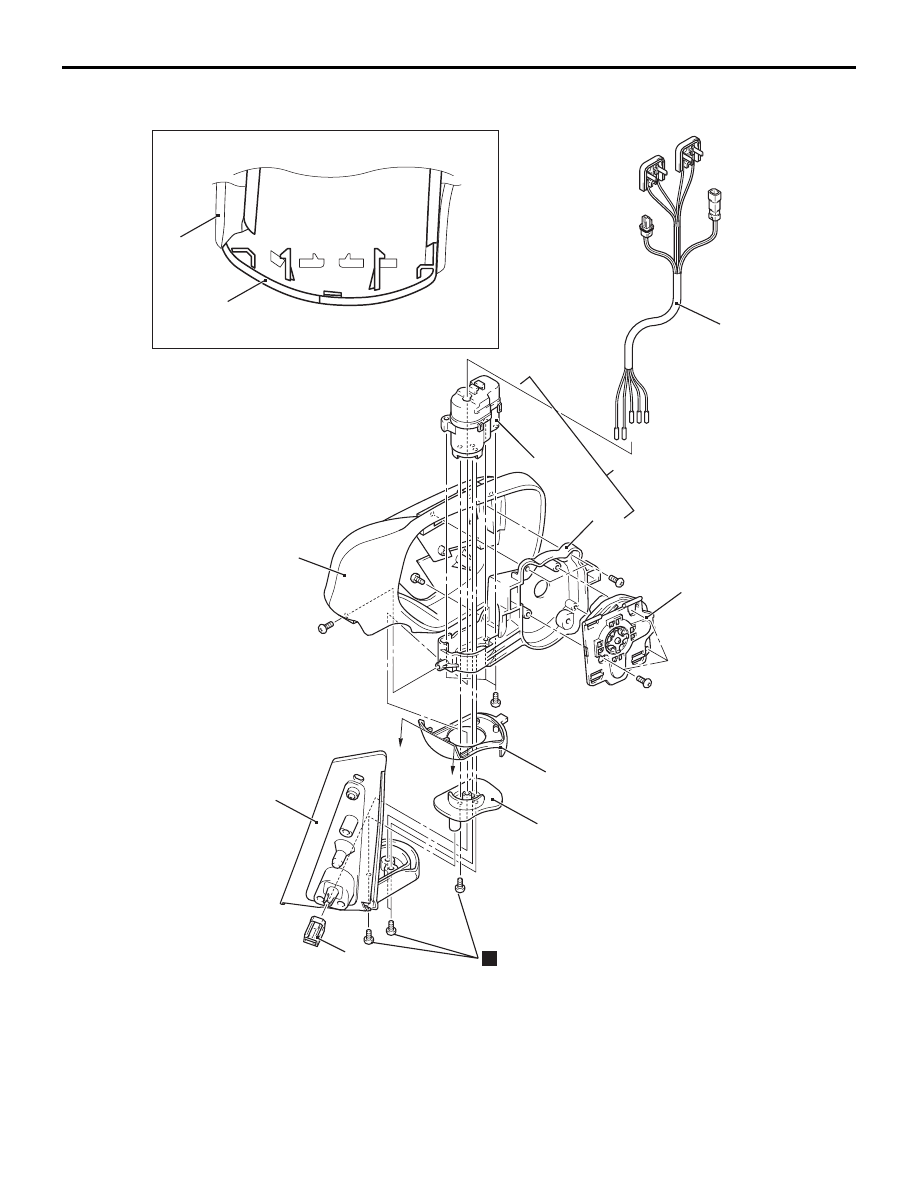

DISASSEMBLY AND REASSEMBLY

M1511023900050

AC308916

AC303373

AC308903

9

A

A

N

10

4

8

5

6

2

3

1

7

AB

4

8

Section A – A

Disassembly steps

<<A>>

>>B<<

1.

Connector

2.

Body base assembly

3.

Base

4.

Body cover

>>A<<

5.

Actuator

6.

Support assembly

7.

Harness assembly

8.

Body

9.

Support

10. Retractor motor

Disassembly steps (Continued)
