DOOR MIRROR

EXTERIOR

51-51

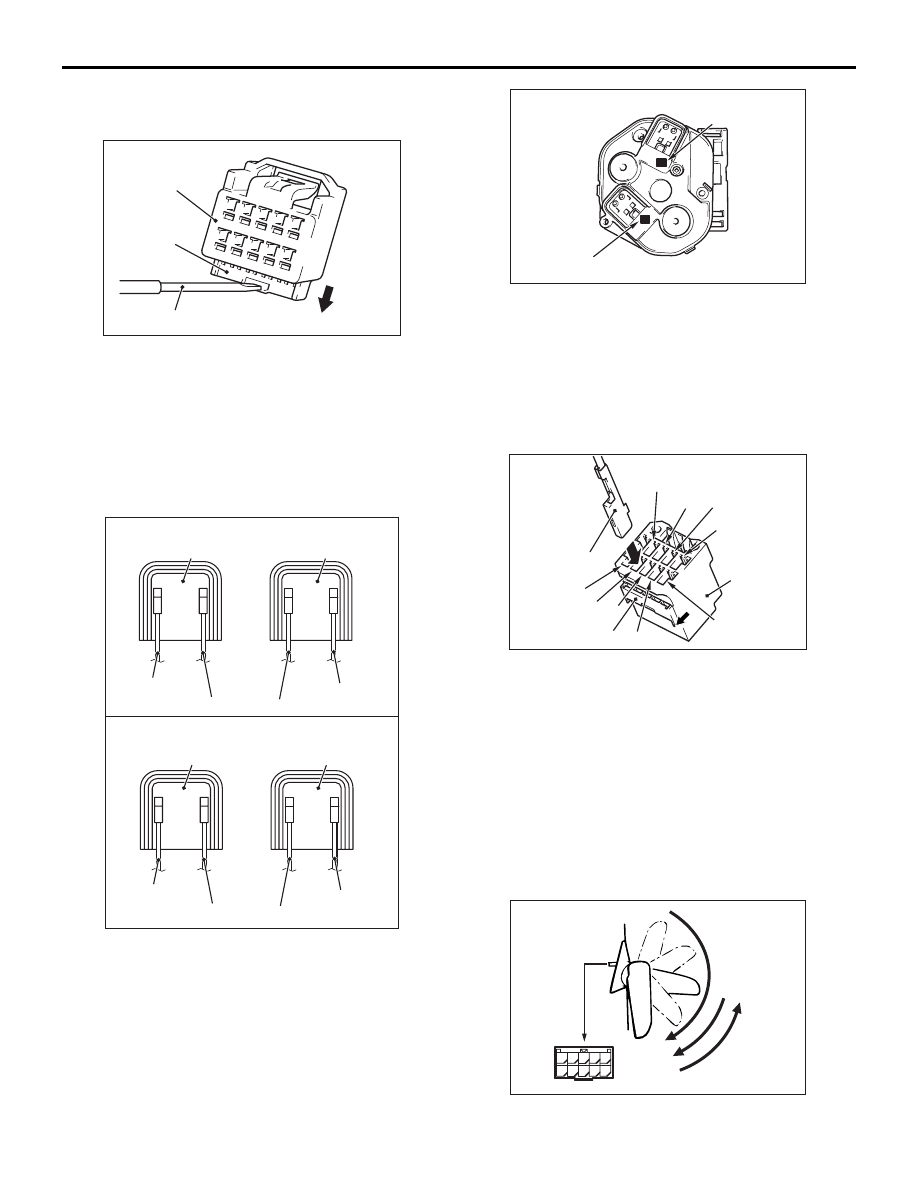

DISASSEMBLY SERVICE POINT
<<A>> CONNECTOR REMOVAL

Use a flat-tipped screwdriver to pull up the retainer
shown slightly (by a few millimeter). Then disengage
the wiring harness terminals to disconnect the
connector.

REASSEMBLY SERVICE POINT
>>A<< ACTUATOR INSTALLATION

1. Check that the wiring harness wires are secured

with the connector as shown.
NOTE: Check that the wires are secured as these
wires may be released from the connector easily.

2. Confirm the wiring harness assembly connectors

of the same colour as the colour engraved on the
actuator. Connect the connectors to the actuator
as shown according to the colours, respectively.

3. Install the actuator to the support assembly.

>>B<< CONNECTOR INSTALLATION

Pull out the connector retainer slightly until it is
loosely fitted. Insert the wiring harness wires of the
shown colours to the connector, respectively. Then
push in the retainer until it clicks in to position.

INSPECTION

M1511019100545

DOOR MIRROR ASSEMBLY OPERATION
CHECK

Remove the door trim, and then connect the battery
to the door mirror assembly connector to check that
the door mirror operates.

AC303079AB

Harness
connector

Retainer

Minus screwdriver

AC303055

AC303571AB

<Door mirror RH>

Connector(gray)

Harness(blue)

Harness(blue)

Harness(yellow)

Harness(yellow)

Harness(white)

Harness(white)

Harness(blue)

Harness(blue)

Connector(gray)

Connector(black)

Connector(black)

<Door mirror LH>

AC302830AB

Engraving(gray)

Engraving(black)

AC303078 AB

Harness
connector

Connector

Retainer

White

Yellow

Black

Purple Gray

Black

Blue

Green

Orange

AC302272

6 7

1 2

9

8

10

4

3

5

AB

Return

Retract

Forward-folding

DOOR MIRROR

EXTERIOR

51-52

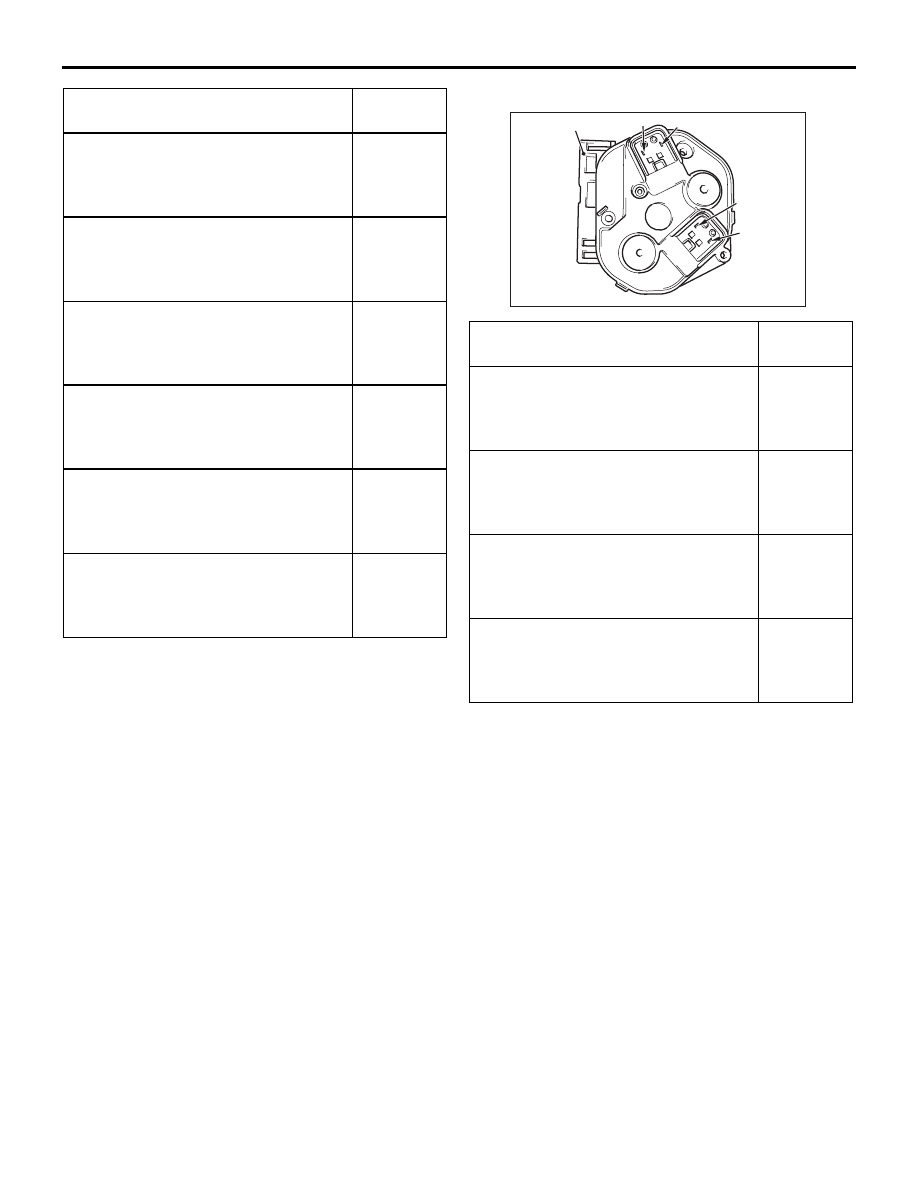

ACTUATOR OPERATION CHECK

Battery connection

Direction
operation

• Connect terminal 8 to the negative

battery terminal.

• Connect terminal 10 to the positive

battery terminal.

Up

• Connect terminal 8 to the positive

battery terminal.

• Connect terminal 10 to the negative

battery terminal.

Down

• Connect terminal 8 to the negative

battery terminal.

• Connect terminal 9 to the positive

battery terminal.

Right

• Connect terminal 8 to the positive

battery terminal.

• Connect terminal 9 to the negative

battery terminal.

Left

• Connect terminal 6 to the positive

battery terminal.

• Connect terminal 7 to the negative

battery terminal.

Retract

• Connect terminal 6 to the negative

battery terminal.

• Connect terminal 7 to the positive

battery terminal.

Return

Battery connection

Pivot plate
operation

• Connect terminal 3 to the negative

battery terminal.

• Connect terminal 4 to the positive

battery terminal.

Up

• Connect terminal 3 to the positive

battery terminal.

• Connect terminal 4 to the negative

battery terminal.

Down

• Connect terminal 1 to the positive

battery terminal.

• Connect terminal 2 to the negative

battery terminal.

Right

• Connect terminal 1 to the negative

battery terminal.

• Connect terminal 2 to the positive

battery terminal.

Left

AC309039

1

2

3

4

AB

Pivot plate

DOOR MIRROR

EXTERIOR

51-53

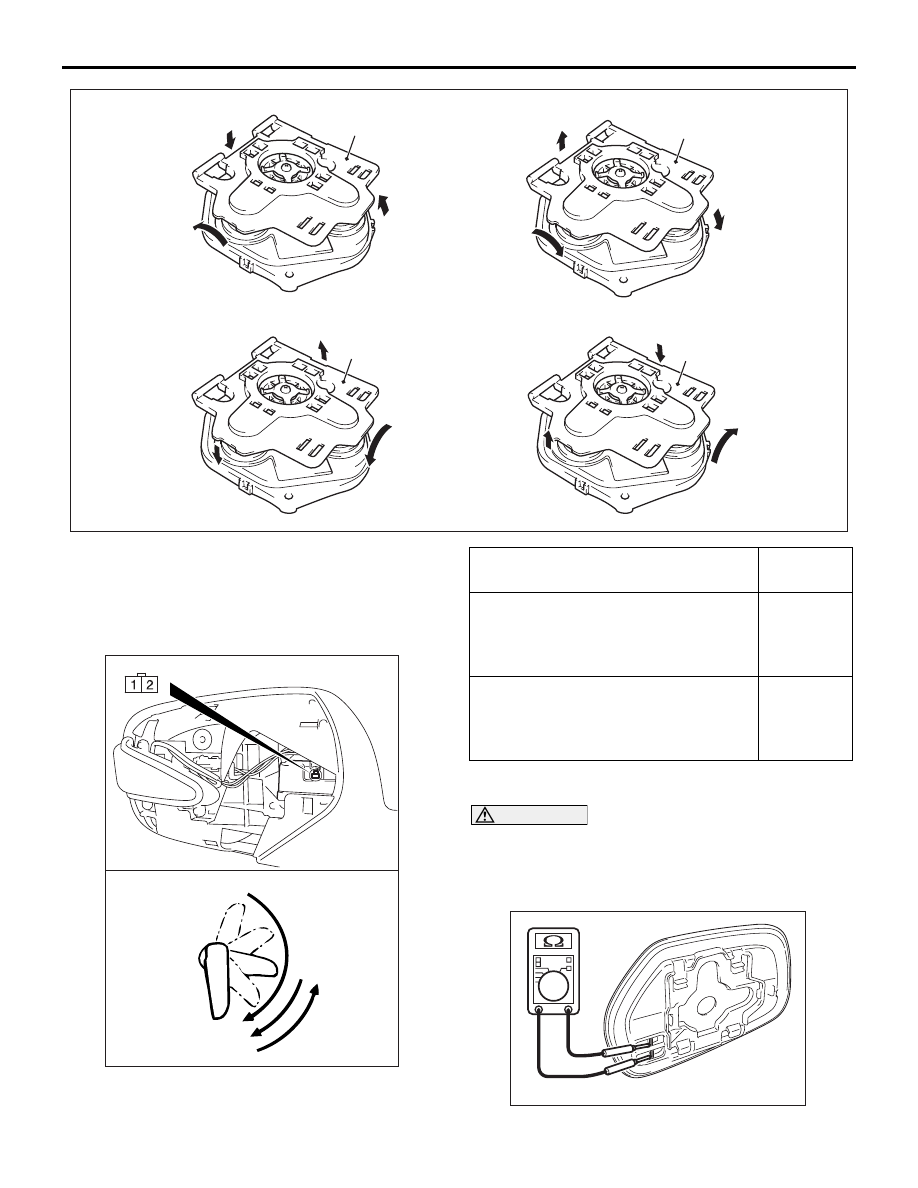

RETRACTOR MOTOR OPERATION
CHECK

Remove the door mirror outer cover. Connect the
battery to the connector shown to check that the
mirror can be folded and unfolded correctly.

⋅

HEATED DOOR MIRROR CHECK

CAUTION

When relocating the car between locations with
extremely different temperatures (warm and
cold), leave the car in the location for a while to
adapt to the temperature prior to checking it.

AC303071

AC303070

AC303073

AC303072

AC309040AB

Pivot plate

Upper in operation

LH (LH in operation)
RH (RH in operation)

LH (RH in operation)
RH (LH in operation)

Lower in operation

Pivot plate

Pivot plate

Pivot plate

AC303551

AC303054

Forward-folding

Return

Retract

AC

Battery connection

Pivot plate
operation

• Connect terminal 1 to the negative

battery terminal.

• Connect terminal 2 to the positive

battery terminal.

Retract

• Connect terminal 1 to the positive

battery terminal.

• Connect terminal 2 to the negative

battery terminal.

Return

AC302283

DOOR MIRROR

EXTERIOR

51-54

Remove the mirror. Check that the resistance value
between the connector terminals (at the back of the
mirror) is at the standard value.

Standard value: 7.5

± 1.1 Ω at 25°C

DOOR MIRROR CONTROL SWITCH
CONTINUITY CHECK

AC209704

AB

Switch position

Tester
connection

Specified
condition

OFF

1

− 2, 1 − 3, 1 − 4,

1

− 6, 1 − 10, 1 −

11, 2

− 9, 3 − 9, 6

− 9, 9 − 10, 9 − 11

Open circuit

Left side OFF

1

− 6, 1 − 10, 1 −

11, 6

− 9, 9 − 10,

9

− 11

Open circuit

Up

1

− 6, 9 − 11

Less than 2
ohms

Down

1

− 11, 6 − 9

Right

1

− 6, 9 − 10

Left

1

− 10, 6 − 9

Right
side

OFF

1

− 2, 1 − 3, 1 − 6,

2

− 9, 3 − 9, 6 − 9

Open circuit

Up

1

− 6, 3 − 9

Less than 2
ohms

Down

1

− 3, 6 − 9

Right

1

− 6, 2 − 9

Left

1

− 2, 6 − 9

Retract and return 1

− 4

Less than 2
ohms
