ENGINE ROLL STOPPER, CENTREMEMBER

POWER PLANT MOUNT

32-7

INSTALLATION SERVICE POINT
>>A<< ENGINE FRONT ROLL STOPPER
BRACKET INSTALLATION

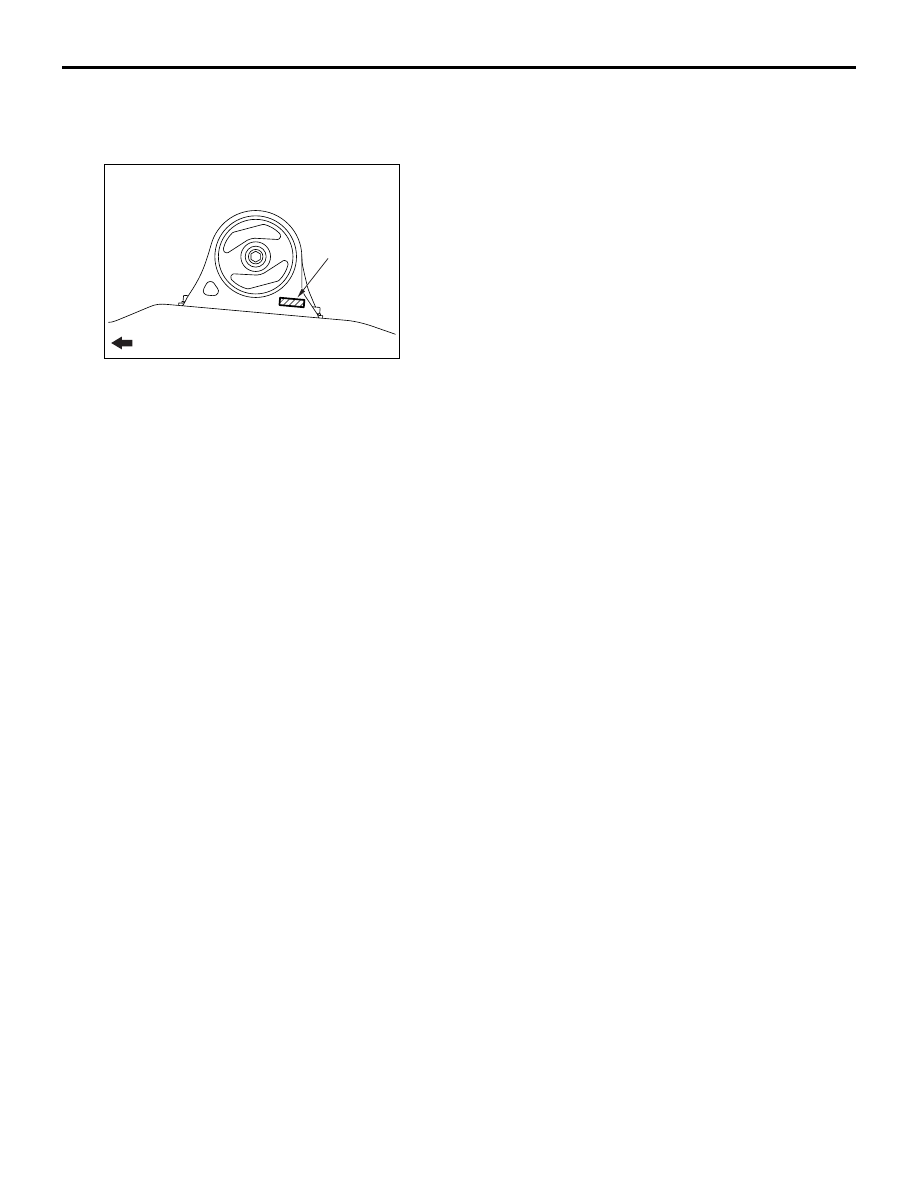

Install the engine front roll stopper bracket with its
identification characters facing as shown in the
illustration.

AC302101

AC

Front of vehicle

Identification
character

CROSSMEMBER

POWER PLANT MOUNT

32-8

CROSSMEMBER

REMOVAL AND INSTALLATION

M1321003200454

CAUTION

• Before removing the steering wheel and air bag module assembly, always refer to GROUP 52B -

Service Precautions

P.52B-7

, Air bag Module and Clock Spring

P.52B-225

. Also, set the front

wheels so that they are facing straight forward, and remove the ignition key. If you fail to do this,
the SRS clock spring will be damaged, causing the SRS air bag to be inoperative and serious
injury.

• *

1

: Indicates parts which should be initially tightened, and then fully tightened after placing the

vehicle horizontally and loading the full weight of the engine on the vehicle body.

• *

2

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle

on the earth in the unladen condition.

<L.H. drive vehicles>

Pre-removal Operation
• Centremember Removal (Refer to

P.32-6

).

• Front Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-9

).

• Steering Wheel Air Bag Module Assembly Removal

(Refer to GROUP 37A, Steering Wheel

P.37-14

).

• Steering Dust Cover Removal (Refer to GROUP 37A,

Power Steering Gear Box and Linkage

P.37-19

).

• Power Steering Fluid Draining (Refer to GROUP 37A,

On-vehicle Service

P.37-11

).

Post-installation Operation
• Front Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-9

).

• Centremember Installation (Refer to

P.32-6

).

• Clock Spring Centreing (Refer to GROUP 52B, Air Bag

Modules and Clock Spring

P.52B-225

).

• Steering Wheel Air Bag Module Assembly Installation

(Refer to GROUP 37A, Steering Wheel

P.37-14

).

• Steering Dust Cover Installation (Refer to GROUP 37A,

Power Steering Gear Box and Linkage

P.37-19

).

• Power Steering Fluid Supplying (Refer to GROUP 37A,

On-vehicle Service

P.37-11

).

• Power Steering Fluid Line Bleeding (Refer to GROUP

37A, On-vehicle Service

P.37-11

).

• Press the dust cover with a finger to check whether the

dust cover cracked or damaged.

• Checking Steering Wheel Position with Wheels Straight

Ahead.

• Front Wheel Alignment Check and Adjustment (Refer to

GROUP 33, On-vehicle Service

P.33-4

).

CROSSMEMBER

POWER PLANT MOUNT

32-9

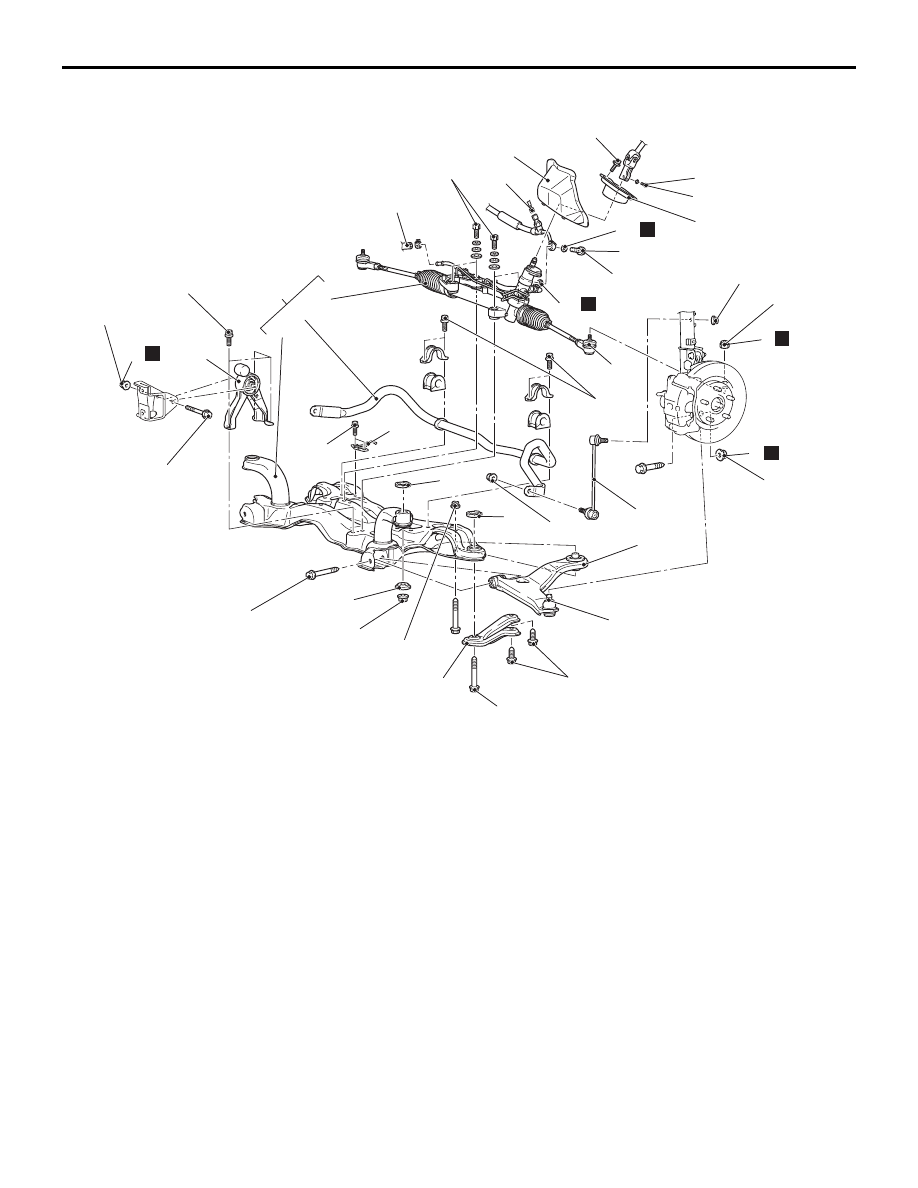

AC310674

24

22

23

108 ± 10 N·m

29 ± 4 N·m

89 ± 9 N·m

50 ± 10 N·m

89 ± 9 N·m

75 ± 5 N·m

90 ± 10 N·m

90 ± 10 N·m

123 ± 12 N·m

123 ± 12 N·m*

12 ± 2 N·m

57 ± 7 N·m*

50 ± 10 N·m*

57 ± 7 N·m

18 ± 2 N·m

5.0 ± 1.0 N·m

69 ± 9 N·m

20

8

7

6

19

19

4

3

5

16

17

14

15

21

18

12

10

11

2

1

13

N

N

N

N

1

1

2

9

12

N

AB

Removal steps

<<A>>

1.

Steering shaft assembly and gear
box connecting bolt

>>A<<

2.

Steering column grommet

3.

Self-locking nut (Tie rod end and
knuckle connection)

<<B>>

4.

Tie rod end and knuckle connection

5.

Self-locking nut (Lower arm and
knuckle connection)

6.

Lower arm and knuckle connection

7.

Lower arm assembly

8.

Stabilizer link

9.

Power steering oil pressure sensor
connector connection and harness
clamp

10. Eye bolt

11. Pressure hose connection
12. Gasket
13. Return hose connection
14. Self-locking nut
15. Engine rear roll stopper bracket

connection bolt

16. Crossmember rear stay
17. Lower stopper

<<C>>

18. Crossmember assembly
19. Stopper
20. Engine rear roll stopper bracket
21. Exhaust pipe hanger
22. Stabilizer bar
23. Steering gear and linkage
24. Crossmember

Removal steps (Continued)

CROSSMEMBER

POWER PLANT MOUNT

32-10

<R.H. drive vehicles>

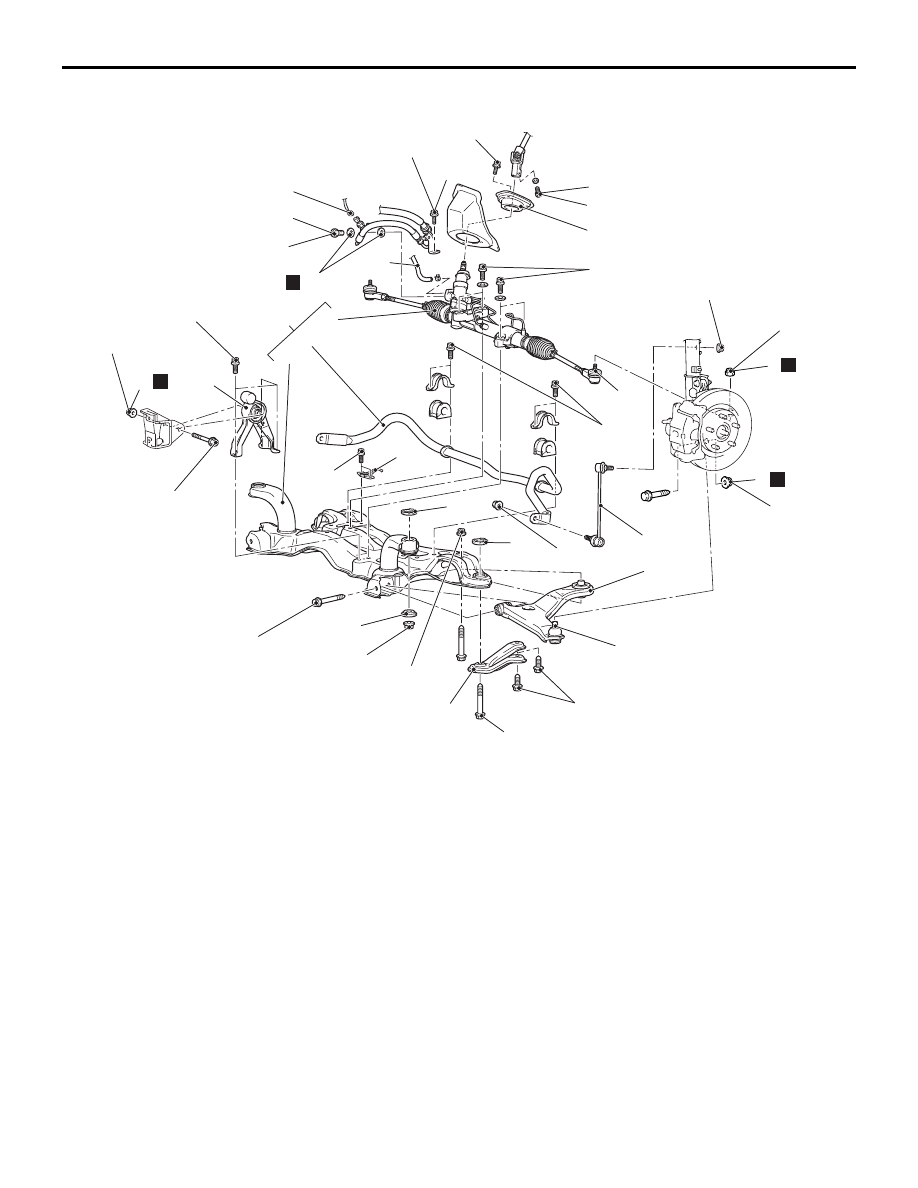

AC302102

24

22

23

108 ± 10 N·m

29 ± 4 N·m

89 ± 9 N·m

50 ± 10 N·m

89 ± 9 N·m

75 ± 5 N·m

90 ± 10 N·m

90 ± 10 N·m

123 ± 12 N·m

123 ± 12 N·m*

12 ± 2 N·m

57 ± 7 N·m*

50 ± 10 N·m*

57 ± 7 N·m

13 ± 2 N·m

18 ± 2 N·m

5.0 ± 1.0 N·m

69 ± 9 N·m

20

8

7

6

19

19

4

3

5

16

17

14

15

21

18

12

10

11

2

1

13

N

N

N

N

1

1

2

AC

9

Removal steps

<<A>>

1.

Steering shaft assembly and gear
box connecting bolt

>>A<<

2.

Steering column grommet

3.

Self-locking nut (Tie rod end and
knuckle connection)

<<B>>

4.

Tie rod end and knuckle connection

5.

Self-locking nut (Lower arm and
knuckle connection)

6.

Lower arm and knuckle connection

7.

Lower arm assembly

8.

Stabilizer link

9.

Pressure hose clamp connection

10. Power steering oil pressure sensor

connector connection and harness
clamp

11. Eye bolt

12. Gasket
13. Return hose connection
14. Self-locking nut
15. Engine rear roll stopper bracket

connection bolt

16. Crossmember rear stay
17. Lower stopper

<<C>>

18. Crossmember assembly
19. Stopper
20. Engine rear roll stopper bracket
21. Exhaust pipe hanger
22. Stabilizer bar
23. Steering gear and linkage
24. Crossmember

Removal steps (Continued)
