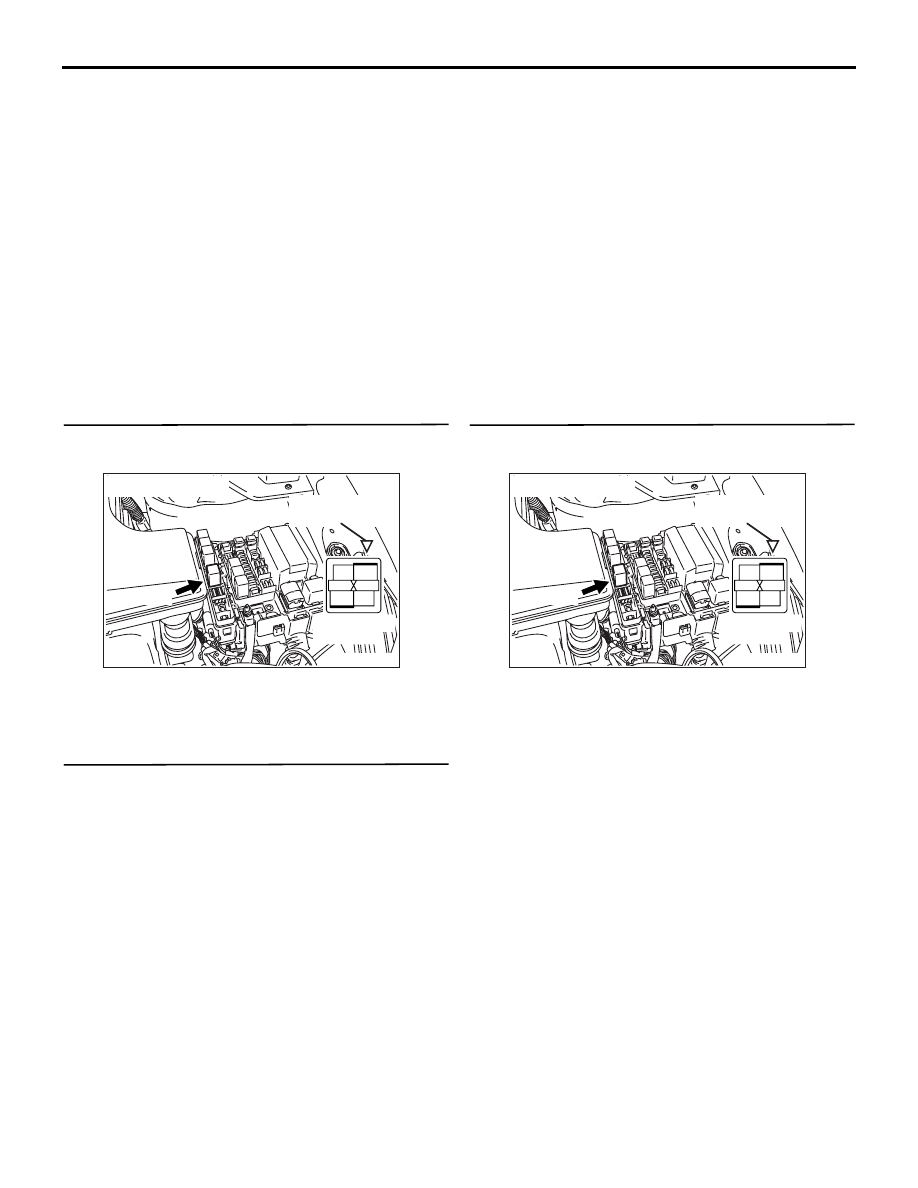

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-219

• When the throttle valve control servo relay turns

ON, battery voltage is supplied by the throttle
valve control servo relay (terminal No. 1) to the
engine-ECU <M/T> or engine-A/T-ECU <A/T>
(terminal No. 132).

FUNCTION

• When the ignition switch ON signal is input into

the engine-ECU <M/T> or engine-A/T-ECU
<A/T>, the engine-ECU <M/T> or
engine-A/T-ECU <A/T> turns ON the Throttle
valve control servo.

TROUBLE JUDGMENT

Check Condition

• Ignition switch is in ON position.

Judgement Criterion

• The power line voltage of the electronic controlled

throttle system is 4.0 V or less for 1 second.

PROBALE CAUSE

• Failed throttle valve return spring

• Open/short circuit in throttle valve control servo

circuit or loose connector contact.

• Failed engine-ECU <M/T>

• Failed engine-A/T-ECU <A/T>

DIAGNOSIS

STEP 1. Connector check: B-12X throttle valve
control servo relay connector

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace.

STEP 2. Check throttle valve control servo relay
itself.

• Check throttle valve control servo relay itself

(Refer to

P.13A-389

).

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair.

STEP 3. Perform voltage measurement at B-12X
throttle valve control servo relay connector.

• Remove relay, and measure at relay box side.

• Voltage between terminal No. 4 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Check and repair harness between B-12X

(terminal No. 4) throttle valve control servo
relay connector and battery.

• Check power supply line for

open/short circuit.

AK300992

2

1

3

4

AC

 B-12X

Connector: B-12X

Relay box’s
triangle marks

Harness side
connector

AK300992

2

1

3

4

AC

 B-12X

Connector: B-12X

Relay box’s
triangle marks

Harness side
connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-220

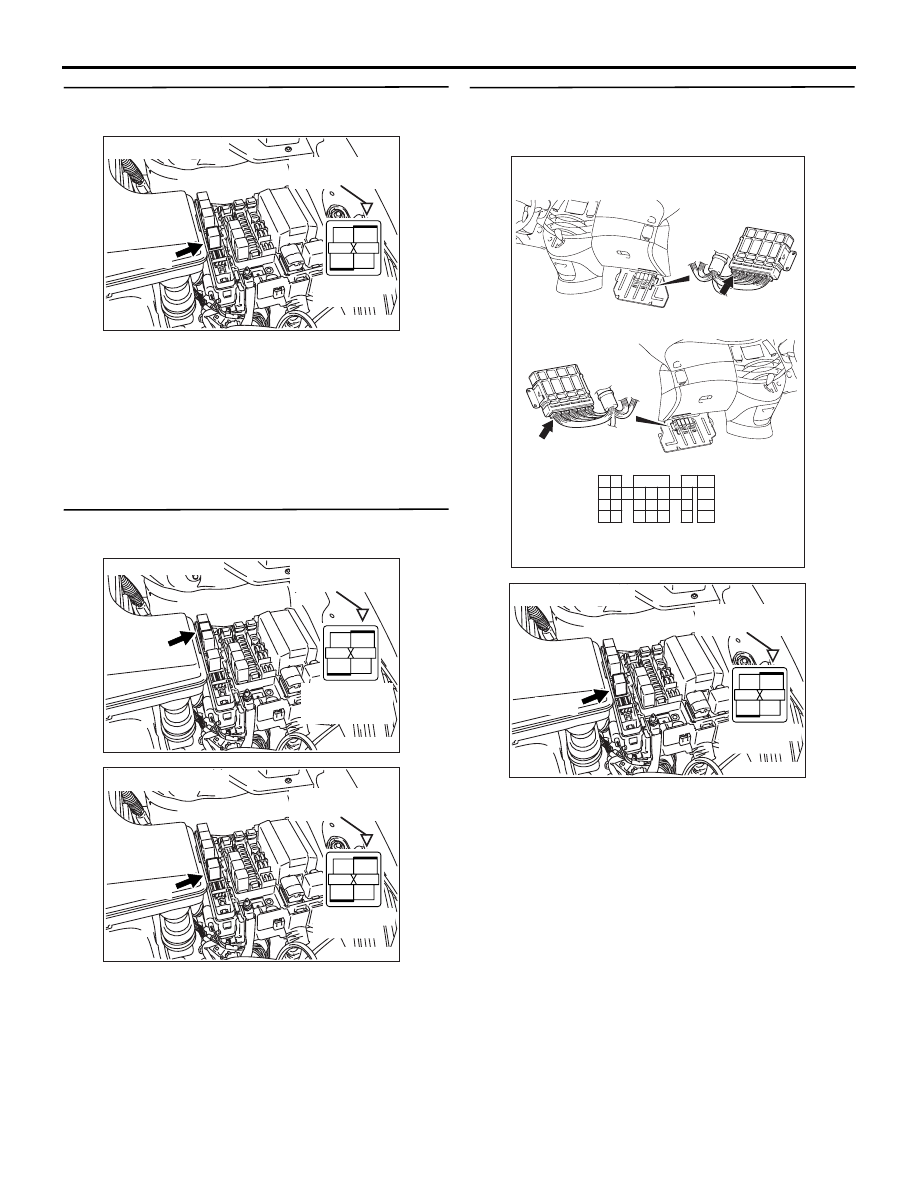

STEP 4. Perform voltage measurement at B-12X
throttle valve control servo relay connector.

• Remove relay, and measure at relay box side.

• Ignition switch: ON

• Voltage between terminal No. 3 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Go to Step 6 .

STEP 5. Connector check: B-15X engine control
relay connector

Q: Is the check result normal?

YES :

Check and repair harness between B-15X

(terminal No. 1) engine control relay
connector and B-12X (terminal No. 3)
throttle valve control servo relay connector.

• Check power supply line for

open/short circuit.

NO :

Repair or replace.

STEP 6. Perform voltage measurement at C-110
engine-ECU <M/T> or engine-A/T-ECU <A/T>
connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 15 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Check and repair harness between B-12X

(terminal No. 2) throttle valve control servo
relay connector and C-110 (terminal No. 15)
engine-ECU <M/T> connector or
engine-A/T-ECU <A/T> connector.

• Check earthing line for open/short

circuit.

NO :

Go to Step 7 .

AK300992

2

1

3

4

AC

 B-12X

Connector: B-12X

Relay box’s
triangle marks

Harness side
connector

AK300967

2

1

3

4

AC

Harness side
connector

B-15X

Connector: B-15X

Relay box’s
triangle marks

AK300992

2

1

3

4

AC

 B-12X

Connector: B-12X

Relay box’s
triangle marks

Harness side
connector

AK305618AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

Connector: C-110

<L.H. drive vehicles>

<R.H. drive vehicles>

C-110 (GR)

C-110 (GR)

Harness side connector

AK300992

2

1

3

4

AC

 B-12X

Connector: B-12X

Relay box’s
triangle marks

Harness side
connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-221

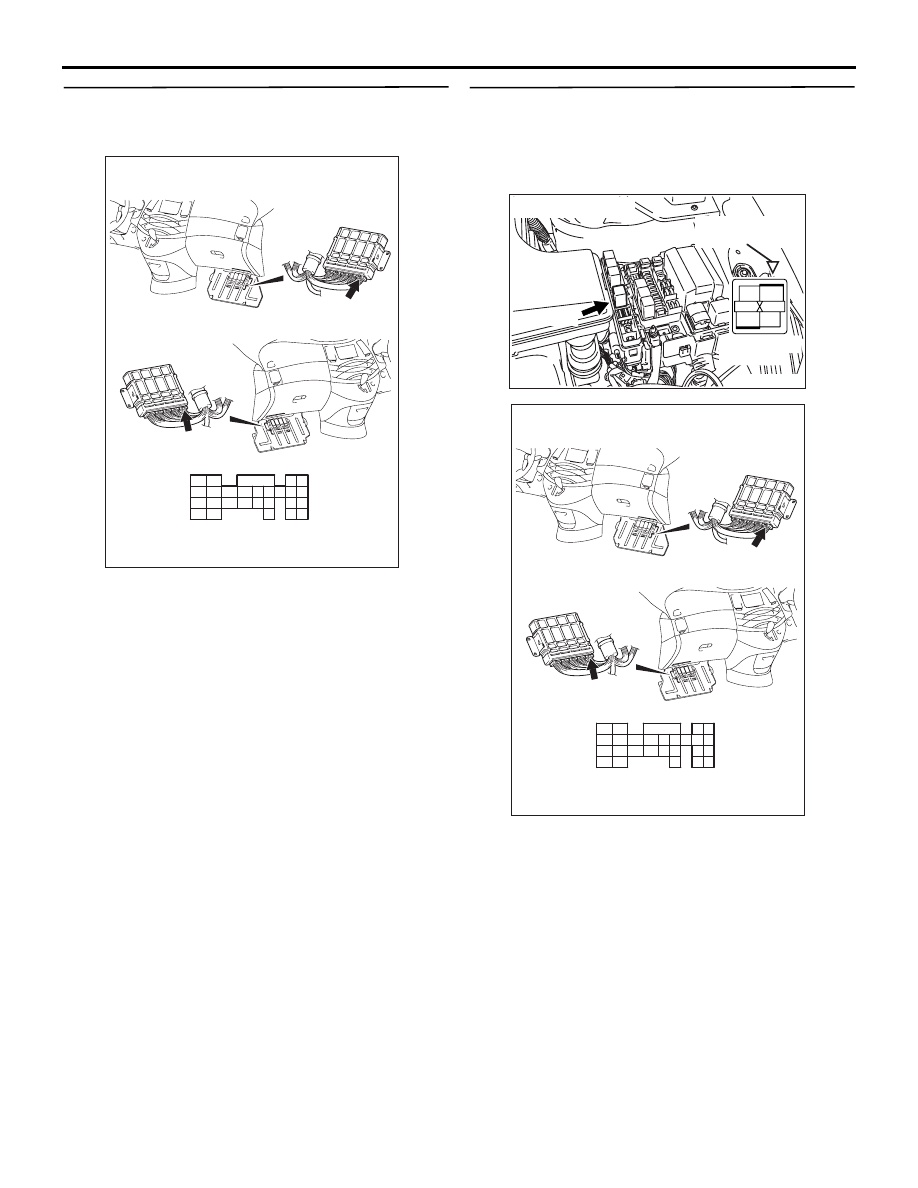

STEP 7. Perform voltage measurement at C-114
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 132 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Go to Step 8 .

STEP 8. Check harness between B-12X (terminal
No. 1) throttle valve control servo relay
connector and C-114 (terminal No. 132)
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Check output line for open/short circuit.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair.

AK305623AB

Connector: C-114

<L.H. drive vehicles>

<R.H. drive vehicles>

C-114 (GR)

C-114 (GR)

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

Harness side connector

AK300992

2

1

3

4

AC

 B-12X

Connector: B-12X

Relay box’s
triangle marks

Harness side
connector

AK305623AB

Connector: C-114

<L.H. drive vehicles>

<R.H. drive vehicles>

C-114 (GR)

C-114 (GR)

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-222

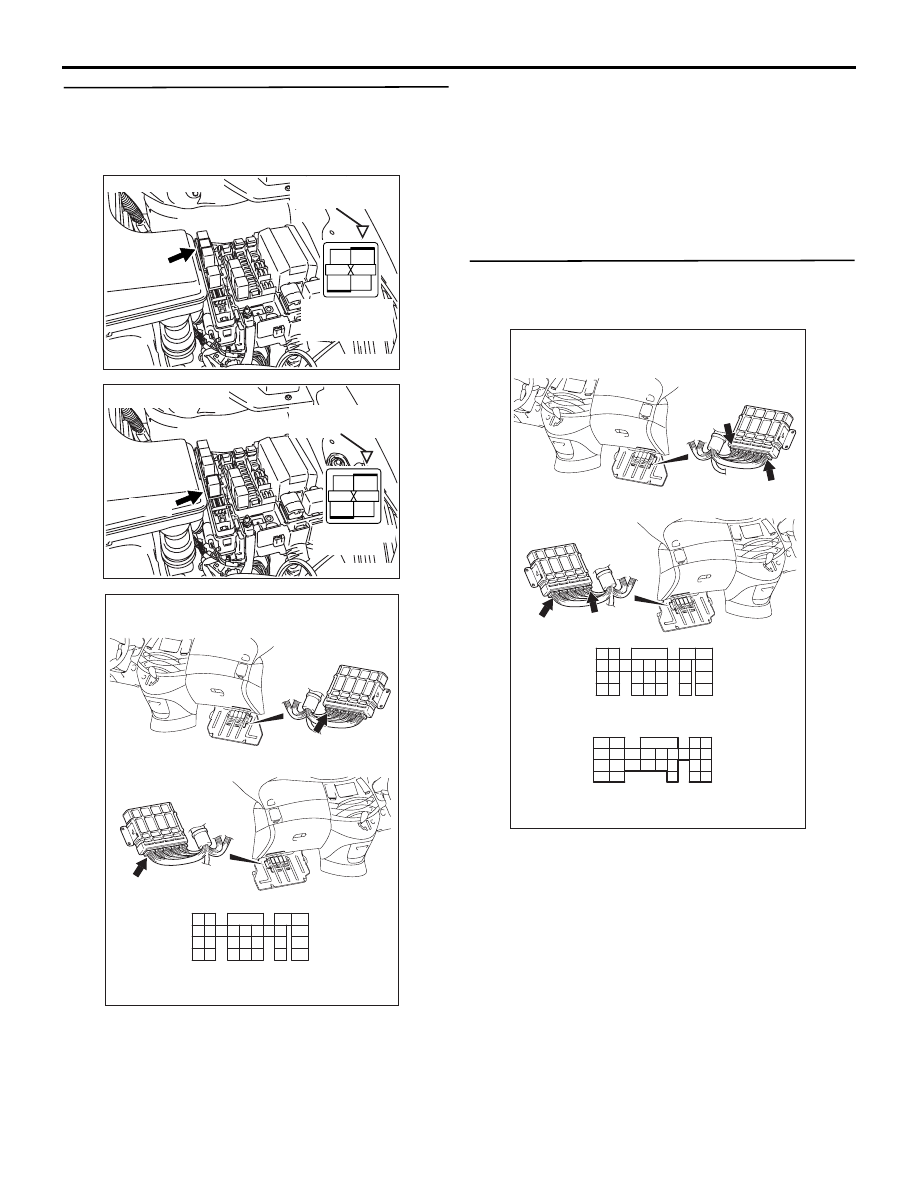

STEP 9. Check harness between B-15X (terminal
No. 1) engine control relay connector and B-12X
(terminal No. 3) throttle valve control servo relay
connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Check and repair harness between B-12X

(terminal No. 2) throttle valve control servo
relay connector and C-110 (terminal No. 15)
engine-ECU <M/T> connector or
engine-A/T-ECU <A/T> connector.

• Check earthing line for open/short

circuit.

NO :

Repair.

STEP 10. Connector check: C-114 and C-110
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

AK300967

2

1

3

4

AC

Harness side
connector

B-15X

Connector: B-15X

Relay box’s
triangle marks

AK300992

2

1

3

4

AC

 B-12X

Connector: B-12X

Relay box’s
triangle marks

Harness side
connector

AK305618AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

Connector: C-110

<L.H. drive vehicles>

<R.H. drive vehicles>

C-110 (GR)

C-110 (GR)

Harness side connector

AK305624

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

<L.H. drive vehicles>

<R.H. drive vehicles>

C-114 (GR)

C-114 (GR)

C-110 (GR)

C-110 (GR)

C-110 Harness side connector

C-114 Harness side connector

Connectors: C-110, C-114

AB
