DOOR

BODY

42-44

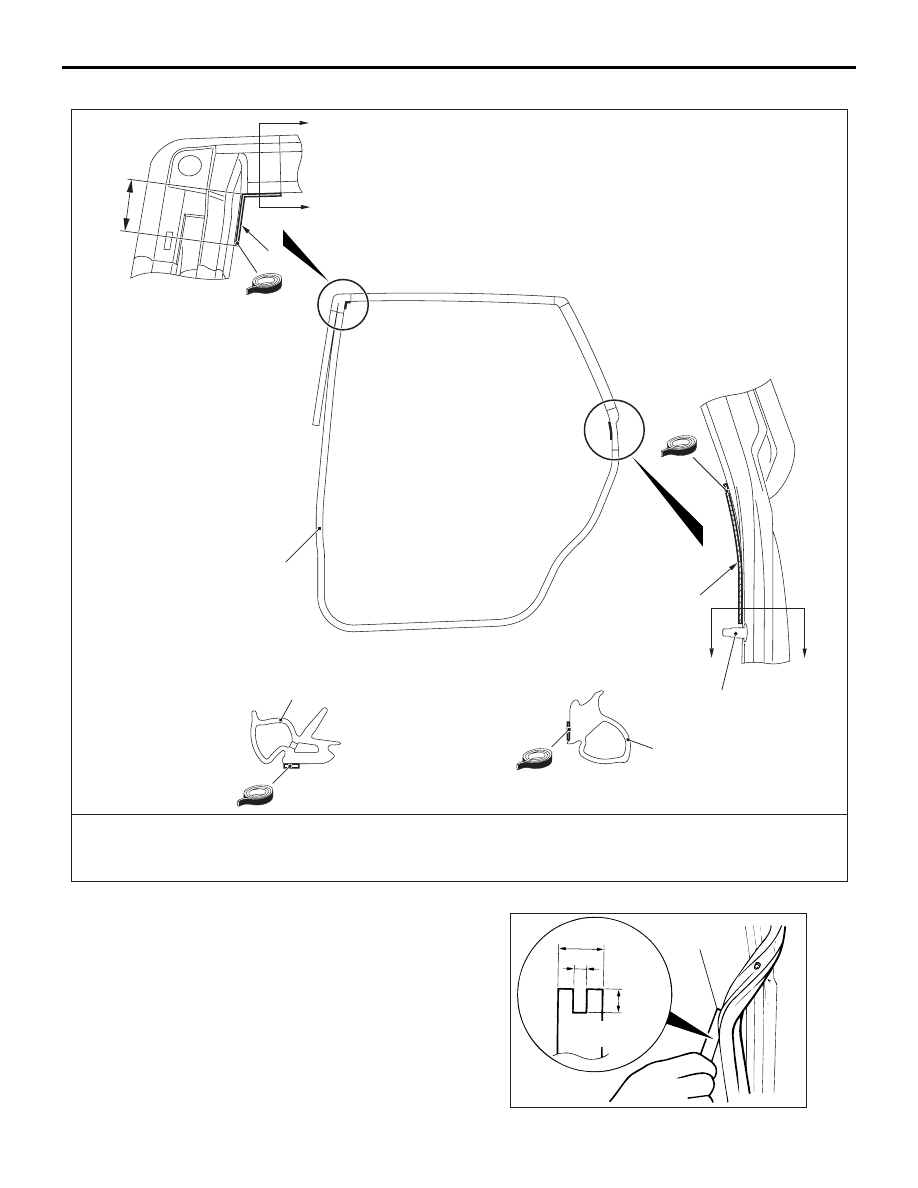

DOUBLE-SIDED TAPE POSITION

REMOVAL SERVICE POINT
<<A>> DOOR OPENING WEATHERSTRIP
LOWER AND DOOR OPENING
WEATHERSTRIP OUTER REMOVAL

Make a fabricated tool as shown in the illustration to

remove the door weatherstrip.

AC311387

AC311028

AC311029

AC311030

AC311031

AC311032

a

b

Section A – A

Section B – B

Door opening weatherstrip outer

Door opening
weatherstrip outer

A

A

B

B

AB

Door opening
weatherstrip outer

Clip

25 mm

Adhesive tape: Double-sided tape  a: 5 mm width, 45 mm length and 0.5 mm thickness,
                                                            b: 5 mm width, 55 mm length and 0.8 mm thickness

<Rear door>

ACX00555

15 mm

8 mm

AB

4 mm

Thickness:
1 mm

Fabricated
tool

TAILGATE

BODY

42-45

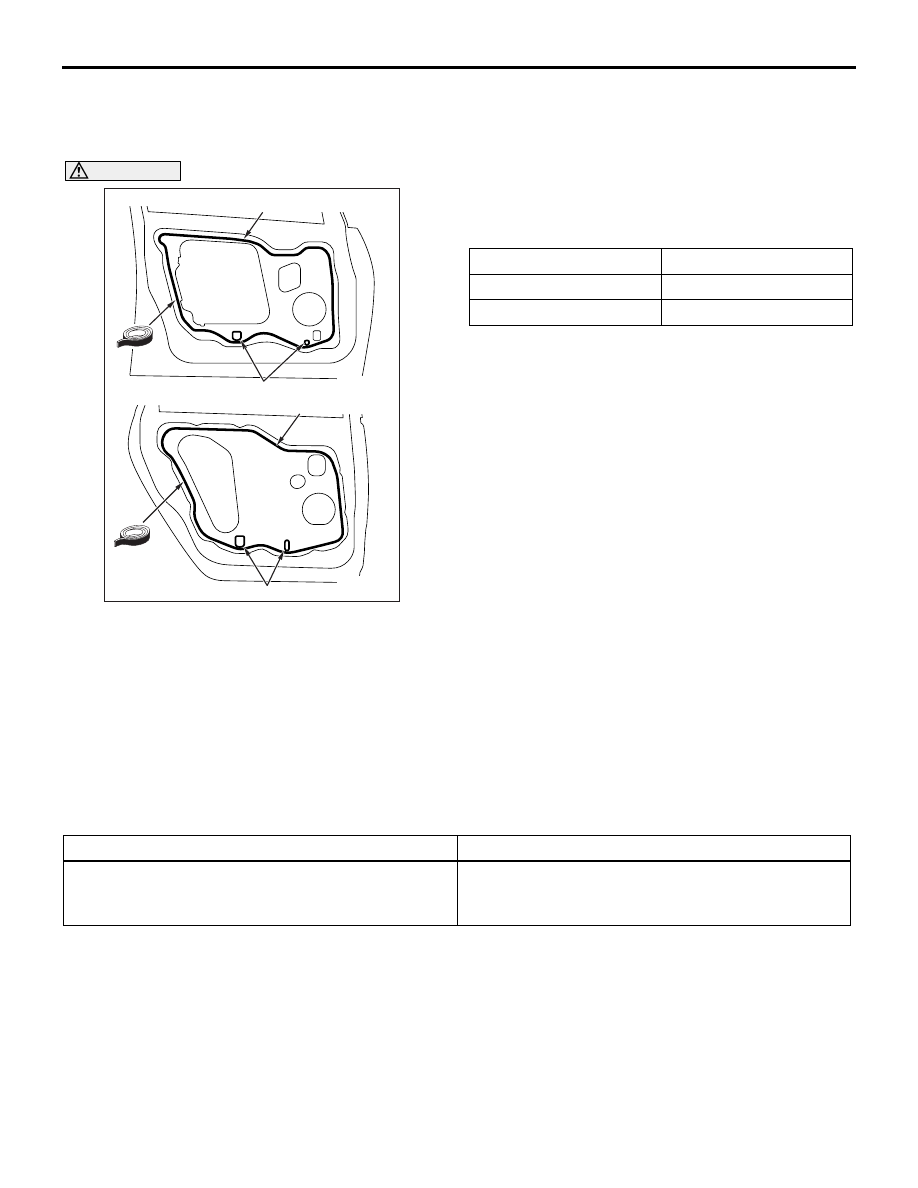

INSTALLATION SERVICE POINTS
>>A<< WATERPROOF FILM
INSTALLATION

CAUTION

When sticking the water-proof film, ensure that
the sealant is applied under the inner panel water
drain hole.
Apply the specified adhesive to the water-proof film
as shown and stick the film.

Specified sealant: 3M ATD Part No.8633 or
equivalent

>>B<< DOOR OUTER OPENING
WEATHERSTRIP OUTER INSTALLATION

The clip colour identifies the left and right
weatherstrips so be sure to see the colours so as to
install correctly.

TAILGATE

SEALANT

M1424000500106

AC310971

AC302817

AC302818

<Rear door>

AB

<Front door>

Waterproof film

Waterproof film

Inner panel water drain hole

Inner panel water drain hole

Applicable side

Identification colour

Left door

Natural (White)

Right door

Blue

Item

Specified sealant

Tailgate hinge

3M ATD Part No.8531 Heavy drip check sealer, 3M
ATD Part No.8646 Automotive joint and seam sealer
or equivalent

TAILGATE

BODY

42-46

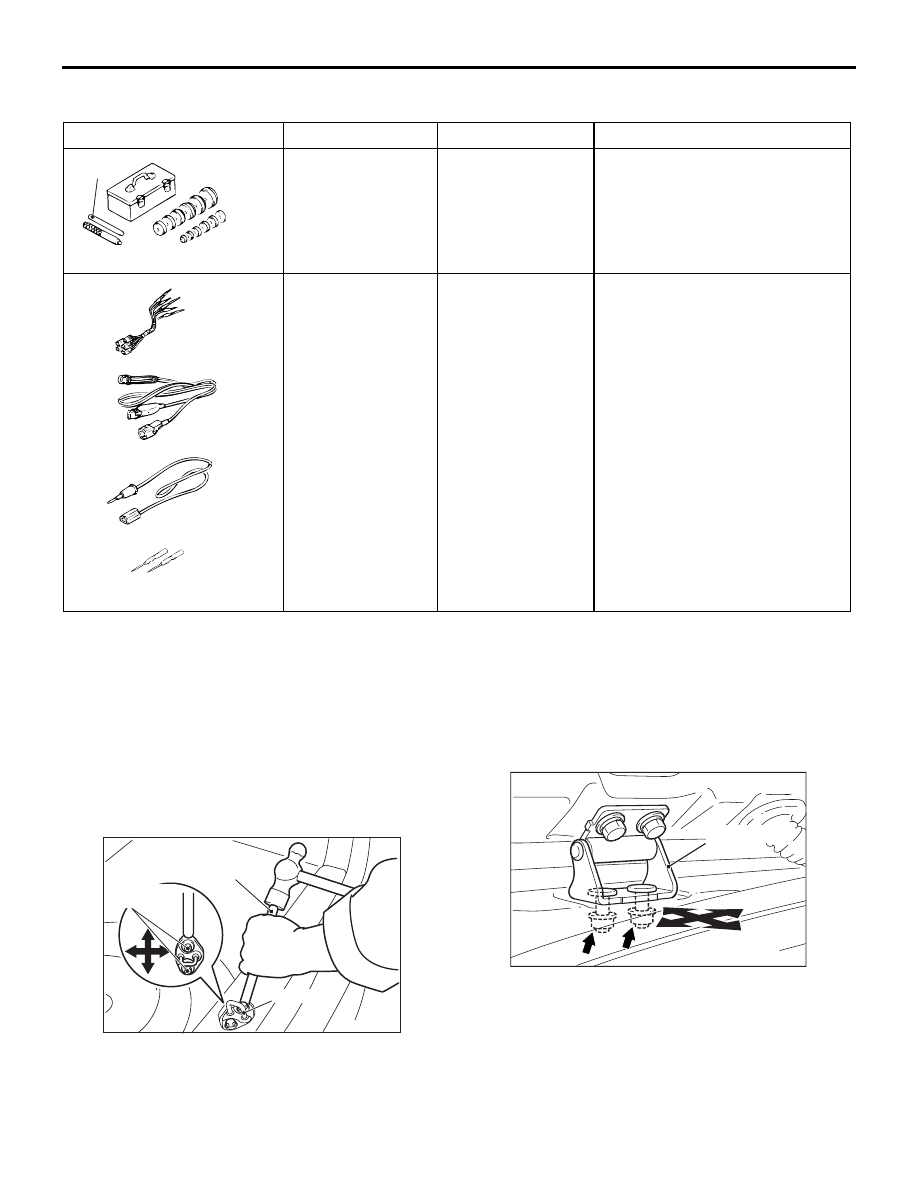

SPECIAL TOOLS

M1424000600192

TROUBLESHOOTING

M1424000700230

The tailgate system is controlled by the Smart Wiring
System (SWS). For troubleshooting, refer to GROUP
54B, Troubleshooting

P.54B-27

 or GROUP 54C,

Troubleshooting

P.54C-8

.

ON-VEHICLE SERVICE

TAILGATE FIT ADJUSTMENT

M1424000900182

•

If the striker is not engaged with the tailgate latch

properly, remove the rear end trim (Refer to
GROUP 52A, Interior Trim

P.52A-10

). Replace

the striker mounting screw with an temporary
bolt, and use the special tool (brass bar,
MB990939) and a hammer to tap the bolt head to
adjust the striker.

•

If the clearance between the tailgate and the vehicle

body is uneven, remove the headlining (Refer to
GROUP 52A, Headlining

P.52A-17

) and loosen

the body-side tailgate hinge mounting nuts to
adjust the tailgate.

Tool

Number

Name

Use

MB990925

A: MB990939

Bearing and oil seal
installer set

A: Brass bar

Tailgate striker adjustment

MB991223

A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Test harness
B: LED harness
C: LED harness

adapter

D: Probe

Terminal voltage measurement

A: For checking connector pin

contact pressure

B: For checking power supply

circuit

C: For checking power supply

circuit

D: For connecting a locally

sourced tester

MB990925AF

A

MB991223

A

D

C

B

AD

AC105284AB

MB990939

Temporary

bolt

Striker

AC206033AC

Tailgate hinge

TAILGATE

BODY

42-47

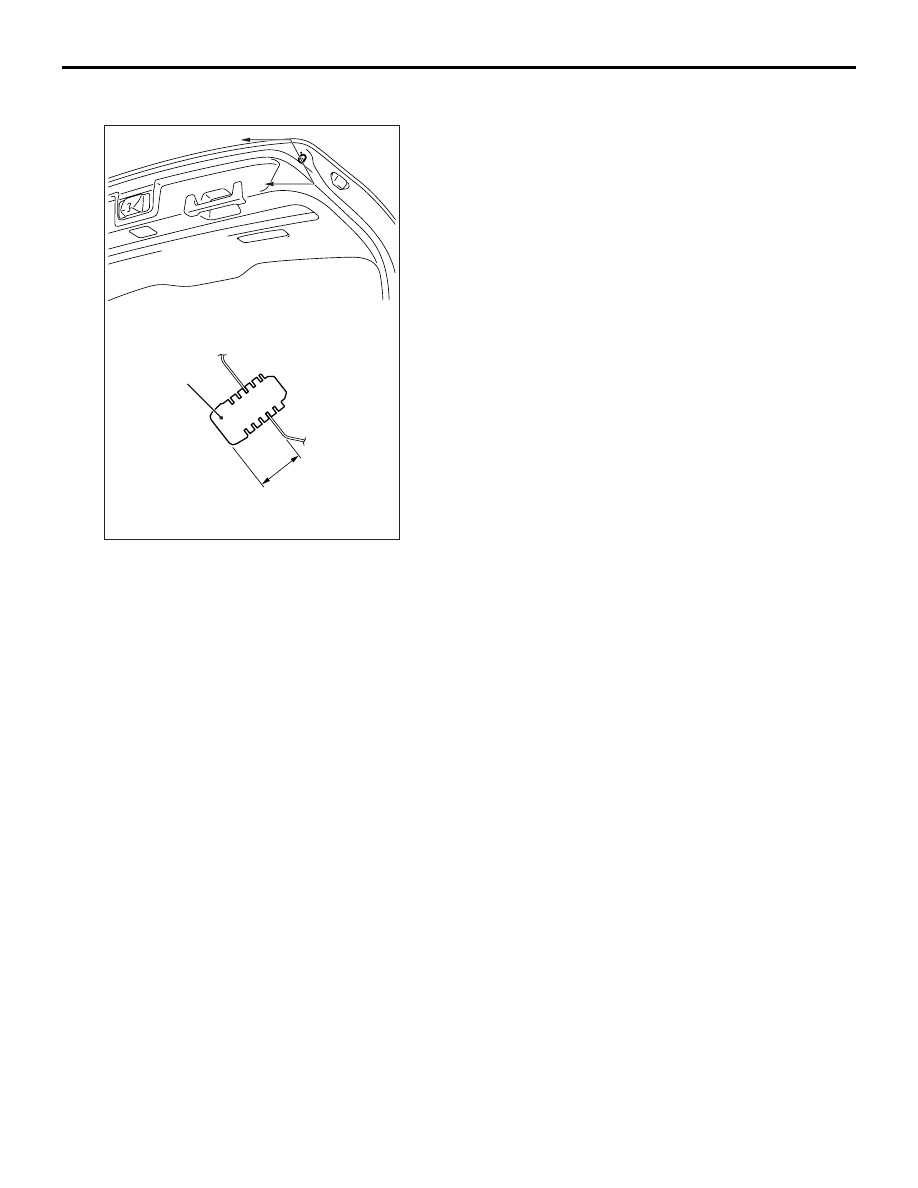

ADJUSTMENT OF TAILGATE HEIGHT

M1424003500116

Rotate the damper by using arrow mark on the
damper as a guide to adjust the tailgate height. The
damper height is altered by roughly 3 mm when the
damper is rotated once.
NOTE: If a rattling noise is heard due to the vibration
of the tailgate when the vehicle is being driven,
adjust the damper height until the damper is seated
on the vehicle body. The damper should be seated
on the vehicle body regardless of a rattling noise.

TAILGATE OPENER CHECK

M1424004100025

If the tailgate cannot be opened by operating the
tailgate lock release handle when the tailgate is
unlocked with the vehicle stationary, refer to GROUP
54B, Troubleshooting

P.54B-27

 or GROUP 54C,

Troubleshooting

P.54C-8

.

AC302561

AC302563

AC302562

AB

A

19 mm

A

Section A – A

Damper
