WINDOW GLASS

BODY

42-16

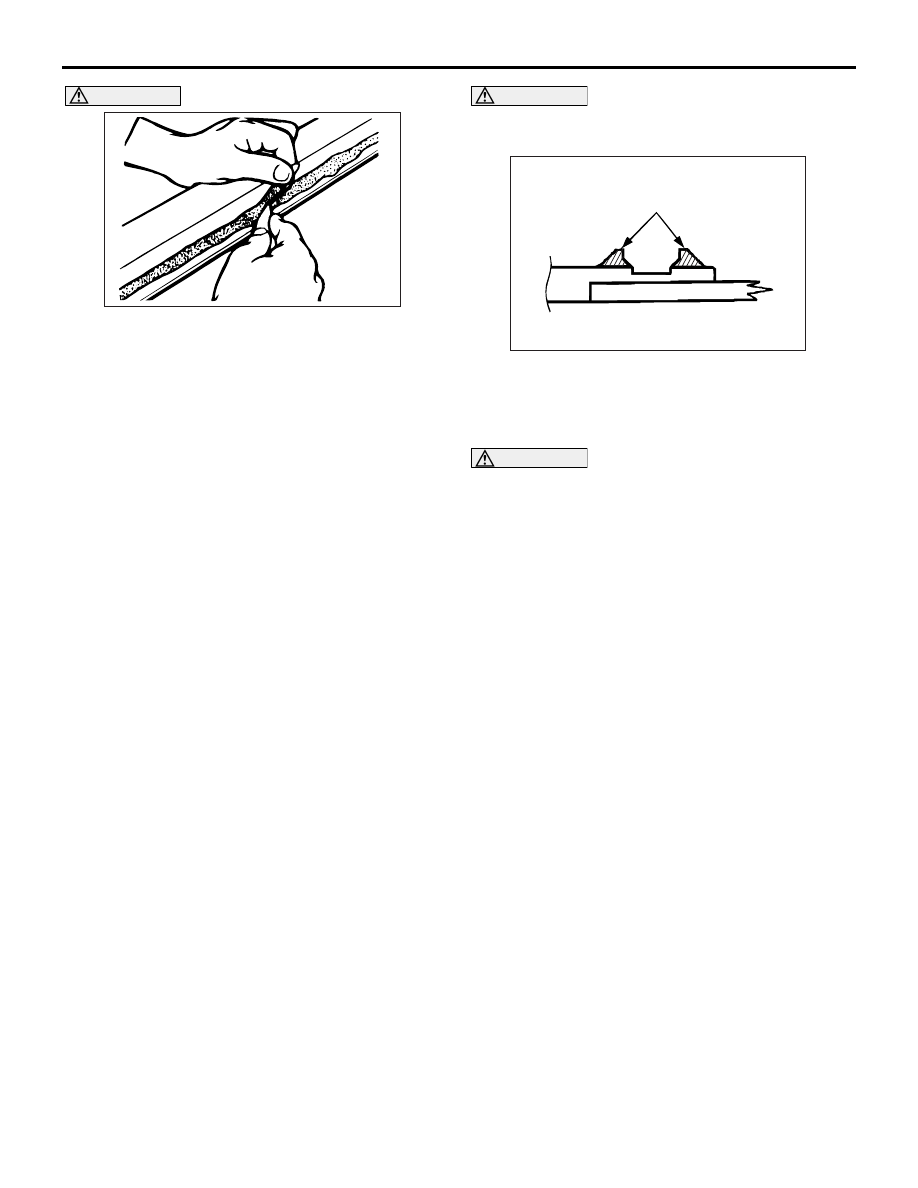

CAUTION

•

Be careful not to remove more adhesive than is

necessary.

• Be careful also not to damage the paintwork

on the body surface with the knife. If the
paintwork is damaged, repair the damaged
area with repair paint or anti-rust agent.

6. Use a knife to cut away the remaining adhesive so

that the thickness is within 2 mm around the entire
circumference of the body flange.

7. Finish the flange surfaces so that they are

smooth.

8. If the delta window glass is reused, scrape away

all traces of old adhesive from the glass.

INSTALLATION SERVICE POINT
>>A<<GASKET/CLIP/DELTA WINDOW
GLASS ASSEMBLY INSTALLATION

1. If the delta window glass is reused, follow the

procedure below.

CAUTION

Do not forget gasket.

(1) Fit clips into body.

(2) Cut away clip fitting convex on quarter window

glass.

NOTE: Convex gets broken when quarter
window glass is removed.

CAUTION

Leave the degreased parts for 3 or more minutes
to dry well, before starting on the next step. Do
not touch the degreased parts.
2. Use isopropyl alcohol to degrease the inside and

outside of the delta window glass and the body
flanges.

3. Apply the primer and adhesive.
4. Install the delta window glass by the same

procedure as for the windshield (refer to

P.42-10

).

ACX00476 AB

AC103606 AC

Cut off these convex parts

WINDOW GLASS

BODY

42-17

QUARTER WINDOW GLASS

REMOVAL AND INSTALLATION

M1422002500333

Pre-removal and Post-installation Operation
• Quarter Trim Upper Removal and Installation (Refer to

GROUP 52A, Interior Trim

P.52A-10

).

• Rear Combination Lamp Assembly Removal and

Installation (Refer to GROUP 54A, Rear Combination

Lamp

P.54A-97

).

AC303564AC

N

1

2

3

1

1

A

A

D

D

B

B

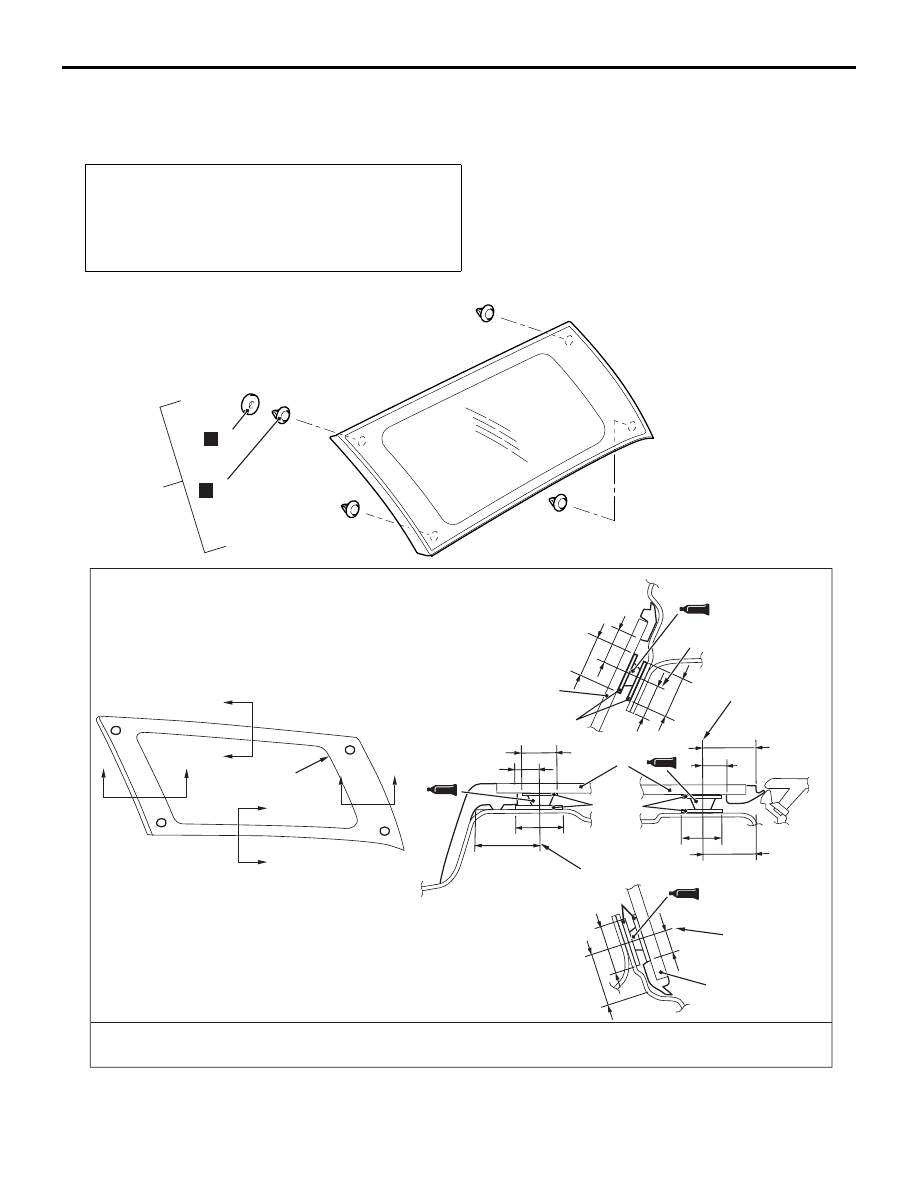

Section A – A

Section B – B

Section C – C

Units: mm

N

12

C

C

Section D – D

10.5

10 15

12

7

15

19.8

7

17

15

15.5

12

15

7

1

Ceramic line

Seal line centre

Seal line centre

Seal line centre

Seal line centre

Primer

Primer

Primer

Adhesive: 3M ATD Part No. 8609 Super Fast Urethane Auto Glass Sealant or equivalent and
3M ATD Part No. 8608 Super Fast Urethane Primer or equivalent

WINDOW GLASS

BODY

42-18

REMOVAL SERVICE POINT
<<A>> QUARTER WINDOW GLASS
REMOVAL

1. In order to protect the body (paint surface), apply

cloth tape to all body areas around the installed
quarter window glass.

2. Apply cloth tape to protect the quarter window

glass.

3. Use glass adhesive knife to cut away adhesive.

CAUTION

Inserting the adhesive knife too deeply into
windshield adhesive may damage quarter
window glass.
4. Keep the glass adhesive knife at right angles with

body flange (from inside the vehicle), and put the
blade at body flange. Then cut away adhesive
along the body flange.

5. Separate the clips by using a piano wire.

6. Make mating marks on the quarter window glass

and body.

7. Use special tool window glass holder( MB990480)

to remove the quarter window glass.

Removal steps

<<A>> >>A<<

1. Quarter window glass

>>A<<

2. Clip

>>A<<

3. Gasket

AC303582AC

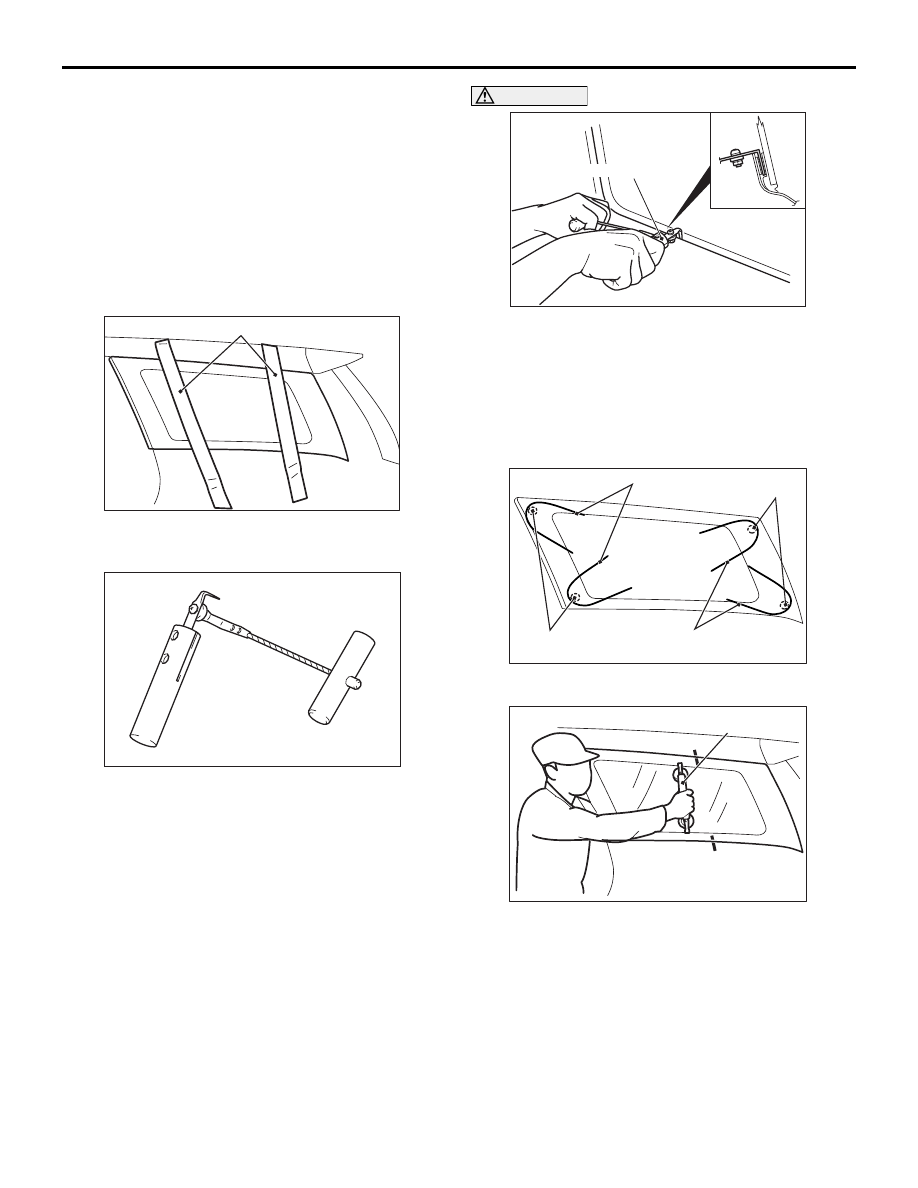

Cloth tape

AC002060

AC206381AD

Glass adhesive knife

AC303583AC

Piano wire

Piano wire

Clip

Clip

AC303584AC

MB990480

WINDOW GLASS

BODY

42-19

CAUTION

• Be careful not to remove more adhesive than

is necessary.

• Be careful also not to damage the paintwork

on the body surface with the knife. If the
paintwork is damaged, repair the damaged
area with repair paint or anti-rust agent.

8. Use a knife to cut away the remaining adhesive so

that the thickness is within 2 mm around the entire
circumference of the body flange.

9. Finish the flange surfaces so that they are

smooth.

10.When reusing the quarter window glass, remove

the adhesive still adhering to the quarter window
glass, and clean with isopropyl alcohol.

11.Clean the body side in the same way.

INSTALLATION SERVICE POINT
>>A<< GASKET/CLIP/QUARTER
WINDOW GLASS INSTALLATION

1. Carry out the following procedure to re-install

quarter window glass.

CAUTION

Do not forget gasket.

(1) Fit clips into body.

(2) Cut away clip fitting convex on quarter window

glass.

NOTE: Convex gets broken when quarter
window glass is removed.

CAUTION

Leave the degreased parts for 3 or more minutes
to dry well, before starting on the next step. Do
not touch the degreased parts.
2. Use isopropyl alcohol to degrease the inside and

outside of the quarter window glass and the body
flanges.

3. Apply the primer and adhesive.
4. Install the glass by the same procedure as for the

windshield (Refer to

P.42-10

).

ACX00476 AB

AC103606 AC

Cut off these convex parts
