Mitsubishi Grandis. Manual - part 670

WINDOW GLASS

BODY

42-8

WINDOW GLASS

ADHESIVE

M1422000500100

SPECIAL TOOL

M1422000600334

GENERAL

M1422000100469

The windshield, delta window glass, quarter window
glass and tailgate window glass are attached by an
urethane-base adhesive to the window frame. This
adhesive provides improved glass holding and
sealing, and also gives body openings a greater
structural strength.

ITEMS

HANDLING OF AUTO WINDOW SEALER

Keep the sealant in a cool place, not exposed to the
direct rays of the sun. Do not place any heavy article
on the sealant nor press it, otherwise it will become
deformed. Avoid storing the sealant for more than 6
months, because it will lose its sealing effect.

BODY PINCH-WELD FLANGE SERVICING

Before servicing the body pinch-weld flange, remove
old adhesive completely. If the flange requires
painting, bake it after painting is completed.

Item

Specified adhesive

Windshield

3M ATD Part No.8609 Super Fast Urethane Auto Glass
Sealant or equivalent
3M ATD Part No.8608 Super Fast Urethane Primer or
equivalent

Delta window glass
Quarter window glass
Tailgate window glass

Tool

Number

Name

Use

MB990480

Window glass holder Window glass removal and installation

MB990480

Name

Remark

Adhesive

3M ATD Part No.8609 Super Fast Urethane Auto Glass Sealant or
equivalent

Primer

3M ATD Part No.8608 Super Fast Urethane Primer or equivalent

Spacers

Available as service part

Dam

Available as service part

Anti-rust solvent (or Tectyl
506T.Valvoline Oil Company)

For rust prevention

Isopropyl alcohol

For grease removal from bonded surface

Steel piano wire

Dia.

× length: 0.6 mm × 1 m For cutting adhesive

Glass adhesive knife

For cutting adhesive

Adhesive gun

For pressing-out adhesive

WINDOW GLASS

BODY

42-9

WINDOW GLASS INSTALLATION

AC306636

Cleaning of adhesion surface
Cut off the residual adhesive until the
thickness is less than 2 mm. Clean the
adhesion surface with isopropyl alcohol,
and let dry for 3 minutes or more.

Cleaning of adhesion surface
Completely cut off all of the residual
adhesive. Clean the adhesive surface
with isopropyl alcohol, and let dry for
3 minutes or more.

Cleaning of adhesion surface
Clean off any dirt adhering to the adhesion
surface with isopropyl alcohol, and let dry
for 3 minutes or more.

Attaching of dual lock fastener
Attach the dual lock fastener to set the
positions for the glass to be installed.

Gluing of window dam and window spacer
Glue the window dam and window spacer to the glass, following the standard position
all the way around the inside edge of the glass.

Application of adhesive
Within 30 minutes after applying the primer, apply the adhesive evenly all the way around
the inside edge of the glass.

Installing the glass
After applying the adhesive, lightly press the glass evenly so that it adheres
completely.

Cleaning
After removing excess adhesive from the body or glass with a spatula, etc.
Clean off with isopropyl alcohol.

Checking for water leaks
Carry out a shower test to check that no water leaks through.

Replace the glass

Reusing the glass

Window glass installation procedure

Body side

Window glass side

Application of primer
Do not apply primer on residual adhesive as doing so may affect adhesion. apply enough primer on adhesion surface evenly taking
care not to apply it on the residual adhesive. after applying primer, let it dry for 3 minutes or more.

WINDOW GLASS

BODY

42-10

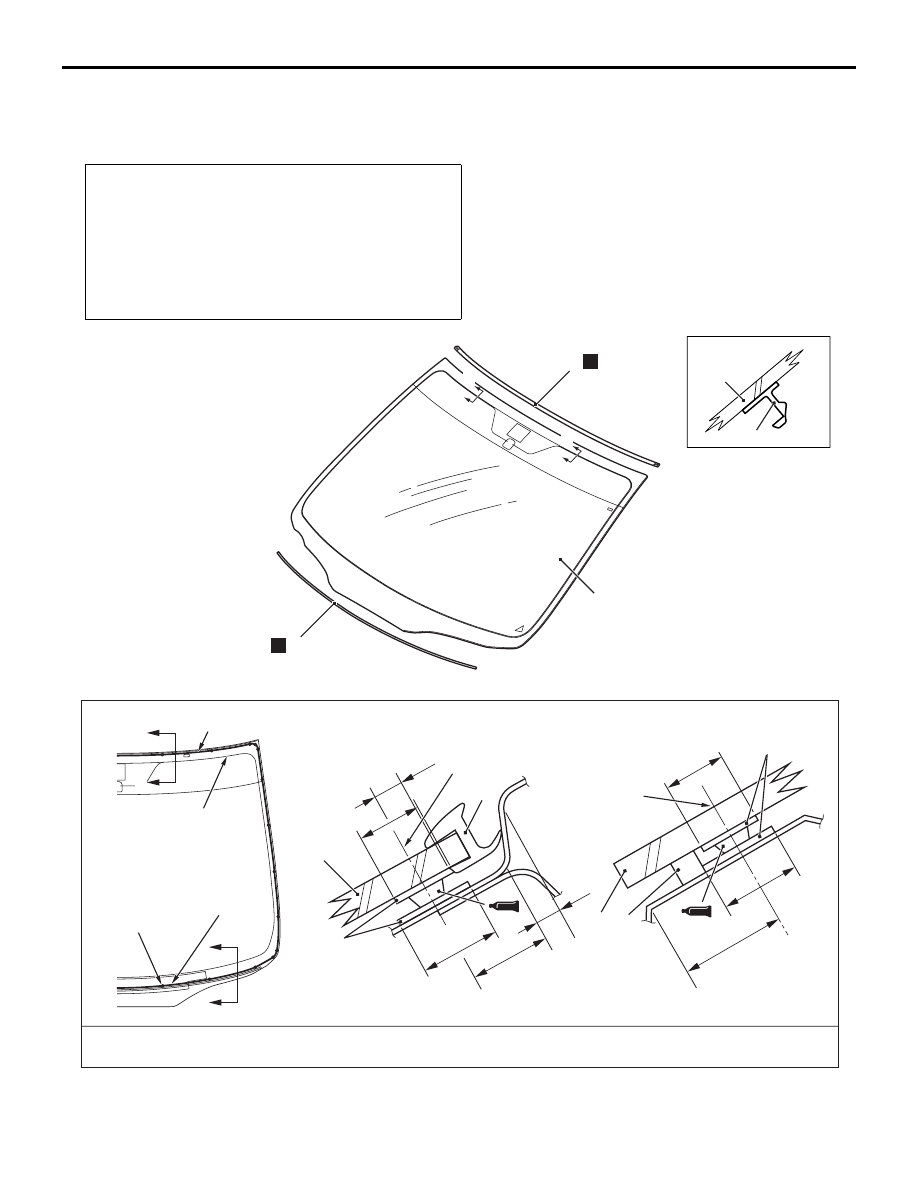

WINDSHIELD

REMOVAL AND INSTALLATION

M1422001000443

Pre-removal and Post-installation Operation
• Front Deck Garnish Removal and Installation (Refer to

GROUP 51, Windshield Wiper

P.51-22

• Roof Drip Moulding Removal and Installation (Refer to

GROUP 51, Moulding

P.51-8

• Front Pillar Trim Removal and Installation (Refer to

GROUP 52A, Interior Trim

P.52A-10

• Room Mirror Removal and Installation (Refer to GROUP

52A, Inside Rearview Mirror

P.52A-20

AC310088

Section A – A

Glass stopper

AC303446

Units: mm

5.5

12.0

20.0

Section B – B

Section C – C

15.4

4.6

15.0

12.0

Apply the primer and adhesive along the fictitious lines
(seal line) between each of the marks

Ceramic line

Seal line

Mark

Primer

Seal line center

Adhesive: 3M ATD Part No. 8609 Super Fast Urethane Auto Glass Sealant or equivalent and
3M ATD Part No. 8608 Super Fast Urethane Primer or equivalent

Removal steps
1. Windshield moulding

<<A>> >>B<<

2. Windshield

>>A<<

3. Windshield spacer

Removal steps (Continued)

WINDOW GLASS

BODY

42-11

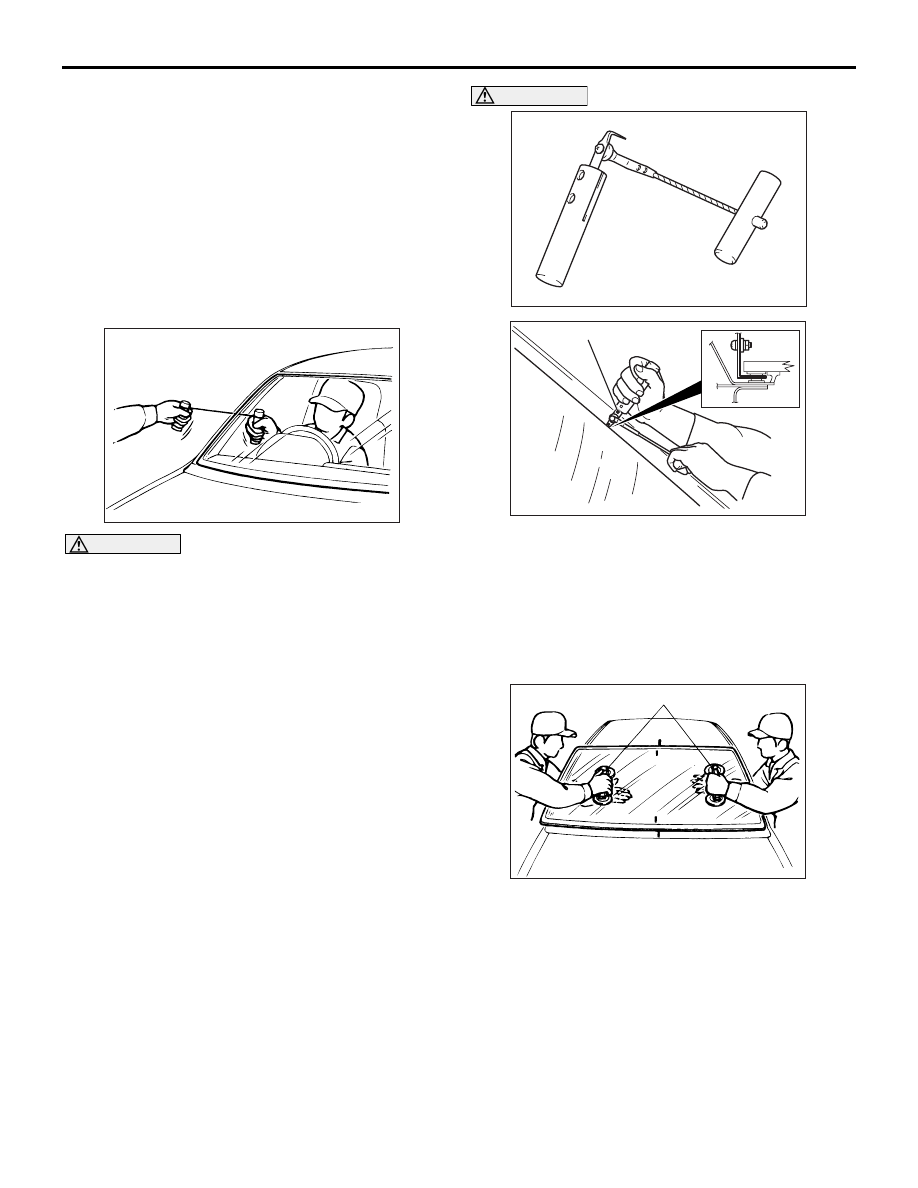

REMOVAL SERVICE POINT
<<A>> WINDSHIELD REMOVAL

1. To protect the body (paint surface), apply cloth

tape to all body areas around the installed
windshield.

2. Using piano wire.

(1) Use a knife to cut away the moulding.
(2) Using a sharp-point drill, make a hole in the

windshield adhesive.

(3) Pass the piano wire from the inside of the

vehicle through the hole.

CAUTION

Do not let the piano wire touch the edge of the
windshield.

(4) Pull the piano wire alternately from the inside

and outside along the windshield to cut the
adhesive.

CAUTION

Inserting the glass adhesive knife too deeply into
windshield adhesive may damage windshield.
3. Using glass adhesive knife

Keep glass adhesive knife at right angles with the
windshield edge, and put the blade at windshield
edge and surface. Then cut away adhesive along
the windshield edge.

4. Use special tool window glass holder MB990480

to remove the windshield.

ACX00474 AB

AC002060

AC207478

Glass adhesive knife

ACX00475AB

MB990480
