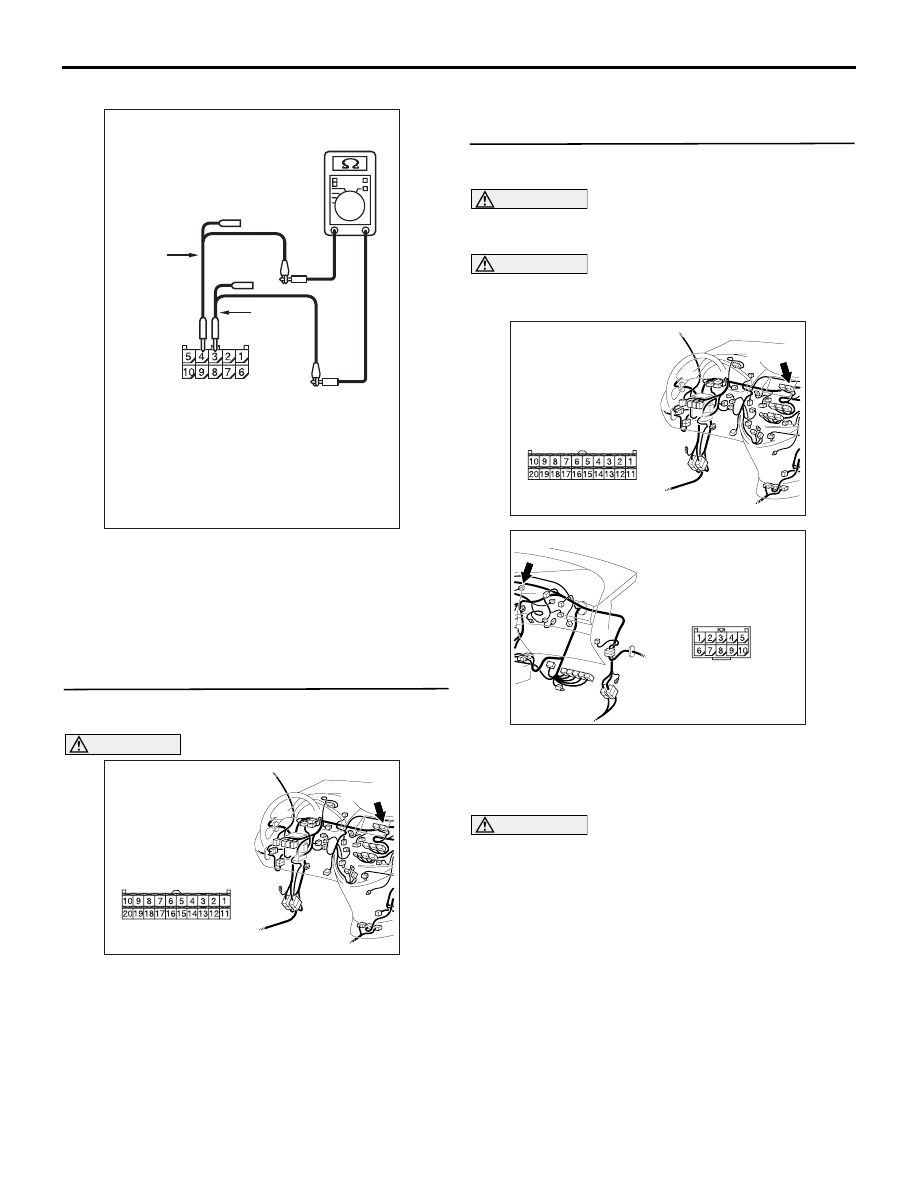

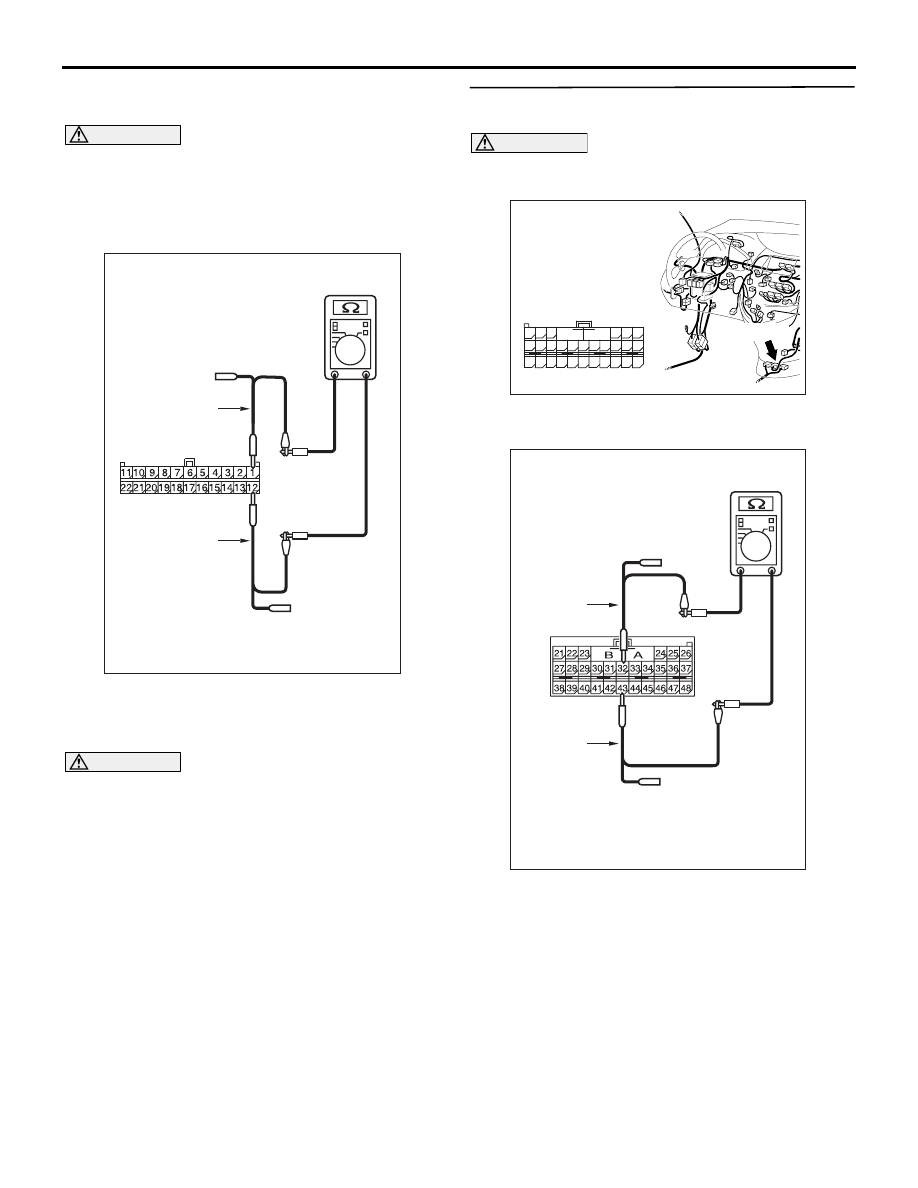

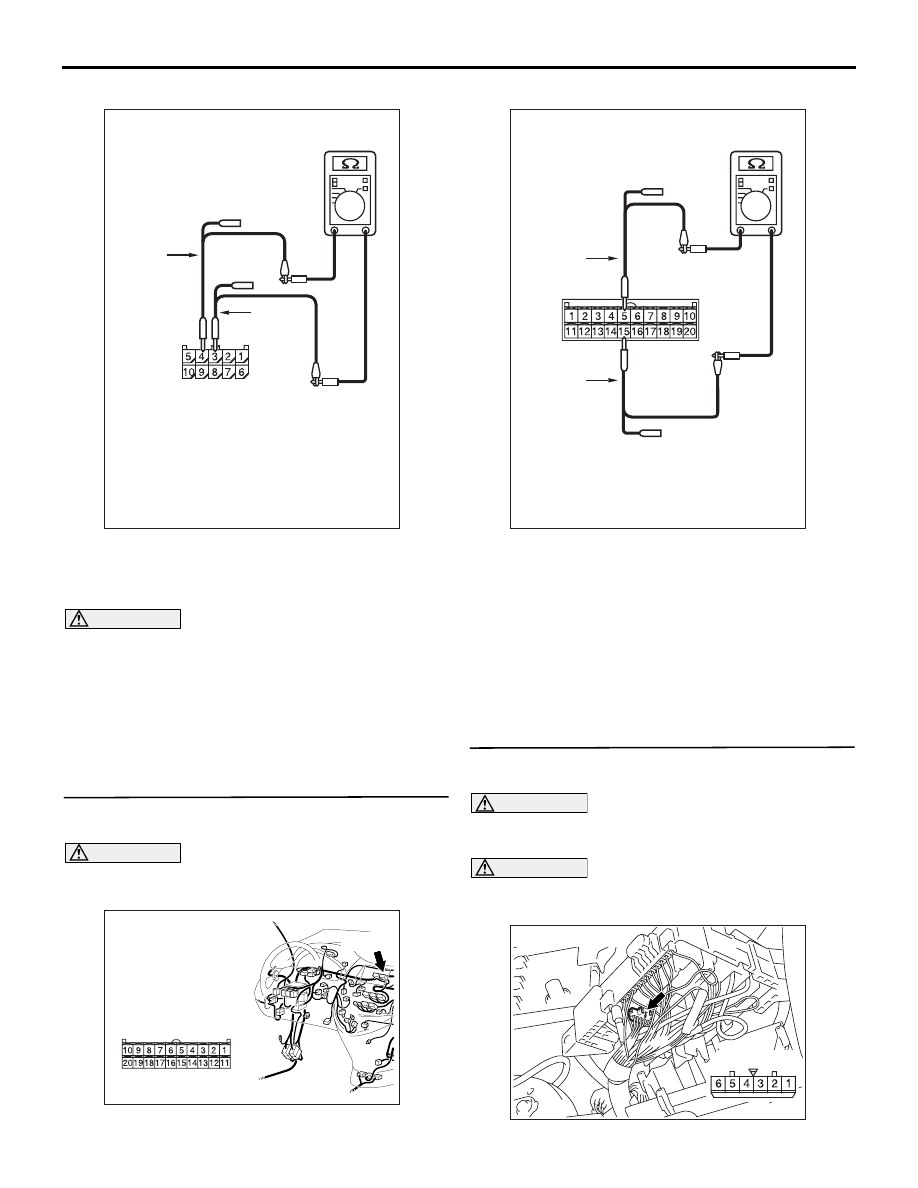

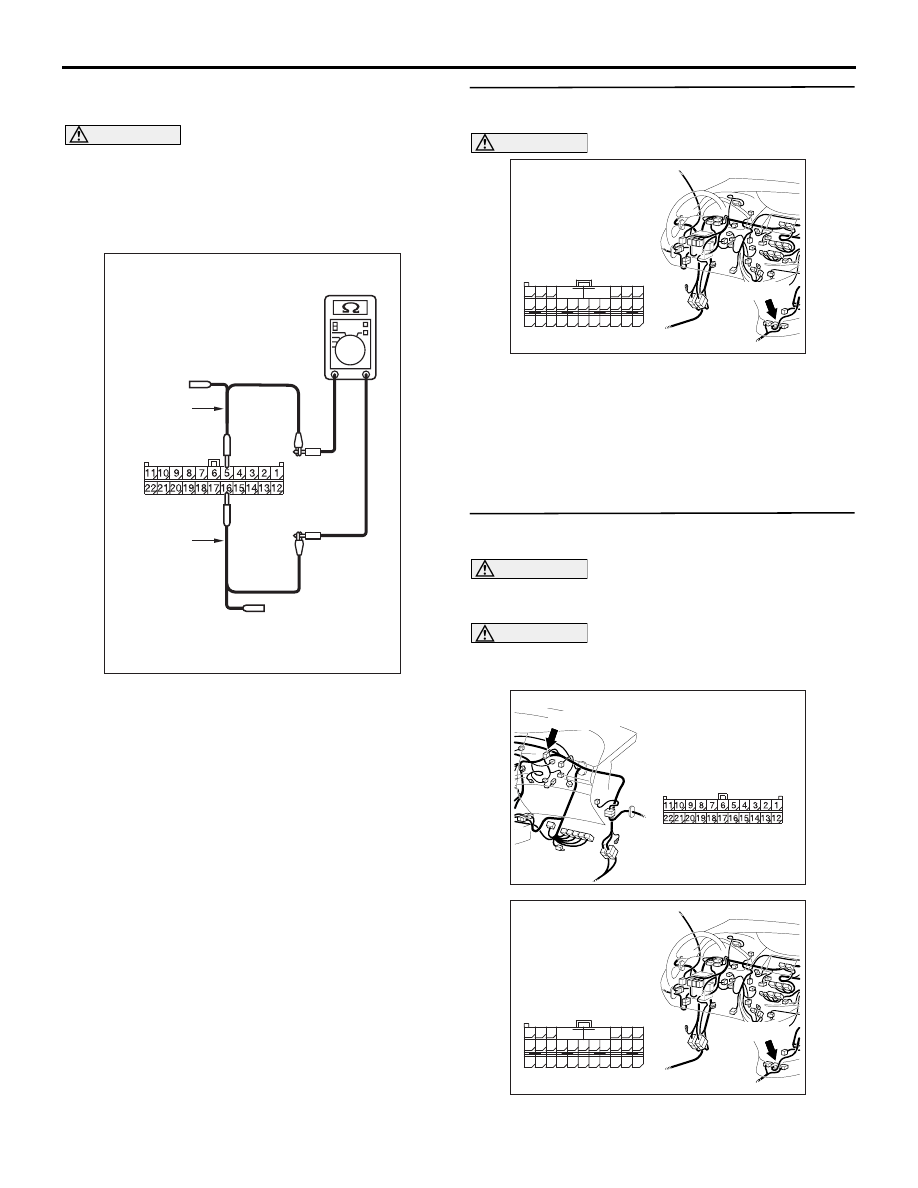

DIAGNOSIS CONTROLLER AREA NETWORK (CAN) 54D-314 disconnected. (4) Resistance between C-37 jumper connector terminal Nos. 3 and 4 OK: 1 k Ω or more Q: Is the check result normal? YES : <1 k Ω or more> Go to Step 19 . NO : <Less than 1 k Ω> Go to Step 16 . STEP 16. Connector check: C-07 centre display CAUTION The strand end of the twist wire should be within Q: Is the check result normal? YES : Go to Step 17 . NO : Repair the defective connector. STEP 17. Resistance measurement at the C-37 CAUTION A digital multimeter should be used. For details . CAUTION The test wiring harness should be used. For (1) Disconnect the centre display connector and the jumper connector, and measure at the jumper (2) Ignition switch: OFF (LOCK) CAUTION When measuring the resistance, disconnect the (3) Ensure that the negative battery terminal is AC312553 AF Harness side: C-37 Test Test AC310613 BC Connector: C-07 <LHD> Harness side C-07 (B) AC310613 BC Connector: C-07 <LHD> Harness side C-07 (B) AC310615 AV Connector: C-37 <LHD> |
