Mitsubishi Grandis. Manual - part 555





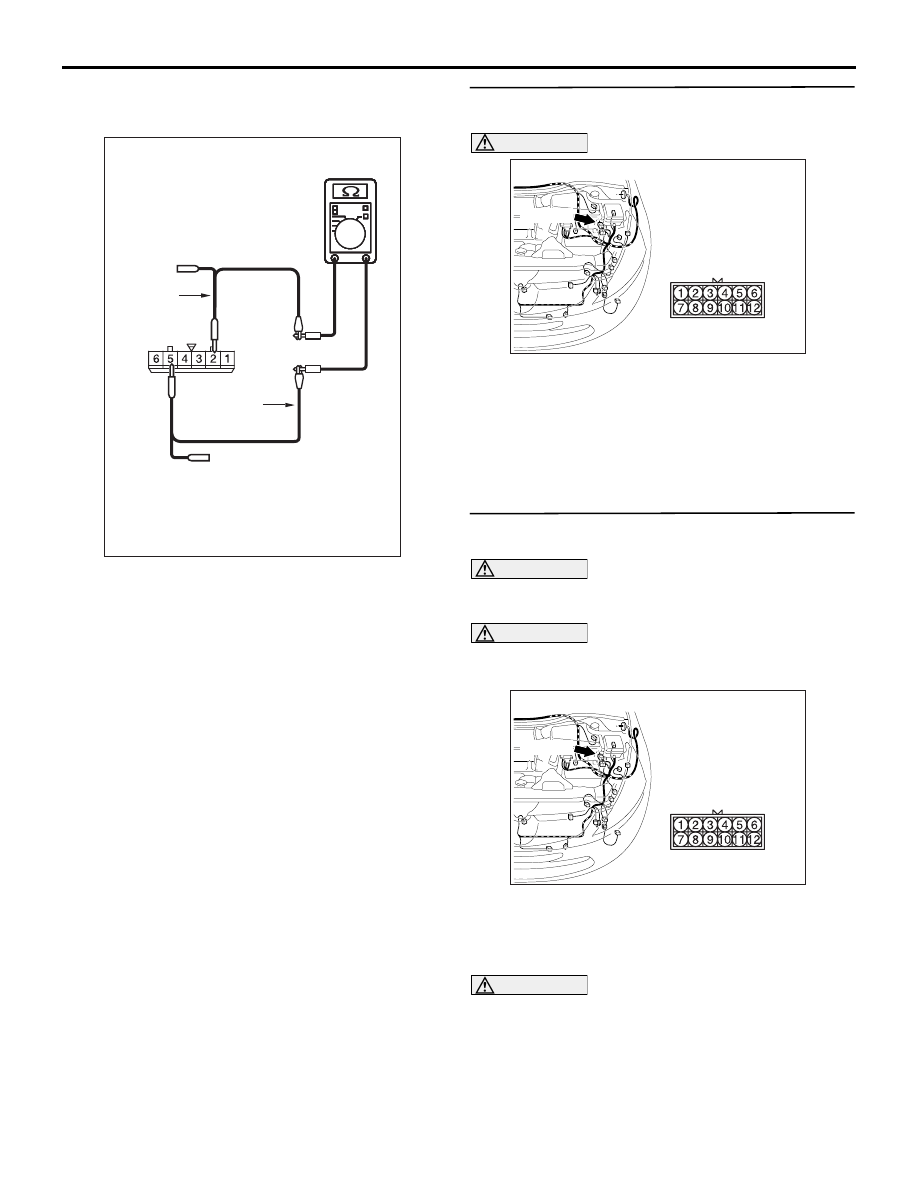

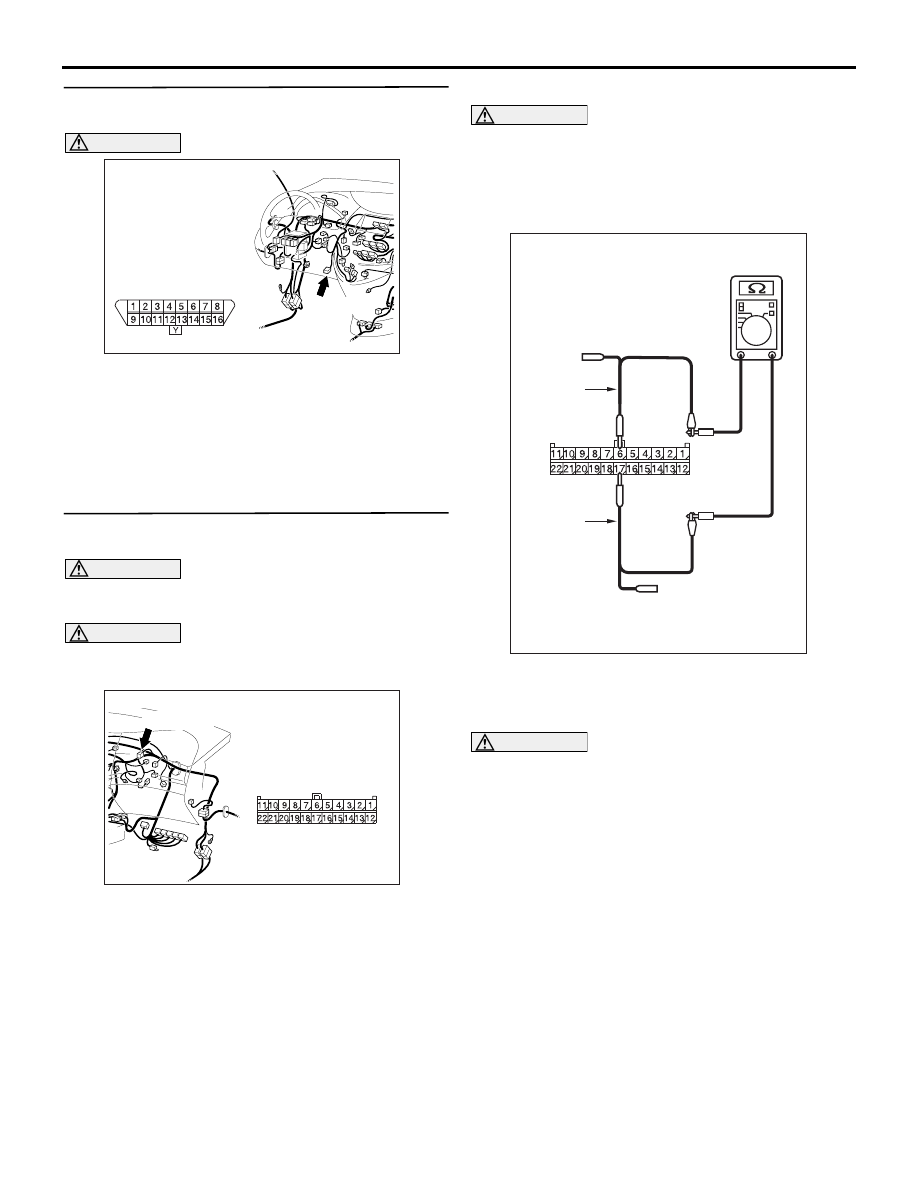

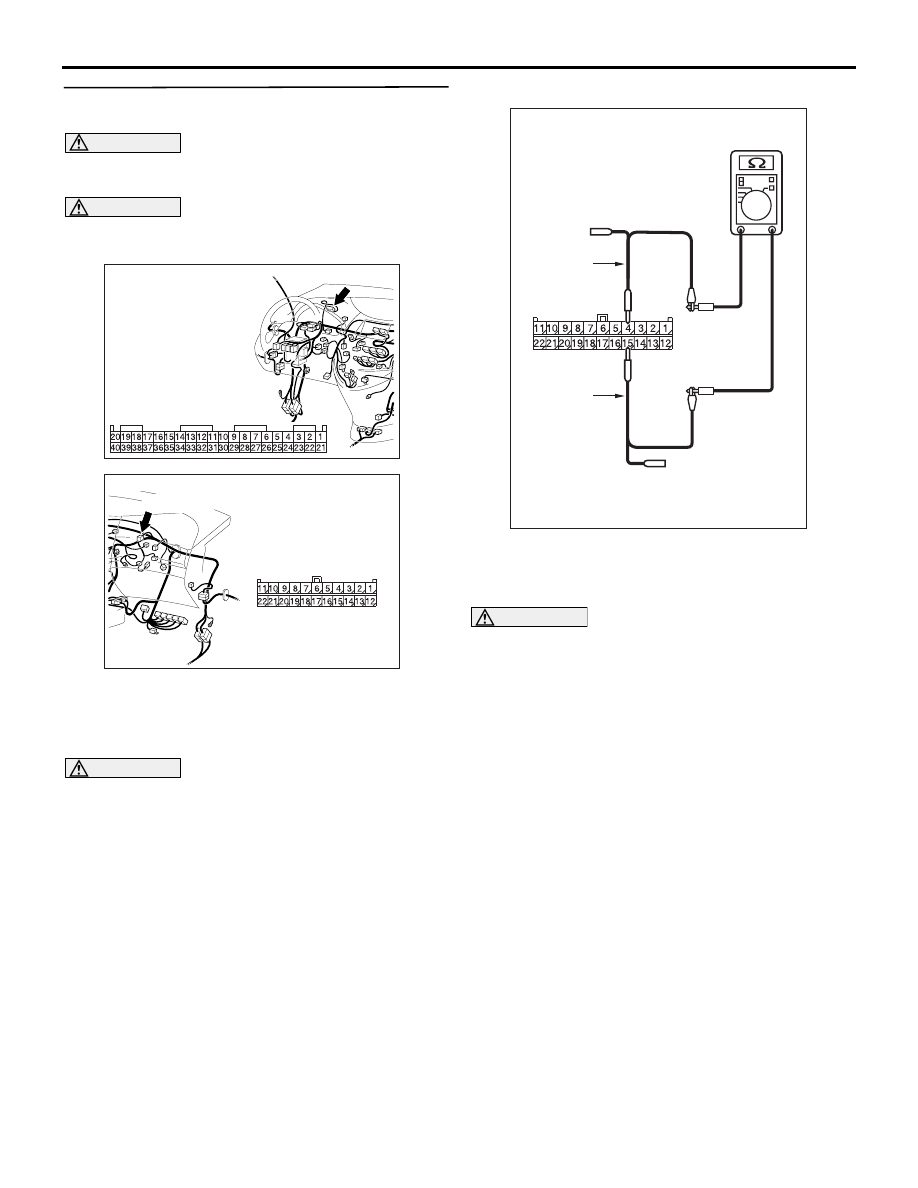

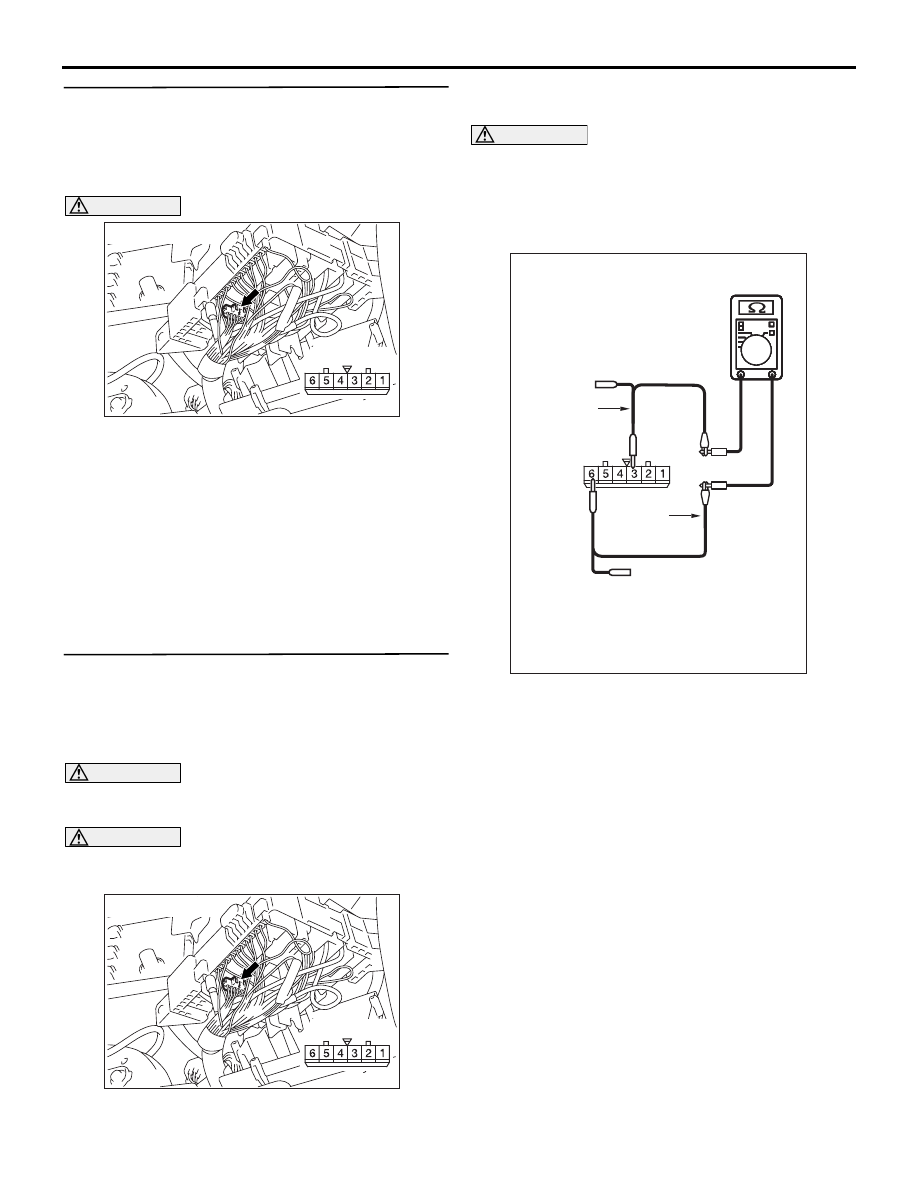

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-318

STEP 23. Connector check: C-126 diagnosis
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 24.

NO :

Repair the defective connector.

STEP 24. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2), and

measure at the wiring harness side.

(2) Ignition switch: OFF (LOCK)

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Continuity between C-09 joint connector (CAN2)

terminal Nos. 6 and 17

OK: More than 2

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<2 more than

Ω> Follow diagnostic item 17,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-452

.

NO :

<2

Ω or less> Repair the wiring harness

between joint connector (CAN2) and the
diagnosis connector.

AC310613

AO

Connector: C-126 <LHD>

Harness side
(Front side)

C-126 (B)

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC204740DI

Harness side: C-09

Test
harness

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-319

STEP 25. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

intermediate connector, and measure at the
wiring harness side.

(2) Ignition switch: OFF (LOCK)

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Continuity between C-09 joint connector (CAN2)

terminal Nos. 4 and 15

OK: More than 2

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<2 more than

Ω> Follow diagnostic item 17,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-452

.

NO :

<2

Ω or less> Repair the wiring harness

between joint connector (CAN2) and the
intermediate connector.

AC310613

BB

Connector: C-02 <LHD>

Harness side

AC310615

AU

Harness side

Connector: C-09 <LHD>

C-09 (GR)

AC204740DJ

Harness side: C-09

Test
harness

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-320

STEP 26. Connector check: A-07 joint connector
(CAN1)
NOTE: When checking A-07 joint connector (CAN1),
disassemble and check the engine compartment
relay box by referring to

P.54D-616

.

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

When checking the joint connector, ensure that its
wiring harness side is not damaged.

Q: Is the check result normal?

YES :

Go to Step 27.

NO :

Repair a defective connector or replace the
joint connector (front wiring harness
assembly).

STEP 27. Resistance measurement at the A-07
joint connector (CAN1).
NOTE: When checking A-07 joint connector (CAN1),
disassemble and check the engine compartment
relay box by referring to

P.54D-616

.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: OFF (LOCK)

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(3) Ensure that the negative battery terminal is

disconnected.

(4) Resistance between A-07 joint connector (CAN1)

AC302572AD

Connector: A-07

Harness side

AC302572AD

Connector: A-07

Harness side

AC204740

AC204740

AC204740

AC204740

AC204740

AC204740

AC204740DK

Harness side: A-07

Test
harness

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-321

terminal Nos. 3 and 6

OK: 120

± 20

(5) Resistance between A-07 joint connector (CAN1)

terminal Nos. 2 and 5

OK: 1 k

 or more

Q: Are the check result normal?

YES <all of the measurement results are within the
normal value> :

Go to Step 37.

NO <The resistance between terminal Nos. 3 and 6
is less than 120

±20 > :

Go to Step 28.

NO <The resistance between terminal Nos. 2 and 5
is less than 1 k

> :

Go to Step 34.

STEP 28. Connector check: A-16 intermediate
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 29.

NO :

Repair the defective connector.

STEP 29. Resistance measurement at the A-16
intermediate connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at its

male-side intermediate connector (at the control
wiring harness side).

(2) Ignition switch: OFF (LOCK)

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(3) Ensure that the negative battery terminal is

AC204740

AC204740

AC204740

AC204740

AC204740

AC204740

AC204740DL

Harness side: A-07

Test
harness

Test
harness

AC310403

AC

Connector: A-16 <LHD>

A-16 (B)

AC310403

AC

Connector: A-16 <LHD>

A-16 (B)
