DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-242

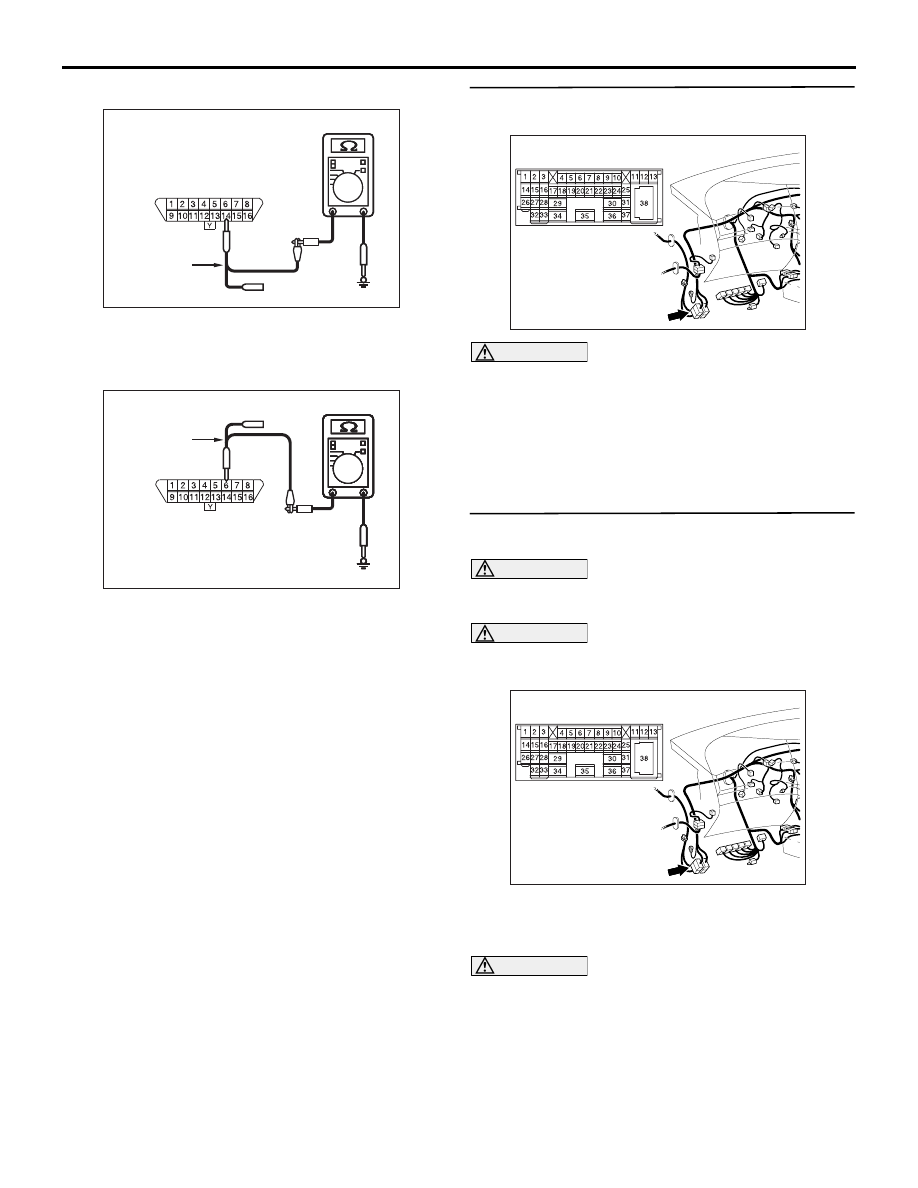

disconnected.

(3) Resistance between C-126 diagnosis connector

terminal No.14 and body earth

OK: 1 k

 or more

(4) Resistance between C-126 diagnosis connector

terminal No.6 and body earth

OK: 1 k

 or more

Q: Are the check result normal?

YES <all of the measurement results show 1 k

 or

more> :

Follow diagnostic item 19 "Diagnose CAN

bus lines thoroughly." Refer to

P.54D-502

.

NO <The resistance between terminal No.14 and
body earth is less than 1 k

> :

Go to Step 3.

NO <The resistance between terminal No.6 and
body earth is less than 1 k

> :

Go to Step 28.

STEP 3. Connector check: C-125 intermediate
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

STEP 4. Resistance measurement at the C-125
intermediate connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at its

male-side intermediate connector (at the front
wiring harness side).

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

AC209364

AC209364LC

Harness side: C-126
(Front side)

Test
harness

AC209364

AC209364

AC209364

AC209364

AC209364

AC209364LD

Harness side: C-126
(Front side)

Test
harness

AC310628AB

Connector: C-125 <RHD>

AC310628AB

Connector: C-125 <RHD>

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-243

disconnected.

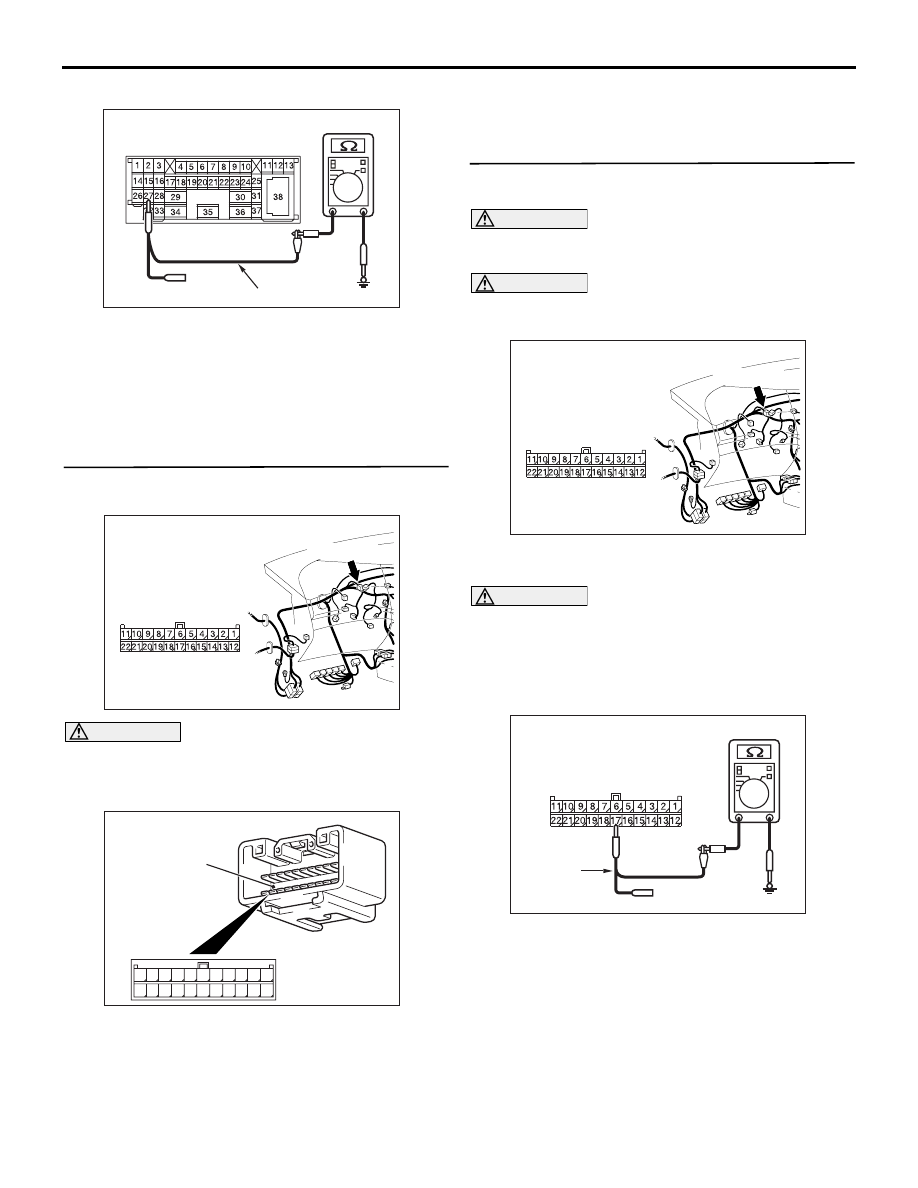

(3) Resistance between C-125 intermediate

connector terminal No.27 and body earth

OK: 1 k

 or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 5.

NO :

<less than 1 k

Ω> Go to Step 20.

STEP 5. Connector check: C-09 joint connector
(CAN2)

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

When checking the joint connector, ensure that its
wiring harness side and its short pins are not
damaged.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair a defective connector or replace the
joint connector.

STEP 6. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at the

wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

AC209364LE

Male side: C-125

Test harness

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AB

Short pin

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC209364LI

Harness side: C-09

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-244

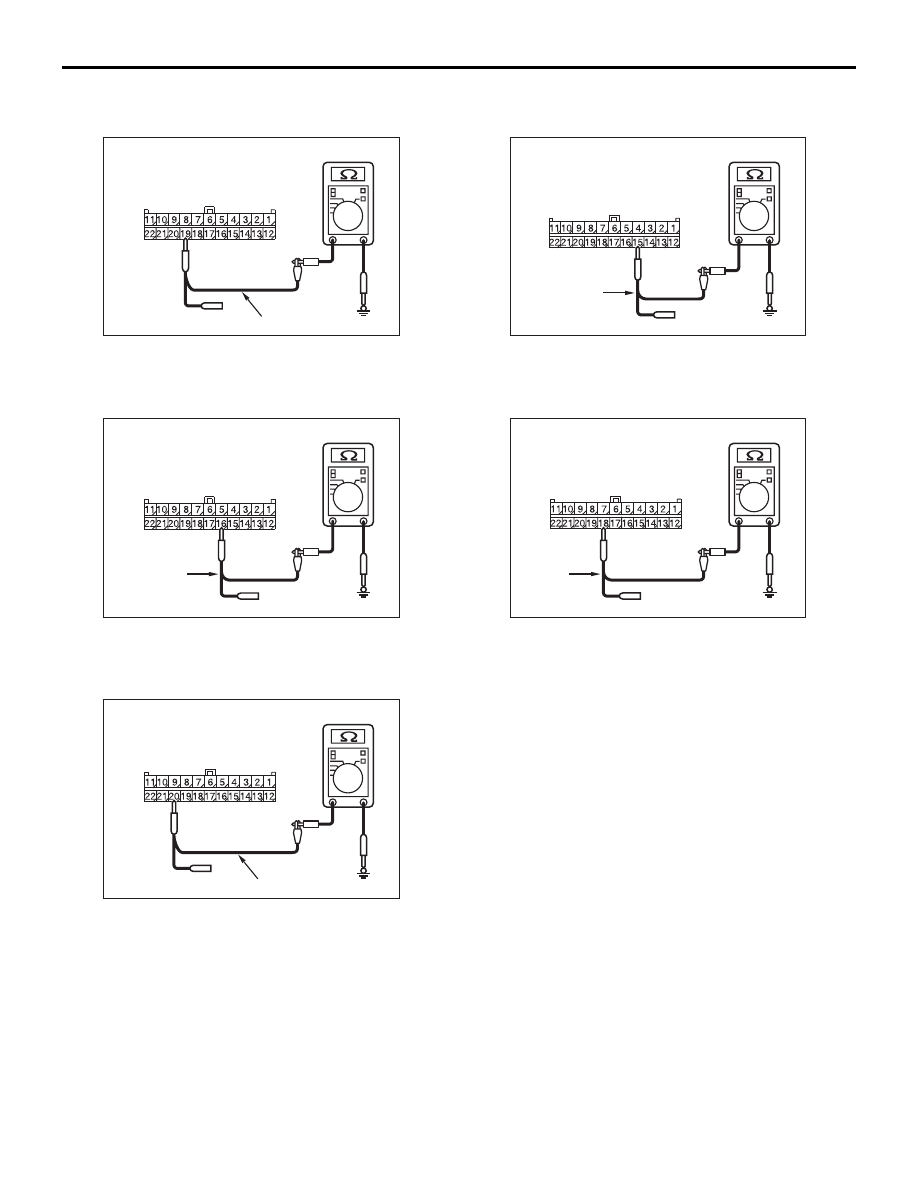

terminal No.17 and body earth

OK: 1 k

 or more

(4) Resistance between C-09 joint connector (CAN2)

terminal No.19 and body earth

OK: 1 k

 or more

(5) Resistance between C-09 joint connector (CAN2)

terminal No.16 and body earth

OK: 1 k

 or more

(6) Resistance between C-09 joint connector (CAN2)

terminal No.20 and body earth

OK: 1 k

 or more

(7) Resistance between C-09 joint connector (CAN2)

terminal No.15 and body earth

OK: 1 k

 or more

(8) Resistance between C-09 joint connector (CAN2)

terminal No.18 and body earth

OK: 1 k

 or more

Q: Are the check result normal?

YES <all of the measurement results show 1 k

 or

more> :

Go to Step 19.

NO <The resistance between terminal No.17 and
body earth is less than 1 k

> :

Go to Step 7.

NO <The resistance between terminal No.19 and
body earth is less than 1 k

> :

Go to Step 8.

NO <The resistance between terminal No.16 and
body earth is less than 1 k

> :

Go to Step 10.

NO <The resistance between terminal No.20 and
body earth is less than 1 k

> :

Go to Step 12.

NO <The resistance between terminal No.15 and
body earth is less than 1 k

> :

Go to Step 16.

NO <The resistance between terminal No.18 and
body earth is less than 1 k

> :

Go to Step 18.

AC209364LF

Harness side: C-09

Test harness

AC209364MF

Harness side: C-09

Test
harness

AC209364MG

Harness side: C-09

Test harness

AC209364LM

Harness side: C-09

Test
harness

AC209364LG

Harness side: C-09

Test
harness

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

54D-245

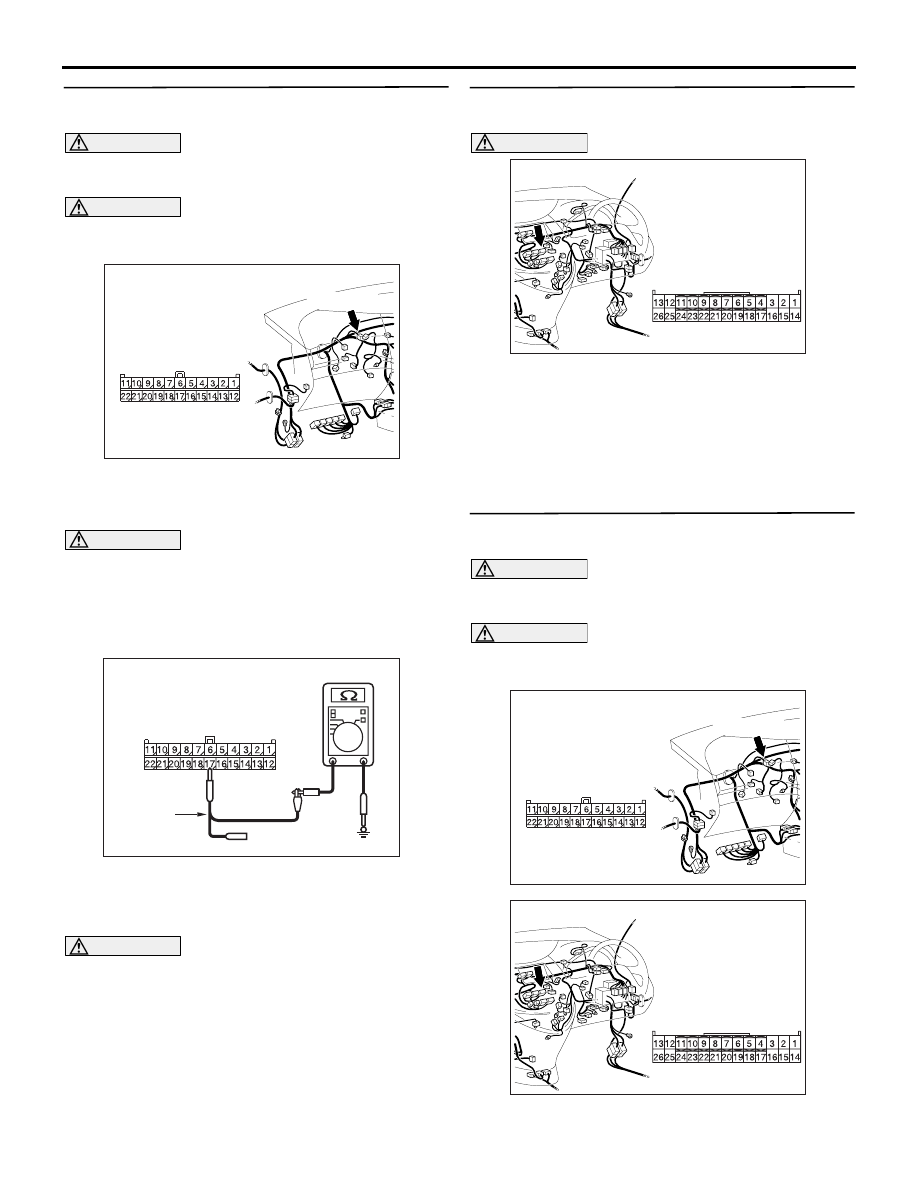

STEP 7. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

combination meter connector, and measure at
the wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between C-09 joint connector (CAN2)

terminal No.17 and body earth

OK: 1 k

 or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 19,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-502

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN2) and the
combination meter connector.

STEP 8. Connector check: C-106 A/C-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the defective connector.

STEP 9. Resistance measurement at C-09 joint
connector (CAN2).

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN2) and the

A/C-ECU connector, and measure at the wiring

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC209364LI

Harness side: C-09

Test
harness

AC310631AB

Connectors: C-106 <RHD>

Harness side

AC310628AY

Connector: C-09 <RHD>

C-09 (GR)

Harness side

AC310631AB

Connectors: C-106 <RHD>

Harness side
