Mitsubishi Grandis. Manual - part 534





DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

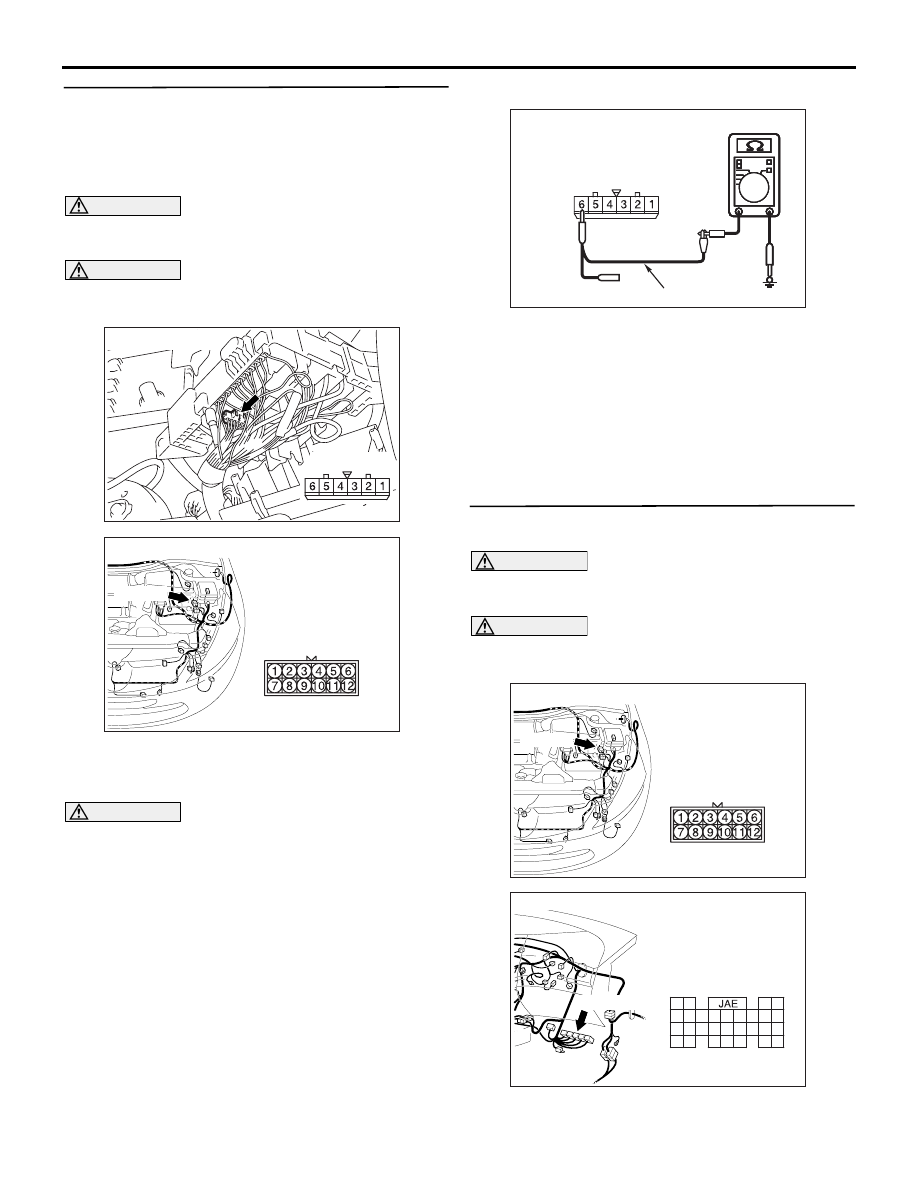

54D-234

STEP 50. Resistance measurement at the A-07
joint connector (CAN1).
NOTE: When checking A-07 joint connector (CAN1),
disassemble and check the engine compartment
relay box by referring to

P.54D-616

.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the connector, and measure at the

wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between A-07 joint connector (CAN1)

terminal No.6 and body earth

OK: 1 k

 or more

(4) Resistance between A-07 joint connector (CAN1)

terminal No.5 and body earth

OK: 1 k

 or more

Q: Are the check result normal?

YES <all of the measurement results show 1 k

 or

more> :

Go to Step 56 .

NO <The resistance between terminal No.6 and
body earth is less than 1 k

> :

Go to Step 51 .

NO <The resistance between terminal No.5 and
body earth is less than 1 k

> :

Go to Step 54 .

STEP 51. Connector check: A-16 intermediate
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 52 .

NO :

Repair the defective connector.

AC302572AD

Connector: A-07

Harness side

AC209364

AC209364

AC209364

AC209364

Harness side: A-07

AC209364LZ

Test harness

AC209364

Harness side: A-07

AC209364MA

Test harness

AC310403

AC

Connector: A-16 <LHD>

A-16 (B)

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

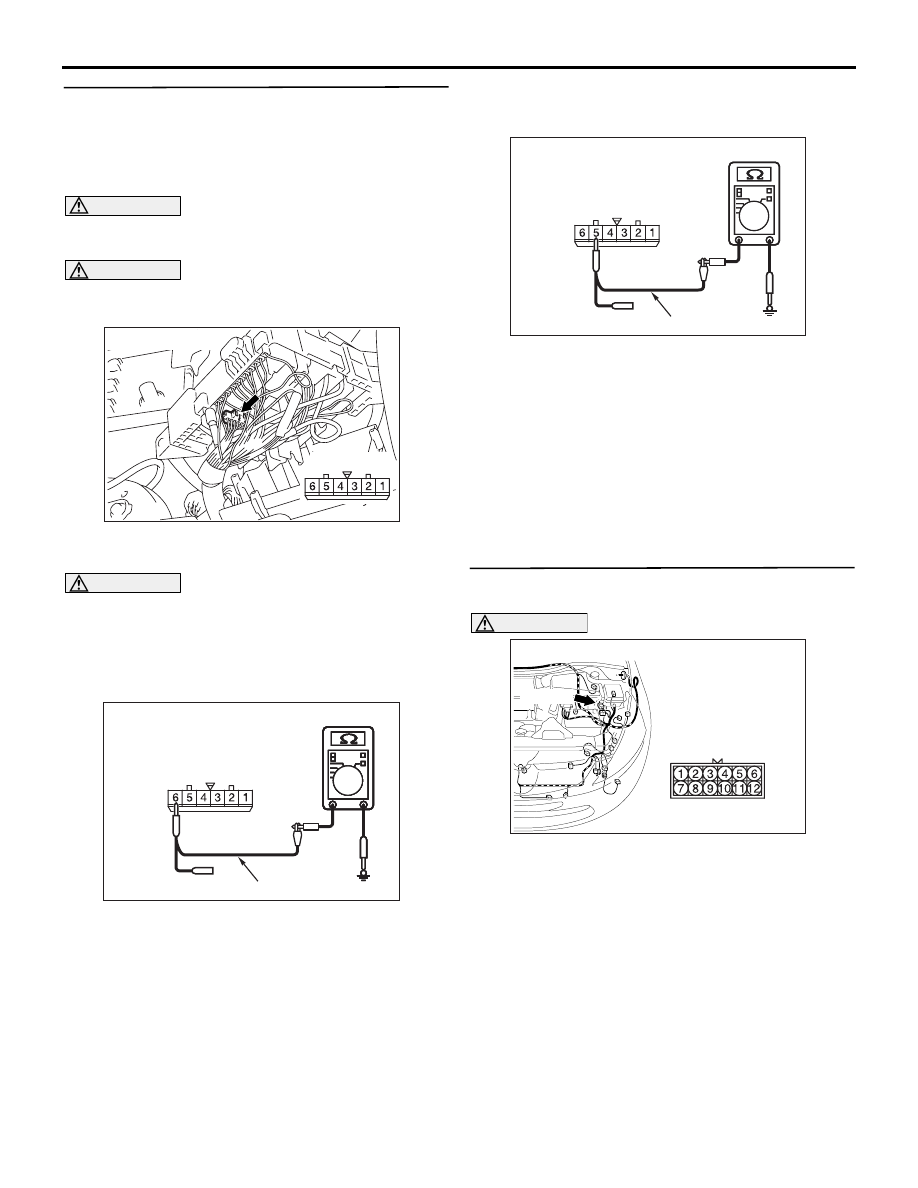

54D-235

STEP 52. Resistance measurement at the A-07
joint connector (CAN1).
NOTE: When checking A-07 joint connector (CAN1),
disassemble and check the engine compartment
relay box by referring to

P.54D-616

.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN1) and the

intermediate connector, and measure at the
wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between A-07 joint connector (CAN1)

terminal No.6 and body earth

OK: 1 k

 or more

Q: Is the check result normal?

YES :

<1 k

Ω or more> Go to Step 53 .

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN1) and the
intermediate connector.

STEP 53. Resistance measurement at the A-16
intermediate connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the engine-ECU <M/T> or

engine-A/T-ECU <A/T> connector and the

AC302572AD

Connector: A-07

Harness side

AC310403

AC

Connector: A-16 <LHD>

A-16 (B)

AC209364

AC209364

AC209364

AC209364

Harness side: A-07

AC209364LZ

Test harness

AC310403

AC

Connector: A-16 <LHD>

A-16 (B)

AC310615

AS

Harness side

Connector: C-112 <LHD>

C-112 (GR)

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

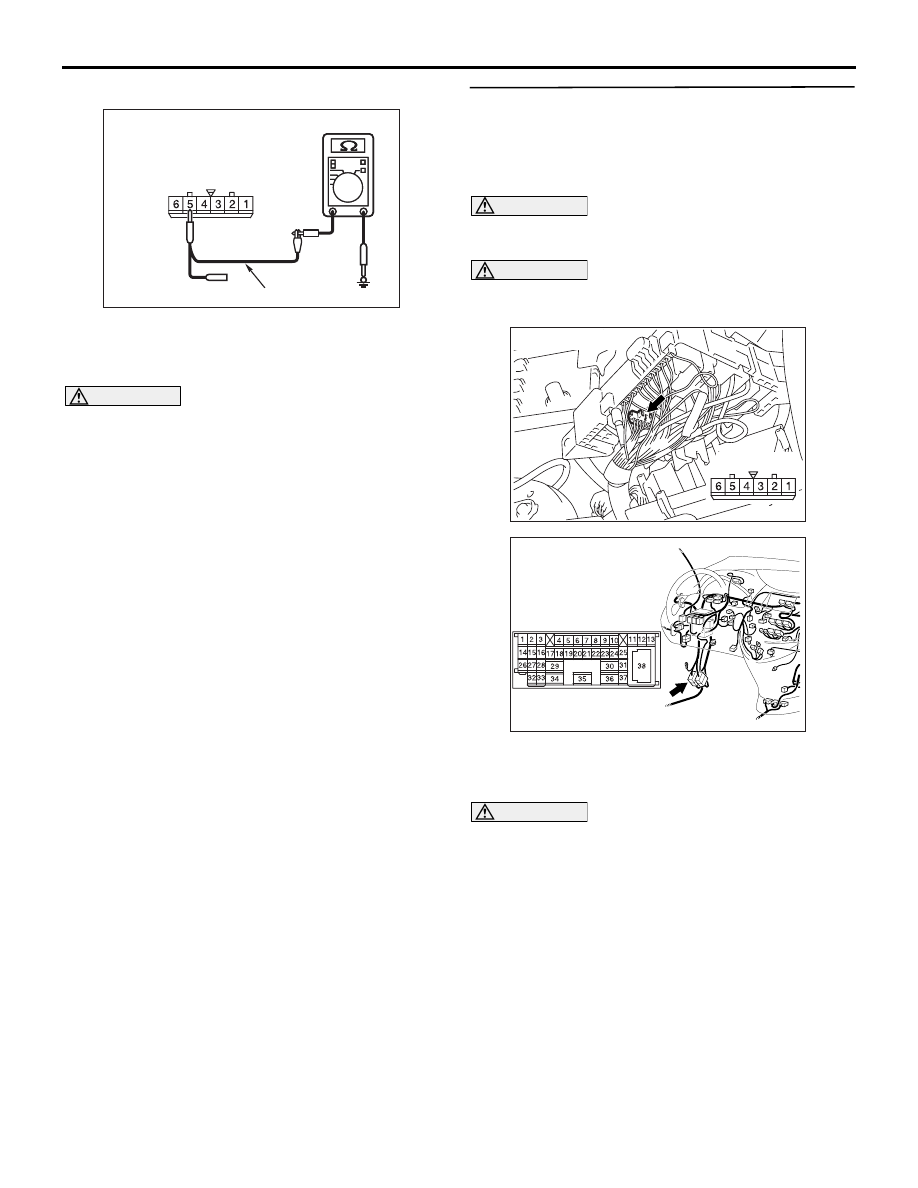

54D-236

intermediate connector, and measure at the
wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

disconnected.

(3) Resistance between A-16 intermediate connector

terminal No.6 and body earth

OK: 1 k

 or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 18,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-476

.

NO :

<less than 1

Ω> Repair the wiring harness

between the intermediate connector and the
engine-ECU <M/T> or engine-A/T-ECU
<A/T> connector.

STEP 54. Connector check: A-04 ASC-ECU
connector

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

Go to Step 55 .

NO :

Repair the defective connector.

STEP 55. Resistance measurement at the A-07
joint connector (CAN1).
NOTE: When checking A-07 joint connector (CAN1),
disassemble and check the engine compartment
relay box by referring to

P.54D-616

.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN1) and the

ASC-ECU connector, and measure at the wiring
harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

AC209364

AC209364

AC209364MB

Male side: A-16

Test
harness

AC310401

Connector: A-04 <LHD>

Harness side

AL

A-04

AC310401

Connector: A-04 <LHD>

Harness side

AL

A-04

AC302572AD

Connector: A-07

Harness side

DIAGNOSIS

CONTROLLER AREA NETWORK (CAN)

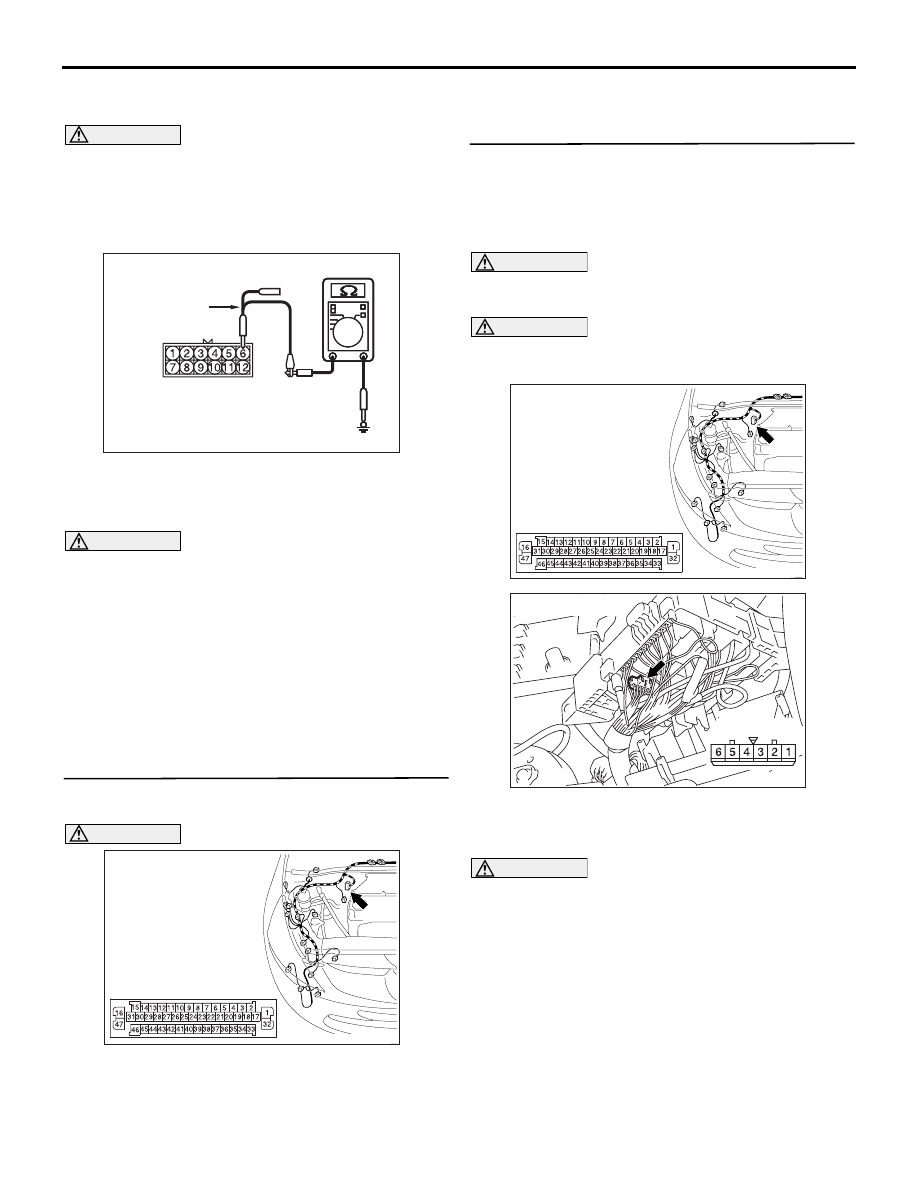

54D-237

disconnected.

(3) Resistance between A-07 joint connector (CAN1)

terminal No.5 and body earth

OK: 1 k

 or more

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54D-8

.

Q: Is the check result normal?

YES :

<1 k

Ω or more> Follow diagnostic item 18,

Diagnose CAN bus lines thoroughly. Refer
to

P.54D-476

.

NO :

<less than 1 k

Ω> Repair the wiring harness

between the joint connector (CAN1) and the
ASC-ECU connector.

STEP 56. Resistance measurement at the A-07
joint connector (CAN1).
NOTE: When checking A-07 joint connector (CAN1),
disassemble and check the engine compartment
relay box by referring to

P.54D-616

.

CAUTION

A digital multimeter should be used. For details
refer to

P.54D-8

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54D-8

.

(1) Disconnect the joint connector (CAN1) and the

intermediate connector, and measure at the
wiring harness side.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54D-8

.

(2) Ensure that the negative battery terminal is

AC209364

Harness side: A-07

AC209364MA

Test harness

AC302572AD

Connector: A-07

Harness side

AC310613

AD

Connector: C-125 <LHD>
