Mitsubishi Grandis. Manual - part 344

SECOND SEAT ASSEMBLY

INTERIOR

52A-32

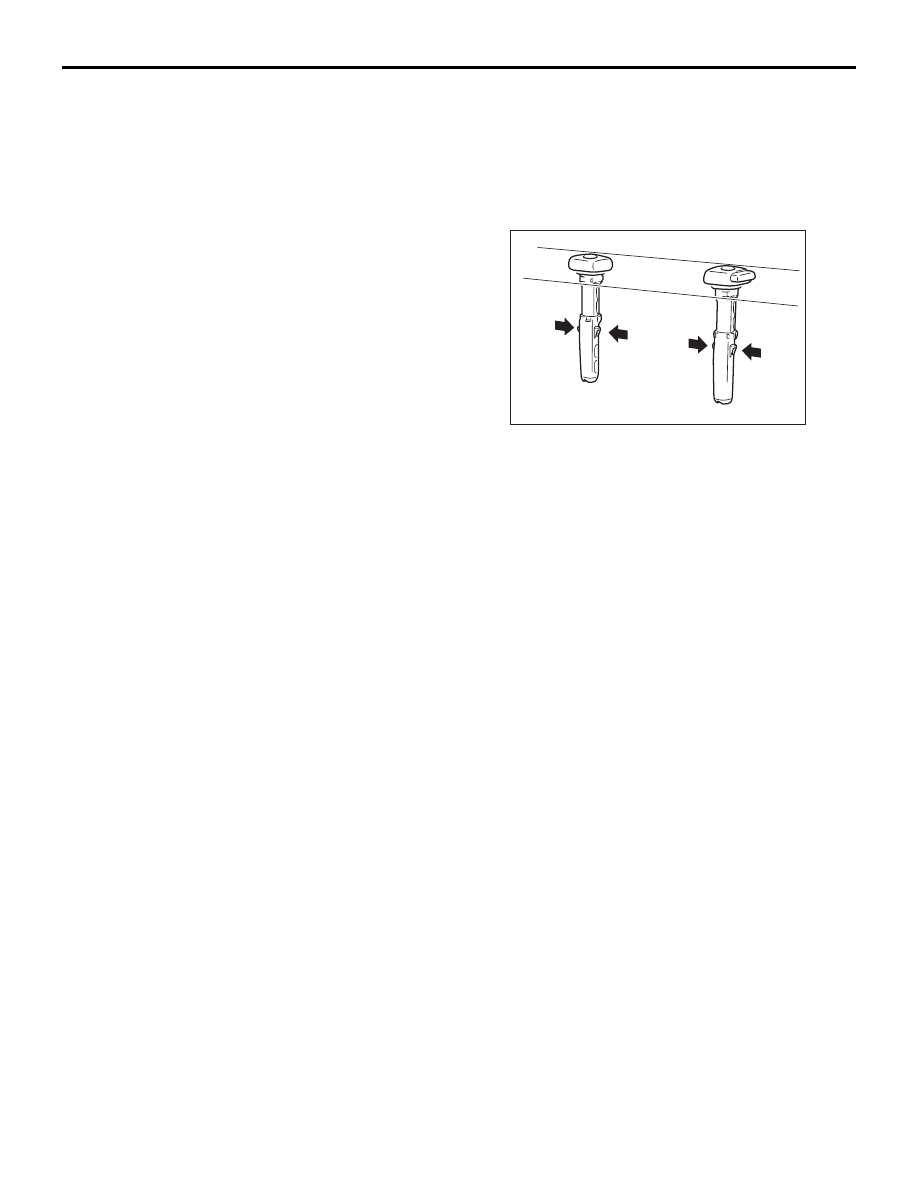

DISASSEMBLY SERVICE POINT
<<A>> HEADREST GIDE REMOVAL

5.

Reclining adjuster cover

6.

Slide lever

7.

Slide lever garnish

8.

Tip up lever

9.

Tip up lever garnish

10. Seat cushion assembly
11. Seat cushion cover
12. Seat cushion pad
13. Seat cushion frame
14. Sub seat cushion cover
15. Sub seat cushion pad
16. Inner seat belt
17. Frame base assembly inner
18. Centre seat belt inner
19. Shaft
20. Shaft
21. Frame base assembly outer
22. Pipe assembly
23. Seatback assembly

<<A>>

24. Headrest guide
25. Seatback cover

Disassembly steps (Continued)

26. Seatback pad
27. Centre seat belt outer
28. Seatback frame

Disassembly steps (Continued)

AC205342

THIRD SEAT ASSEMBLY

INTERIOR

52A-33

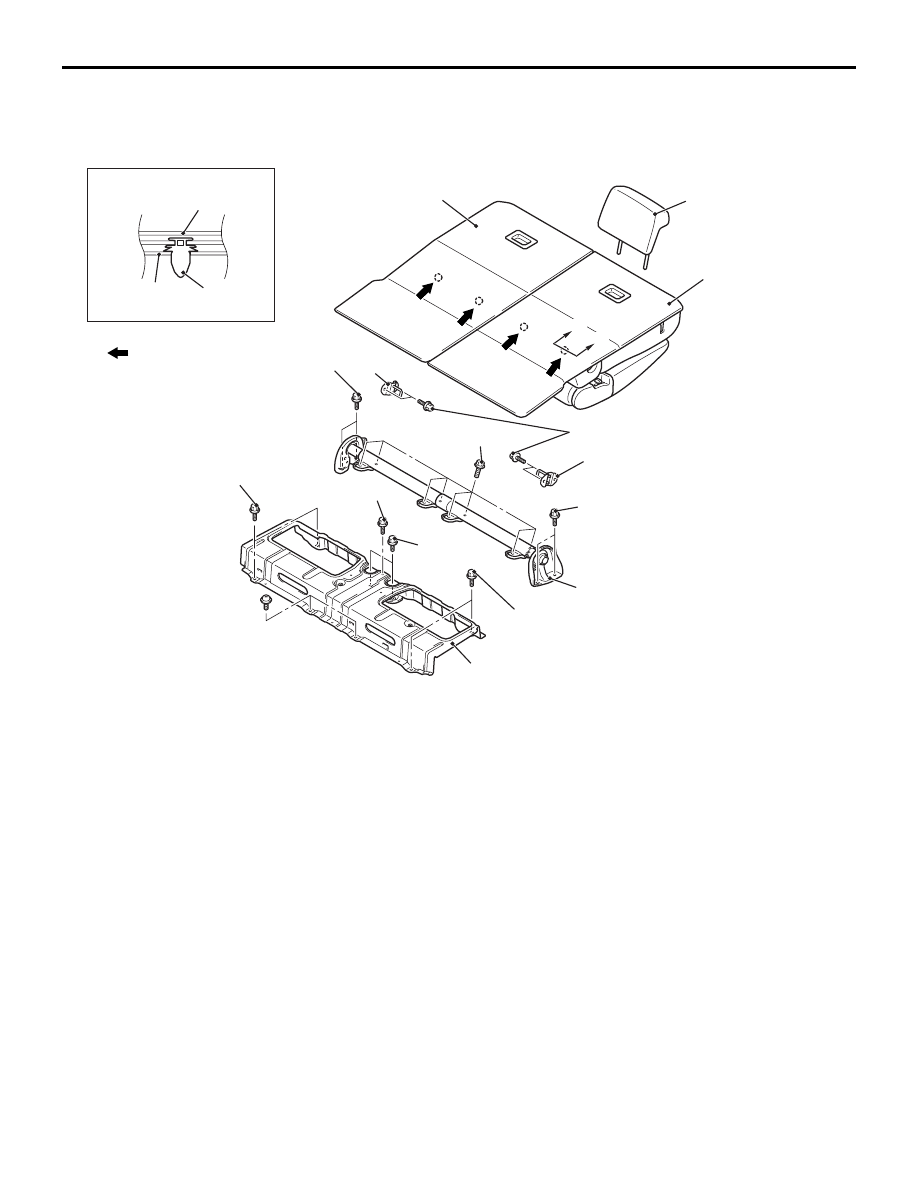

THIRD SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522002800030

AC312525

1

2

2

3

4

4

5

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

22 ± 4 N·m

22 ± 4 N·m

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

AB

A

A

2

Clip

3

NOTE
          : Clip position

Section A – A

1.

Head restraint
Removal steps

2.

Third seat assembly

3.

Shaft assembly

4.

Striker

5.

Seat bracket panel assembly

Removal steps (Continued)

THIRD SEAT ASSEMBLY

INTERIOR

52A-34

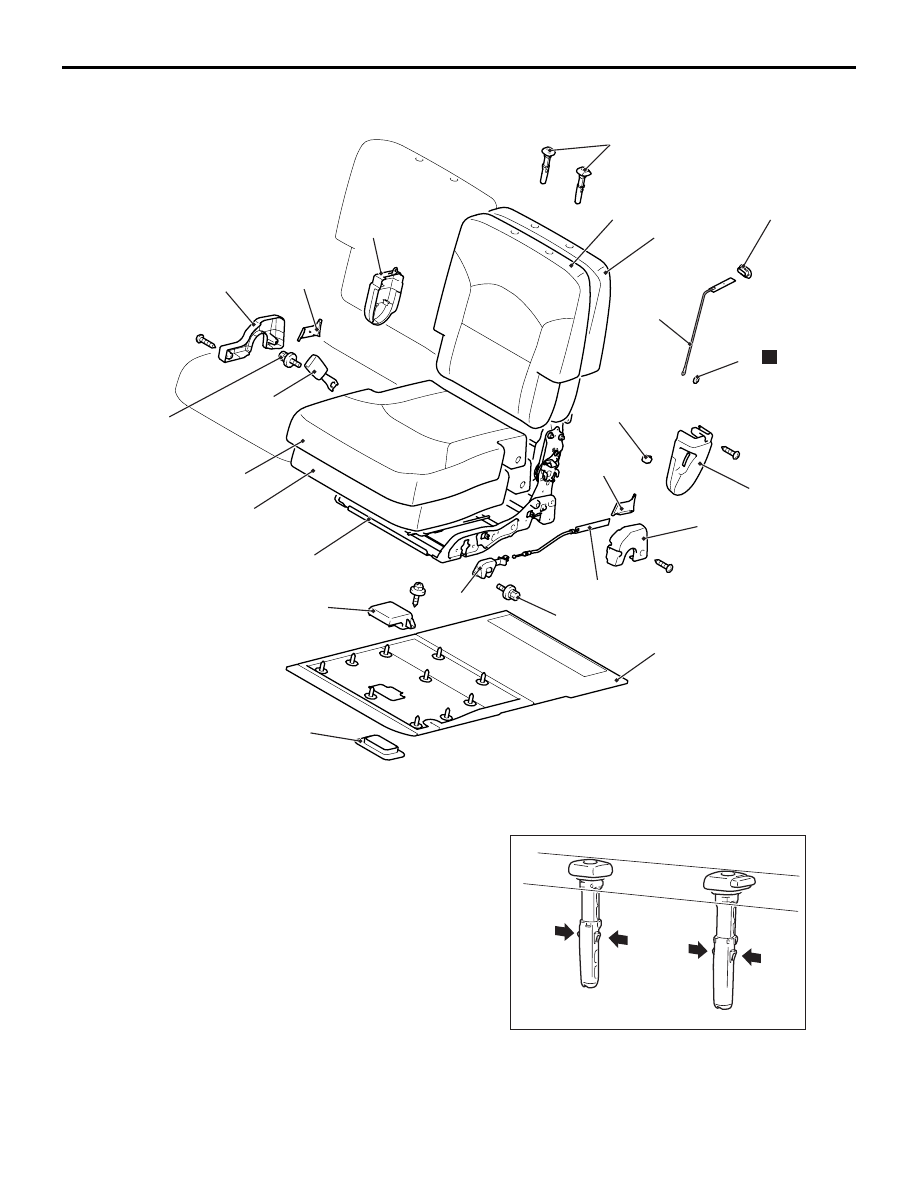

DISASSEMBLY AND REASSEMBLY

M1522003000059

DISASSEMBLY SERVICE POINT
<<A>> HEADREST GUIDE REMOVA

AC302316

AC311814AB

1

2

3

4

3

5

6

7

8

9

10

11

N

6

12

15

13

14

19

16

18

15

17

22 ± 4 N·m

44 ± 10 N·m

Disassembly steps

1.

Grip garnish

2.

Seat cushion panel assembly

3.

Outer cover

4.

Inner seat belt

5.

Reclining adjuster knob

6.

Reclining adjuster cover

7.

Seatback control cable garnish

<<A>>

8.

Headrest guide

9.

Seatback cover

10. Seatback pad
11. Clip
12. Rod
13. Seat cushion cover
14. Seat cushion pad
15. Inner cover
16. Grip
17. Seat cushion control cable
18. Seat cushion catch assembly
19 Frame assembly

AC205342

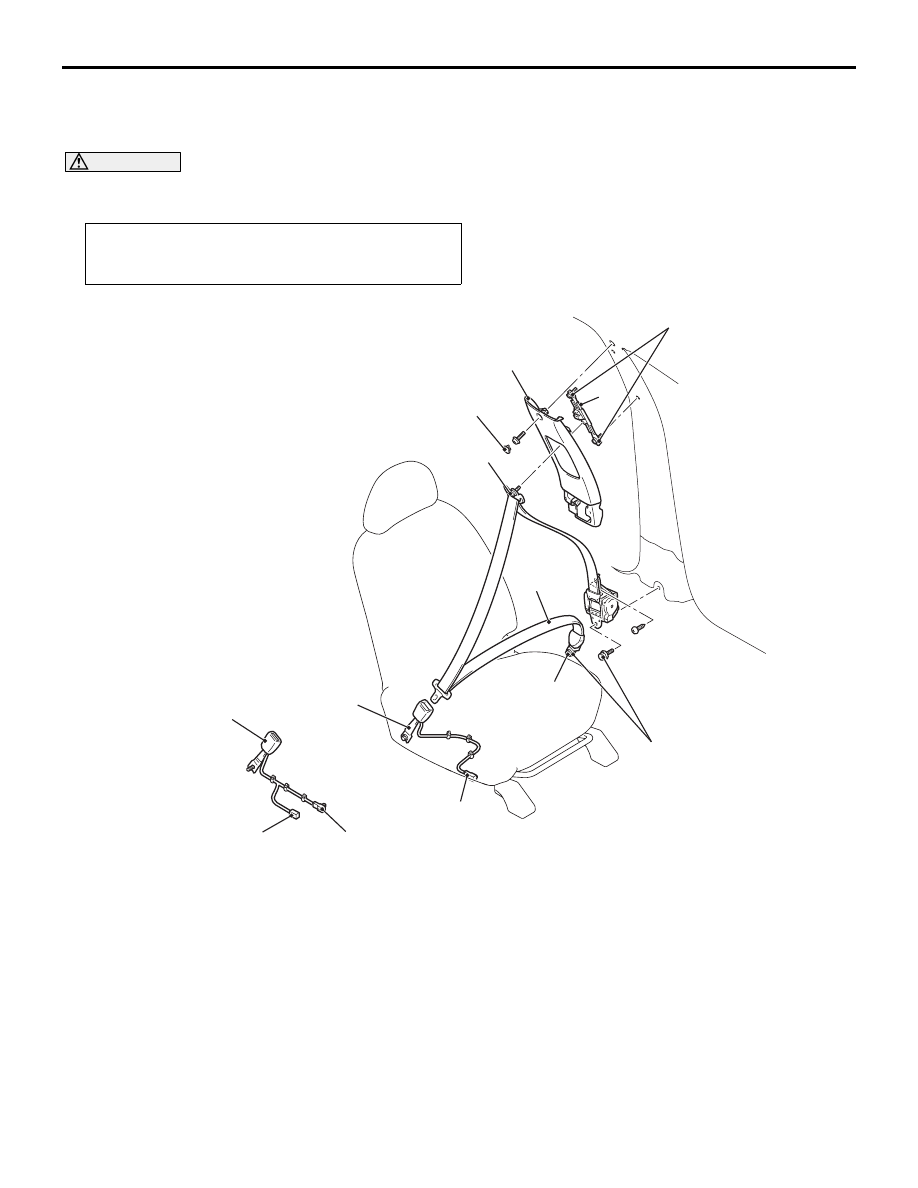

FRONT SEAT BELT

INTERIOR

52A-35

FRONT SEAT BELT

REMOVAL AND INSTALLATION

M1523001300325

CAUTION

SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B, Service
Precautions

P.52B-7

 and Seat Belt with Pre-tensioner

P.52B-239

.

Pre-removal and Post-installation Operation
• Turn the ignition key to the LOOK (OFF) position.
• Disconnect the negative battery terminal.

AC302618

AC311086

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

5

3

2

4

7

6

AC

1

6

8

8

<Passenger's side>

Outer seat belt removal steps

1.

Outer seat belt lower anchor bolt

•

Front scuff plate inner, scuff plate
rear, centre pillar trim lower (Refer
to

P.52A-10

).

2.

Centre pillar trim plug

3.

Centre pillar trim upper (Refer to

P.52A-10

).

4.

Outer seat belt (Refer to GROUP
52B, Seat Belt with Pre-tensioner

P.52B-239

).

5.

Adjustable seat belt anchor
Inner seat belt removal

6.

Seat belt switch connector

•

Shield cover (Refer to

P.52A-24

).

7.

Seat occupancy sensor connector
(Passenger's side)

8.

Inner seat belt

Outer seat belt removal steps
