SECOND SEAT ASSEMBLY

INTERIOR

52A-28

Disassembly steps

1.

Armrest assembly

2.

Shield cover inner

3.

Inner seat belt cap

4.

Shield cover

5.

Inner seat belt

6.

Reclining adjuster lever

7.

Reclining adjuster cover

8.

Slide lever

9.

Slide lever garnish

10. Tip up lever
11. Tip up lever garnish
12. Seat cushion assembly
13. Seat cushion cover
14. Seat cushion pad

15. Seat cushion frame
16. Sub seat cushion cover
17. Sub seat cushion pad
18. Frame base assembly inner
19. Shaft
20. Shaft
21. Frame base assembly outer
22. Pipe assembly
23. Seatback assembly

<<A>>

24. Headrest guide
25. Seatback cover
26. Seatback pad
27. Seatback frame

Disassembly steps (Continued)

SECOND SEAT ASSEMBLY

INTERIOR

52A-29

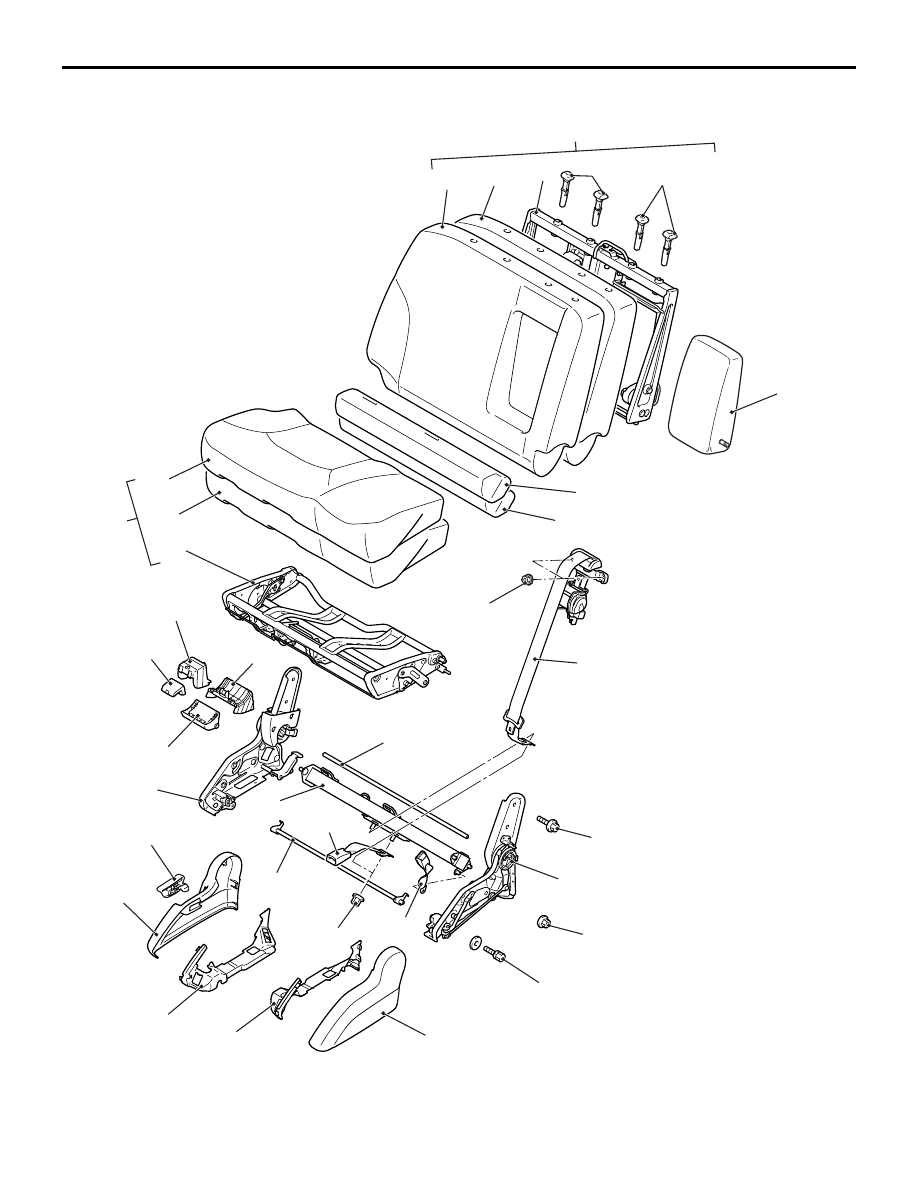

<BENCH SEAT (LH SIDE) >

AC311808

1

2

1

3

4

5

6

7

8

10

11

12

9

13

14

15

16

17

18

19

20

23

24

22

25

21

AB

22 ± 4 N·m

44 ± 10 N·m

22 ± 4 N·m

Disassembly steps

1.

Shield cover inner

2.

Shield cover

3.

Reclining adjuster lever

4.

Reclining adjuster cover

Disassembly steps (Continued)

SECOND SEAT ASSEMBLY

INTERIOR

52A-30

5.

Slide lever

6.

Slide lever garnish

7.

Tip up lever

8.

Tip up lever garnish

9.

Seat cushion assembly

10. Seat cushion cover
11. Seat cushion pad
12. Seat cushion frame
13. Sub seat cushion cover
14. Sub seat cushion pad
15. Frame base assembly inner
16. Inner seat belt
17. Shaft
18. Shaft
19. Frame base assembly outer
20. Pipe assembly
21. Seatback assembly

<<A>>

22. Headrest guide
23. Seatback cover
24. Seatback pad
25. Seatback frame

Disassembly steps (Continued)

SECOND SEAT ASSEMBLY

INTERIOR

52A-31

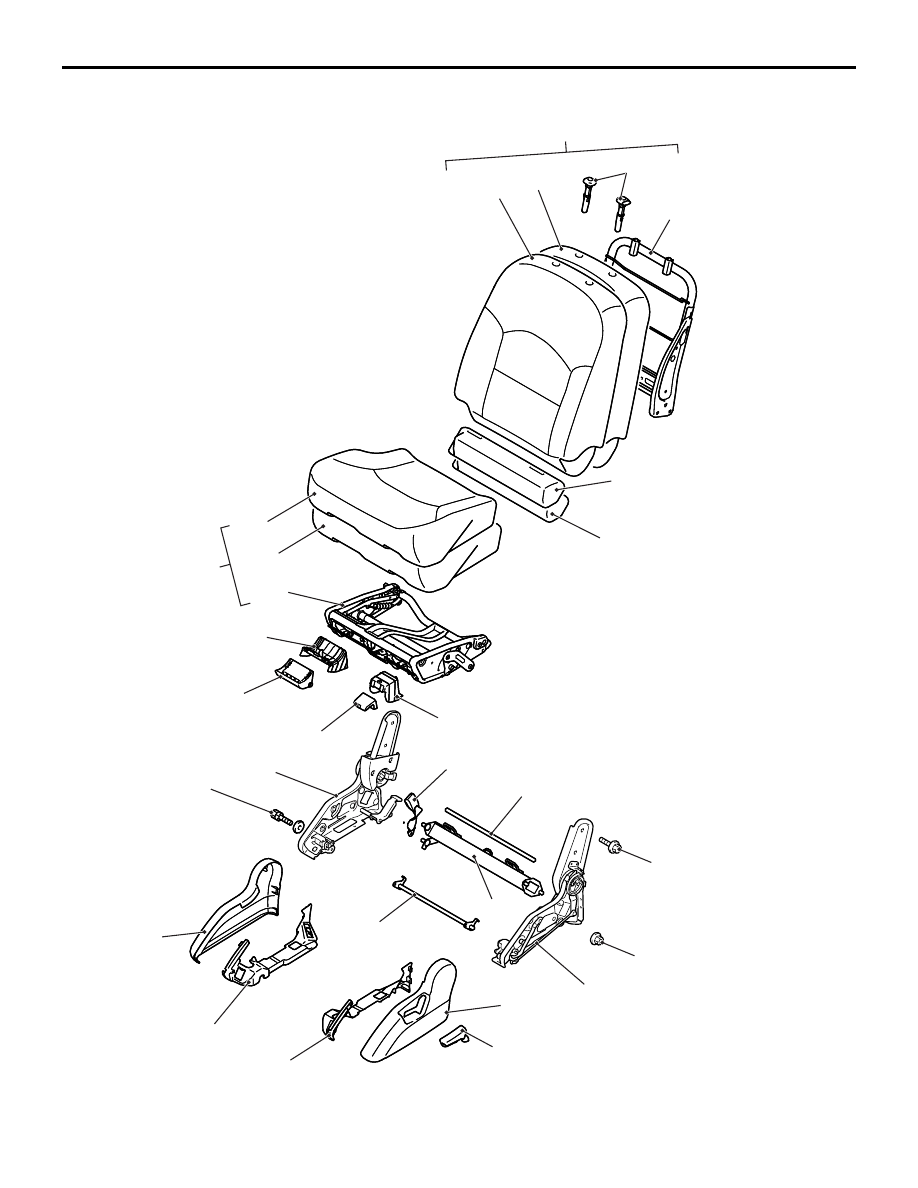

<BENCH SEAT (RH SIDE) >

AC311807

1

2

5

3

4

2

6

7

8

9

11

12

13

10

14

15

16

17

18

19

20

21

22

24

24

25

26

28

23

27

22 ± 4 N·m

44 ± 10 N·m

22 ± 4 N·m

44 ± 10 N·m

44 ± 10 N·m

AB

Disassembly steps

1.

Armrest assembly

2.

Shield cover inner

3.

Shield cover

4.

Reclining adjuster lever

Disassembly steps (Continued)
