Mitsubishi Grandis. Manual - part 263

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-514

Inspection Procedure Q-15: The driver's door lock actuator switch signal is not received. <LH drive
vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

Input signal from the driver's door lock actuator is
used to operate the functions below. If the signal is
abnormal, these functions will not work normally.

• Central door locking

• Interior lamps

POSSIBLE CAUSES

• Malfunction of the front door lock actuator (LH)

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

ETACS-ECU

DOOR LOCK
ACTUATOR
(FRONT: LH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

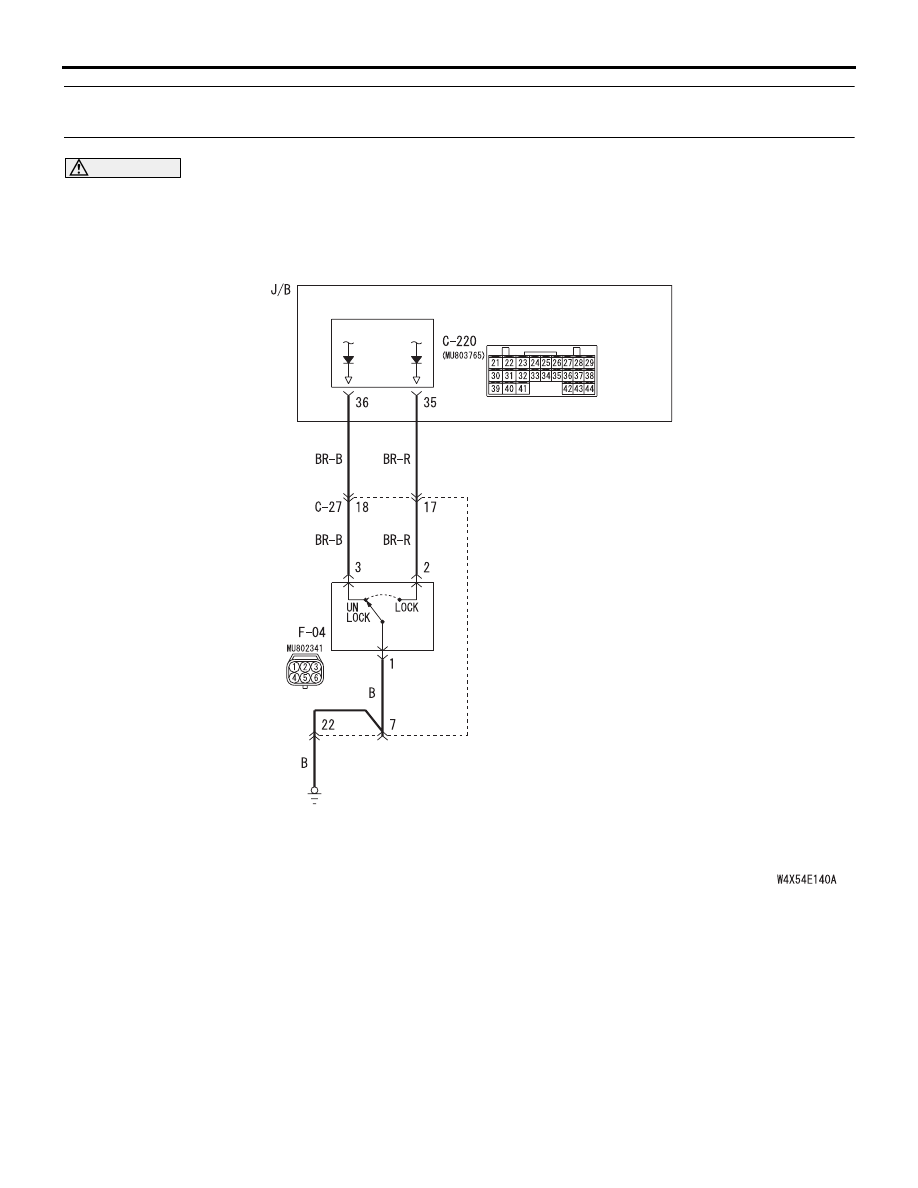

Door Lock Actuator Input Circuit <LHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-515

DIAGNOSIS PROCEDURE

Step 1. Connector check: F-04 front door lock
actuator (LH) connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the front door lock actuator (LH).

Refer to GROUP 42

− Door

P.42-38

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the front door lock actuator (RH).

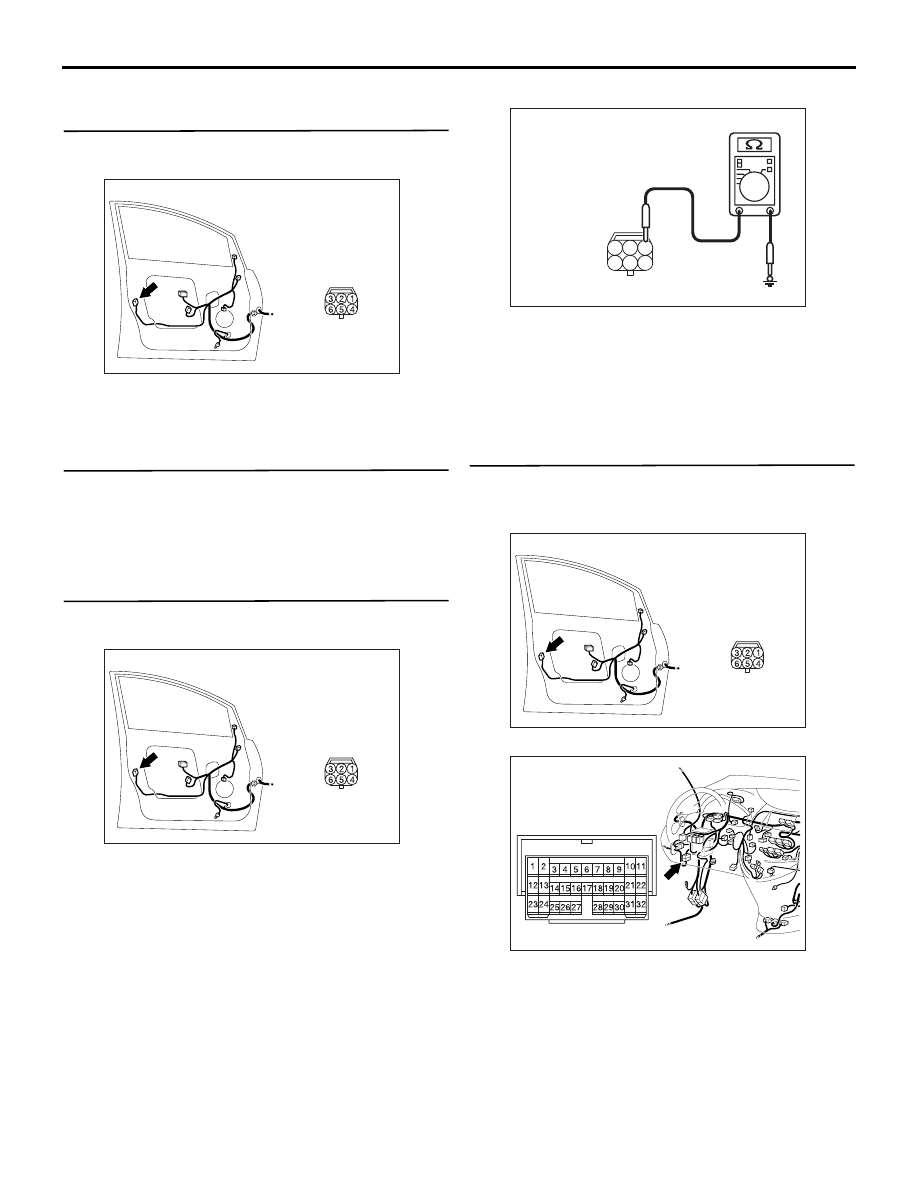

Step 3. Resistance measurement at the F-04 front
door lock actuator (LH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between F-04 front door lock actuator

(LH) connector terminal No.1 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness between F-04
front door lock actuator (LH) connector terminal
No.1 and body earth

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-27, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC312083

AB

Connector: F-04

Harness side

<LHD>

AC312083

AB

Connector: F-04

Harness side

<LHD>

AC312730AF

Connector F-04
(Harness side)

5

6

4

2

3

1

AC312083

AB

Connector: F-04

Harness side

<LHD>

AC312031

AG

Connector: C-27 <LHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-516

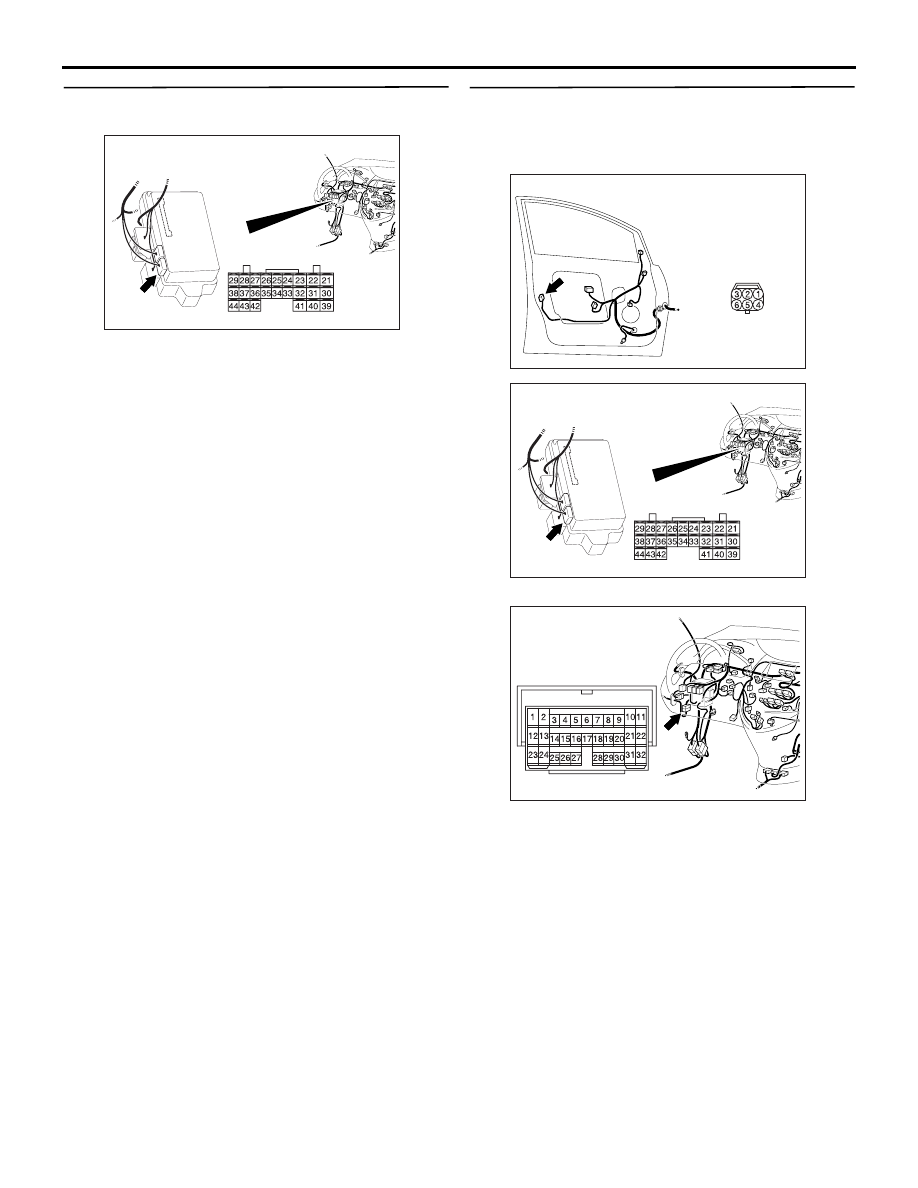

Step 5. Connector check: C-220 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Step 6. Check the wiring harness from F-04 front
door lock actuator (LH) connector terminal Nos.2
and 3 to C-220 ETACS-ECU connector terminal
Nos.35 and 36.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-27, and repair if necessary.

• Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

AC312037

Connector: C-220

Junction block (Rear view)

AC

<LHD>

Harness side

AC312083

AB

Connector: F-04

Harness side

<LHD>

AC312037

Connector: C-220

Junction block (Rear view)

AC

<LHD>

Harness side

AC312031

AG

Connector: C-27 <LHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-517

Step 7. ETACS switch data by using the SWS
monitor

Check the input signal from the driver's door lock
actuator switch.

• Driver's door lock actuator switch: LOCK →

UNLOCK

OK: Normal conditions are displayed for all
the items.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

Item No. Item name

Normal
conditions

Item 21

DR DOR LCK SW

ON

→ OFF

Item 22

DR DOR ULK SW

OFF

→ ON
