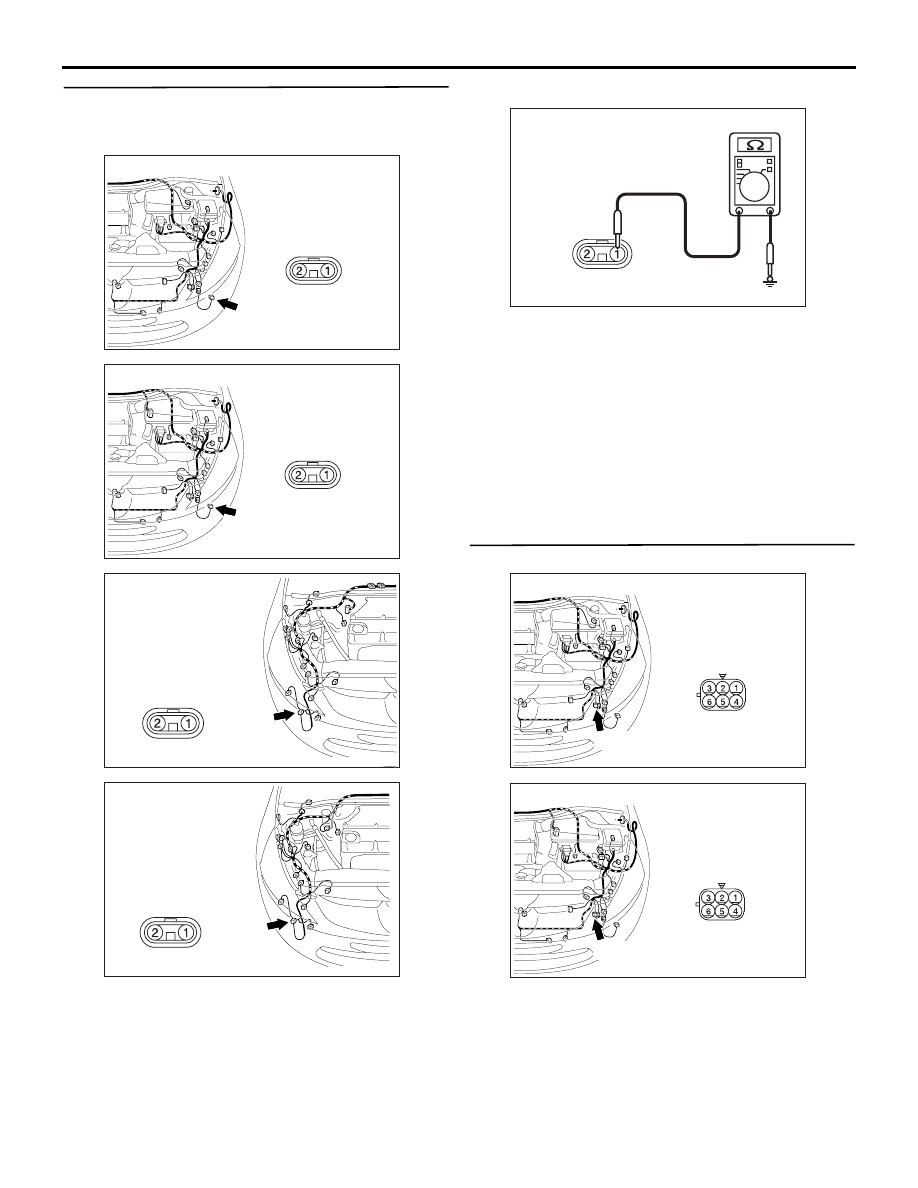

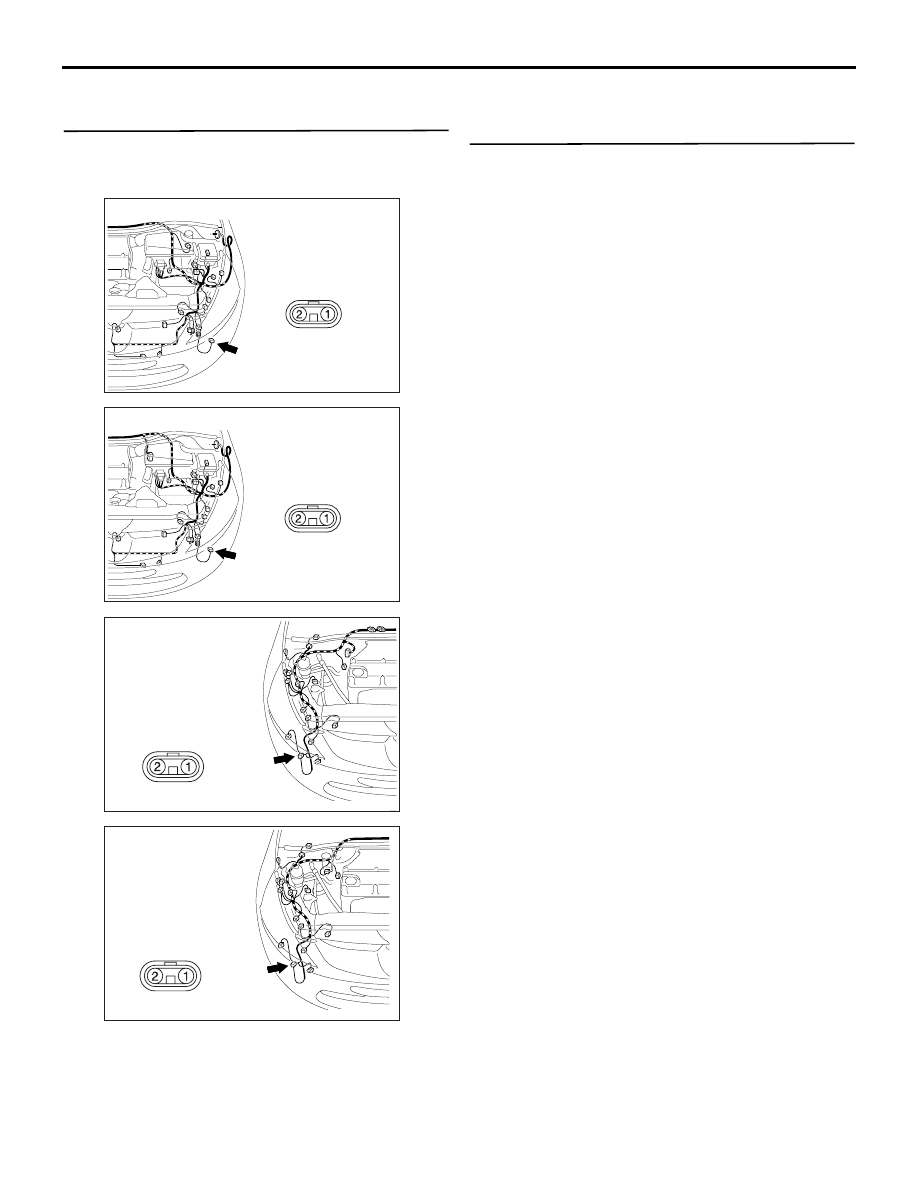

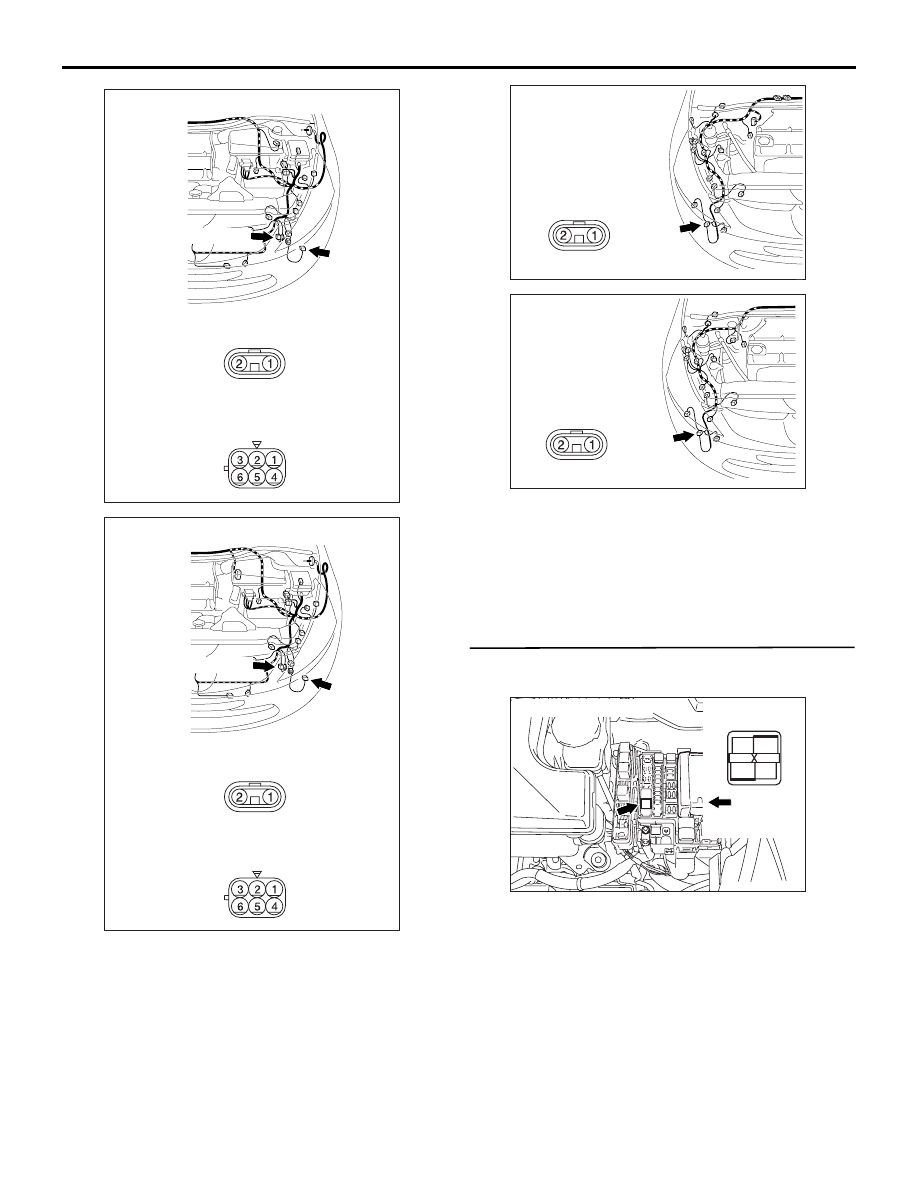

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) USING SWS MONITOR 54C-366 DIAGNOSIS PROCEDURE Step 1. Connector check: A-32 front fog lamp Q: Is the check result normal? YES : Go to Step 2. NO : Repair the defective connector. Step 2. Check the bulbs of the front fog lamps Check the bulb(s) of the defective lamp. Q: Is the check result normal? YES : Go to Step 3. NO : Replace the bulb(s) of the defective lamp. AC310403 A-24 (B) AG Connector: A-24 <LHD> Harness side AC310398 A-24 (B) AG Connector: A-24 <RHD> Harness side AC310401 Connector: A-32 <LHD> Harness side A-32 (B) AC AC310396 Connector: A-32 <RHD> Harness side A-32 (B) AC |
