SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-358

Step 12. Check the wiring harness between C-213
rear fog lamp relay connector (terminal Nos.3
and 4) and the fusible link (30).

NOTE:

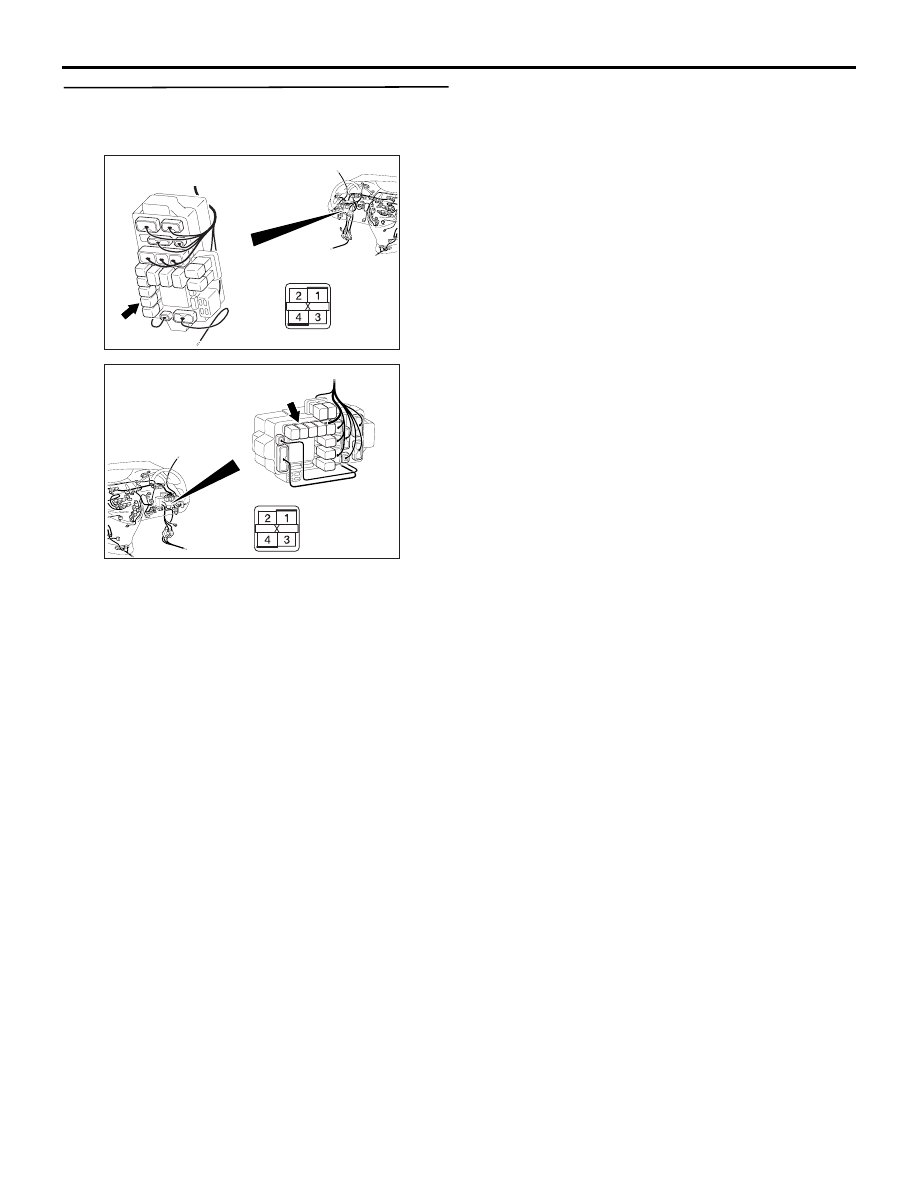

AC310623

Connector: C-213 <LHD>

AP

Junction block side

Junction block (Front view)

AC310618

Connector: C-213 <RHD>

AN

Junction block side

Junction block (Front view)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-359

Prior to the wiring harness inspection, check
intermediate connector C-125 and junction block
connectors C-204 and C-205, and repair if
necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

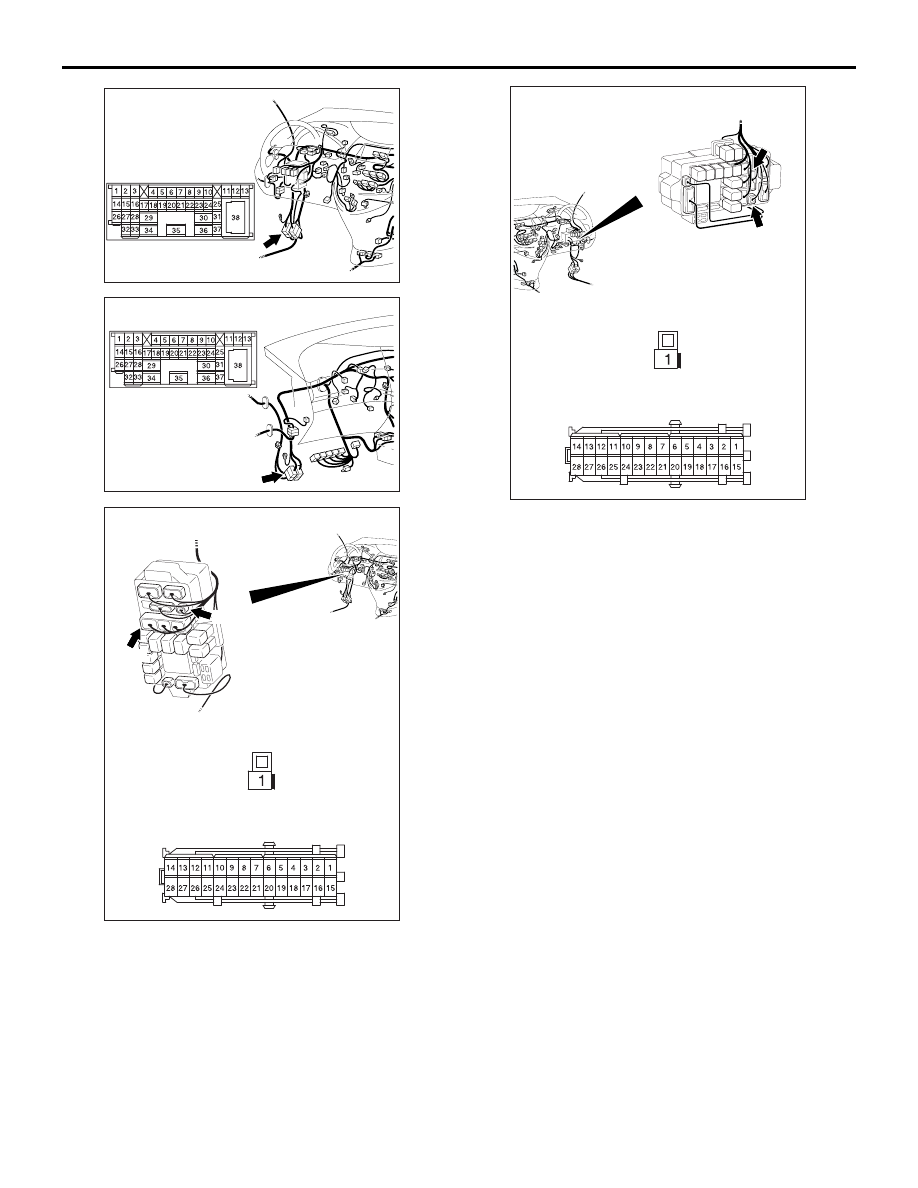

AC310613

AD

Connector: C-125 <LHD>

AC310628AB

Connector: C-125 <RHD>

AC310624

Connectors: C-204, C-205 <LHD>

AQ

Junction block side

Junction block (Front view)

C-204 (B)

C-205

Harness side

C-204

C-205

AC310619

Connectors: C-204, C-205 <RHD>

AQ

Junction block side

Junction block (Front view)

C-204 (B)

C-205

Harness side

C-204

C-205

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-360

Step 13. Check the wiring harness from G-23 rear
fog lamp connector <LH drive vehicles> or G-11
rear fog lamp connector <RH drive vehicles>
terminal No.2 to C-213 rear fog lamp relay
connector terminal No.1.

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-361

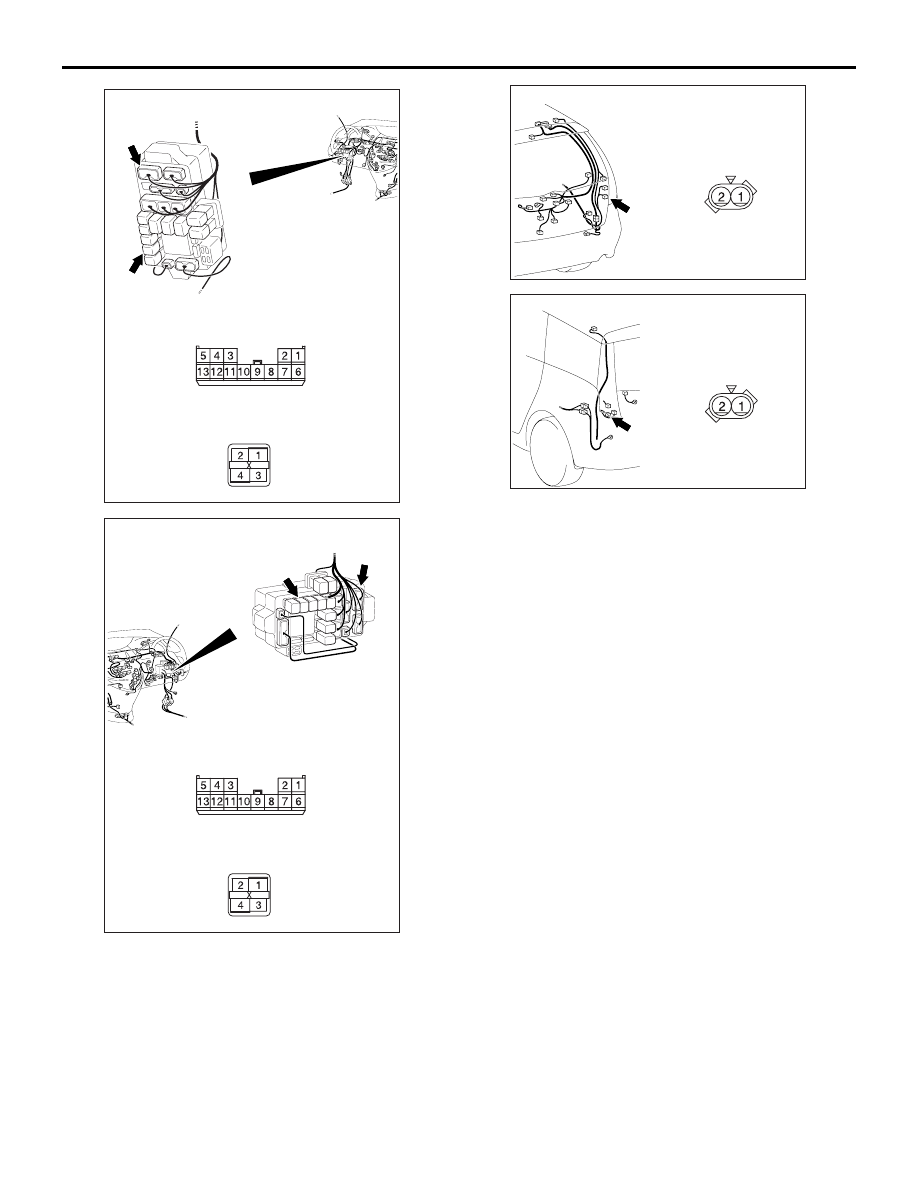

AC310624

Connectors: C-201, C-213 <LHD>

AR

Junction block (Front view)

C-213

Harness side

C-201

C-201

Junction block side

C-213

AC310619

Connectors: C-201, C-213 <RHD>

AR

Junction block (Front view)

C-213

Harness side

C-201

C-201

Junction block side

C-213

AC310222

Connector: G-11

AE

G-11 (GR)

Harness side

AC310220

Connector: G-23

AE

G-23 (GR)

Harness side
