SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-126

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

NO :

Repair the wiring harness.

Step 14. Connector check: F-08 door lock
actuator (rear: LH) connector

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the defective connector.

Step 15. Check the door lock actuator (rear: LH).

Check that the door lock actuator (rear: LH) is in
good condition. Refer to GROUP 42

− Door

P.42-38

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Replace the door lock actuator (rear: LH).

Step 16. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the defective connector.

Step 17. Check the wiring harness from C-219
ETACS-ECU connector terminal Nos.12 and 13 to
F-08 door lock actuator (rear: LH) connector
terminal Nos.4 and 6.

NOTE:

Prior to the wiring harness inspection, check D-16
intermediate connectors and C-210 junction block
connector, and repair if necessary.

• Check the input and output lines for open circuit.

Q: Is the check result normal?

AC310209

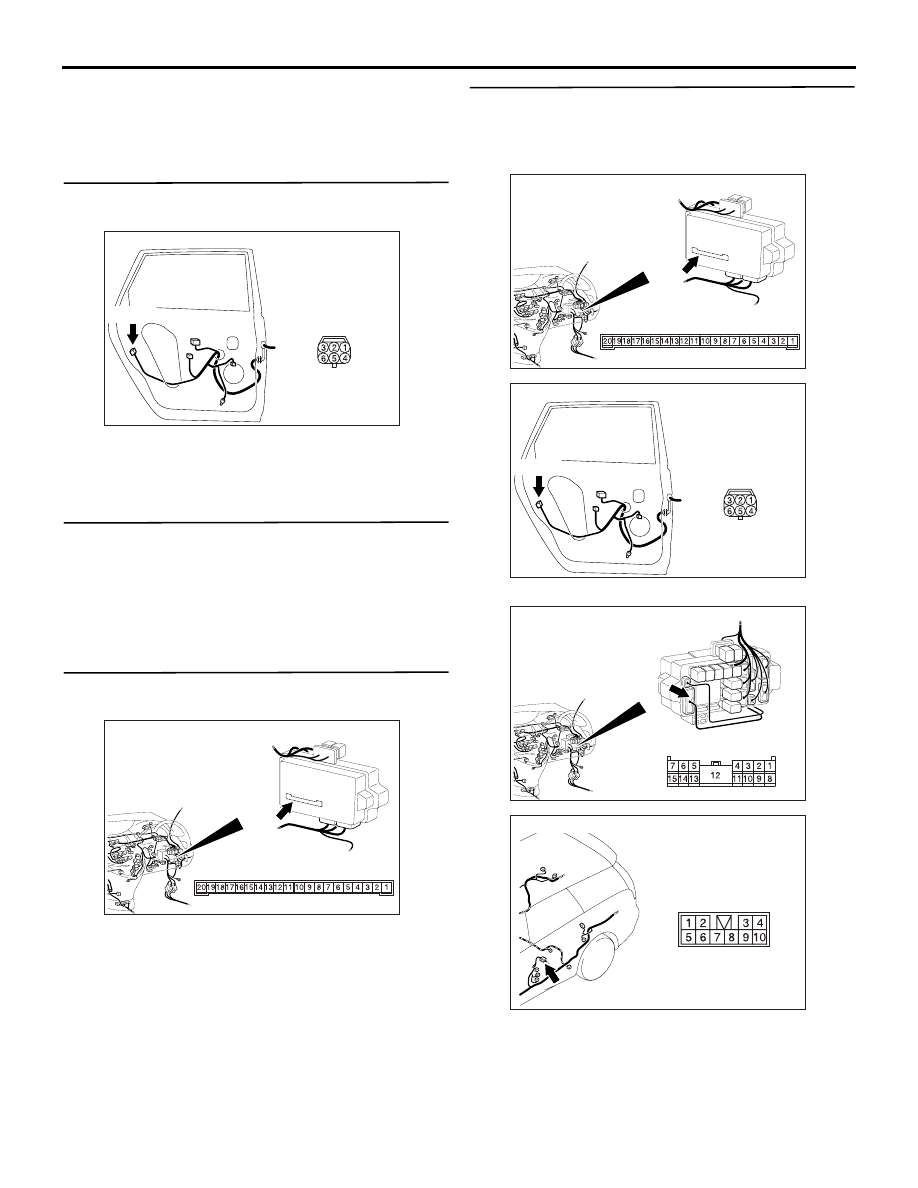

Connector: F-08

Harness side

F-08(B)

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

Junction block side

AC310209

Connector: F-08

Harness side

F-08(B)

AC310618

Connector: C-210 <RHD>

Junction block (Front view)

Harness side

AC310207

Connector: D-16

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-127

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

NO :

Repair the wiring harness.

Inspection Procedure C-6: The tailgate cannot be opened or closed.

COMMENT ON TROUBLE SYMPTOM

If a door or the tailgate can not be locked or unlocked
by the central door locking system, the tailgate lock
actuator or the ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the tailgate lock actuator

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check that the central door locking
system and the keyless entry system operate.

Check that the doors (excluding the tailgate) are
locked and unlocked normally when the central door
locking and keyless entry systems are operated.

Q: Is the check result normal?

ETACS-ECU

TAILGATE
LOCK ACTUATOR

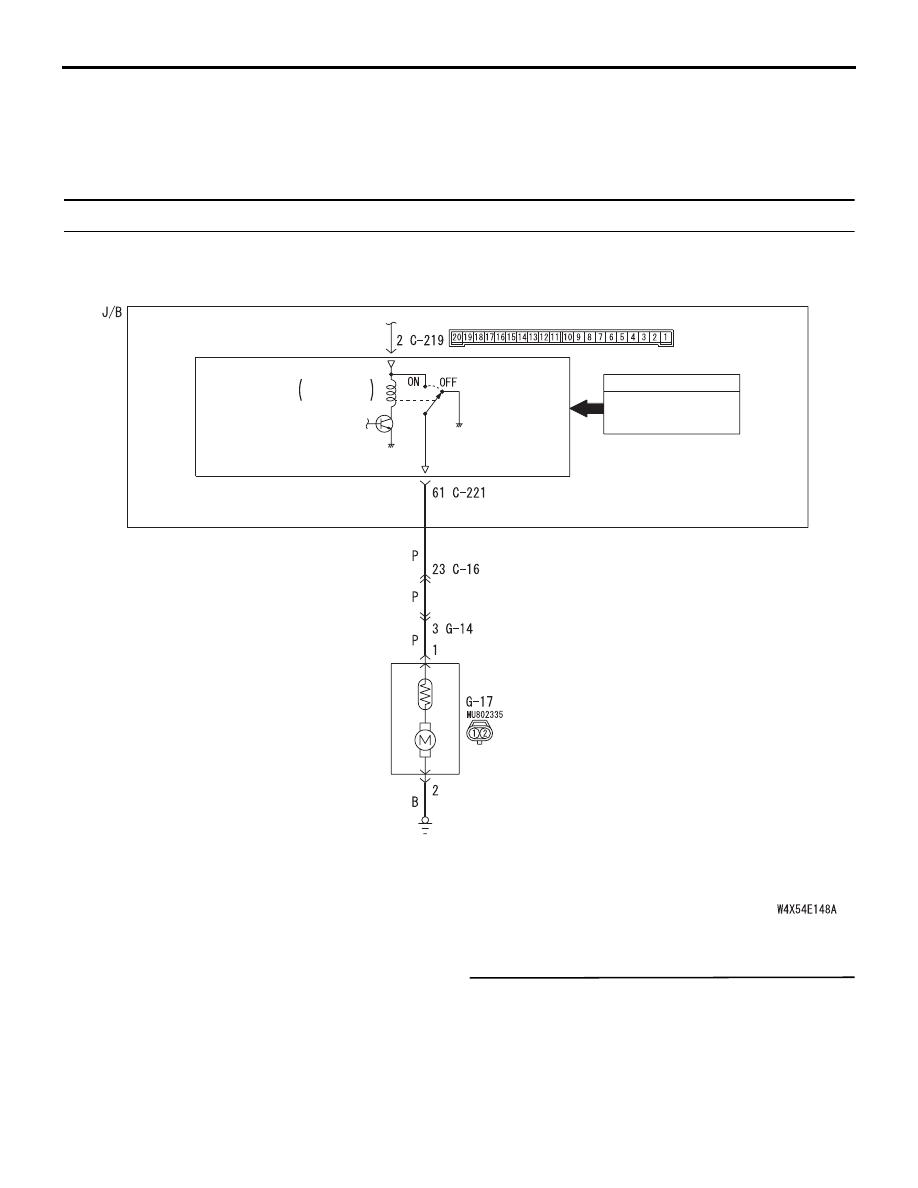

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet

Tailgate Open Circuit

TAILGATE
OPEN RELAY

J/B SIDE

INPUT SIGNAL

TAIL GATE LOCK
RELEASE HANDLE

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-128

YES <The central door locking and keyless entry
systems operate normally> :

Go to Step 2

NO <The central door locking system does not
operate normally> :

Refer to Inspection Procedure

C-1 "Central door locking system does not
work

P.54C-106

NO <The keyless entry system does not operate
normally> :

Refer to Inspection Procedure E-1

"Keyless entry system does not work

P.54C-186

Step 2. SWS monitor data list

Check the SWS communication input signal, which
are related to the tailgate opening and closing.

<Selected item> ETACS ECU

• Ignition switch: from OFF to ON

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to Inspection Procedure Q-2 "The
ignition switch (IG1) signal is not received

P.54C-460

Step 3. ETACS switch data by using the SWS
monitor

Check the ETACS-ECU signal related to the tailgate
opening and closing.

• Tailgate lock release handle: from OFF to ON

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the ETACS-ECU.

Step 4. Connector check: G-17 tailgate lock
actuator connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

Step 5. Check the tailgate lock actuator.

Check that the tailgate lock actuator is in good
condition. Refer to GROUP 42

− Tailgate

P.42-51

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace the tailgate lock actuator.

Step 6. Resistance measurement at the G-17
tailgate lock actuator connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between G-17 tailgate lock actuator

Item No.

Item name

Normal condition

Item 30

IG SW(IG1)

from OFF to ON

Item No.

Item name

Normal conditions

Item 30

GTE OPENER
SW

OFF to ON (only when
switch is operated)

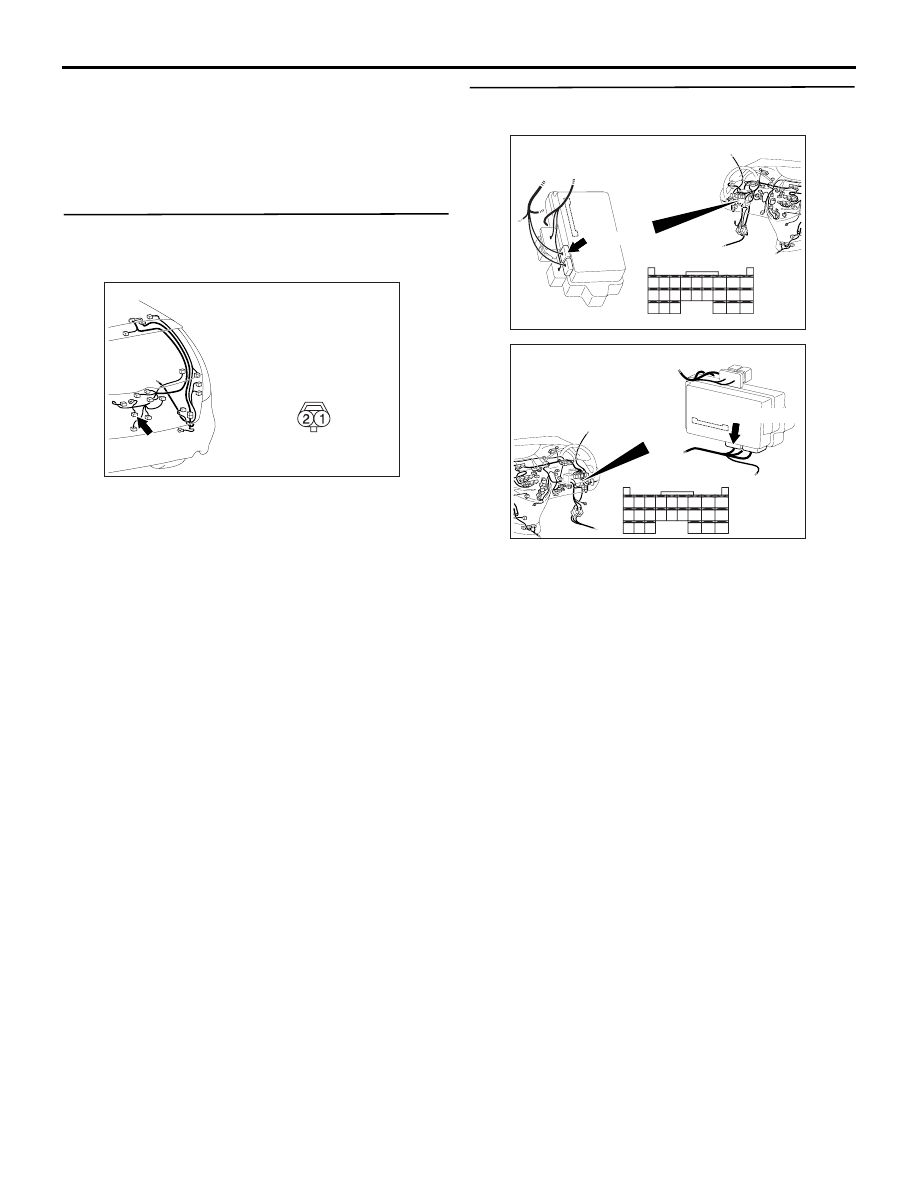

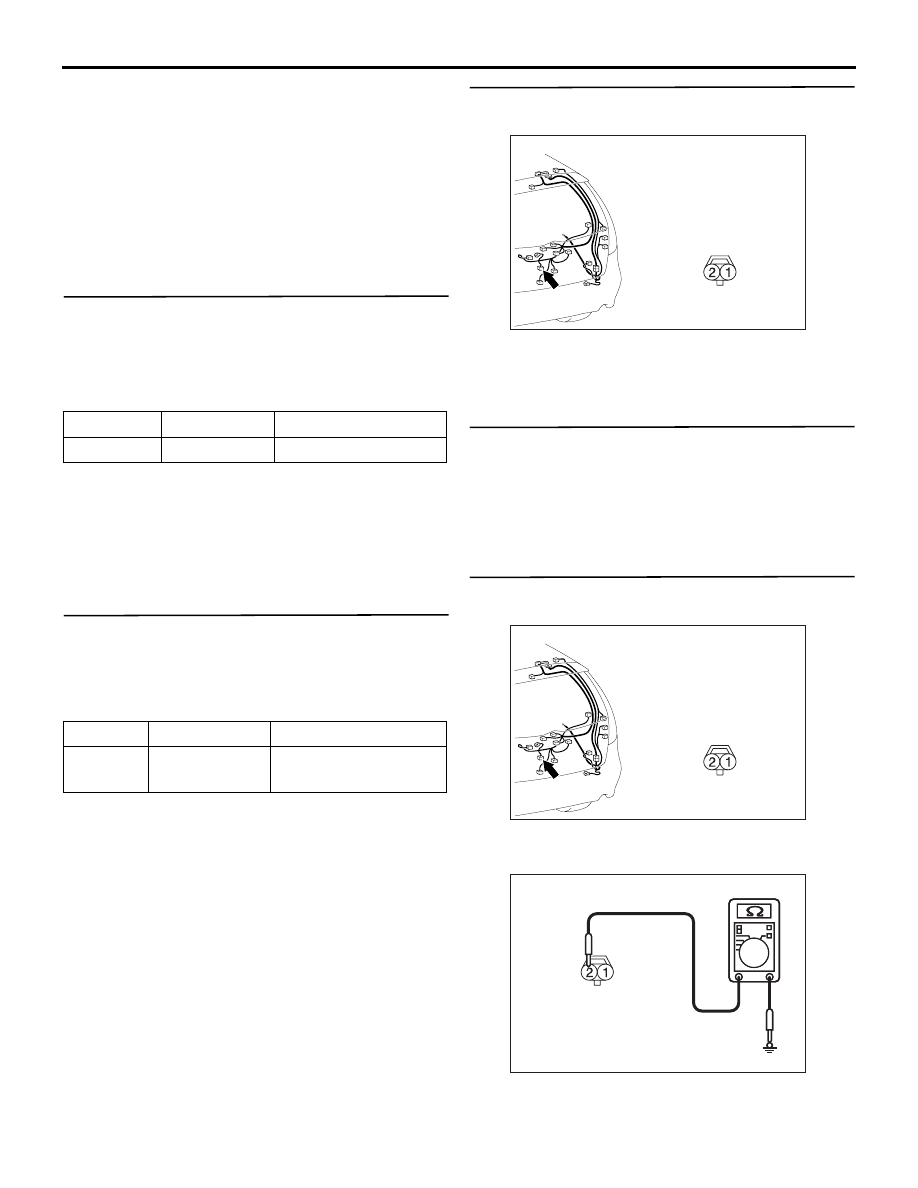

AC310222

Connector: G-17

Harness side

G-17(B)

AC310222

Connector: G-17

Harness side

G-17(B)

AC209364

AC209364MR

CONNECTOR G-17
(HARNESS SIDE)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-129

connector terminal No.2 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 7.

Step 7. Check the wiring harness between G-17
tailgate lock actuator connector terminal No.2
and the body earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

NO :

Repair the wiring harness.

Step 8. Connector check: C-221 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the defective connector.

AC310222

Connector: G-17

Harness side

G-17(B)

AC310626

Connector: C-221

Junction block (Rear view)

<LHD>

Harness side

C-221(GR)

AC310620

Connector: C-221

Junction block
(Rear view)

<RHD>

Harness side

C-221(GR)
