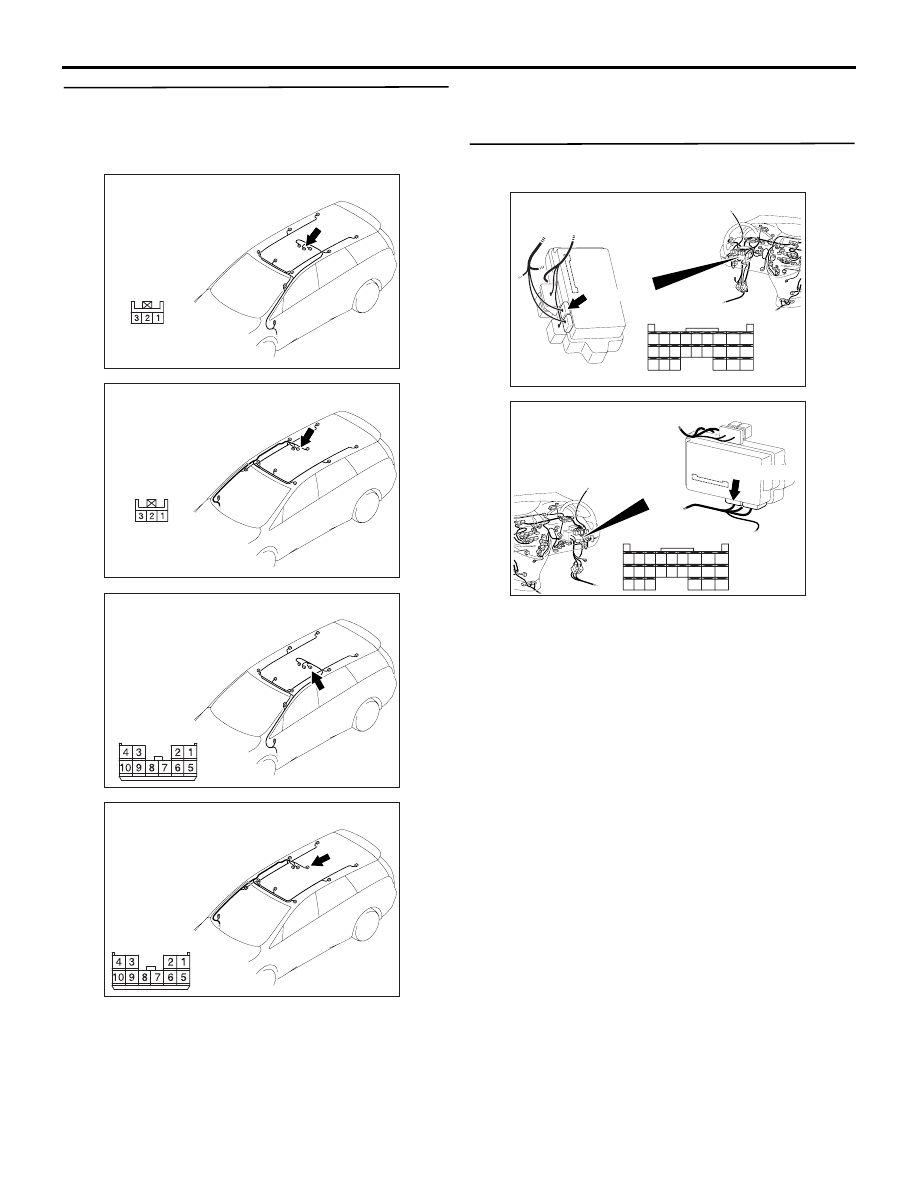

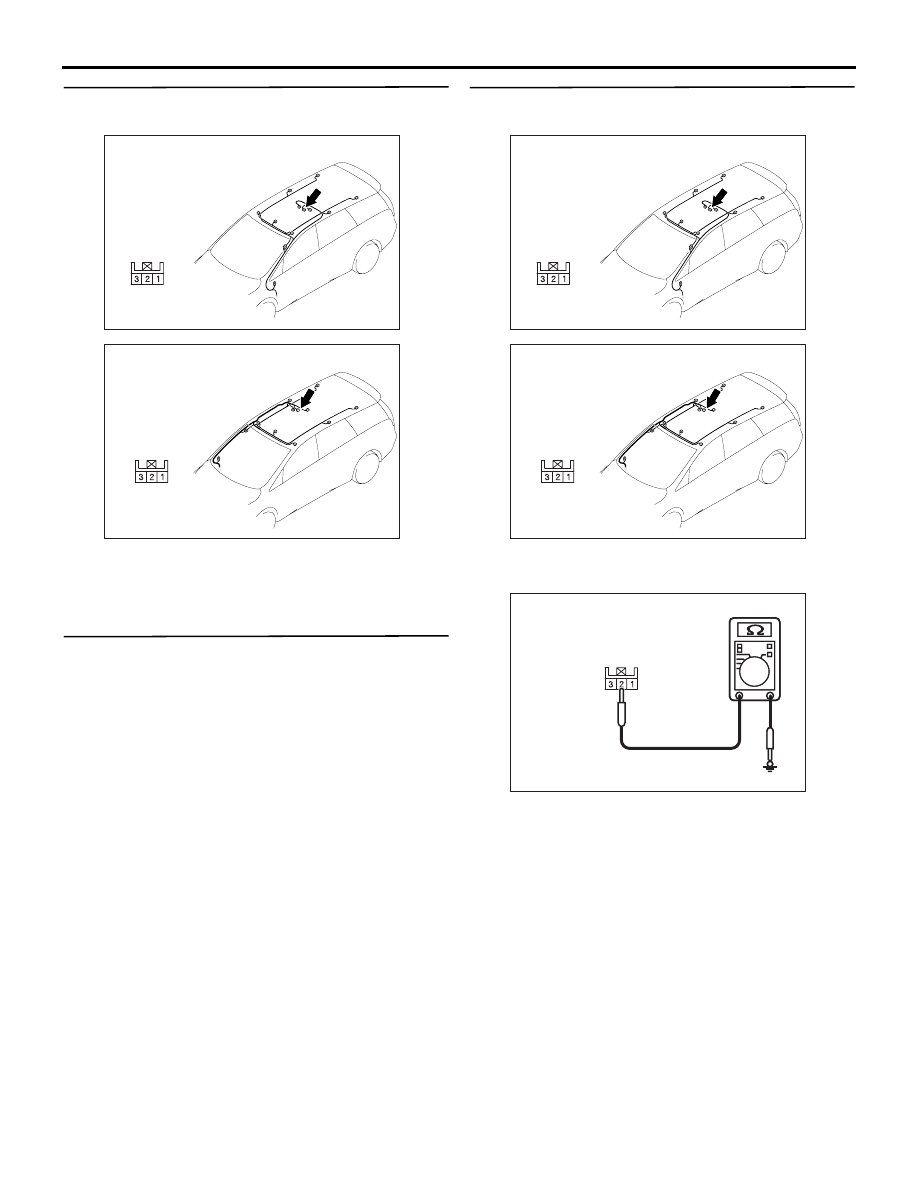

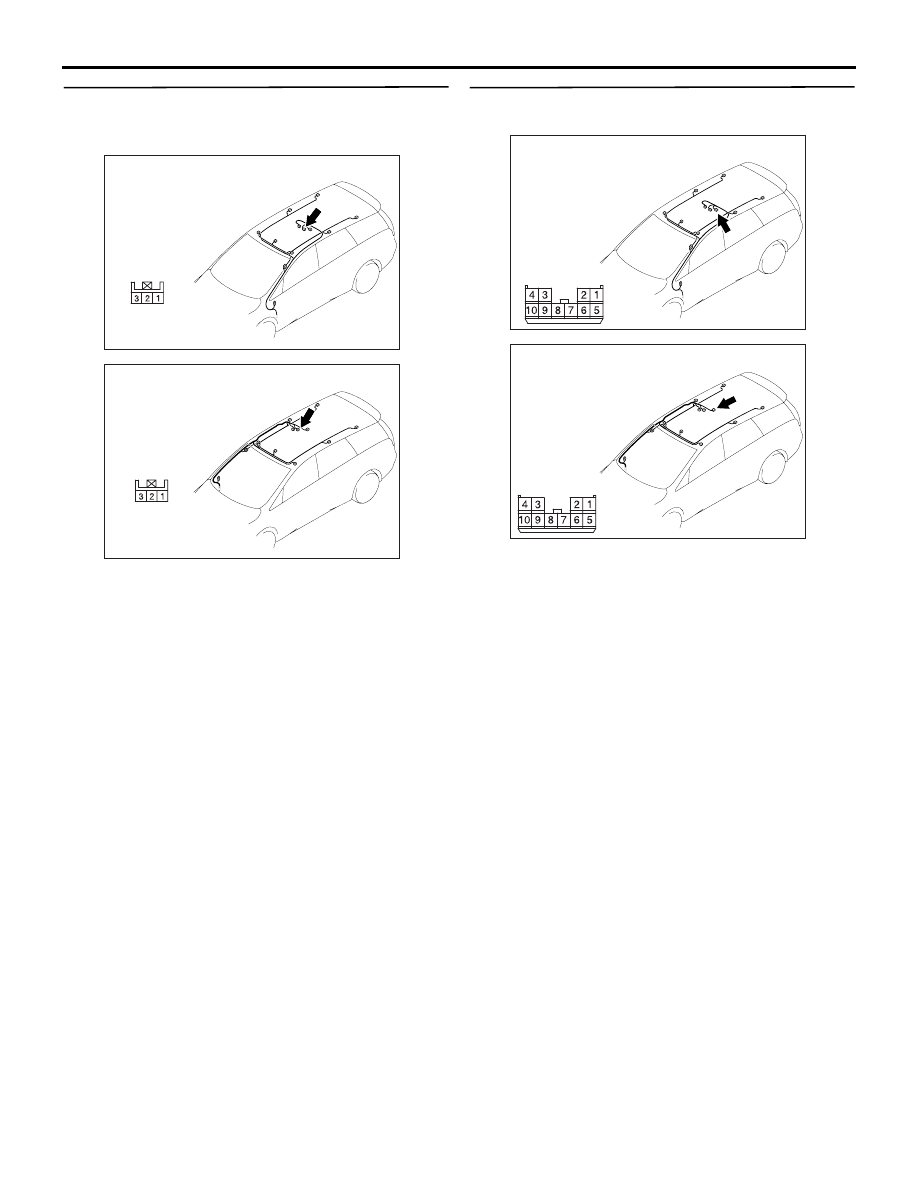

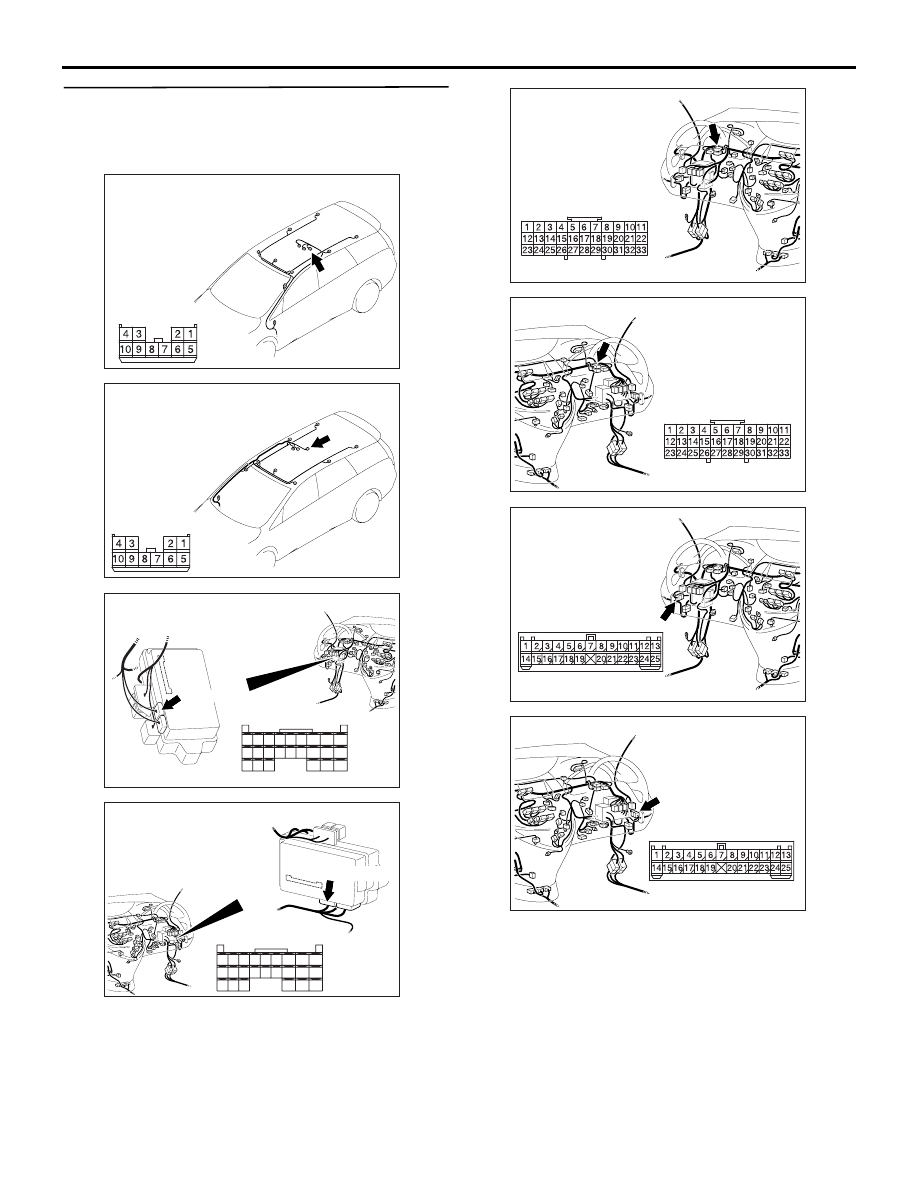

INPUT SIGNAL PROCEDURES SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR 54B-453 Step 2. Connector check: E-05 sunroof switch Q: Is the check result normal? YES : Go to Step 3. NO : Repair the connector. Step 3. Check the sunroof switch. − Sunroof . Q: Is the check result normal? YES : Go to Step 4. NO : Replace the sunroof switch. Step 4. Resistance measurement at the (1) Disconnect the connector, and measure at the wiring harness side. (2) Continuity between E-05 sunroof switch connector terminal No.2 and body earth OK: 2 Ω or less Q: Is the check result normal? YES : Go to Step 6. NO : Go to Step 5. AC310651 AF Connector: E-05 Harness side AC310655 AG Connector: E-05 Harness side AC310651 AF Connector: E-05 Harness side AC310655 AG Connector: E-05 Harness side AC310506 AC310506CD Connector E-05 |
