INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-449

Step 7. Check the wiring harness between C-217
power window relay connector terminal No.4 and
F-05 power window main switch connector
terminal No.6.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-27 <LH drive vehicles>,
C-14 <RH drive vehicles> and junction block
connector C-202, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC312035

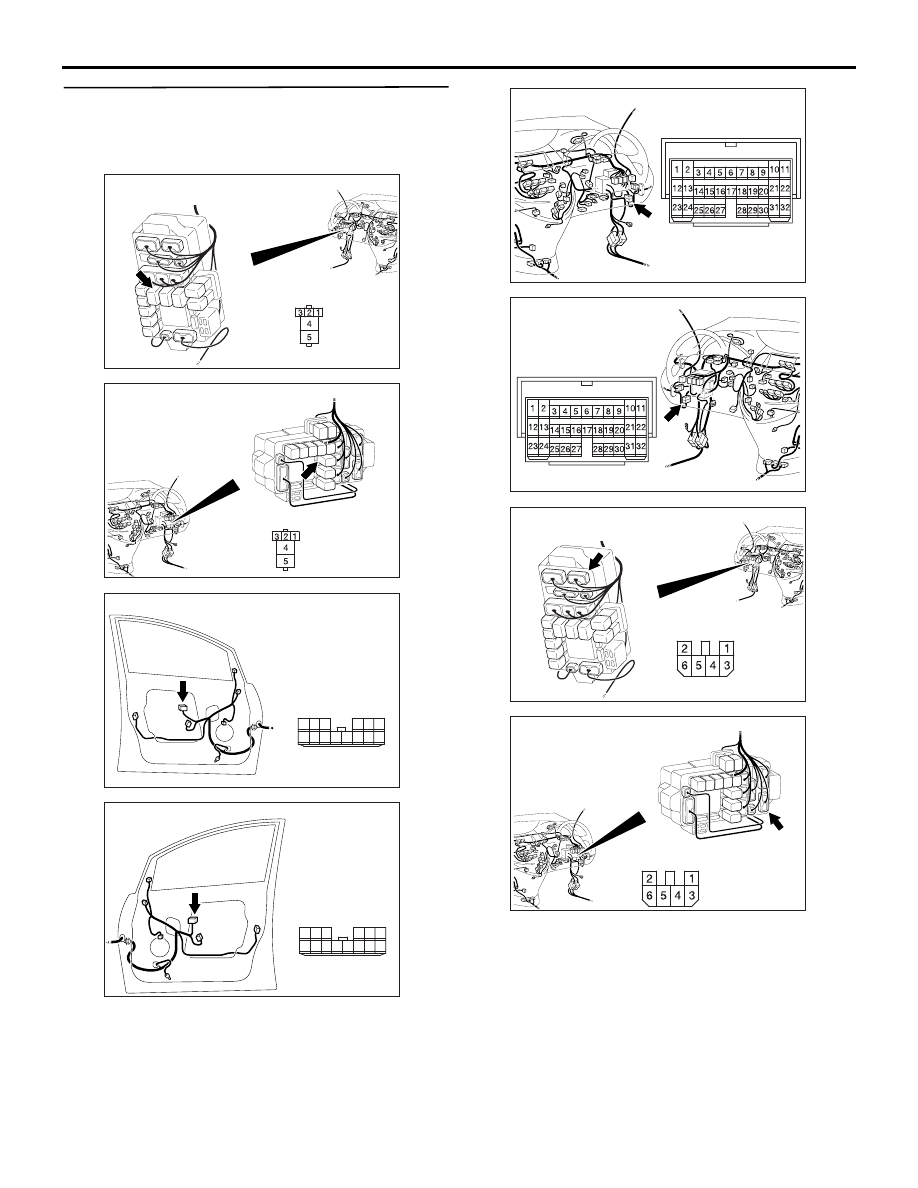

Connector: C-217 <LHD>

AE

Junction block side

Junction block (Front view)

AC312045

Connector: C-217 <RHD>

AE

Junction block side

Junction block (Front view)

AC312083

AC

Connector: F-05 <LHD>

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC312089

AC

Connector: F-05 <RHD>

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC312043

Connector: C-14 <RHD>

AG

AC312031

AG

Connector: C-27 <LHD>

AC312035AB

Connector: C-202

Harness side

<LHD>

Junction block (Front view)

AC312045

AB

Connector: C-202

Junction block (Front view)

Harness side

<RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-450

Step 8. Resistance measurement at the F-05
power window main switch connector.

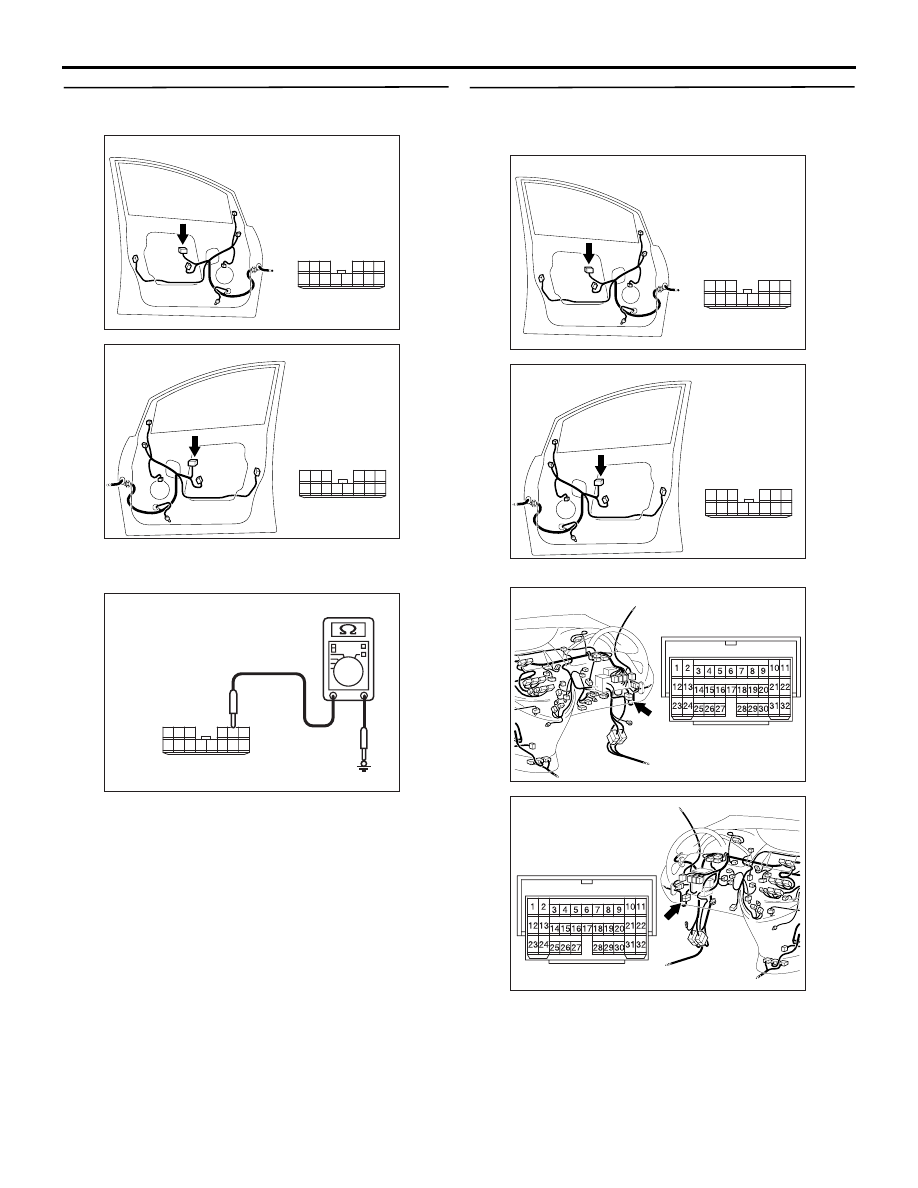

(1) Remove the power window main switch, and

measure at the wiring harness side.

(2) Resistance between F-05 power window main

switch connector terminal No.2 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Go to Step 9.

Step 9. Check the wiring harness between F-05
power window main switch connector terminal
No.2 and body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-27 <LH drive vehicles>,
C-14 <RH drive vehicles>, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

AC312083

AC

Connector: F-05 <LHD>

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC312089

AC

Connector: F-05 <RHD>

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC312730AM

Connector F-05
(Harness side)

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC312083

AC

Connector: F-05 <LHD>

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC312089

AC

Connector: F-05 <RHD>

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC312043

Connector: C-14 <RHD>

AG

AC312031

AG

Connector: C-27 <LHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-451

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 10. Retest the system.

Check that each switch signal is received by
operating the power window main switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window main switch.

Inspection Procedure Q-10: When the sunroof switch is operated, the switch signals are not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

SUNROOF MOTOR
ASSEMBLY

CPU

SUNROOF
SWITCH

ETACS-
ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

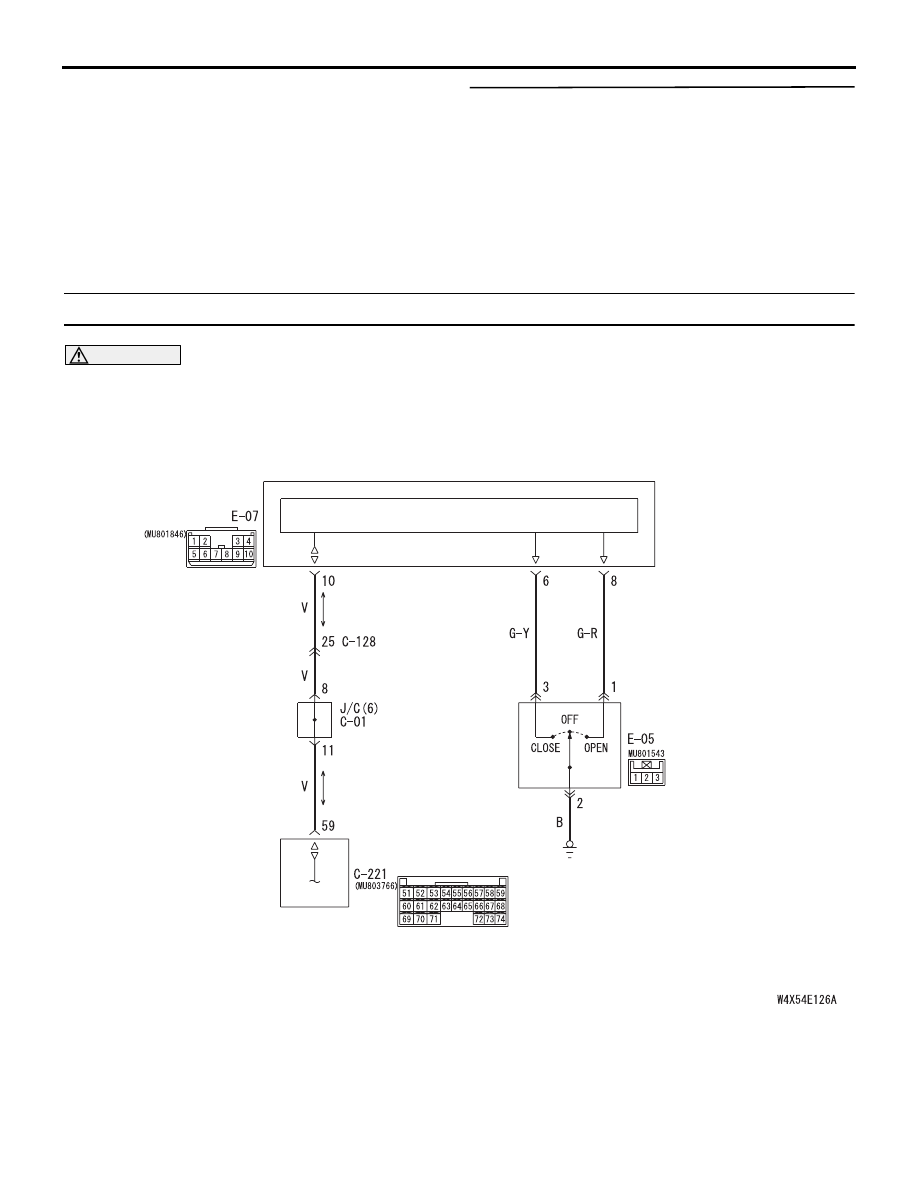

Sunroof Switch Input Circuit <LHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-452

COMMENTS ON TROUBLE SYMPTOM

If the input signal from the sunroof switch is
abnormal, the sunroof input check response signal
will not be sent to the SWS communication line.

POSSIBLE CAUSES

• Malfunction of the sunroof assembly

• Malfunction of the sunroof switch

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check the operation condition of the
sunroof.
Check that the sunroof works normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure F-1 "Sunroof
does not work at all

P.54B-186

."

SUNROOF MOTOR
ASSEMBLY

CPU

SUNROOF
SWITCH

ETACS-
ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

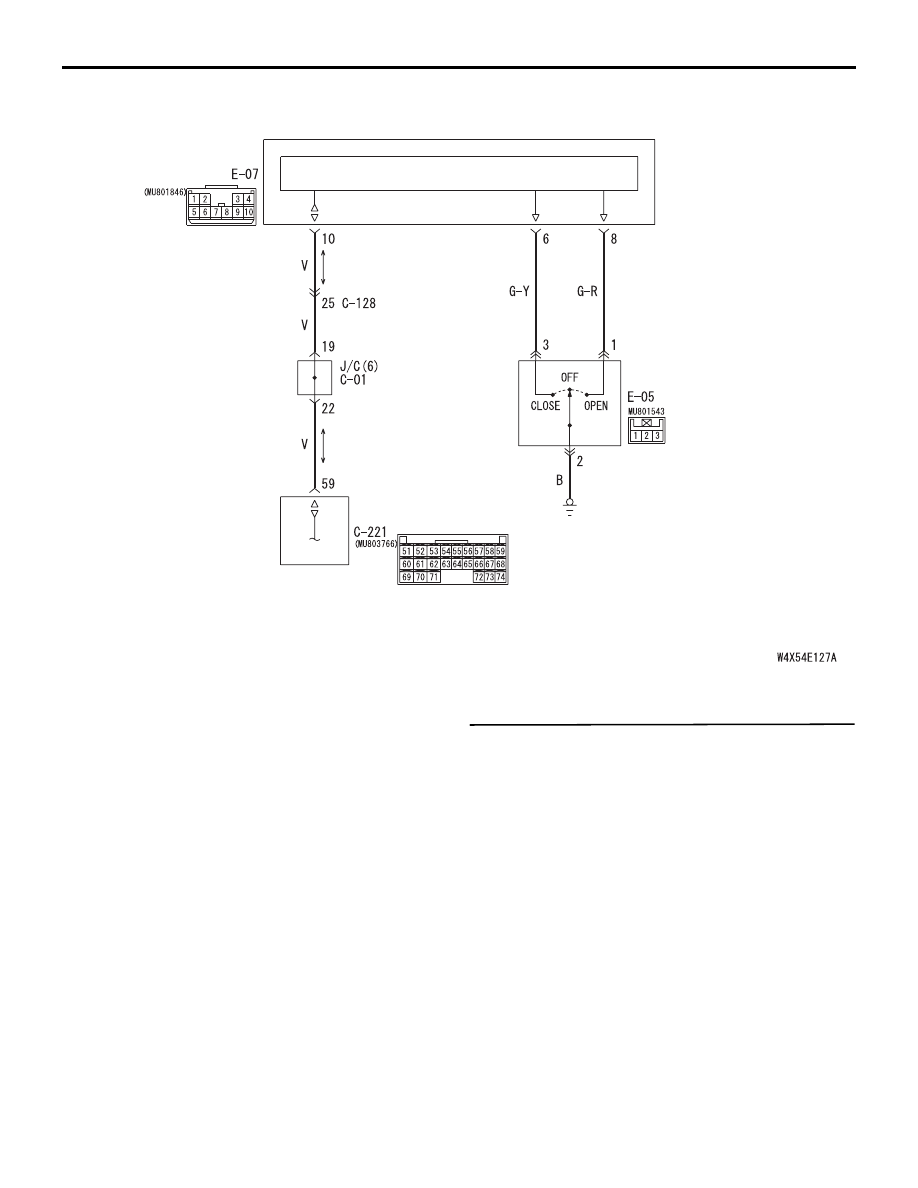

Sunroof Switch Input Circuit <RHD>
