SYMPTOM PROCEDURES
SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR
54B-353
intermediate connector C-15 <RH drive vehicles>,
C-16 <LH drive vehicles>, G-21 <LH drive vehicles>
and junction block connector C-201, and repair if
necessary.
• Check the output lines for open circuit.
Q: Is the check result normal?
YES :
Go to Step 12.
NO :
Repair the wiring harness.
Step 12. Connector check: C-221 ETACS-ECU
connector
Q: Is the check result normal?
YES :
Go to Step 13.
NO :
Repair the defective connector.

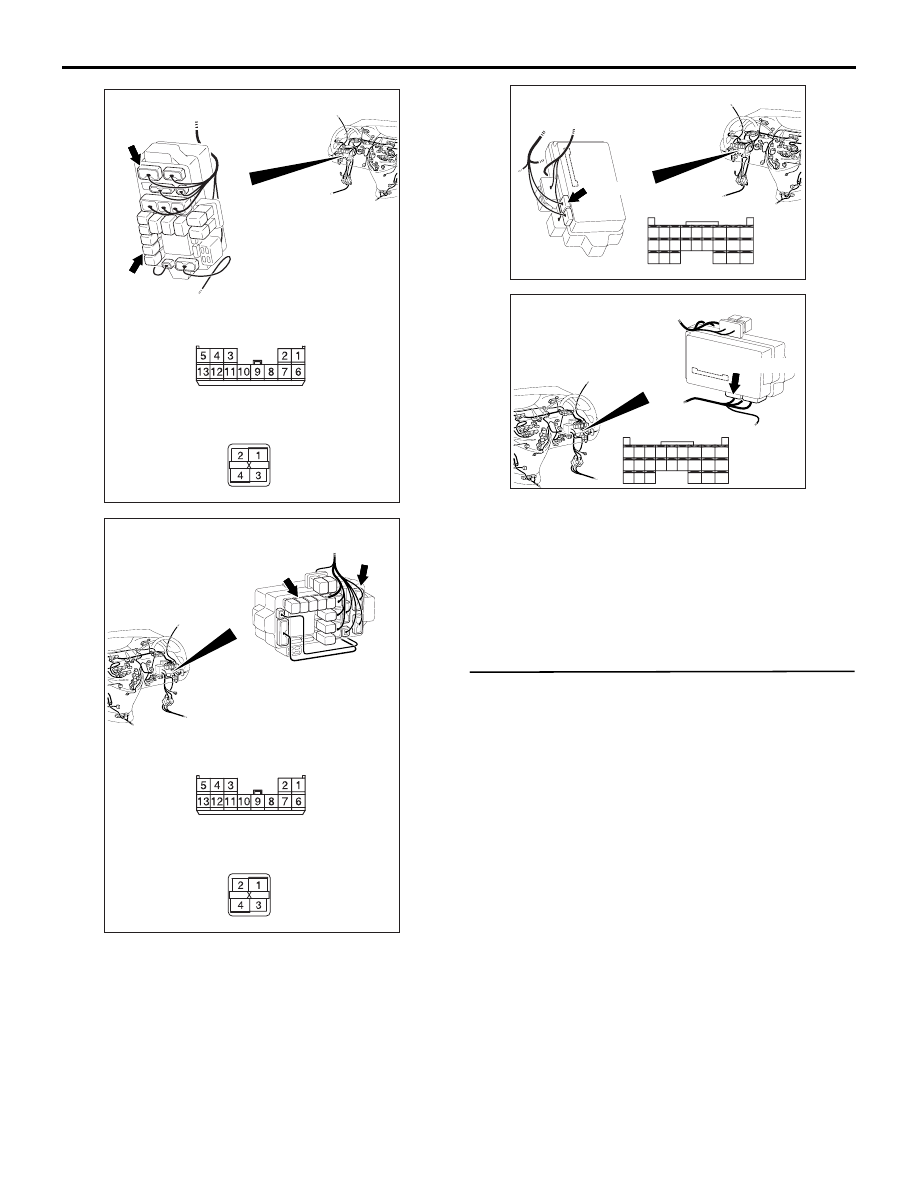

AC310626
Connector: C-221
Junction block (Rear view)
<LHD>
AC
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
Harness side
C-221(GR)

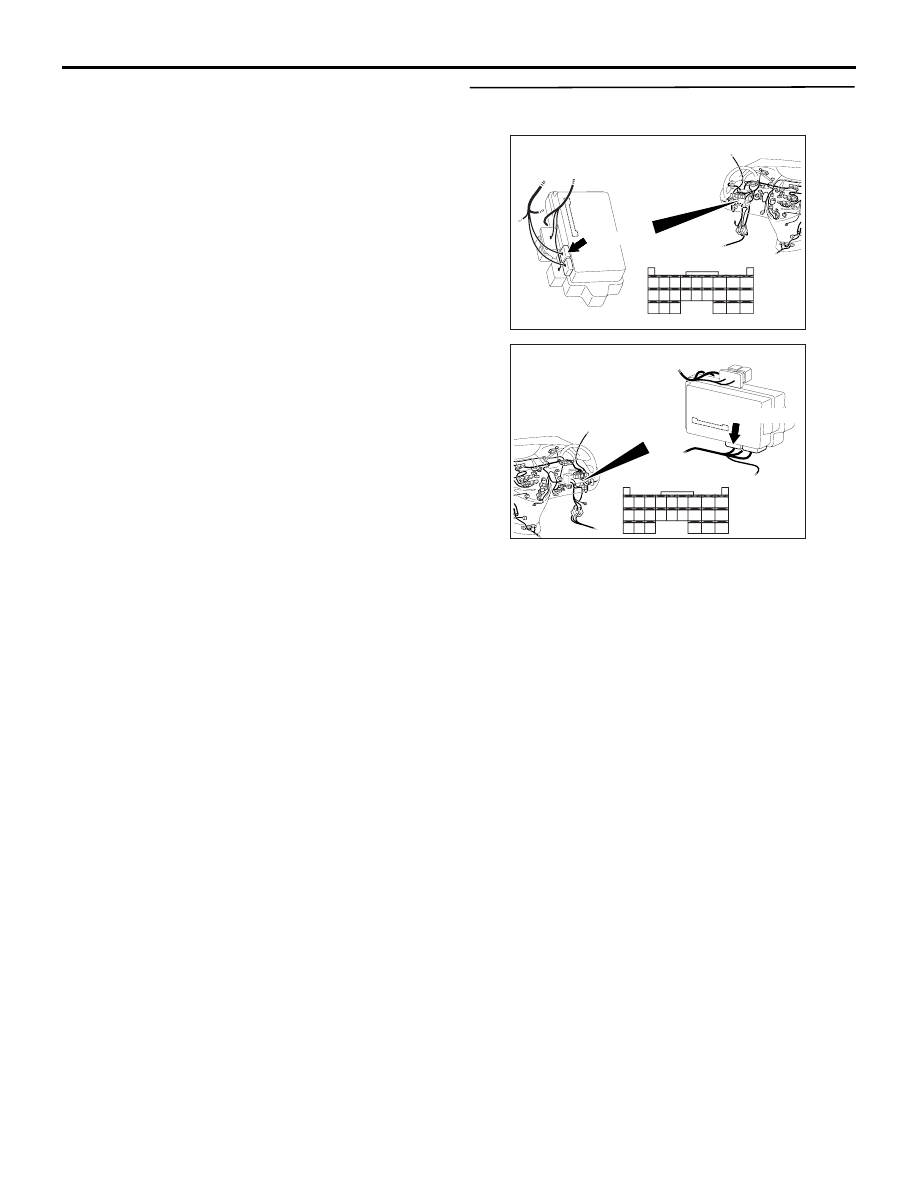

AC310620
Connector: C-221
Junction block
(Rear view)
<RHD>
AC
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
Harness side
C-221(GR)
