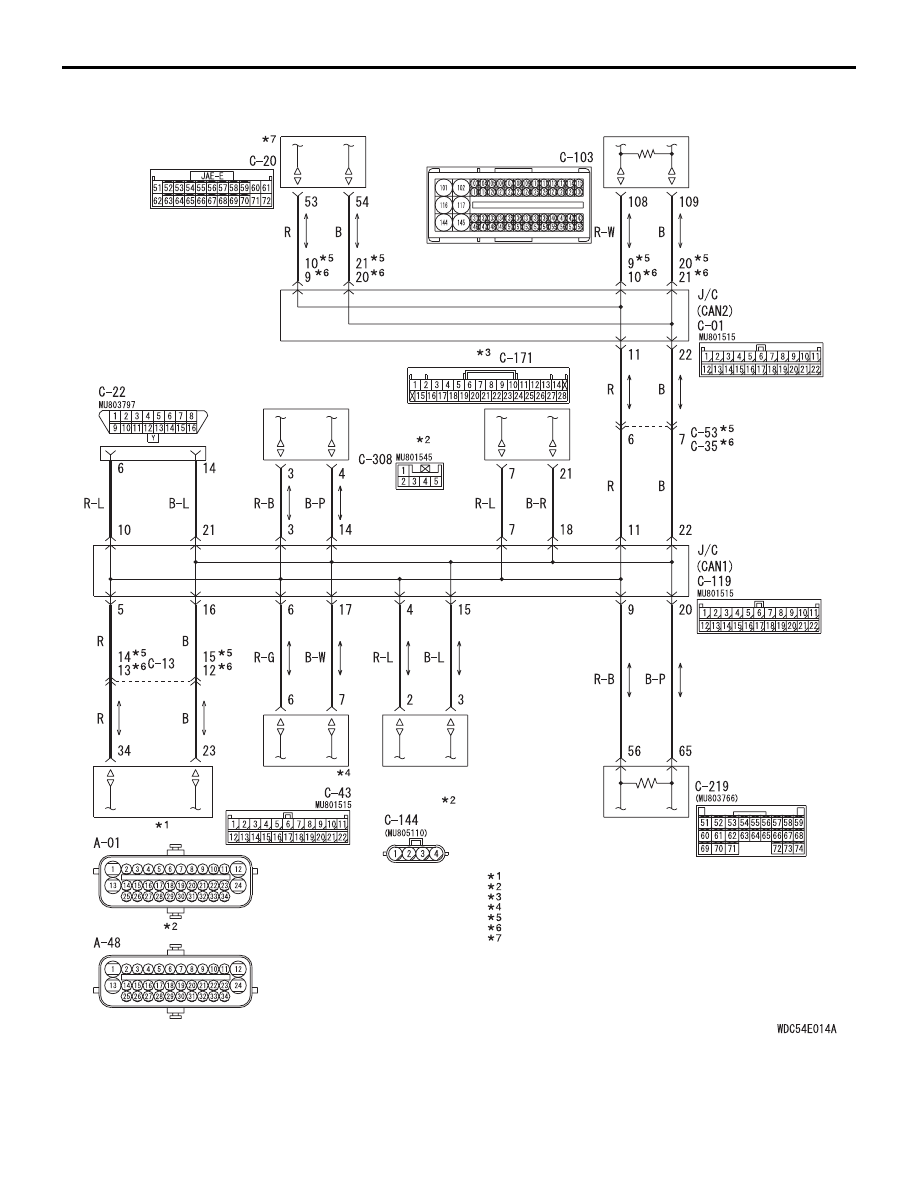

A/T-ECU

DIAGNOSIS
CONNECTOR

ENGINE-ECU

STEERING
WHEEL
SENSOR

G AND
YAW RATE
SENSOR

A/C-ECU

ABS-ECU

ASTC-ECU

ETACS-ECU

RV METER

NOTE

:VEHICLES WITH ABS
:VEHICLES WITH ASTC
:VEHICLES WITH RV METER
:VEHICLES WITH AUTOMATIC-A/C
:LHD
:RHD
:A/T

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-119

FUNCTION
The diagnostic result demonstrates that "the M.U.T.-
III cannot receive the sent data from the A/C-ECU"
when the M.U.T.-III checks the periodically sent data
from each ECU.

TROUBLE JUDGEMENT CONDITIONS
M.U.T.-III judges the trouble when the periodically
sent data from A/C-ECU cannot be received

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-120

PROBABLE CAUSES

• Damaged harness wires and connectors

• Power supply circuit malfunction of the A/C-ECU

• Malfunction of the A/C-ECU

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-121

DIAGNOSIS PROCEDURE

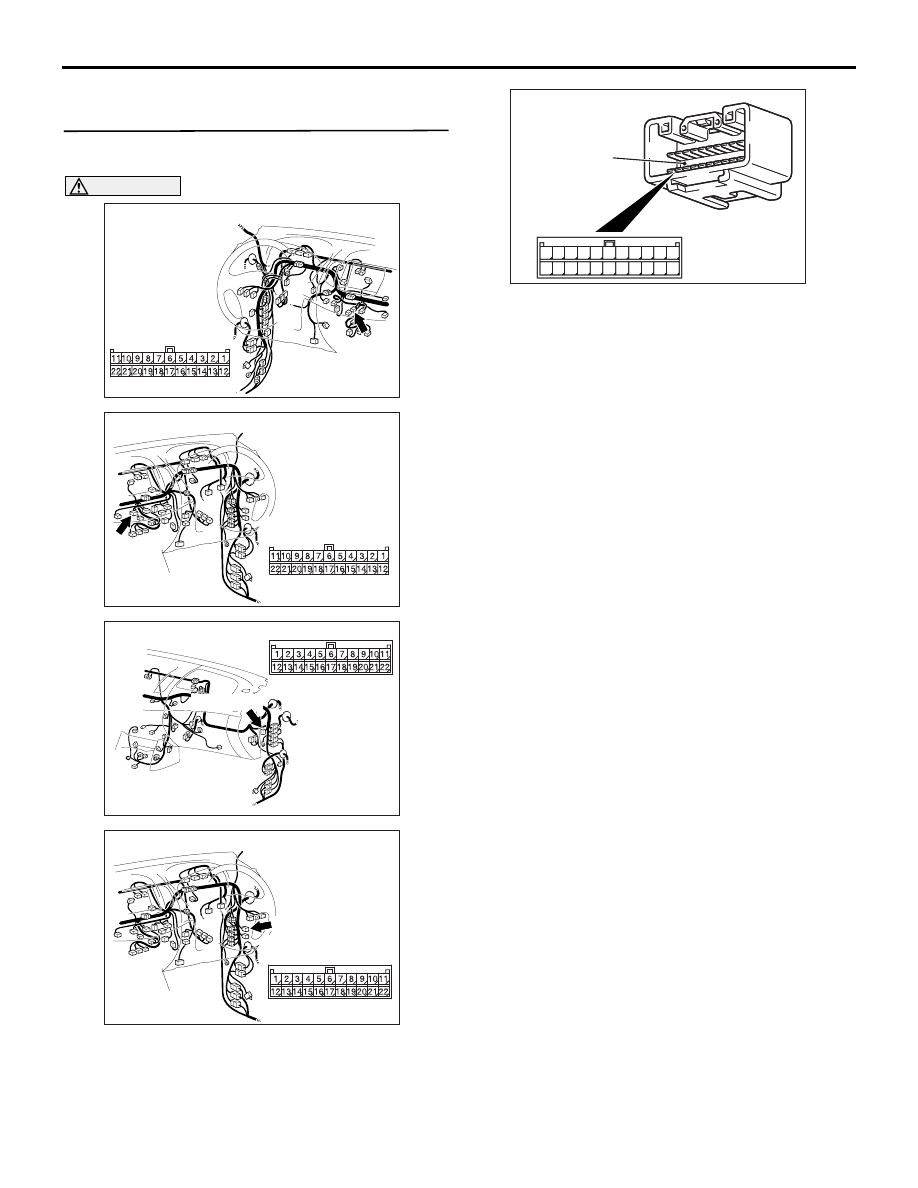

STEP 1. Connector check: C-119 joint connector
(CAN1) and C-43 A/C-ECU connector

AC903856BS

Connector: C-43 <LHD>

Harness side

AC903868

CN

Connector: C-43 <RHD>

Harness side

AC903853

BM

Connector: C-119 <LHD>

C-119 (GR)

AC903868

CM

Connector: C-119 <RHD>

C-119 (GR)

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54C-7

.

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC

Short pin

When checking the joint connector, ensure that its
wiring harness side and its short pins are not dam-
aged.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector. Replace the
joint connector as necessary.

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-122

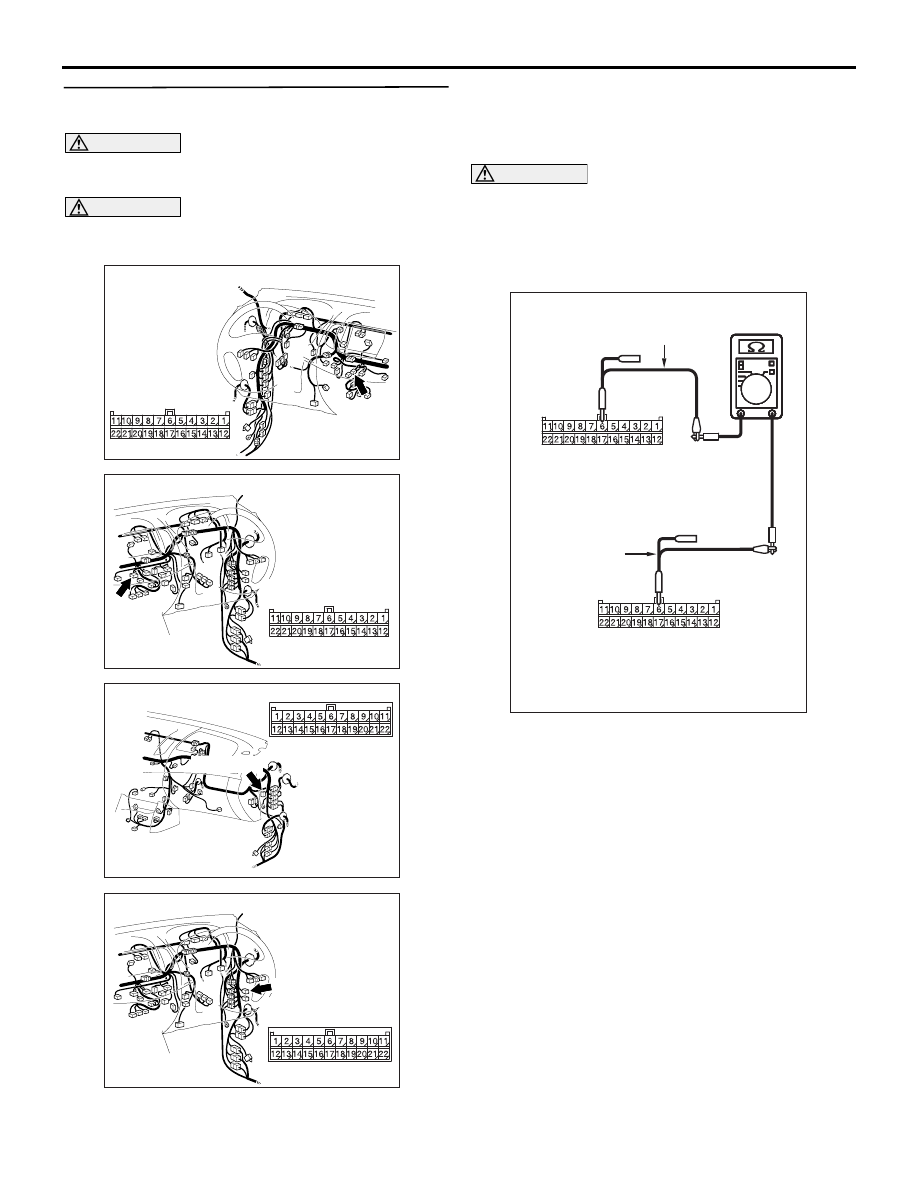

STEP 2. Resistance measurement at C-119 joint
connector (CAN1) and C-43 A/C-ECU connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-7

.

AC903856BS

Connector: C-43 <LHD>

Harness side

AC903868

CN

Connector: C-43 <RHD>

Harness side

AC903853

BM

Connector: C-119 <LHD>

C-119 (GR)

AC903868

CM

Connector: C-119 <RHD>

C-119 (GR)

(1) Disconnect joint connector (CAN1) and the A/C-

ECU connector, and measure at the wiring
harness side.

(2) Turn the ignition switch to the LOCK (OFF)

position.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-7

.

(3) Ensure that the negative battery terminal is

disconnected.

AC204740

AC204740

AC204740

AC204740

AC204740

AC204740

AC204740

Harness side: C-43

Harness side: C-119

IB

Test harness

Test
harness

(4) Continuity between C-119 joint connector (CAN1)

terminal No.6 and C-43 A/C-ECU connector
