Mitsubishi L200. Manual - part 839





TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-115

PROBABLE CAUSES

• Damaged harness wires and connectors

• Power supply circuit malfunction of the G and

yaw rate sensor

• Malfunction of the G and yaw rate sensor

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-116

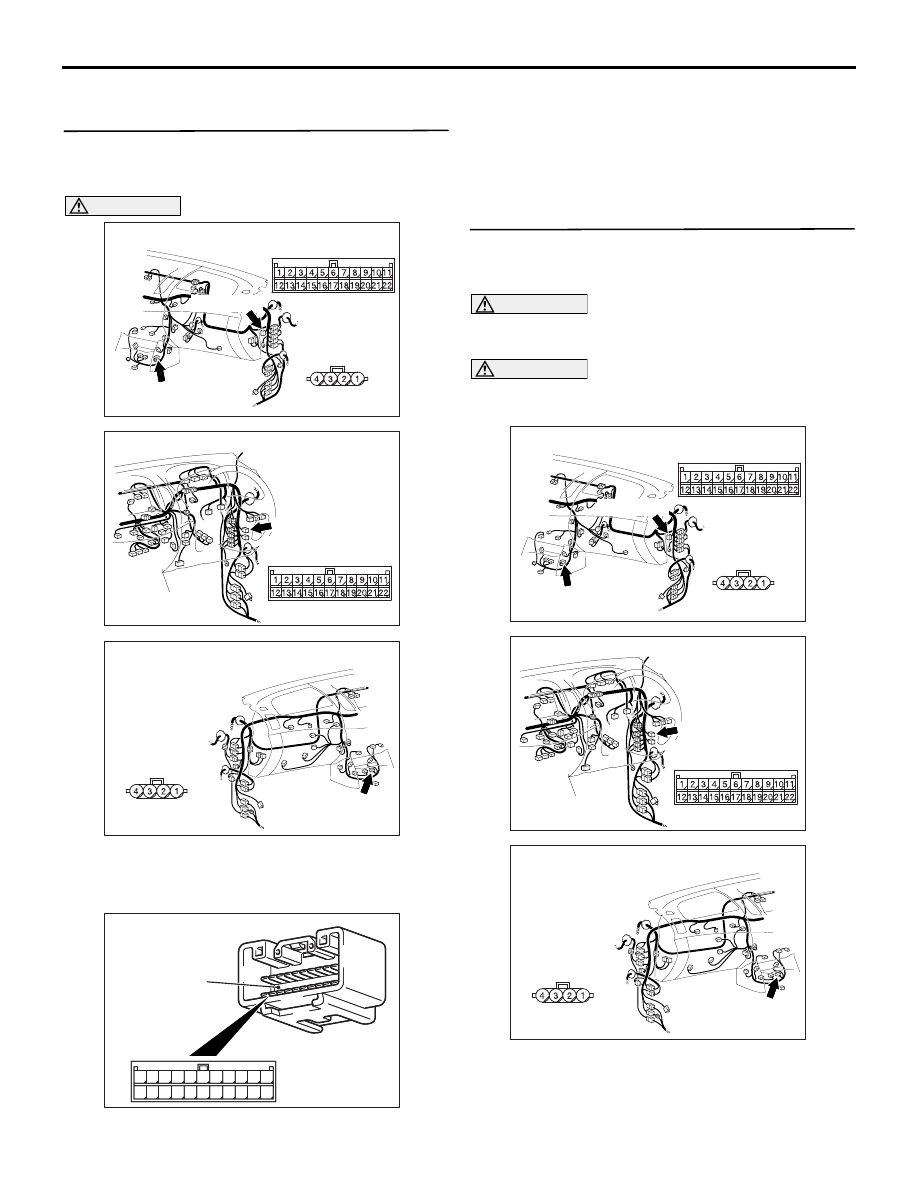

DIAGNOSIS PROCEDURE

STEP 1. Connector check: C-119 joint connector
(CAN1) and C-144 G and yaw rate sensor
connector

AC903853

BQ

Connectors: C-119, C-144 <LHD>

C-119 (GR)

C-144 (GR)

C-119

Harness side

C-144

AC903868

CM

Connector: C-119 <RHD>

C-119 (GR)

AC903865 AV

Connector: C-144 <RHD>

C-144 (GR)

Harness side

CAUTION

The strand end of the twist wire should be within
10 cm from the connector. For details refer to

P.54C-7

.

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC

Short pin

When checking the joint connector, ensure that its

wiring harness side and its short pins are not dam-
aged.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector. Replace the
joint connector as necessary.

STEP 2. Resistance measurement at C-119 joint
connector (CAN1) and C-144 G and yaw rate
sensor connector.

CAUTION

A digital multimeter should be used. For details
refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For
details refer to

P.54C-7

.

AC903853

BQ

Connectors: C-119, C-144 <LHD>

C-119 (GR)

C-144 (GR)

C-119

Harness side

C-144

AC903868

CM

Connector: C-119 <RHD>

C-119 (GR)

AC903865 AV

Connector: C-144 <RHD>

C-144 (GR)

Harness side

(1) Disconnect joint connector (CAN1) and the G and

yaw rate sensor connector, and measure at the
wiring harness side.

(2) Turn the ignition switch to the LOCK (OFF)

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-117

position.

CAUTION

When measuring the resistance, disconnect the
negative battery terminal. For details refer to

P.54C-7

.

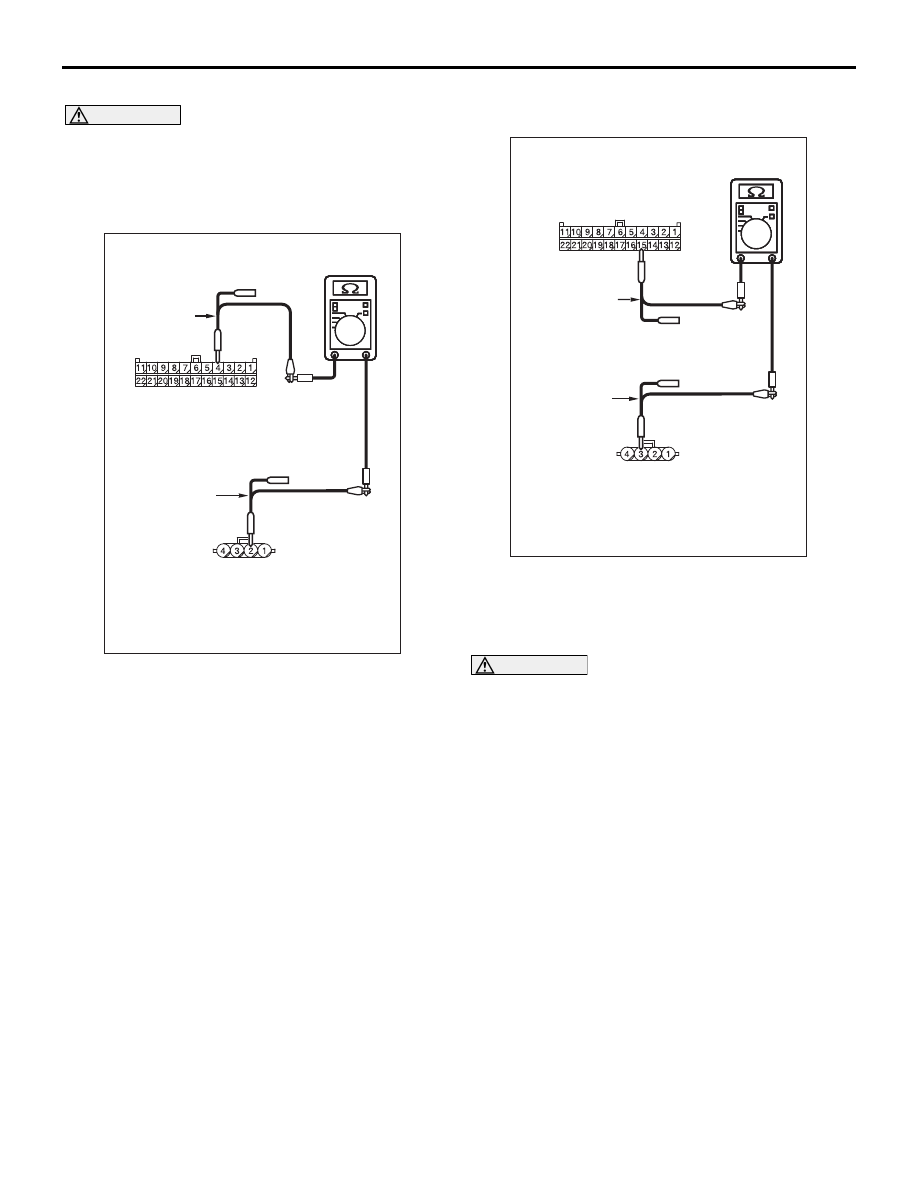

(3) Ensure that the negative battery terminal is

disconnected.

AC204740

AC204740

AC204740

AC204740

Harness side: C-144

Harness side: C-119

HZ

Test harness

Test
harness

(4) Continuity between C-119 joint connector (CAN1)

terminal No.4 and C-144 G and yaw rate sensor

connector terminal No.2

OK: Continuity (2

 or less)

AC204740

Harness side: C-144

AC204740

AC204740

Harness side: C-119

AC204740

AC204740

AC204740IA

Test harness

Test
harness

(5) Continuity between C-119 joint connector (CAN1)

terminal No.15 and C-144 G and yaw rate sensor
connector terminal No.3

OK: Continuity (2

 or less)

CAUTION

Strictly observe the specified wiring harness
repair procedure. For details refer to

P.54C-7

.

Q: Is the check result normal?

YES :

<All the resistances measure 2

Ω or less>

Power supply to the G and yaw rate sensor
may be suspected. Diagnose the G and yaw
rate sensor.

NO  :

<Either or all of the resistances measure
more than 2

Ω> Repair the wiring harness

between joint connector (CAN1) and the G
and yaw rate sensor connector.

TROUBLESHOOTING

CONTROLLER AREA NETWORK (CAN)

54C-118

Diagnosis Item 10: Diagnose when the M.U.T.-III cannot receive the data sent by A/C-ECU. <vehicles
with automatic-A/C>

CAUTION

When servicing a CAN bus line, earth yourself by touching a metal object such as an unpainted water
pipe. If you fail to do, a component connected to the CAN bus line may be broken.
