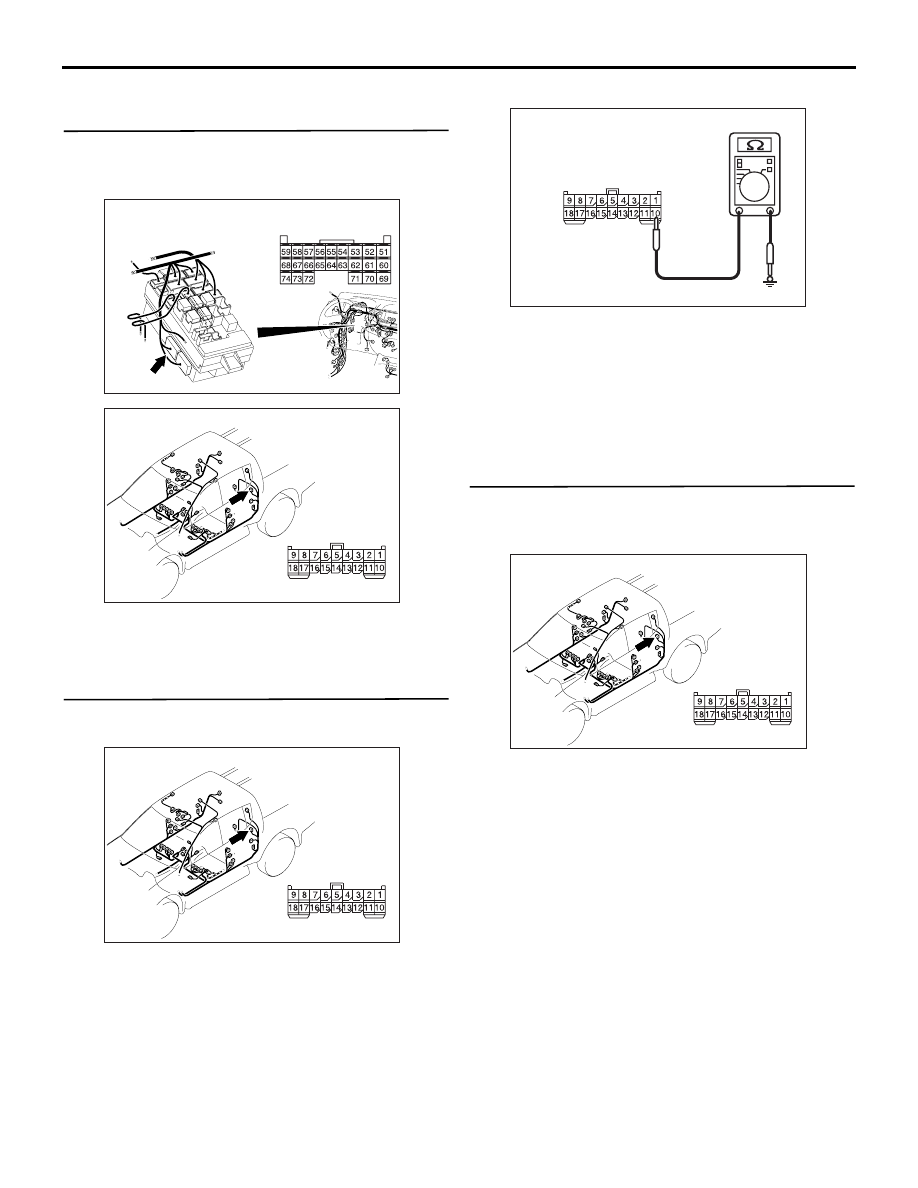

DIAGNOSIS CODE PROCEDURES

LOCAL INTERCONNECT NETWORK (LIN)

54B-39

DIAGNOSIS PROCEDURE

STEP 1. Connector check: C-219 ETACS-ECU
connector, D-11 rear panel power window-ECU
connector

AC509934

Connector: C-219

CA

C-219 (GR)

Harness side

Junction block (Front view)

AC901129

Connector: D-11

AN

Harness side

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

STEP 2. Resistance measurement at the D-11 rear
panel power window-ECU connector

AC901129

Connector: D-11

AN

Harness side

(1) Disconnect the connector, and measure at the

wiring harness side.

AC310506KR

Connector D-11
(Harness side)

(2) Measure the resistance between the D-11 rear

panel power window-ECU connector terminal No.
10 and the body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

STEP 3. Check the wiring harness between D-11
rear panel power window-ECU connector
terminal No. 10 to body earth

AC901129

Connector: D-11

AN

Harness side

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

DIAGNOSIS CODE PROCEDURES

LOCAL INTERCONNECT NETWORK (LIN)

54B-40

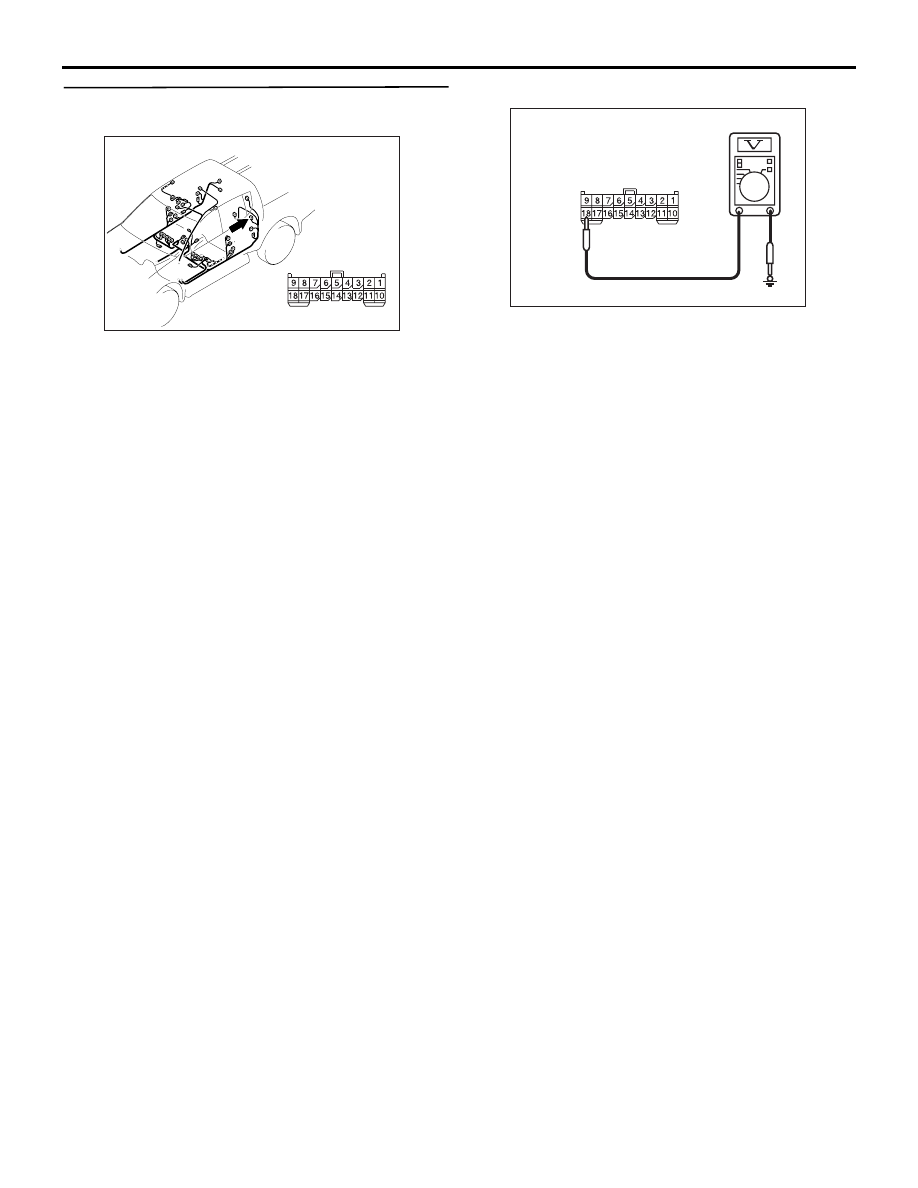

STEP 4. Voltage measurement at the D-11 rear
panel power window-ECU connector.

AC901129

Connector: D-11

AN

Harness side

(1) Disconnect the connector, and measure at the

wiring harness side.

AC310507MI

Connector D-11
(Harness side)

(2) Measure the voltage between the D-11 rear panel

power window-ECU connector terminal No. 18
and the body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

DIAGNOSIS CODE PROCEDURES

LOCAL INTERCONNECT NETWORK (LIN)

54B-41

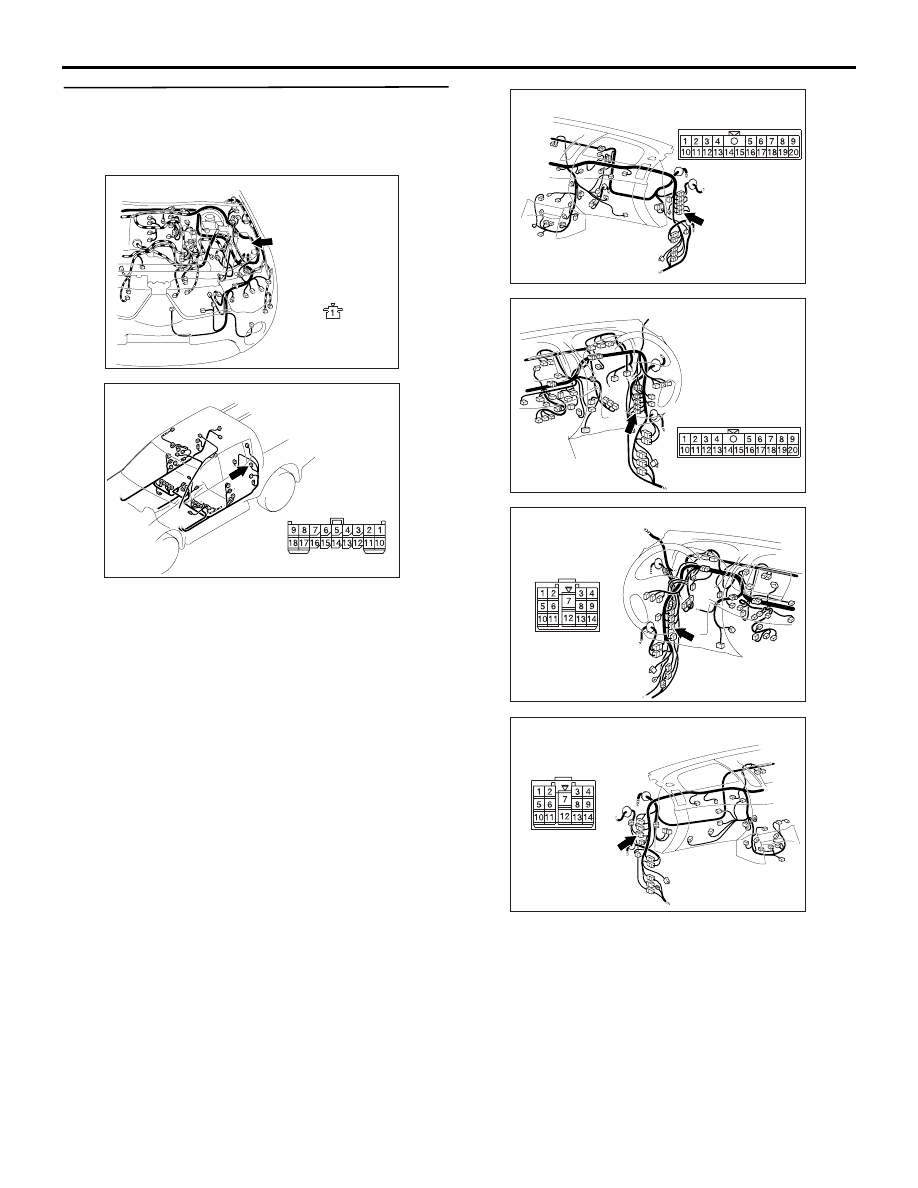

STEP 5. Check the wiring harness between D-11
rear panel power window-ECU connector
terminal No. 18 and the A-12 relay box connector
terminal No. 1

AC900994

Connector: A-12

AH

Harness side

A-12 (GR)

AC901129

Connector: D-11

AN

Harness side

Check the power supply line for open circuit and
short circuit.
NOTE:

AC903853

Connector: C-16 <LHD>

AL

AC903868

Connector: C-16 <RHD>

AQ

AC903856

Connector: C-33 <LHD>

AM

AC903865

Connector: C-33 <RHD>

AH

Prior to the wiring harness inspection, check interme-
diate connectors C-16 and C-33, and repair if neces-
sary.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

DIAGNOSIS CODE PROCEDURES

LOCAL INTERCONNECT NETWORK (LIN)

54B-42

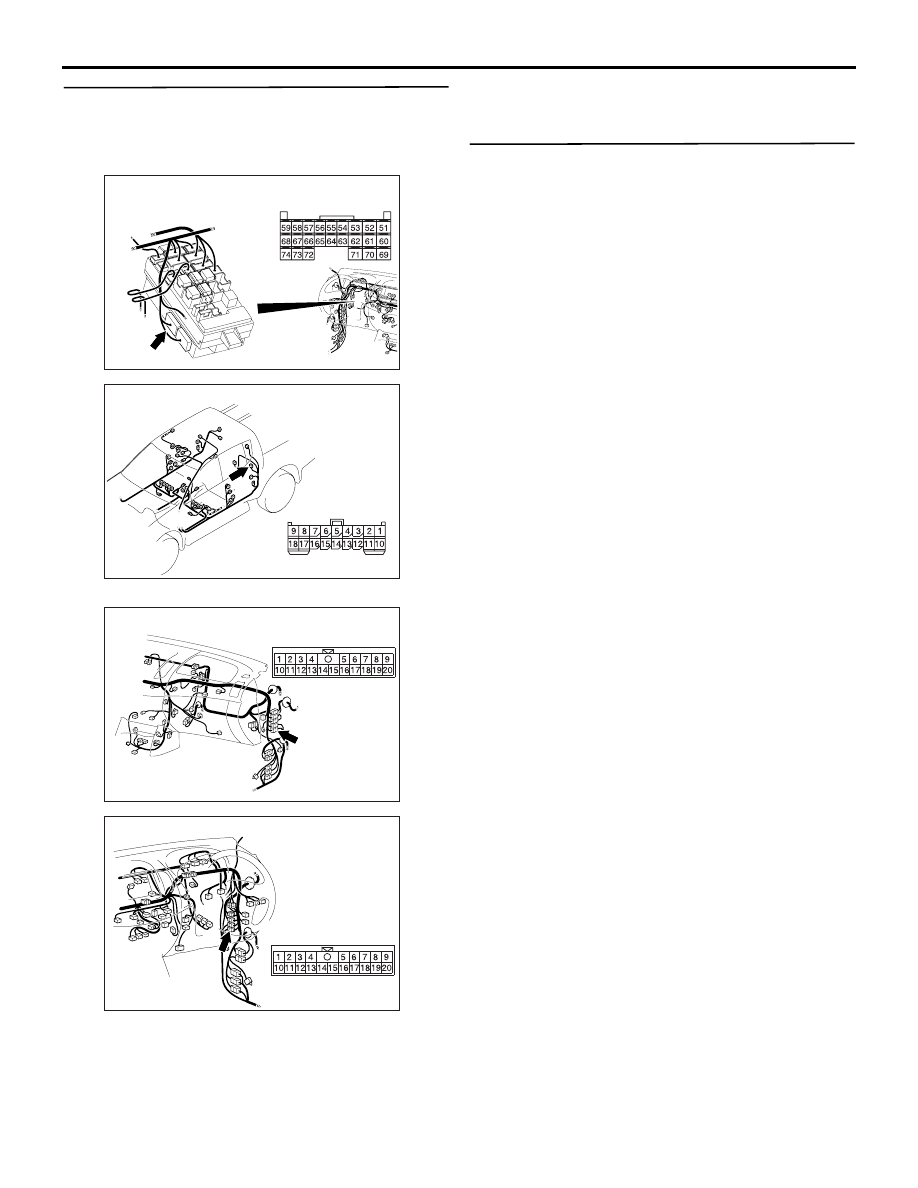

STEP 6. Check the wiring harness between C-219
ETACS-ECU connector terminal No.54 and D-11
rear panel power window-ECU connector
terminal No.14.

AC509934

Connector: C-219 <LHD>

AD

C-219 (GR)

Harness side

Junction block

AC901129

Connector: D-11

AN

Harness side

NOTE:

AC903853

Connector: C-16 <LHD>

AL

AC903868

Connector: C-16 <RHD>

AQ

Prior to the wiring harness inspection, check interme-
diate connector C-16, and repair if necessary.

• Check the communication line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

STEP 7. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to the
ETACS-ECU.
(1) Erase the diagnosis code.
(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) On completion, check that the diagnosis code is

reset.

Q: Is the diagnosis code set?

YES :

Replace the rear panel power window-ECU.

NO :

A poor connection, open circuit or other
intermittent malfunction is present in the LIN
bus lines between the rear panel power
window-ECU and the ETACS-ECU (Refer to
GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).
