RV METER

CHASSIS ELECTRICAL

54A-467

NOTE: The IG1 signal via the ignition switch is used

when the IG1 signal cannot be received by CAN
communication.

COMMENTS ON TROUBLE SYMPTOM
The earth circuit, CAN bus line, the battery circuit or
the ignition switch (ACC, ON) circuit is suspected to
be open or defective.

PROBABLE CAUSES

• Malfunction of the RV meter

• Malfunction of the ETACS-ECU

• Malfunction of the CAN bus line

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics
Use the M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ). On completion, go

to Step 2.

STEP 2. Check whether the diagnosis code is set.
Check if the diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Go to Step 3

NO :

Diagnose RV meter (Refer to RV meter,
Troubleshooting

P.54A-462

).

STEP 3. M.U.T-III other system diagnosis code.
Check whether the ETACS-ECU diagnosis code is
set.

Q: Is the diagnosis code set?

YES :

Diagnose ETACS-ECU (Refer to ETACS-

ECU, Troubleshooting

P.54A-462

). After

diagnosing the ETACS-ECU, go to Step 4.

NO :

Go to Step 4

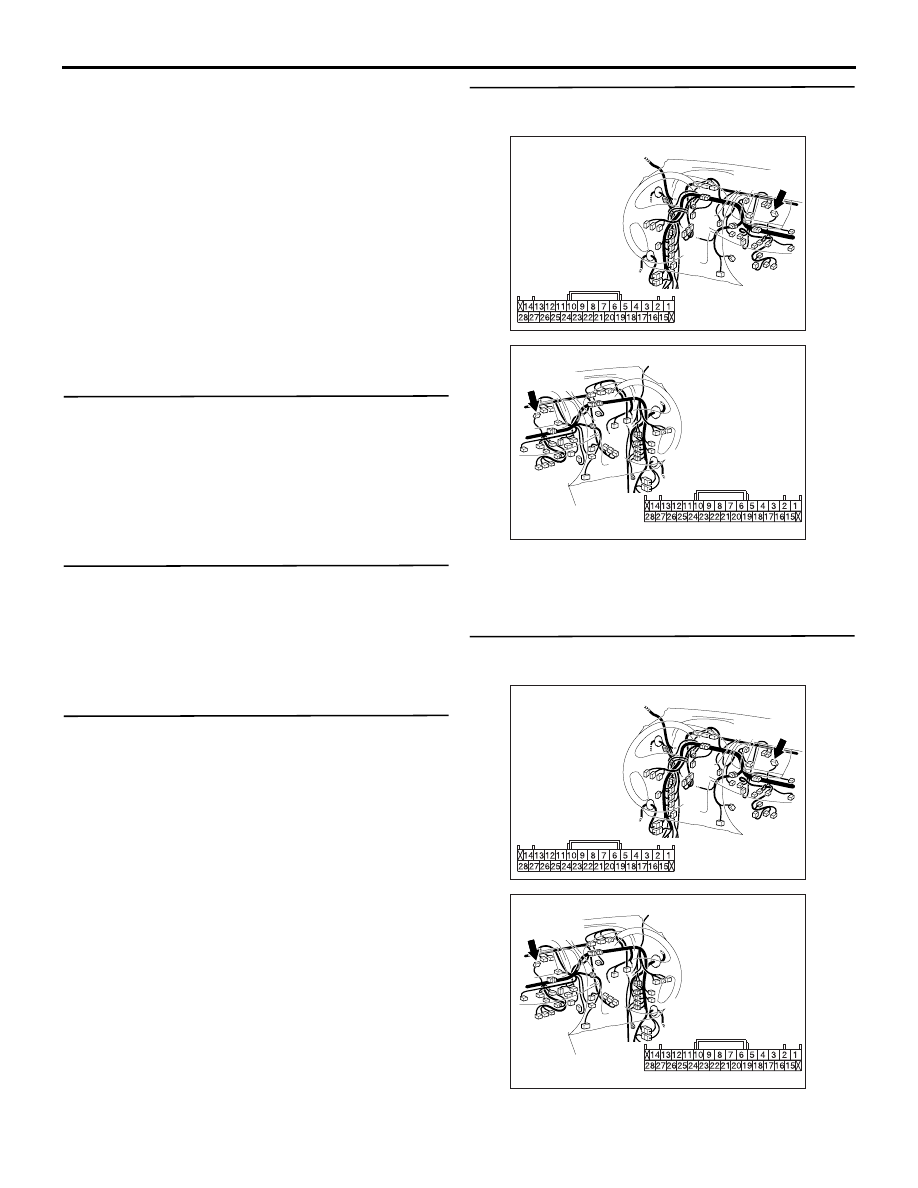

STEP 4. Check the following connector: C-171 RV
meter connector

Q: Is the check result normal?

YES :

Go to Step 5

NO :

Repair the defective connector.

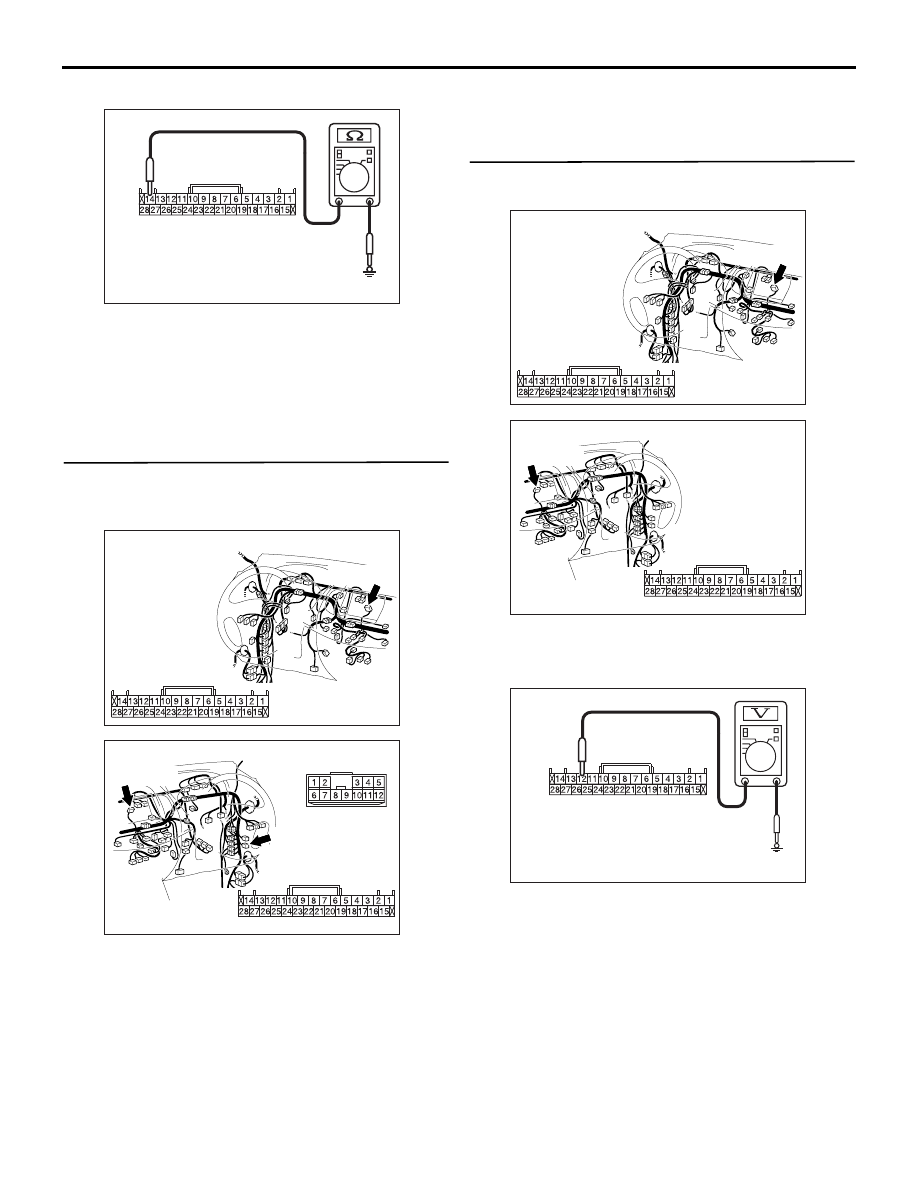

STEP 5. Measure the resistance at C-171 RV
meter connector.

(1) Disconnect the connector, and measure at the

AC903856

Connector: C-171 <LHD>

AY

Harness side

C-171 (GR)

AC903868

Connector: C-171 <RHD>

BQ

Harness side

C-171 (GR)

AC903856

Connector: C-171 <LHD>

AY

Harness side

C-171 (GR)

AC903868

Connector: C-171 <RHD>

BQ

Harness side

C-171 (GR)

RV METER

CHASSIS ELECTRICAL

54A-468

wiring harness side.

(2) Measure the resistance between C-171 RV meter

connector terminal No.14 and body earth

OK: Continuity exists (2

 or less)

Q: Is the check result normal?

YES :

Go to Step 7

NO :

Go to Step 6

STEP 6. Check the harness wire between C-171
RV meter connector terminal No.14 and body
earth.

• Check the earth wires for open circuit.

NOTE: Prior to the wiring harness inspection, check
joint connector C-120 <RHD>, and repair if neces-
sary.

Q: Is the check result normal?

YES :

Retest the system.

NO :

Repair the wiring harness.

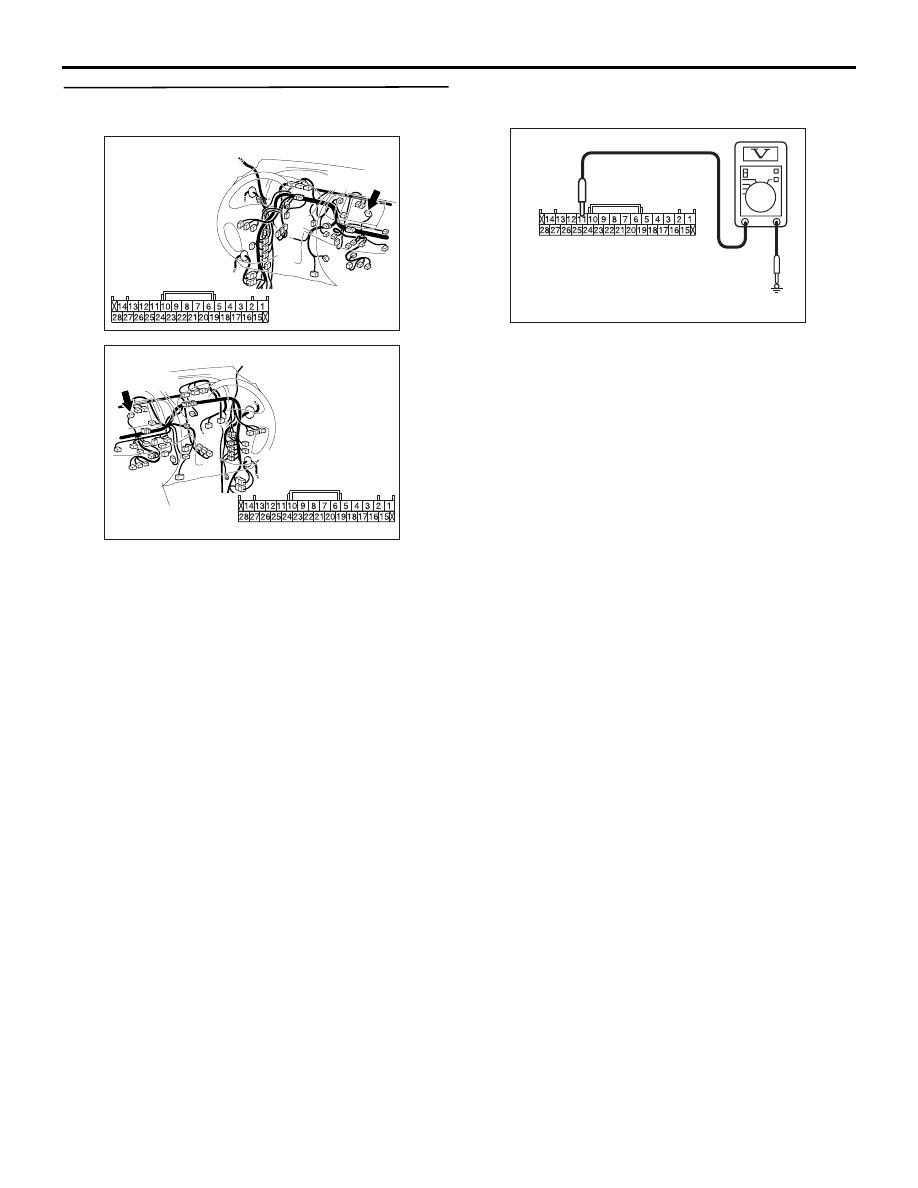

STEP 7. Measure the voltage at C-171 RV meter
connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: LOCK (OFF) position

(3) Measure the voltage between C-171 RV meter

connector terminal No.12 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 9

NO :

Go to Step 8

AC403234

Connector C-171
(Harness side)

EZ

AC903856

Connector: C-171 <LHD>

AY

Harness side

C-171 (GR)

AC903868

BR

Connectors: C-120, C-171 <RHD>

C-120

C-120 (L)

Harness side

C-171 (GR)

C-171

AC903856

Connector: C-171 <LHD>

AY

Harness side

C-171 (GR)

AC903868

Connector: C-171 <RHD>

BQ

Harness side

C-171 (GR)

AC402679

Connector C-171
(Harness side)

GW

RV METER

CHASSIS ELECTRICAL

54A-469

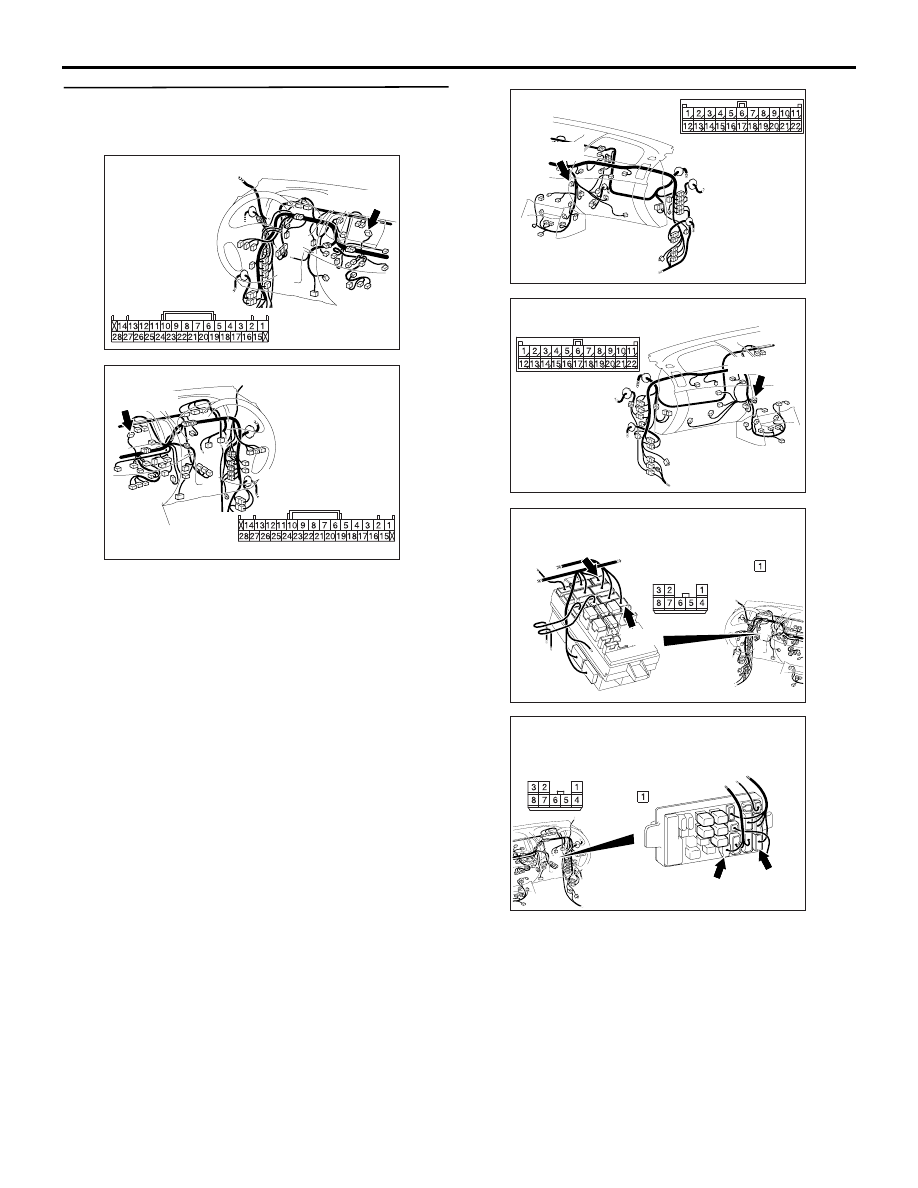

STEP 8. Check the harness wire between battery
(fusible link No.20) and C-171 RV meter
connector terminal No.12.

NOTE:

Prior to the wiring harness inspection, check joint
connector C-132, junction block connectors C-209
and C-213, and repair if necessary.

• Check the battery power supply open circuit and

short circuit.

Q: Is the check result normal?

YES :

Retest the system.

NO :

Repair the wiring harness.

AC903856

Connector: C-171 <LHD>

AY

Harness side

C-171 (GR)

AC903868

Connector: C-171 <RHD>

BQ

Harness side

C-171 (GR)

AC903853

Connector: C-132 <LHD>

AC

C-132 (GR)

AC903865

Connector: C-132 <RHD>

AB

C-132 (GR)

AC509934

Connectors: C-209, C-213 <LHD>

Junction block (Front view)

C-213

C-209

C-213

C-209

AC

Harness side

Harness side

AC509936

Connectors: C-209, C-213 <RHD>

C-213

C-209

AC

Junction block
(Front view)

C-213

C-209

Harness side Harness side

RV METER

CHASSIS ELECTRICAL

54A-470

STEP 9. Measure the voltage at C-171 RV meter
connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: ACC

(3) Measure the voltage between C-171 RV meter

connector terminal No.11 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 11

NO :

Go to Step 10

AC903856

Connector: C-171 <LHD>

AY

Harness side

C-171 (GR)

AC903868

Connector: C-171 <RHD>

BQ

Harness side

C-171 (GR)

AC402679

Connector C-171
(Harness side)

GX
