RV METER

CHASSIS ELECTRICAL

54A-459

6. When the screen returns to the "BODY TYPE"

screen, check that the body type is set correctly,
and terminate the service mode.

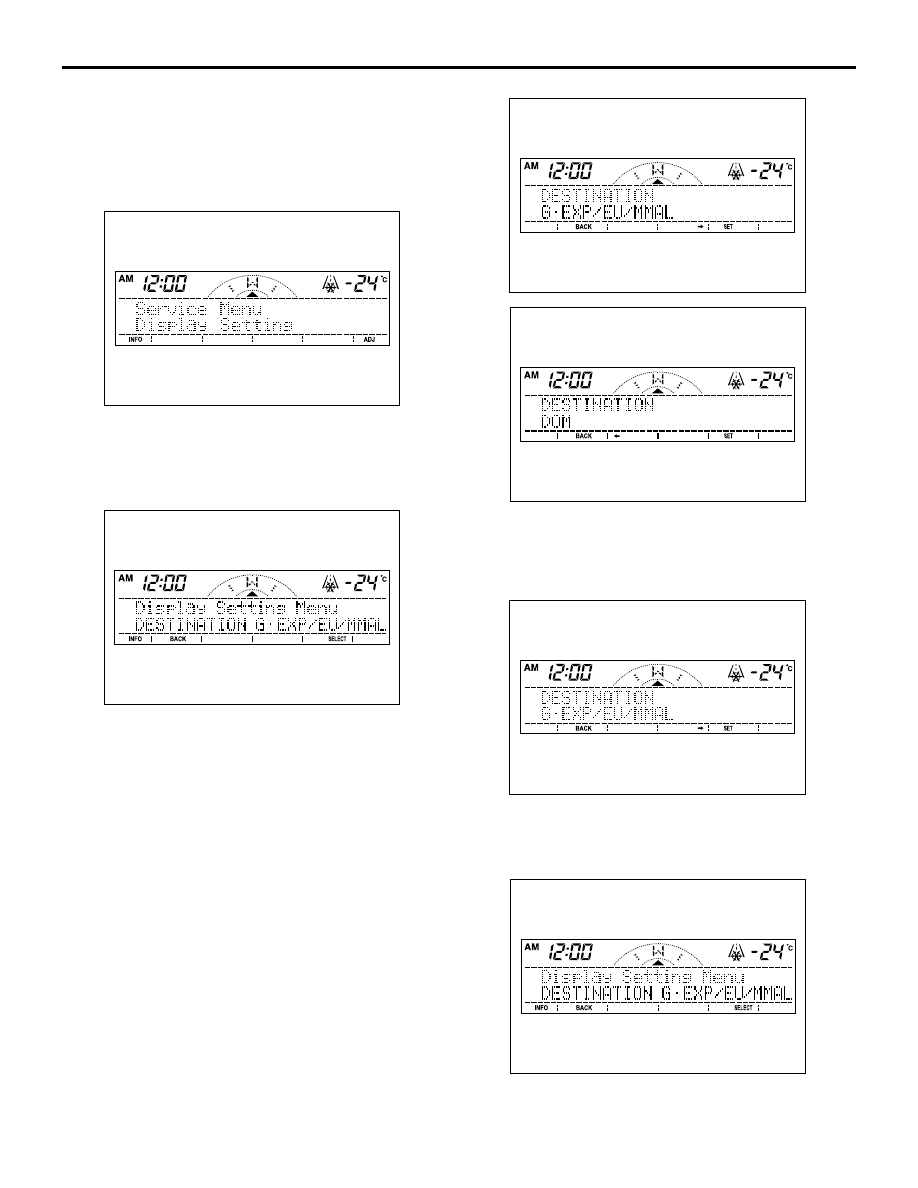

HOW TO SET THE DESTINATION
("DESTINATION" SCREEN)

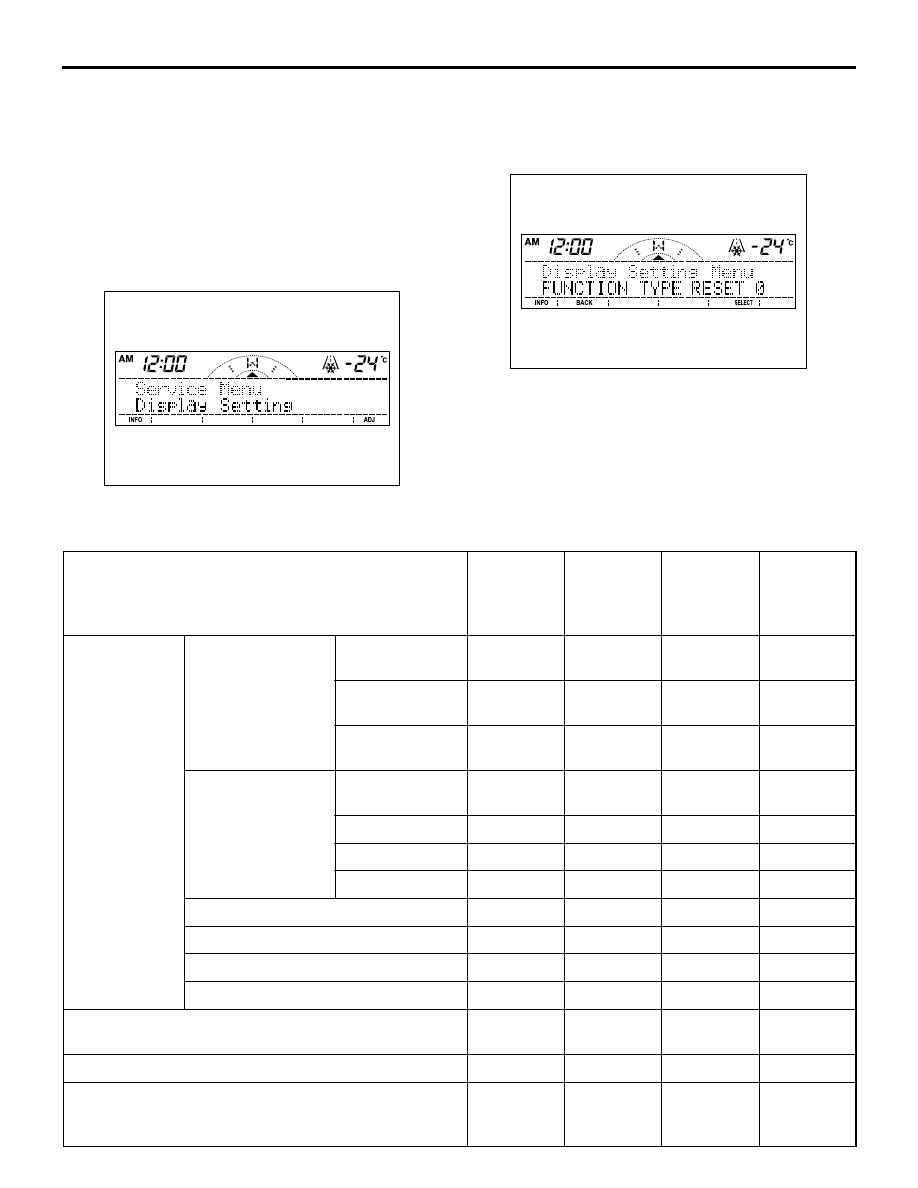

1. Press the [ADJ] button on the "Display Setting

menu" screen.

2. Press the [INFO] button on the "BODY TYPE"

screen.

3. The "DESTINATION" screen is displayed, and the

destination currently set is indicated.

NOTE:

The set destination is indicated as "G

⋅

EXP/EU/

MMAL" or "DOM".

4. To change the destination, press the [SELECT]

button.

5. [Press [

→] or [←] button to display "G⋅EXP/EU/

MMAL".

6. Press [SET] button to make settings.

7. When the screen returns to the "DESTINATION"

screen, check that the destination is set correctly,
and terminate the service mode.

AC900067

AC900070

AC900063

AC900064

AC900063

AC900070

RV METER

CHASSIS ELECTRICAL

54A-460

HOW TO RESET THE FUNCTION TYPE
("FUNCTION TYPE RESET" SCREEN)
NOTE: Before resetting the function type reset,
check that the power supply systems to the CAN
communication line, audio communication line are
connected normally in accordance with the vehicle
specification. (Because a function type is judged
incorrectly if reset is executed with the abnormal con-
nection status.)

1. Press the [ADJ] button on the "Display Setting

menu" screen.

2. When the "BODY TYPE" screen is displayed,

press the [INFO] button.

3. When the "DESTINATION" screen is displayed,

press the [INFO] button.

4. The "FUNCTION TYPE RESET" screen is

displayed, and the function type currently set is
indicated. To reset the function type, press the
[SELECT] button.
NOTE: The function types are indicated by num-
bers from "1" to "4". ("0" is not set.) They are clas-
sified as shown in the table below.

AC900067

AC900071

Function type

TYPE 1
<Vehicles
with auto
A/C>

TYPE 2
<Vehicles
with auto
A/C>

TYPE 3
<Vehicles
without
auto A/C>

TYPE 4
<Vehicles
without
auto A/C>

Information
display
function

Drive information

Average vehicle
speed

×

−

×

−

Average fuel
consumption

×

−

×

−

Possible cruising
distance

×

−

×

−

Environmental data Ambient

temperature

×

×

×

×

Air pressure

×

×

×

×

Altitude

×

×

×

×

Compass

×

×

×

×

Clock

×

×

×

×

Calendar

×

×

×

×

Audio

×

×

×

×

Display OFF

×

×

×

×

User settings



(Clock, calendar, compass, unit, etc.)

×

×

×

×

Opening display (Mitsubishi logotype display)

×

×

×

×

Body type setting (TRITON/STRADA/L200 or
PAJERO SPORT/CHALLENGER/NATIVA/MONTERO
SPORT)

×

×

×

×

RV METER

CHASSIS ELECTRICAL

54A-461

• ×: With function
• −: Without function

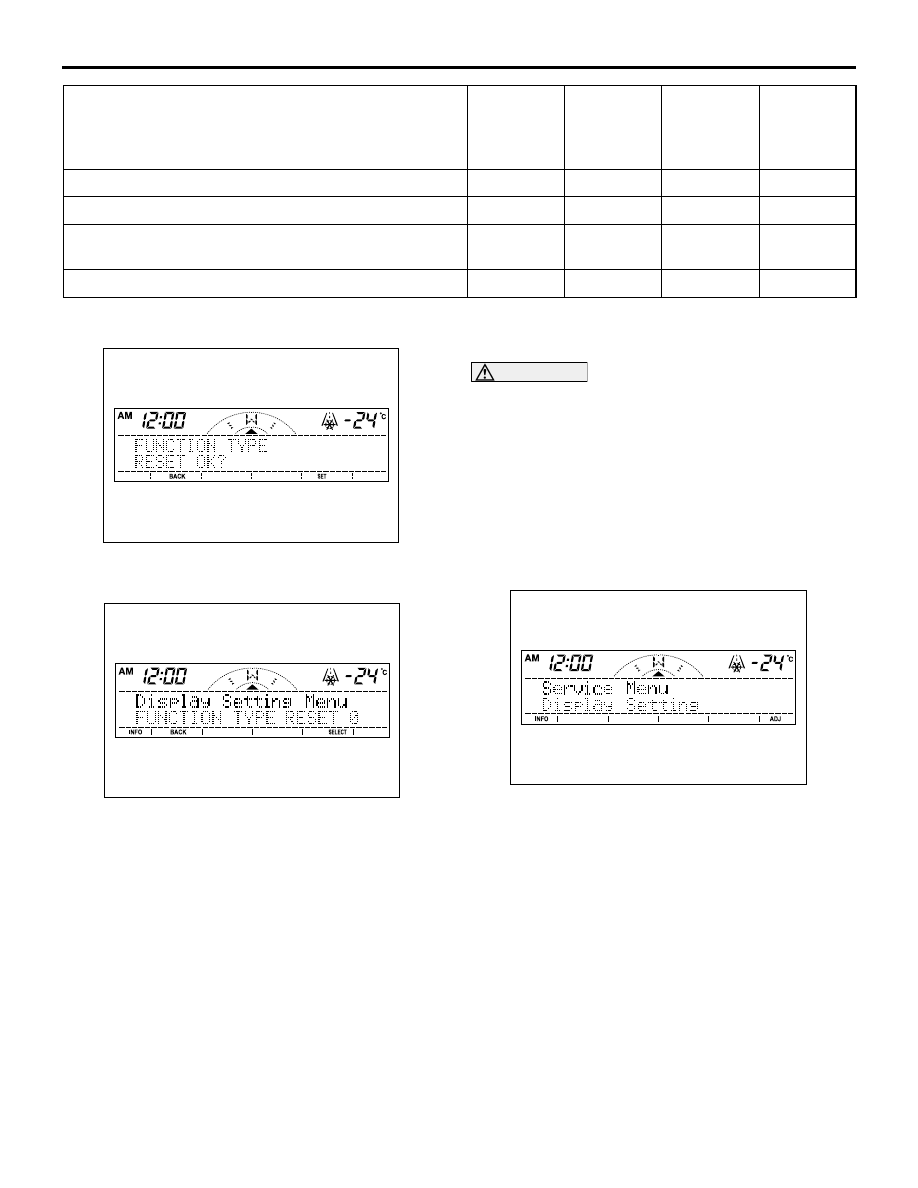

5. When "RESET OK?" is indicated, press the [SET]

button.

6. When the screen returns to the "FUNCTION

TYPE RESET" screen, check that "RESET 0" is
indicated, and terminate the service mode.

7. Turn the ignition switch to the "LOCK" (OFF)

position.

8. Turn the ignition switch from the LOCK (OFF)

position to the ON position.
NOTE: When the ignition switch is turned from
"LOCK" to "ON" for the first time after the function
type is reset, the centre display automatically
judges the status of other ECUs to set the function
type.

HOW TO DELETE THE COMPASS AZIMUTH
CIRCLE

CAUTION

If the compass azimuth display is not normal,
always perform the declination calibration and
the compass calibration in the compass setting
before deleting the compass azimuth circle. Only
if the compass azimuth display is still abnormal
and the azimuth display function itself needs to
be reset, delete the compass azimuth circle.
NOTE: Always check the declination calibration and
carry out the compass calibration after deleting the
compass azimuth circle.

1. Press the [ADJ] button on the "Display Setting

menu" screen.

2. When the "BODY TYPE" screen is displayed,

press the [INFO] button.

3. When the "DESTINATION" screen is displayed,

press the [INFO] button.

4. When the "FUNCTION TYPE RESET" screen is

displayed, press the [INFO] button.

Destination setting (G

⋅EXP/EU/MMAL or DOM)

×

×

×

×

Service Mode

×

×

×

×

Screen brightness adjustment (Adjusts the display
individually)

×

×

×

×

Fail-safe

×

×

×

×

Function type

TYPE 1
<Vehicles
with auto
A/C>

TYPE 2
<Vehicles
with auto
A/C>

TYPE 3
<Vehicles
without
auto A/C>

TYPE 4
<Vehicles
without
auto A/C>

AC900062

AC900071

AC900067

RV METER

CHASSIS ELECTRICAL

54A-462

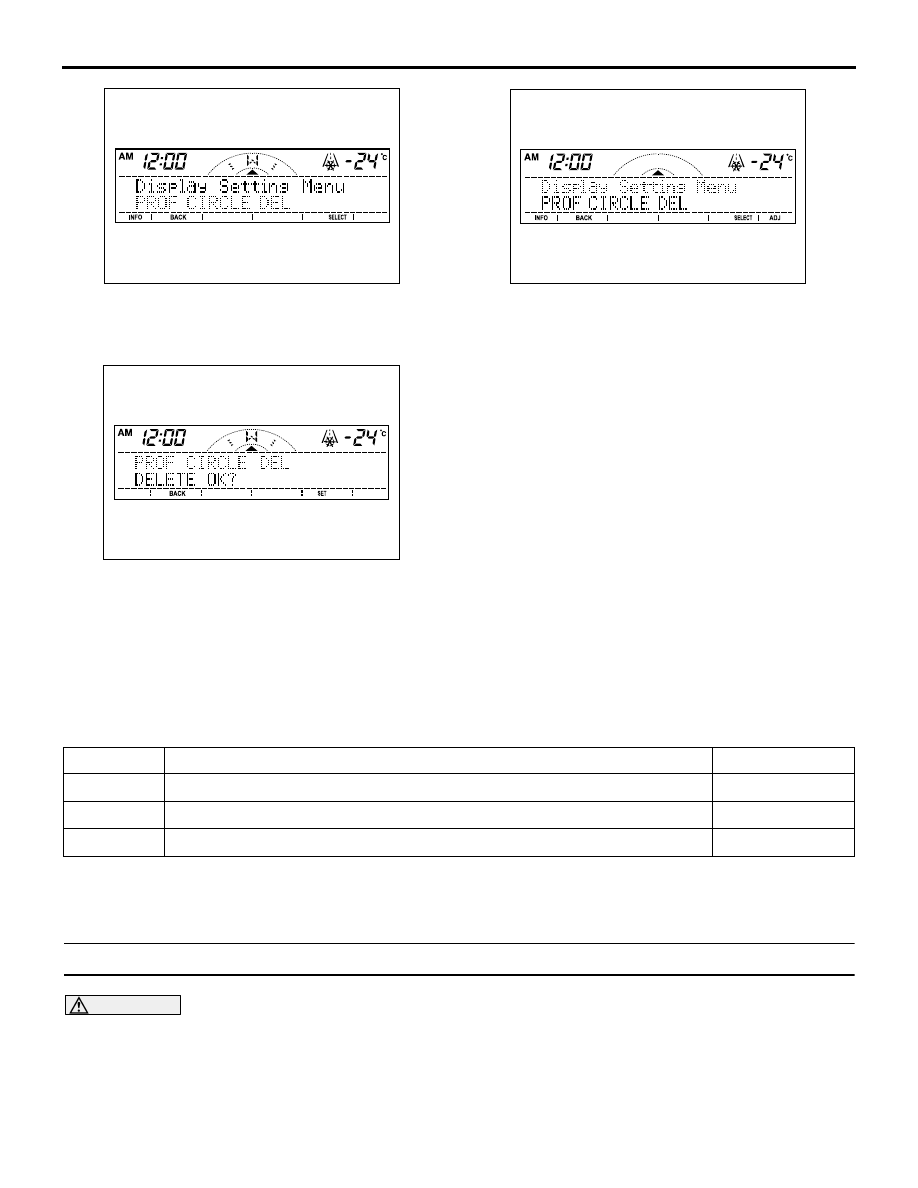

5. The "PROF CIRCLE DEL" screen is displayed. To

delete the compass azimuth circle data, press the
[SELECT] button.

6. When "DELETE OK?" is indicated, press the

[SET] button.

7. When the screen returns to the "PROF CIRCLE

DEL" screen, terminate the service mode

DIAGNOSIS TROUBLESHOOTING FLOW

M1546600500017

Refer to GROUP 00

− Contents of Troubleshooting .

DIAGNOSTIC FUNCTION

M1543007001156

HOW TO READ DIAGNOSIS CODE

Use the M.U.T.-III to read diagnosis code (Refer to
GROUP 00

− Diagnosis Function ).

NOTE: Connect the M.U.T.-III to the 16-pin diagnosis
connector (black).

HOW TO ERASING DIAGNOSIS CODE

Use the M.U.T.-III to erasing diagnosis code (Refer to
GROUP 00

− Diagnosis Function ).

NOTE: Connect the M.U.T.-III to the 16-pin diagnosis
connector (black).

DIAGNOSIS CODE CHART

M1546600600092

NOTE: As for the code No. 26, it may be set when a
wrong function type is specified.

DIAGNOSIS CODE PROCEDURES

Code No. 19: ETACS CAN Timeout

CAUTION

• If diagnosis code No.19 is set in the RV meter,

diagnose the CAN main bus line.

• Whenever the RV meter is replaced, ensure

that the communication circuit is normal.

NOTE: When the diagnosis codes relating to the
CAN communication error are set, make sure of the

vehicle equipment. When the vehicle is not equipped
with the system the RV meter communicates to, the
diagnosis code is always output. This is not abnor-
mal.

AC900072

AC900060

AC900059

Code No.

Diagnosis item

Reference page

19

ETACS CAN Timeout

P.54A-462

26*

Engine CAN Timeout

P.54A-463

29

No receive fault detect signal

P.54A-464
