Mitsubishi L200. Manual - part 772

RV METER

CHASSIS ELECTRICAL

54A-455

SPECIAL TOOLS

M1543000602826

RV METER

CHASSIS ELECTRICAL

54A-456

Tool

Number

Name

Use

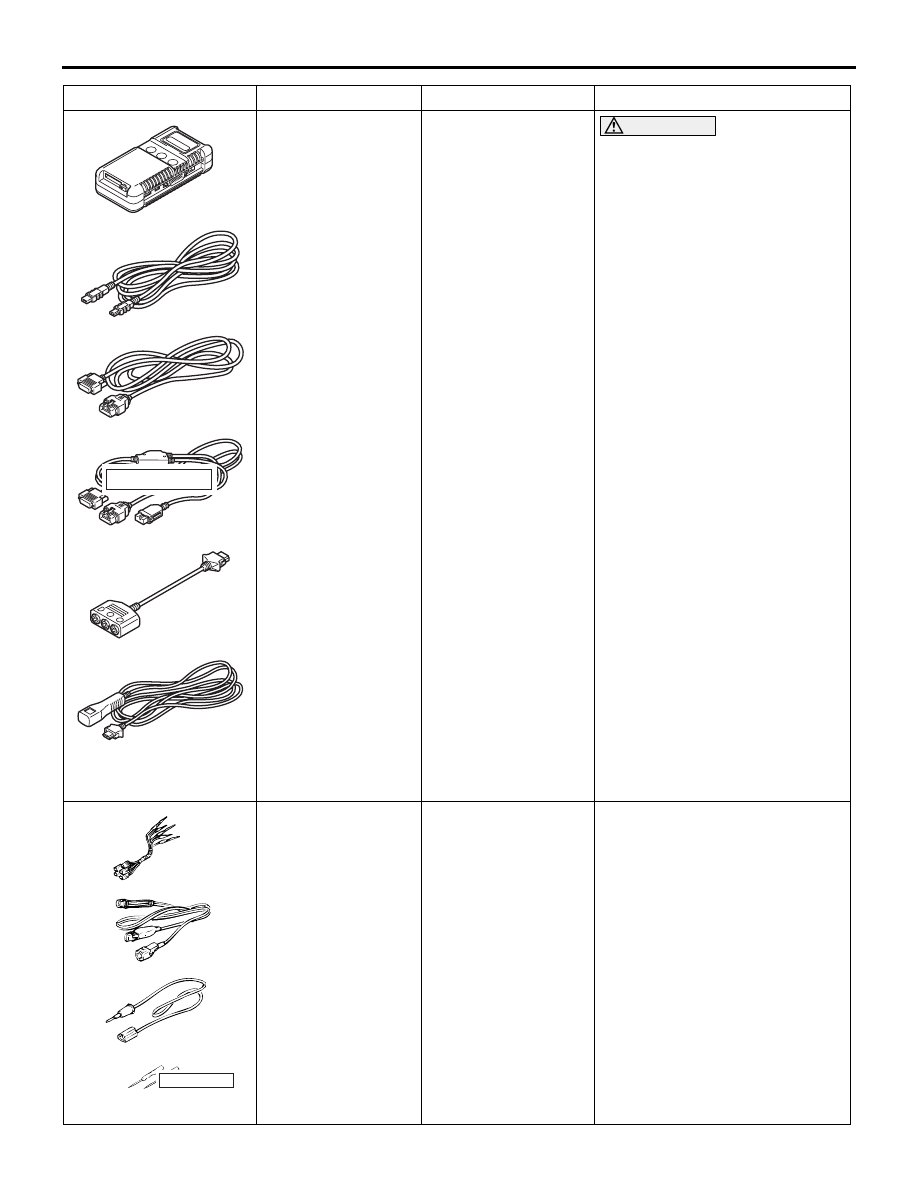

MB991955

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

M.U.T.-III sub-
assembly

A: Vehicle

Communication
Interface (V.C.I.)

B: M.U.T.-III USB

cable

C: M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

D: M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

E: M.U.T.-III adapter

harness

F: M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.
Check for other system diagnosis
code and other system data list

MB991223

A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Check harness
B: LED harness
C: LED harness

adapter

D: Probe

Continuity check and voltage
measurement at harness wire or
connector

A: For checking connector pin

contact pressure

B: For checking power supply

circuit

C: For checking power supply

circuit

D: For connecting a locally

sourced tester

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USE

MB991223

A

D

C

B

AZ

DO NOT USE

RV METER

CHASSIS ELECTRICAL

54A-457

TROUBLESHOOTING

SERVICE MODE

M1543035600163

In the RV meter service mode, the items of body type
setting ("BODY TYPE" screen), destination setting
("DESTINATION" screen), function type reset
("FUNCTION TYPE RESET" screen), and Delete the
compass azimuth circle ("PROF CIRCLE DEL"
screen) are provided.

• Body type setting ("BODY TYPE" screen): If the

incorrect body type is set, the correct possible
cruising distance cannot be displayed.

• Destination setting ("DESTINATION" screen): If

the incorrect destination is set, the freezing mark
or the initial value of the compass deviation angle
correction cannot be displayed correctly.

• Function type reset ("FUNCTION TYPE RESET"

screen): If the incorrect model type is set, the
drive information and air temperature cannot be
displayed correctly.

• Delete the compass azimuth circle ("PROF CIR-

CLE DEL" screen): When the compass display
does not work normally even after performing
compass calibration, delete the compass azimuth
circle, reset the direction display function itself,
and set the compass function again.

HOW TO START AND TERMINATE THE
SERVICE MODE

NOTE: If the body type or the destination has not
been set when the ignition switch position is changed
from the "LOCK" (OFF) position to the "ACC" or "ON"
position, the screen of the unset items (in the order of
"BODY TYPE" screen, and then "DESTINATION"
screen) are displayed. After setting of each item is
completed, the display returns to the normal RV
meter screen.
HOW TO START THE SERVICE MODE
1. With the ignition switch at the "LOCK" (OFF)

position, press the [ADJ] button.

2. With the [ADJ] button being pressed, turn the

ignition switch to the "ACC"or "ON" position, and
hold that for five seconds or more.

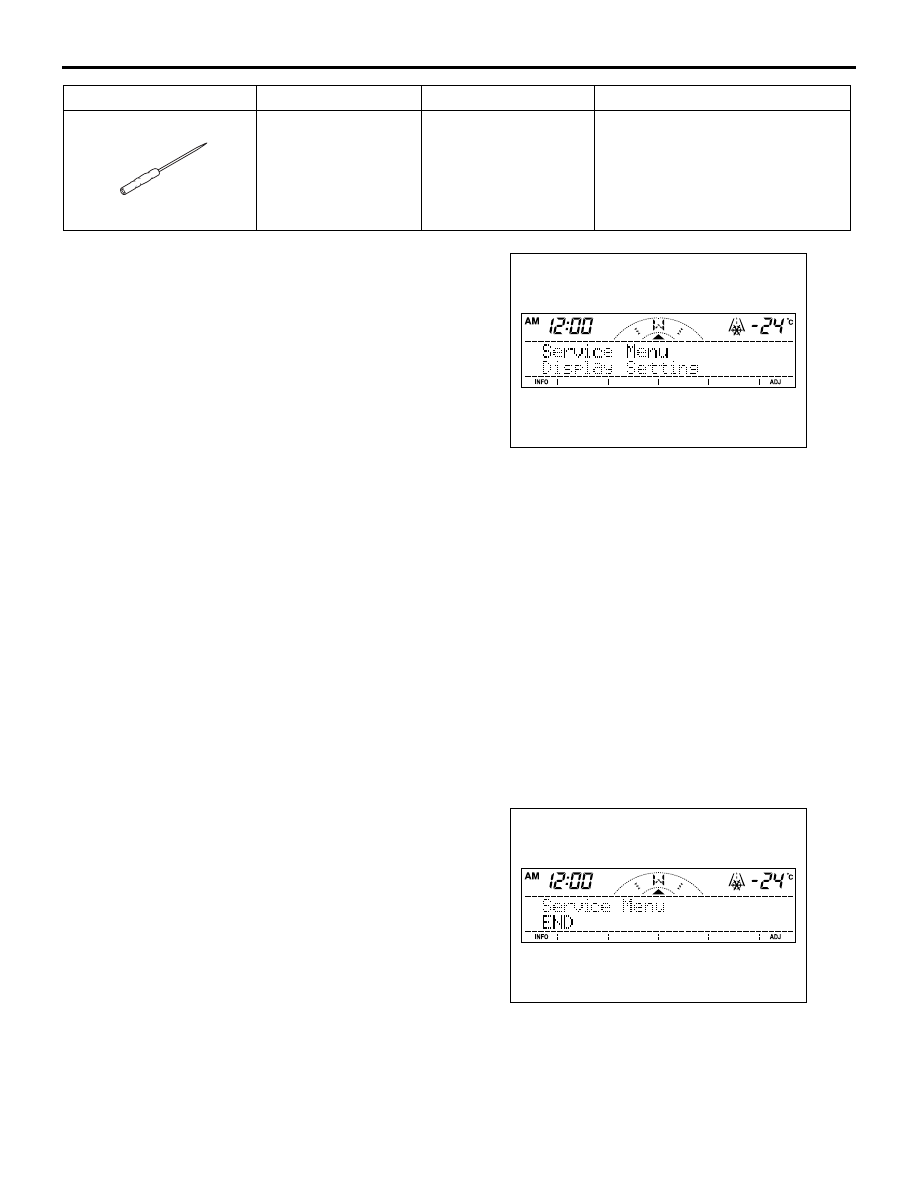

3. The service mode is started, and the "Service

Menu" and "Display Setting" screens are
displayed.
NOTE: When the [ADJ] button is pressed on the
"Display Setting menu" screen, the display is
shifted to the "BODY TYPE" screen. After that,
each time the [INFO] button is pressed, the follow-
ing four setting screens change in turn: "DESTI-
NATION" screen, "FUNCTION TYPE RESET"
screen, "PROF CIRCLE DEL" screen, and "BODY
TYPE" screen.

HOW TO TERMINATE THE SERVICE MODE
When any of the following operations is performed,
the service mode is terminated.

• Turn the ignition switch to the "LOCK" (OFF)

position to terminate the service mode forcibly.

•

Press the [INFO] button on the "Display Setting

Menu" screen to display the "END" screen. On
the "END" screen, press the [ADJ] button to ter-
minate the service mode.

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

MB992006

AC900067

AC900068

RV METER

CHASSIS ELECTRICAL

54A-458

NOTE: To return to the "Display Setting Menu"

screen from each setting screen, press the
[BACK] button.

HOW TO SET THE RV METER

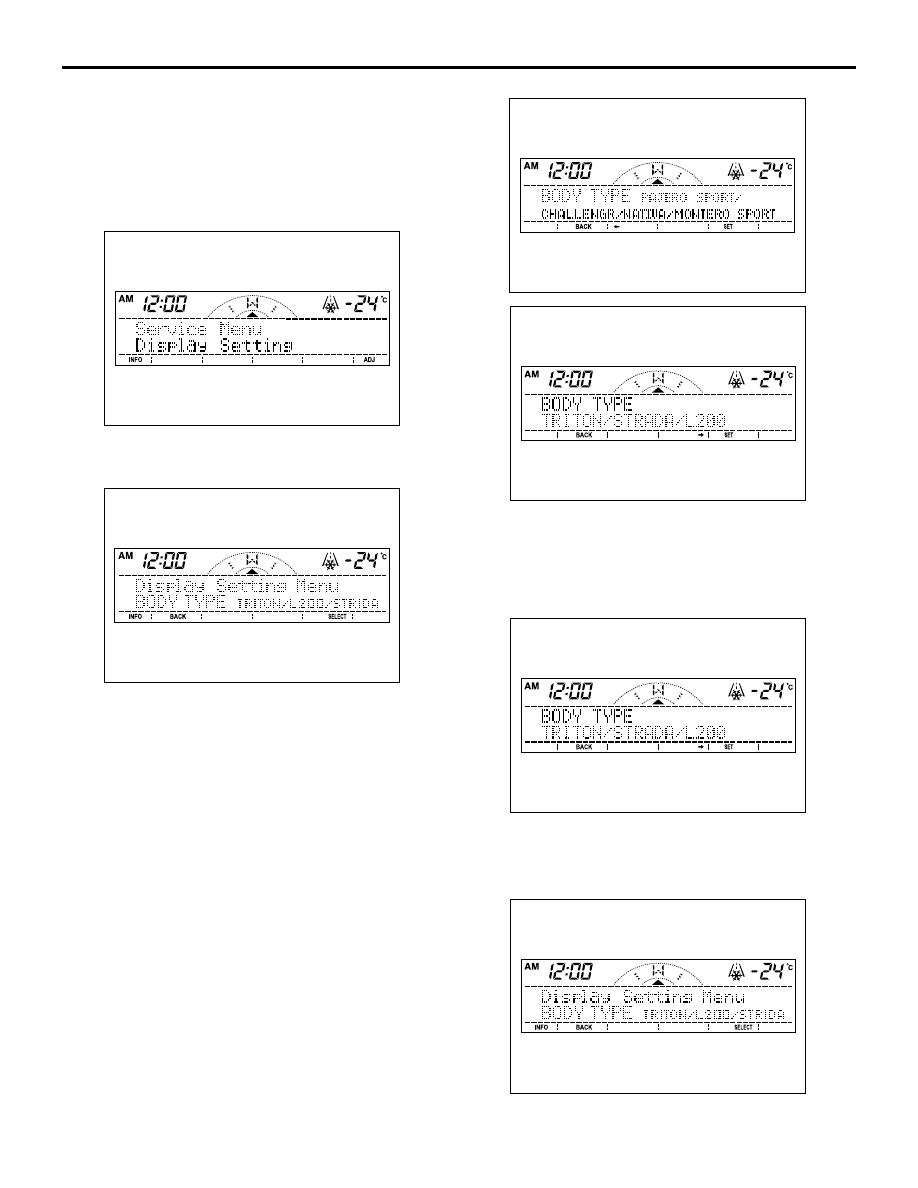

HOW TO SET THE BODY TYPE ("BODY TYPE"
SCREEN)

1. Press the [ADJ] button on the "Display Setting

menu" screen.

2. The "BODY TYPE" screen is displayed, and the

body type currently set is indicated.

NOTE:

The set body type is indicated as "TRITON/
STRADA/L200" or "PAJERO SPORT/CHAL-
LENGER/NATIVA/MONTERO SPORT".

3. To change the body type, press the [SELECT]

button.

4. [Press [

→] or [←] button to display "TRITON/

STRADA/L200".

5. Press [SET] button to make settings.

AC900067

AC900069

AC900066

AC900065

AC900065

AC900069
