REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-199

NOTE: Prior to the wiring harness inspection, check
the junction block connector C-211, and repair if nec-
essary.

• Check the power supply line from the fusible link

(23) for open circuit and short.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 6. Retest the system.
Check that the tail lamps illuminate normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU and register the
ID codes (Refer to

P.54A-39

).

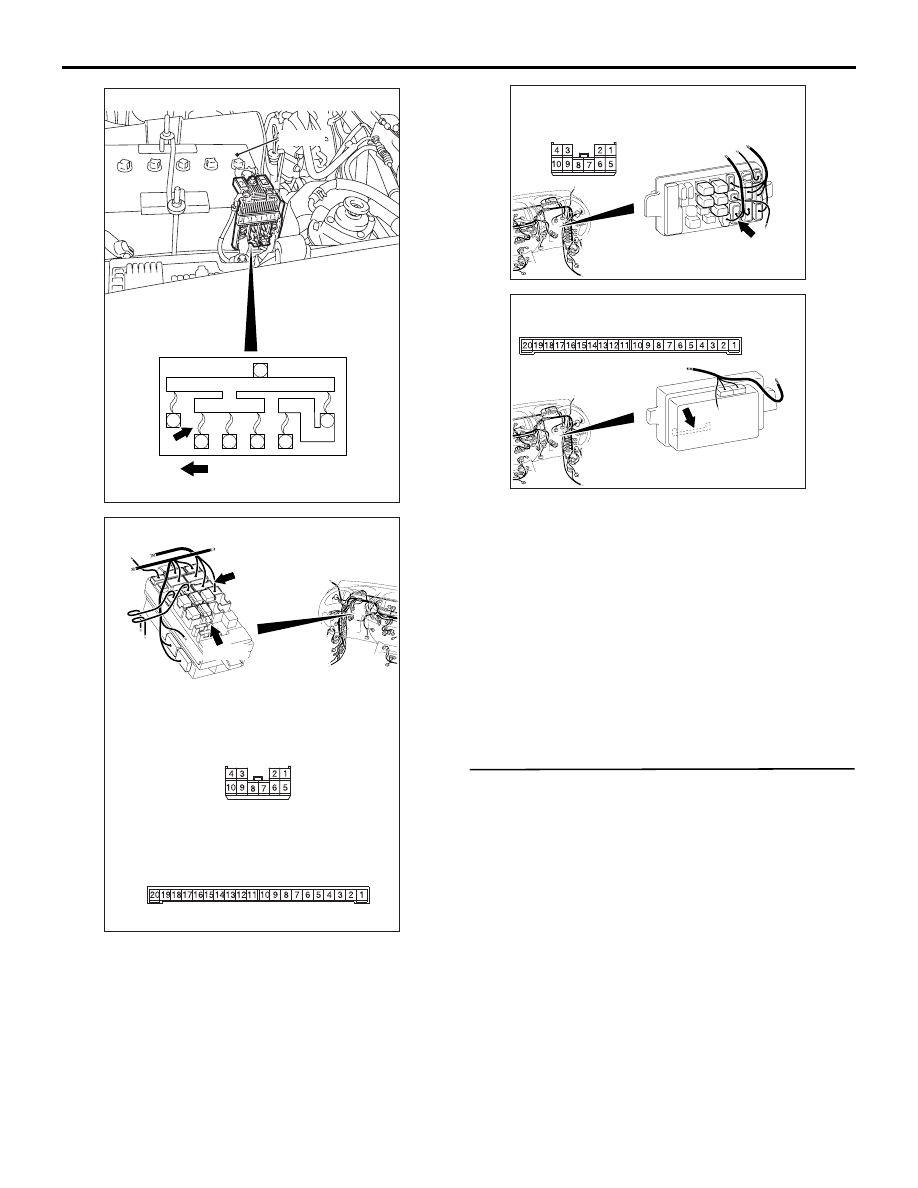

AC503086

AE

Battery

Front of vehicle

24

23

22

21

20

19

Fusible link (23)

AC509935

Connectors: C-211, C-218 <LHD>

AB

Junction block

Junction block side

C-218

Harness side

C-211

C-218

C-211

AC509936

Connector: C-211 <RHD>

Harness side

BE

Junction block

(Front view)

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-200

Inspection Procedure 2: One of tail lamps does not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM
If one of the tail lamps does not illuminate, the wiring
harness connector(s), the bulb or the fuse may be
defective or burned out.

PROBABLE CAUSES

• Burned-out bulb

• Damaged harness wires and connectors

NOTE

: VEHICLES WITH REAR BODY
: VEHICLES WITHOUT REAR BODY
: LHD
: RHD

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

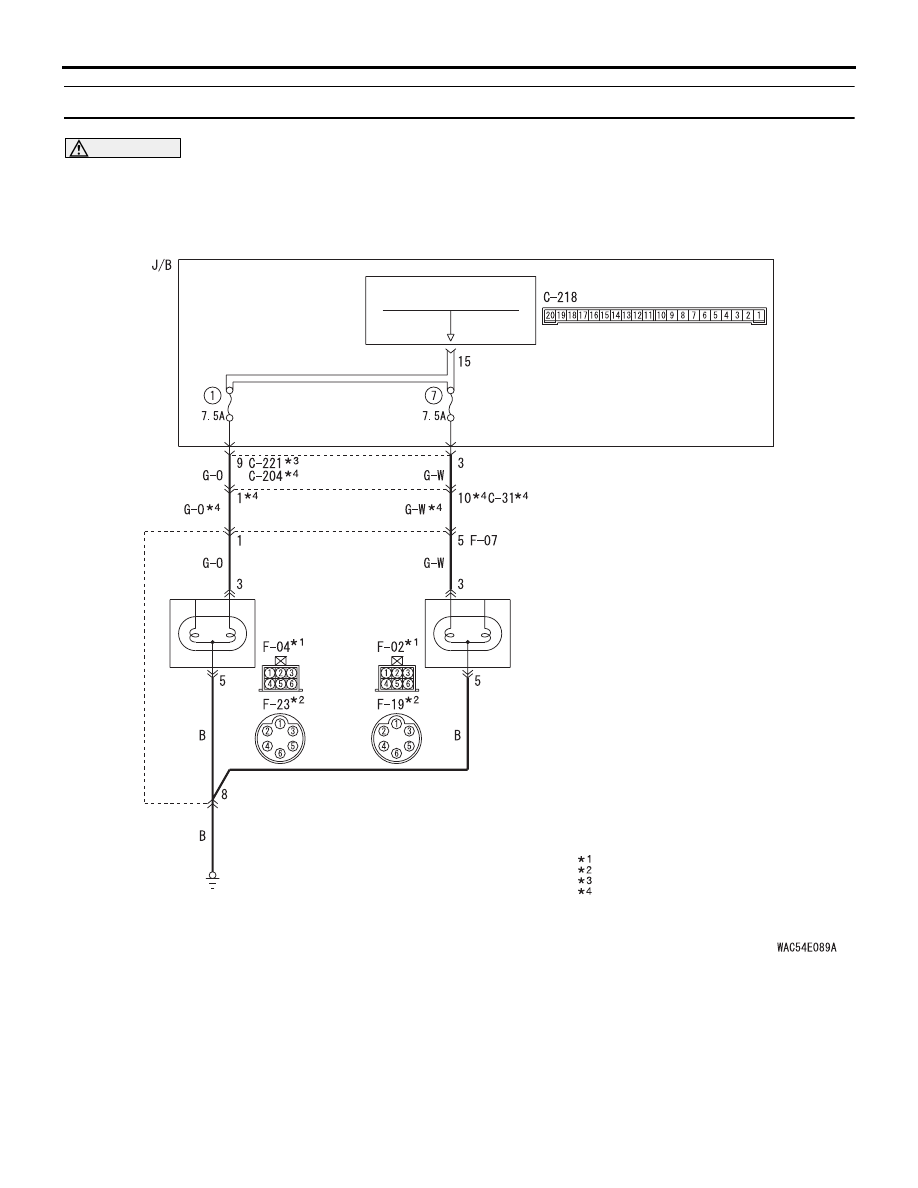

Tail Lamps Circuit

ETACS-ECU

TAIL LAMP RELAY

J/B SIDE

REAR COMBINATION
LAMP

(TAIL:RH)

(TAIL:LH)

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-201

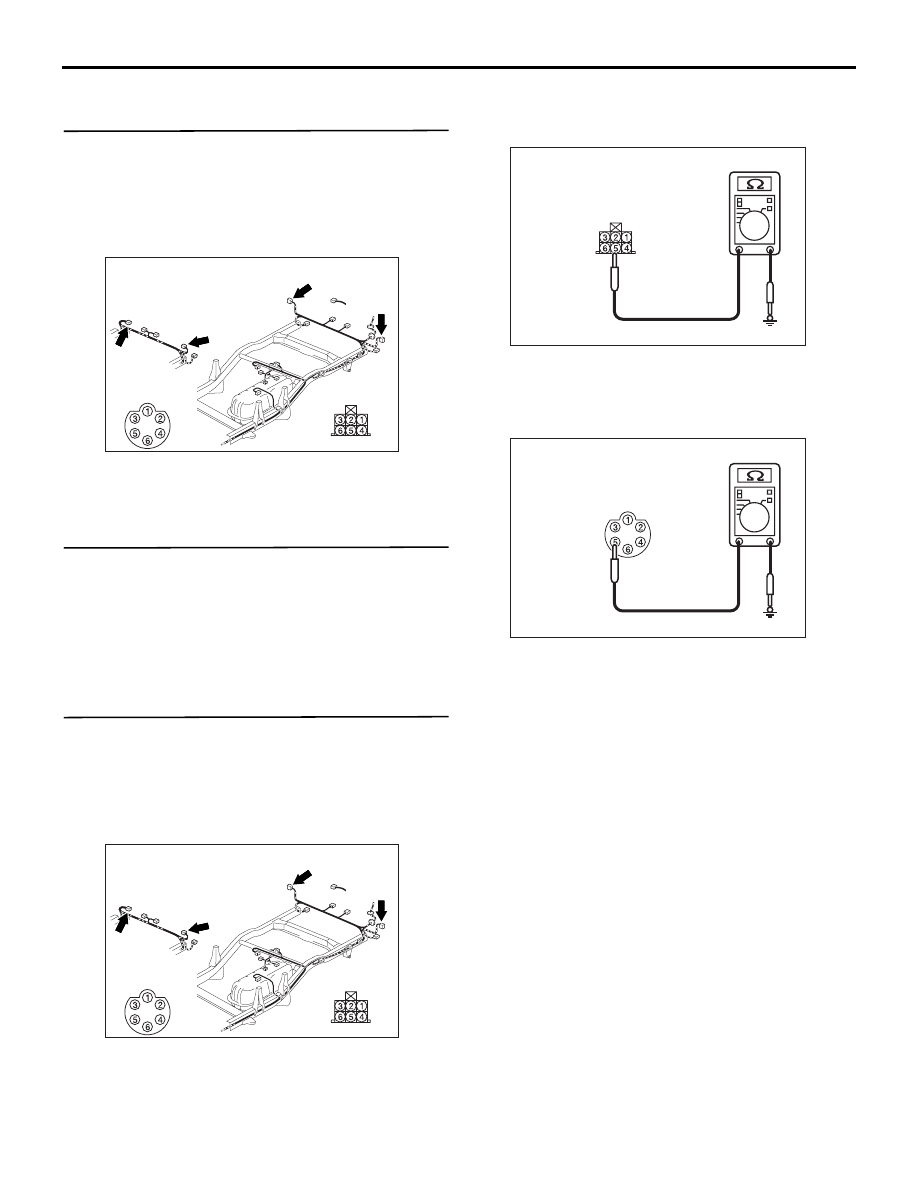

DIAGNOSIS PROCEDURE

STEP 1. Connector check: F-04 <vehicles with
rear body> or F-23 <vehicles without rear body>
rear combination lamp (tail: LH) connector or F-
02 <vehicles with rear body> or F-19 <vehicles
without rear body> rear combination lamp (tail:
RH) connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

STEP 2. Check the bulbs of the tail lamps.
Check the bulb of the lamp which does not illumi-
nate.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the bulb of the lamp which does not
illuminate.

STEP 3. Resistance measurement at the F-04
<vehicles with rear body> or F-23 <vehicles
without rear body> rear combination lamp (tail:
LH) connector or F-02 <vehicles with rear body>
or F-19 <vehicles without rear body> rear
combination lamp (tail: RH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the resistance between the lamp

connector and body earth.

•

Resistance between F-04 rear combination lamp

(tail: LH) or F-02 rear combination lamp (tail:
RH) connector terminal No.5 and body earth
<vehicles with rear body>

•

Resistance between F-23 rear combination lamp

(tail: LH) or F-19 rear combination lamp (tail:
RH) connector terminal No.5 and body earth
<vehicles without rear body>

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC903957AC

Harness side

F-02 (B)

Connectors: F-02, F-04, F-19, F-23

<Vehicles without
rear body>

F-19

F-23

F-02, F-04

F-04 (B)

Harness side

F-19, F-23

AC903957AC

Harness side

F-02 (B)

Connectors: F-02, F-04, F-19, F-23

<Vehicles without
rear body>

F-19

F-23

F-02, F-04

F-04 (B)

Harness side

F-19, F-23

AC310506

Connectors F-02 , F-04

(Harness side)

FV

AC310506

Connectors F-19, F-23

(Harness side)

JN

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-202

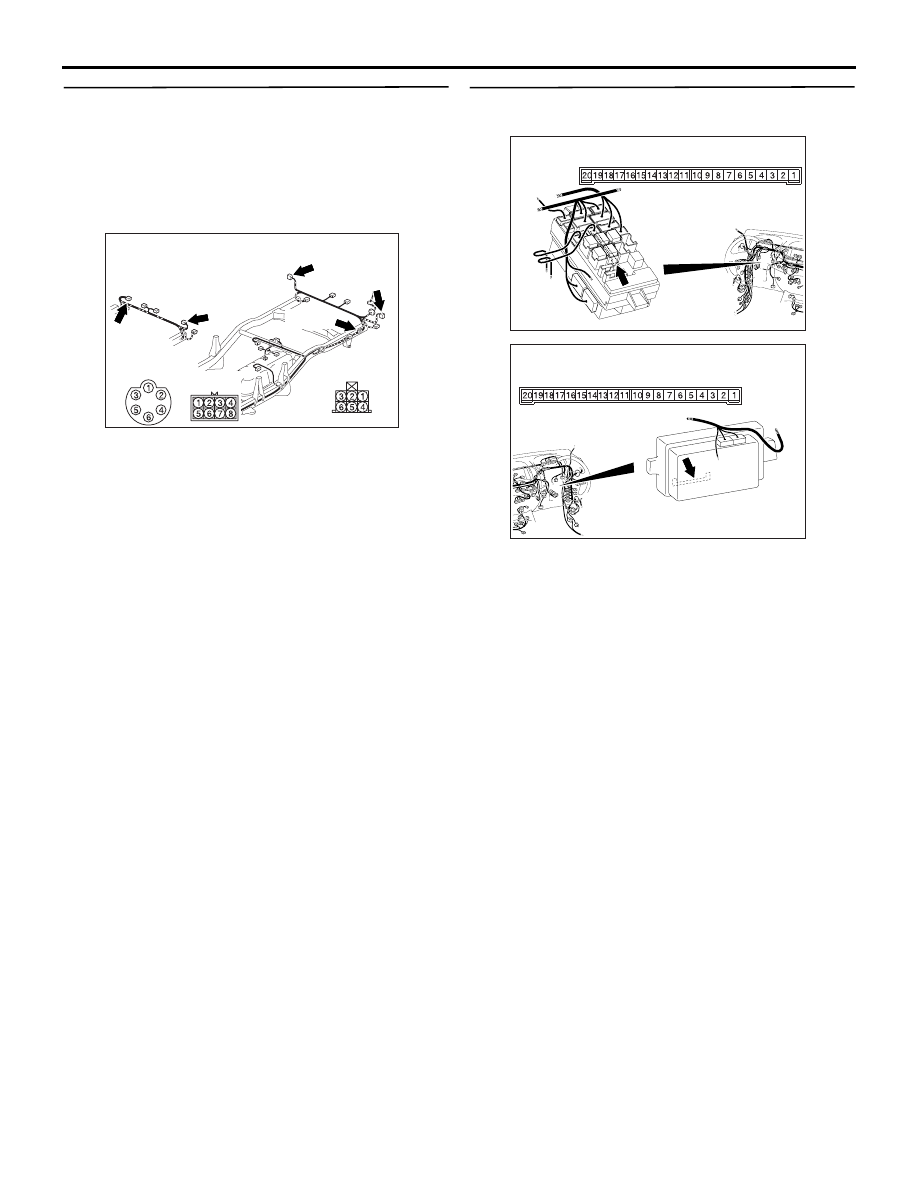

STEP 4. Check the wiring harness from F-04
<vehicles with rear body> or F-23 <vehicles
without rear body> rear combination lamp (tail:
LH) connector or F-02 <vehicles with rear body>
or F-19 <vehicles without rear body> rear
combination lamp (tail: RH) connector terminal
No.5 to body earth.

NOTE: Prior to the wiring harness inspection, check
intermediate connector F-07, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harness.

STEP 5. Connector check: C-218 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC903957AD

Harness side

F-02 (B)

Connectors: F-02, F-04, F-07, F-19, F-23

<Vehicles without
rear body>

F-19

F-23

F-02, F-04

F-04 (B)

Harness side

F-19, F-23

F-07 (B)

F-07

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side
