Mitsubishi L200. Manual - part 709





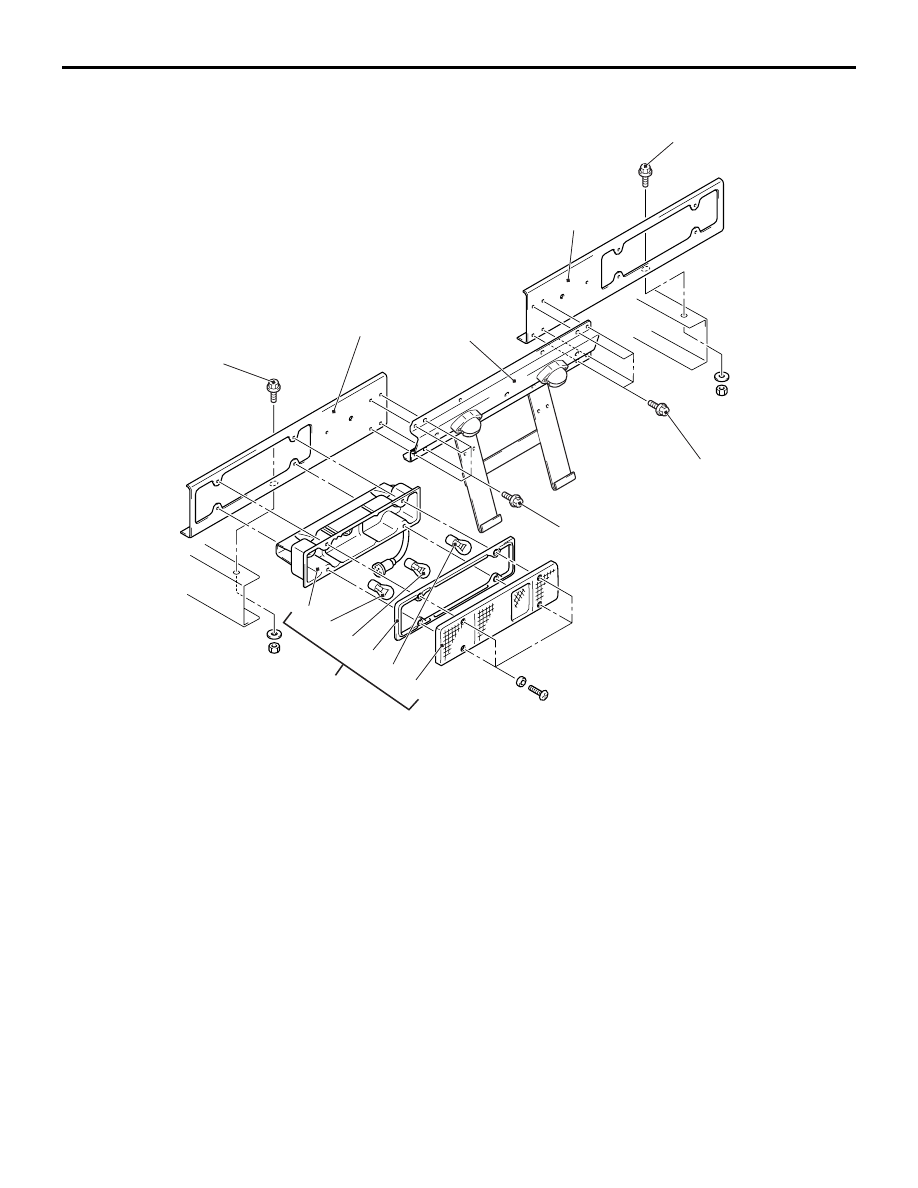

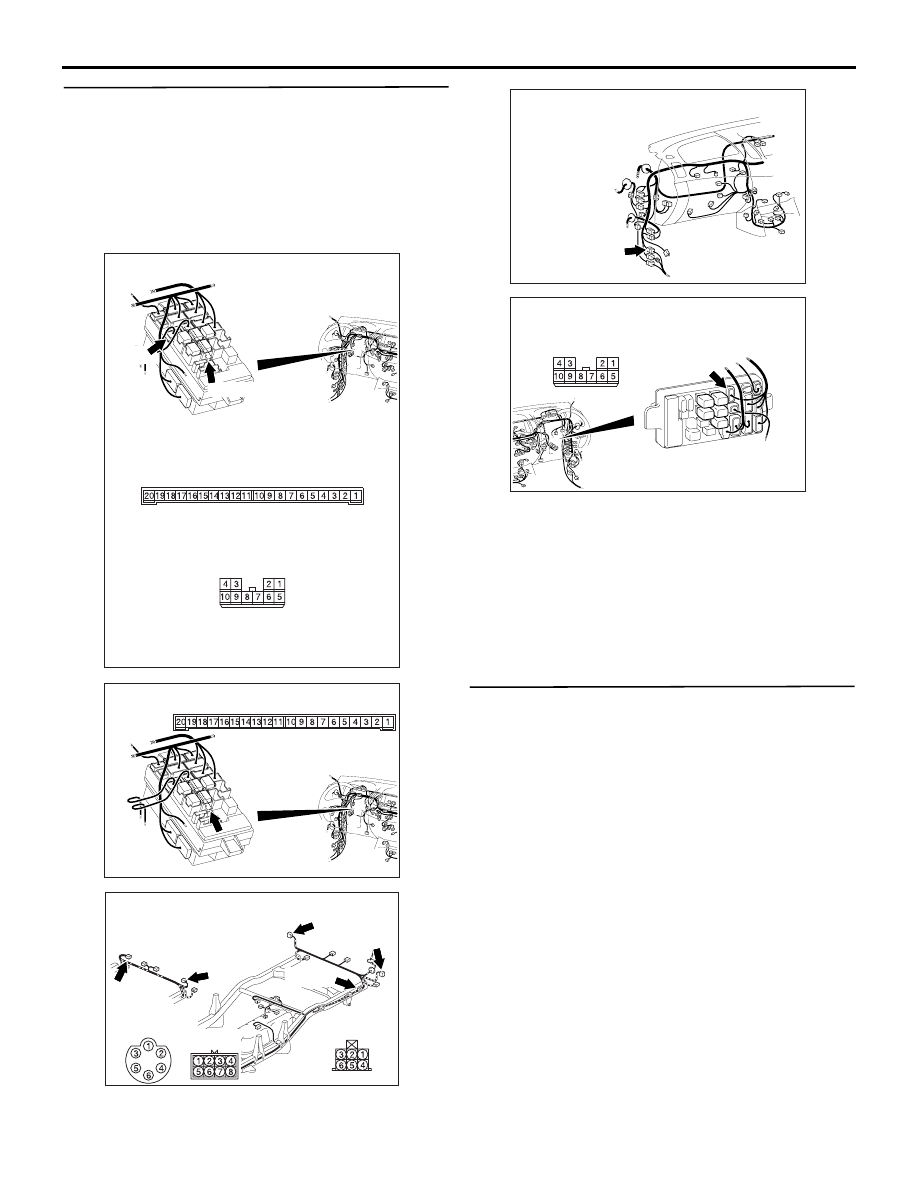

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-203

STEP 6. Check the wiring harness from F-04
<vehicles with rear body> or F-23 <vehicles
without rear body> rear combination lamp (tail:
LH) connector or F-02 <vehicles with rear body>
or F-19 <vehicles without rear body> rear
combination lamp (tail: RH) connector terminal
No.3 to C-218 ETACS-ECU connector terminal
No.15.

NOTE:

Prior to the wiring harness inspection, check junction
block connector C-221 <LHD> or C-204 <RHD> and
intermediate connector F-07 and C-31 <RHD>, and
repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

STEP 7. Retest the system.
Check that the tail/stop lamps illuminate normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the tail lamp socket.

AC509935AE

Connectors: C-218, C-221 <LHD>

C-218

C-221

Junction block side

C-218

C-221

Harness side

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

AC903957AD

Harness side

F-02 (B)

Connectors: F-02, F-04, F-07, F-19, F-23

<Vehicles without
rear body>

F-19

F-23

F-02, F-04

F-04 (B)

Harness side

F-19, F-23

F-07 (B)

F-07

AC903865

Connector: C-31 <RHD>

AS

AC509936

Connector: C-204 <RHD>

Harness side

AO

Junction block
(Front view)

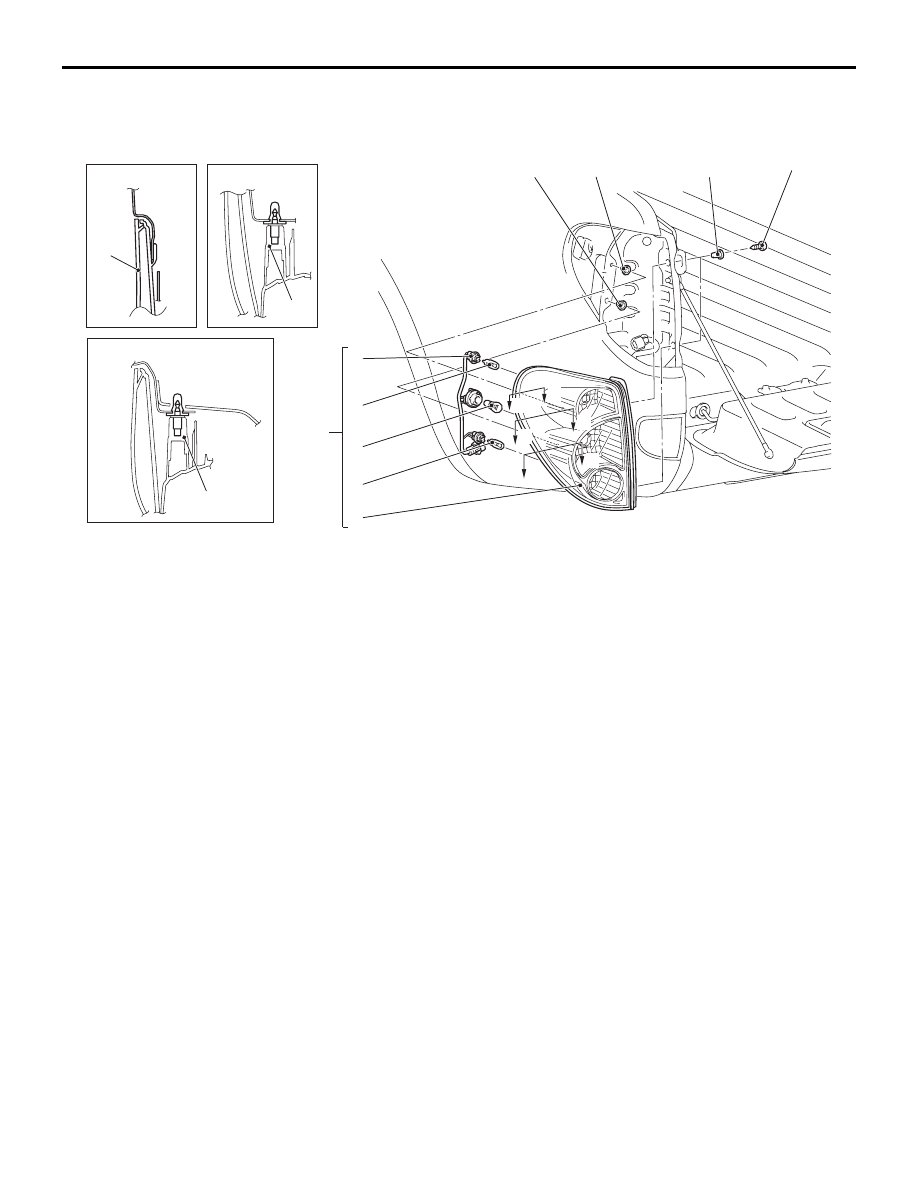

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-204

REMOVAL AND INSTALLATION

M1541402200400

<VEHICLES WITH REAR BODY>

AC502678AB

3

4

5

2

6

2

1.5 ± 0.2 N·m

Section A - A

Section B - B

A

A

B

B

C

C

Section C - C

2

2

9

8

7

1

Removal steps

1.

Rear combination lamp assembly

2.

Rear combination lamp unit

3.

Socket

4.

Turn-signal lamp bulb

5.

Tail lamp and stop lamp bulb

6.

Back-up lamp bulb

7.

Grommet

8.

Grommet

9.

Grommet

Removal steps (Continued)

REAR COMBINATION LAMP

CHASSIS ELECTRICAL

54A-205

<VEHICLES WITHOUT REAR BODY>

AC903483AB

2

4

3

5

6

7

1

9

8

4.9 ± 0.7 N·m

11.3 ± 2.4 N·m

9

11.3 ± 2.4 N·m

4.9 ± 0.7 N·m

Removal steps

1.

Rear combination lamp assembly

2.

Rear combination lamp lens

3.

Rear combination lamp gasket

4.

Back-up lamp bulb

5.

Tail lamp and stop lamp bulb

6.

Turn-signal lamp bulb

7.

Rear combination lamp body

8.

Licence plate lamp bracket
assembly

9.

Rear combination lamp bracket
assembly

Removal steps (Continued)

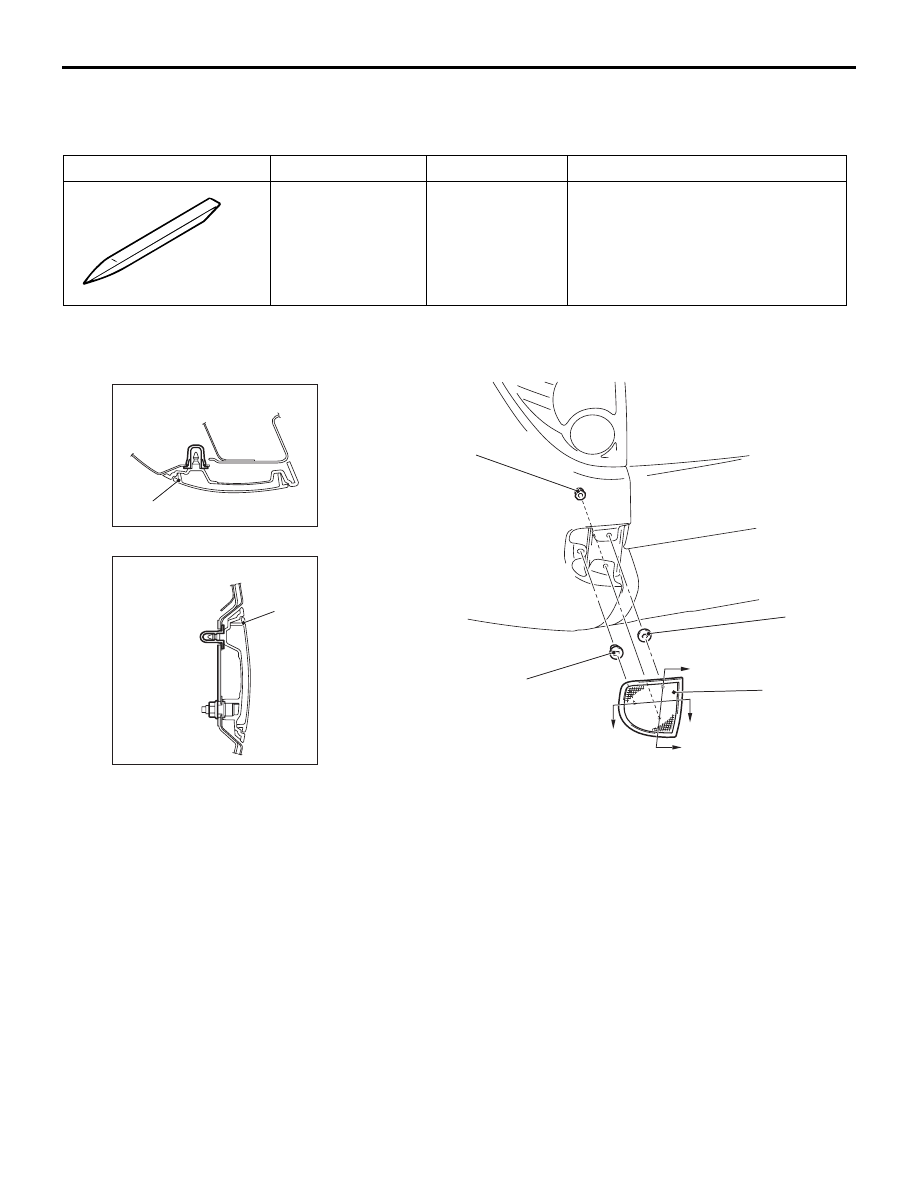

REFLECTOR

CHASSIS ELECTRICAL

54A-206

REFLECTOR

SPECIAL TOOL

M1542500200017

REMOVAL AND INSTALLATION

M1542500300014

Tool

Number

Name

Use

MB990784

Ornament
remover

Removal of reflector

MB990784

AC502719AB

4.9 ± 0.7 N·m

Section A - A

Section B - B

A

A

1

B

B

2

3

1

1

Removal steps

1.

Reflector

2.

Grommet

3.

Grommet

Removal steps (Continued)
