TROUBLESHOOTING
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
52B-87

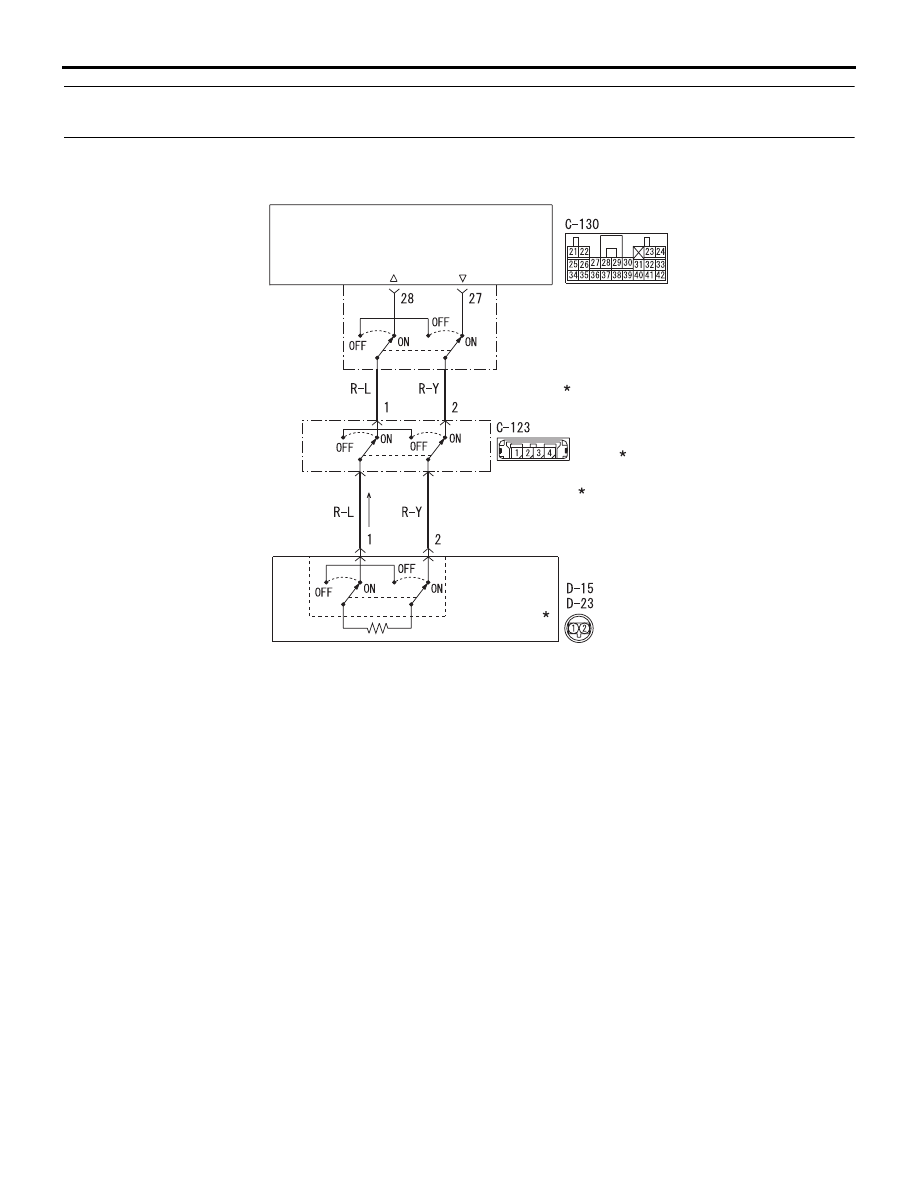

Code No.B1611: Seat belt pre-tensioner (passenger's side) (squib) system (short-circuited to the
earth)
AC805785

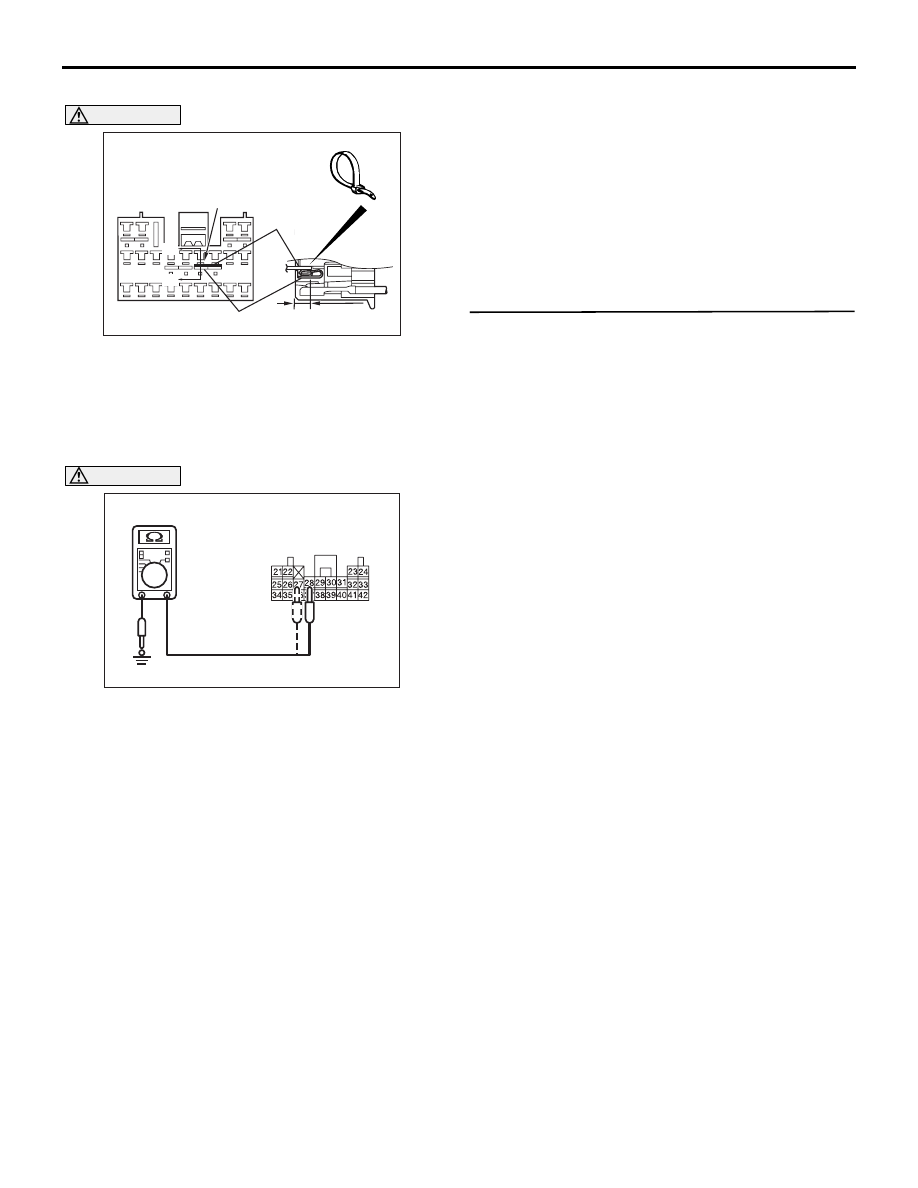

SRS-ECU
CONNECTOR
LOCK SWITCH
CONNECTOR
LOCK SWITCH
NOTE
: CONNECTOR COUPLED: ON
CONNECTOR UNCOUPLED: OFF
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
AE

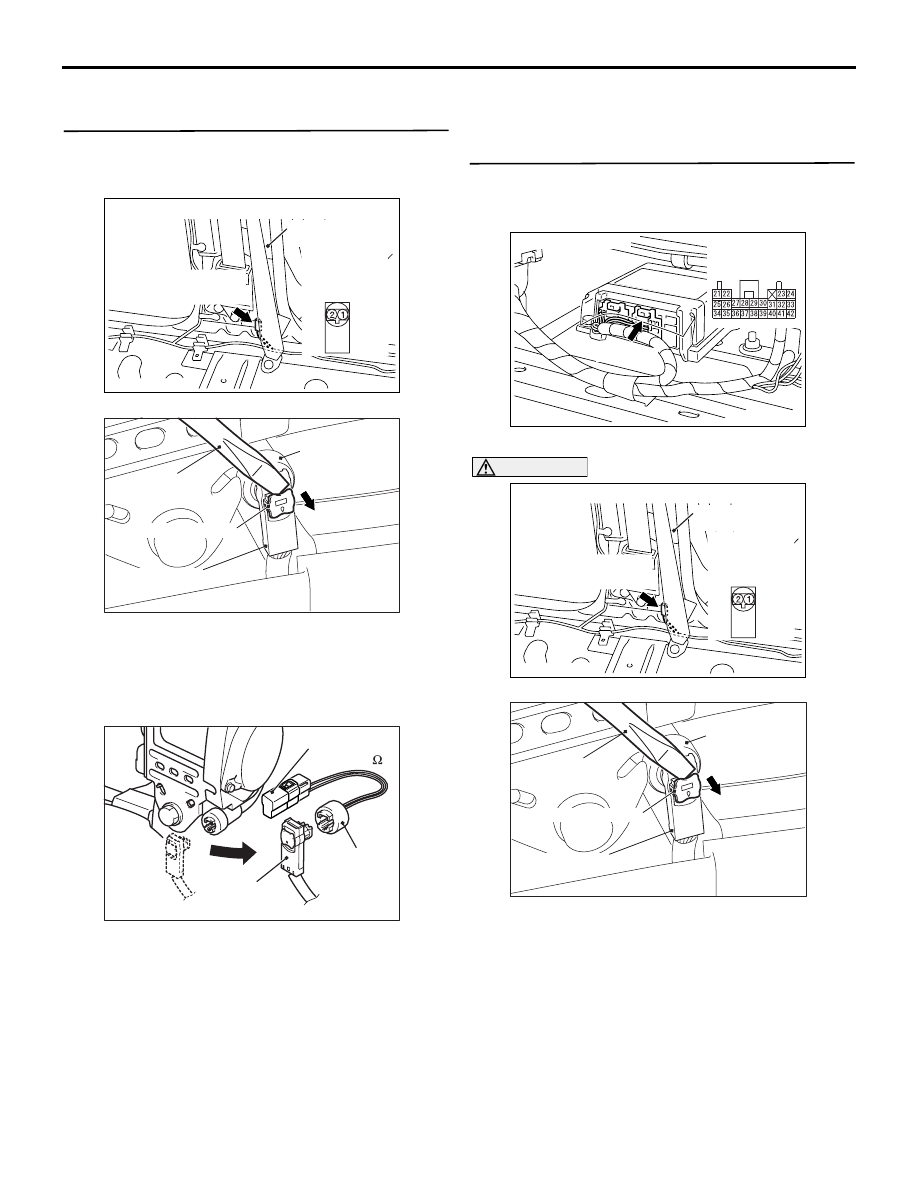

SEAT BELT
PRE-TENSIONER
CONNECTOR
LOCK SWITCH
<RHD>
<LHD>
Seat Belt Pre-tensioner (Passenger's Side) (Squib)
OPERATION
The SRS-ECU judges how severe a collision is by
detecting signals from the front impact sensors and
the front air bag analogue G-sensor. If the impact is
over a predetermined level, the SRS-ECU sends an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the seat belt pre-tensioner will
deploy.
DIAGNOSIS CODE SET CONDITIONS
This diagnosis code is set if seat belt pre-tensioner
(passenger's side) wire(s) are short-circuited to the
earth.
PROBABLE CAUSES
• Damaged wiring harnesses or connectors
• Short to the earth in the seat belt pre-tensioner
(passenger's side) (squib) harness
• Malfunction of the SRS-ECU
