REAR SEAT ASSEMBLY <CLUB CAB, DOUBLE CAB>

INTERIOR

52A-30

DISASSEMBLY AND REASSEMBLY

M1522002001134

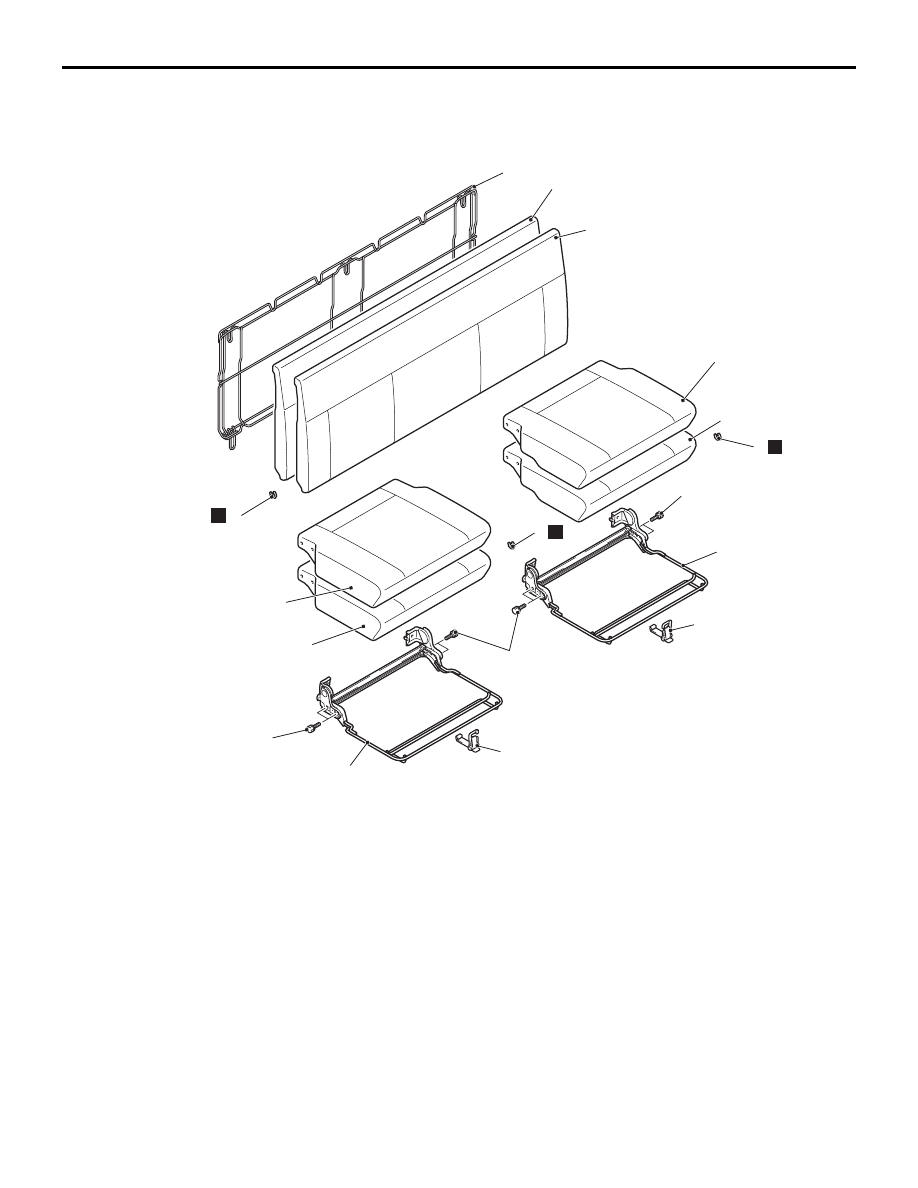

<CLUB CAB>

ACA01424AC

6

5

5

3

2

N

N

4

6

8

8

7

7

N

22 ± 4 N·m

22 ± 4 N·m

22 ± 4 N·m

1

9

9

Disassembly steps

1.

Hog ling

2.

Rear seat back cover

3.

Rear seat back pad

4.

Rear seat back frame

5.

Rear seat cushion cover

6

Rear seat cushion pad

7

Strap

8.

Rear seat cushion frame

9.

Hog ling

Disassembly steps (Continued)

REAR SEAT ASSEMBLY <CLUB CAB, DOUBLE CAB>

INTERIOR

52A-31

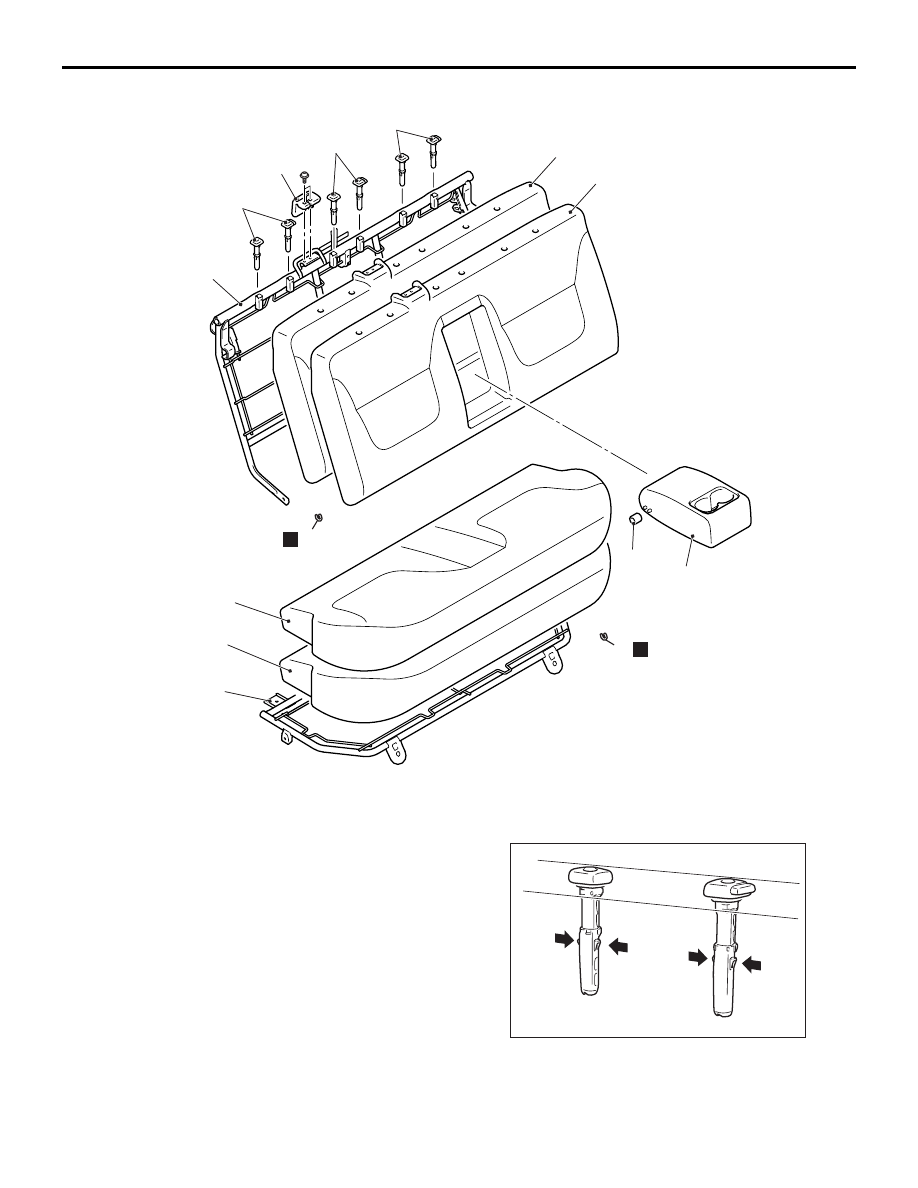

<DOUBLE CAB>

AC509496AD

1

2

12

8

11

10

7

3

6

N

N

3

3

4

5

9

Disassembly steps

1.

Rear seat armrest

2.

Rear seat bushing

<<A>>

3.

Headrestraint guide

4.

Rear seat belt garnish

5.

Hog ling

6.

Rear seat back cover

7.

Rear seat back pad

8.

Rear seat back frame

9.

hog ling

10. Rear seat cushion cover
11. Rear seat cushion pad
12. Rear seat cushion frame

DISASSEMBLY SERVICE POINT

<<A>> HEADRESTRAINT GUIDE REMOVAL

AC205342

Remove the headrest guides while pushing the on
both sides inward.

FRONT SEAT BELT

INTERIOR

52A-32

FRONT SEAT BELT

REMOVAL AND INSTALLATION <SINGLE CAB>

M1523001300701

CAUTION

SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B, Seat Belt
with Pre-tensioner .

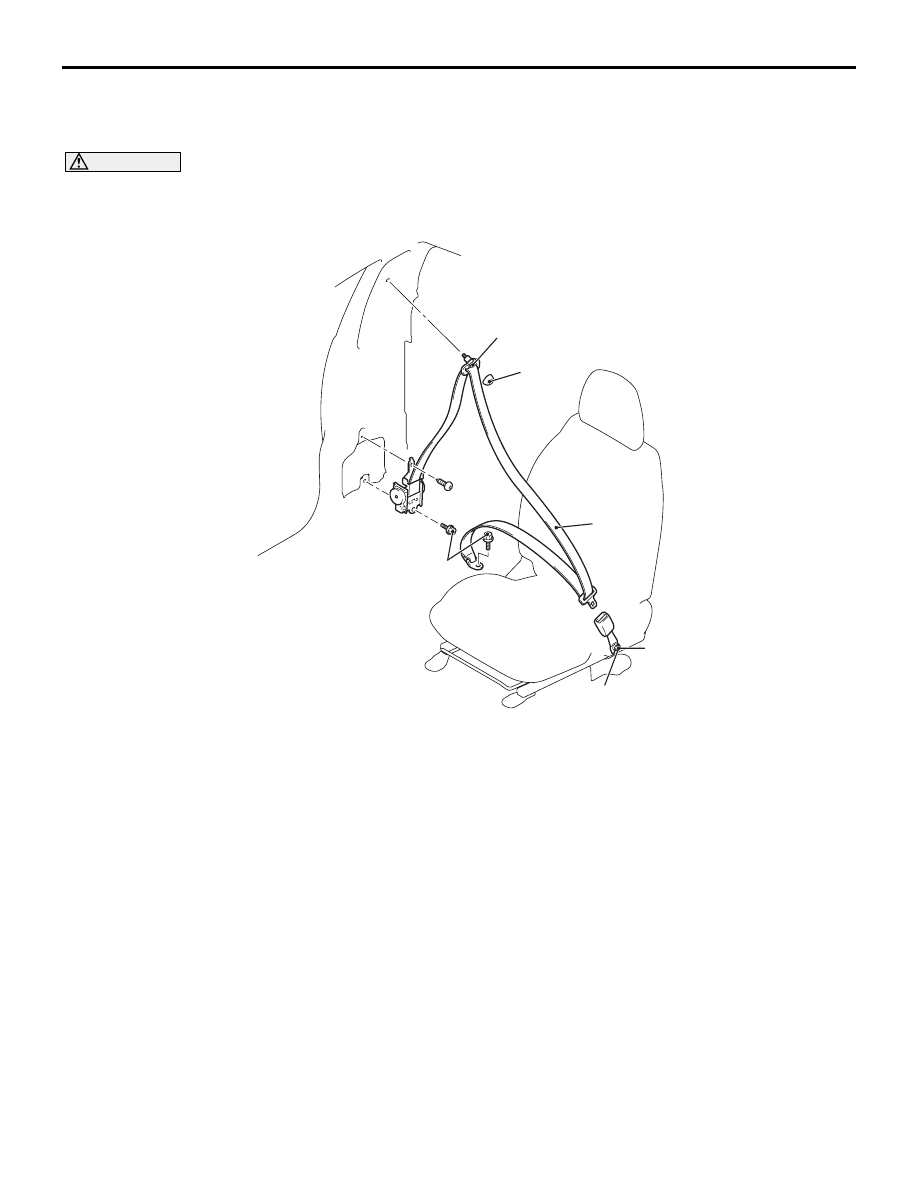

AC503184

3

2

44 ± 10 N·m

42 ± 8 N·m

44 ± 10 N·m

AB

1

Removal steps

1.

Sash guide cover

2.

Outer seat belt (Refer to GROUP
52B, Seat belt with Pre-tensioner ).

3.

Inner seat belt

FRONT SEAT BELT

INTERIOR

52A-33

REMOVAL AND INSTALLATION <CLUB CAB AND DOUBLE CAB>

M1523001301481

CAUTION

SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B, Seat Belt
with Pre-tensioner .

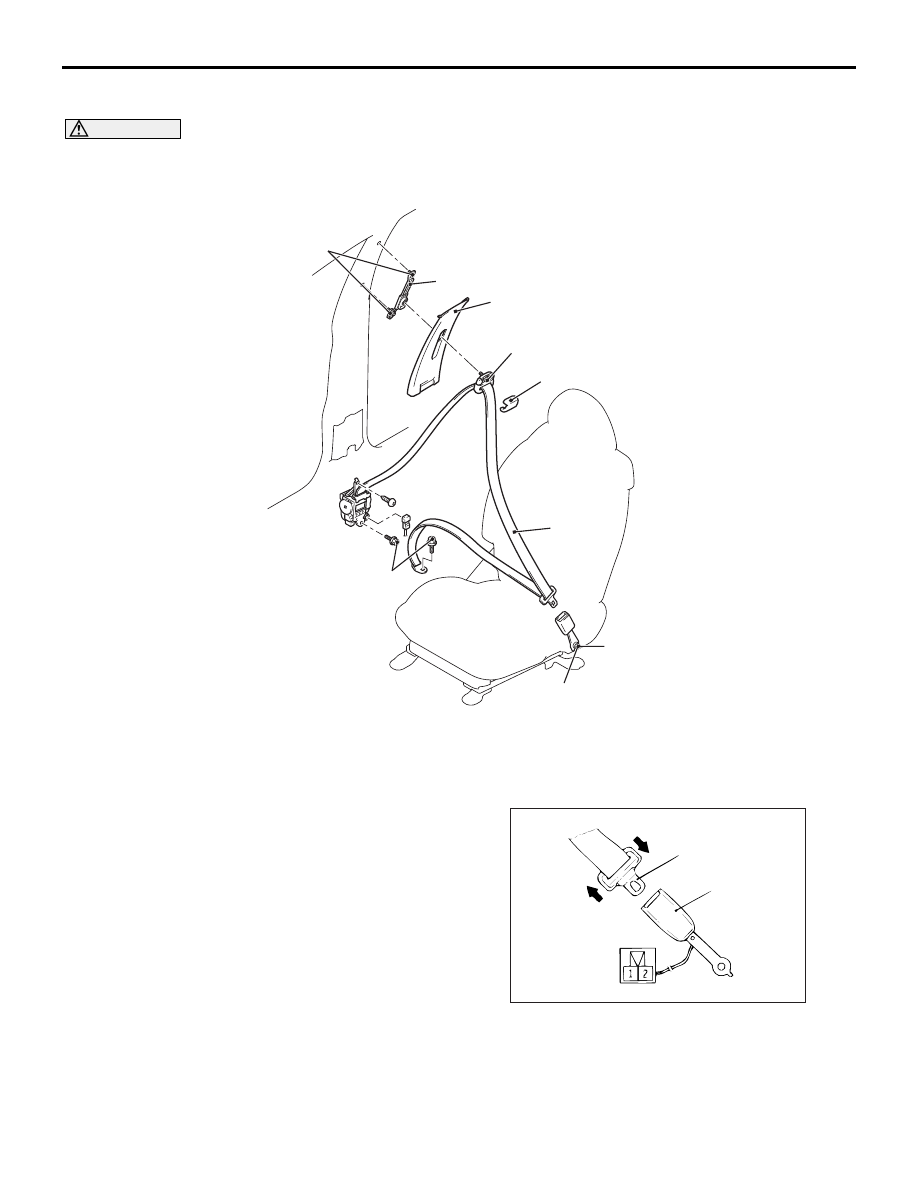

AC407291

3

4

5

2

44 ± 10 N·m

42 ± 8 N·m

44 ± 10 N·m

44 ± 10 N·m

AB

1

Removal steps

1.

Sash guide cover

•

Quarter lower trim <Club cab>,
Centre pillar lower trim <Double
cab> (Refer to

P.52A-13

<Club

cab>,

P.52A-15

<Double cab>).

2.

Outer seat belt (Refer to GROUP
52B, Seat belt with Pre-tensioner ).

3.

Quarter upper trim <Club cab>,
centre pillar upper trim <Double
cab> (Refer to

P.52A-13

<Club

cab>,

P.52A-15

<Double cab>).

4.

Adjustable seat belt anchor

5.

Inner seat belt

INSPECTION

M1523004400291

SEAT BELT BUCKLE SWITCH CONTINU-
ITY CHECK

AC003238AD

Tongue

Buckle

If there is no continuity, replace the seat belt.
