FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-10

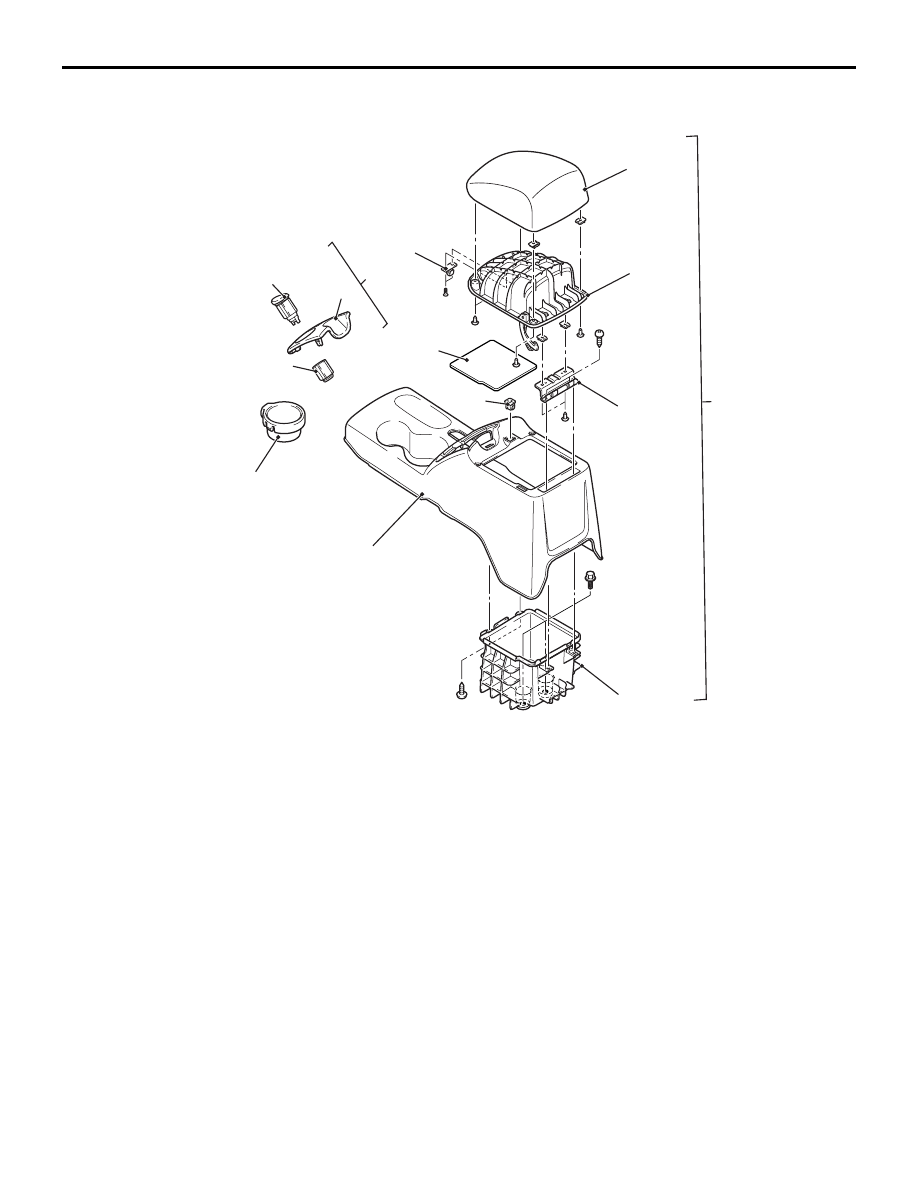

<Rear floor console assembly (GL)>

ACA00225

6

5

1

2

3

4

7

8

9

10

13

14

AB

11

12

Removal steps

1.

Rear floor console cover assembly

2.

Accessory socket case

3.

Accessory socket

4.

Rear floor console cover

5.

Console cup holder

6.

Rear floor console assembly

7.

Lid outer

8.

Striker

9.

Lid inner

10. Lid hinge
11. Rear floor console lock
12. Rear floor console mat
13. Box with lid
14. Rear floor console

Removal steps (Continued)

TRIMS

INTERIOR

52A-11

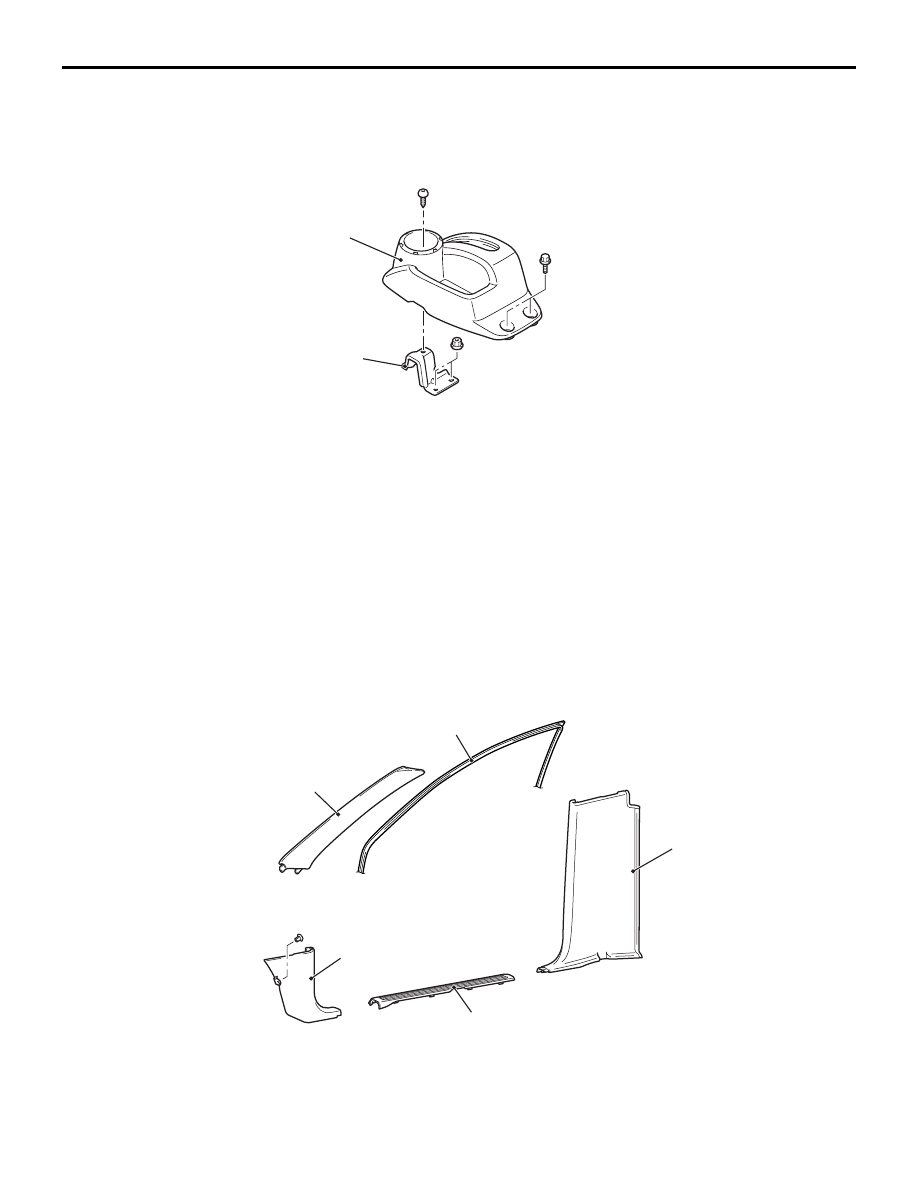

<Rear floor console parking brake lever
cover (Vehicles without rear floor console
assembly)>

AC611602AB

2

1

Removal steps

1.

Rear floor console parking brake
lever cover

2.

Rear floor console parking brake
bracket

TRIMS

INTERIOR TRIM

REMOVAL AND INSTALLATION <SINGLE CAB>

M1521001101812

AC505616AB

5

2

1

3

4

1.

Door opening trim

2.

Front pillar trim

3.

Cowl side trim

4.

Front scuff plate

5.

Rear pillar lower trim

TRIMS

INTERIOR

52A-12

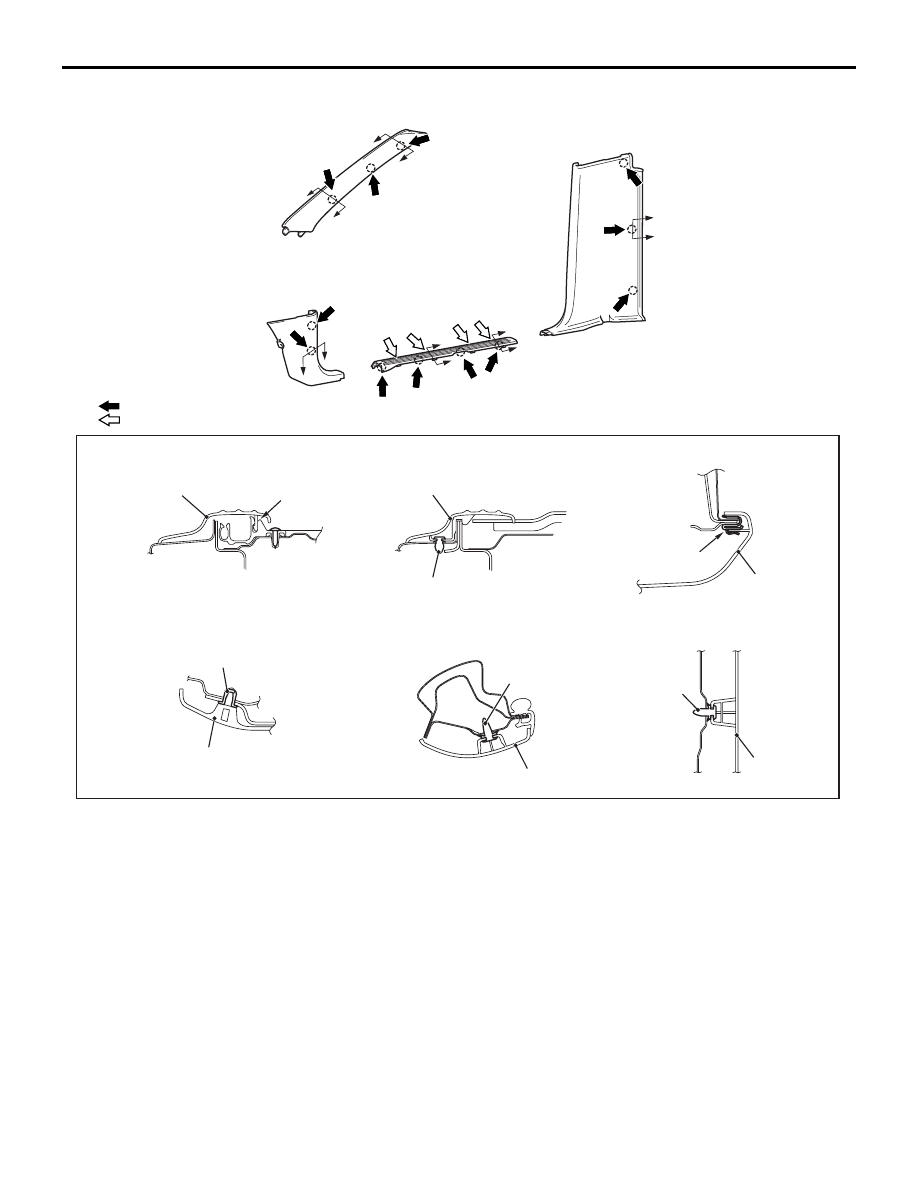

CLIP AND CLAW POSITIONS

AC505620AG

A

A

B

B

C

C

D

D

E

E

F

F

NOTE
(1)        : Clip positions
(2)        : Claw positions

Section A – A

Section B – B

Section C – C

Claw

Clip

Clip

Clip

Section D – D

Section E – E

Section F – F

Clip

Clip

5

2

2

3

4

4

TRIMS

INTERIOR

52A-13

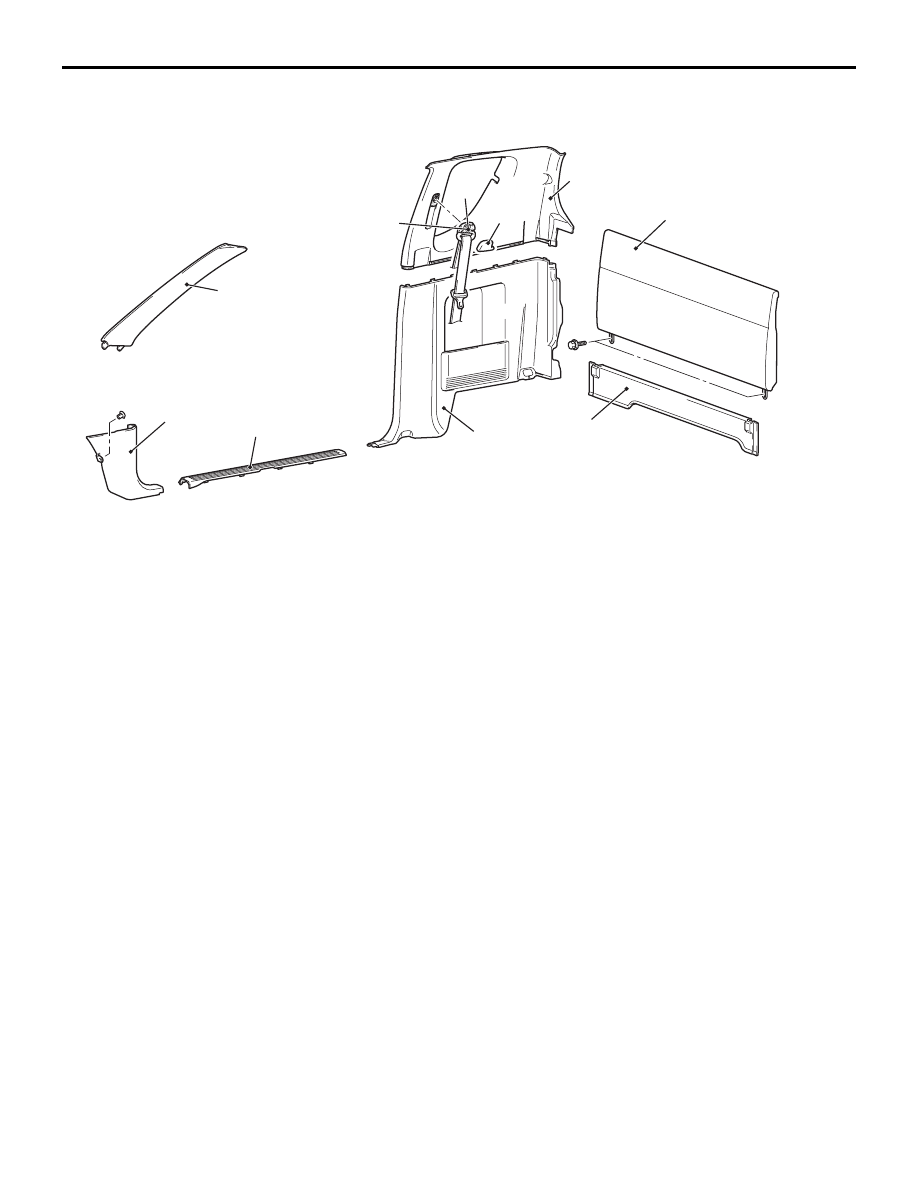

REMOVAL AND INSTALLATION <CLUB CAB>

M1521001102127

AC407282 AC

5

2

1

3

8

9

4

7

44 ± 10 N·m

6

1.

Front pillar trim

2.

Cowl side trim

3.

Front scuff plate

4.

Cab rear end lower trim

5.

Cab rear end trim

6.

Sash guide cover

7.

Front seat belt bolt

8.

Quarter lower trim

9.

Quarter upper trim
