FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-6

DISASSEMBLY AND REASSEMBLY

M1521001900688

AC508317AB

1

2

2

3

3

4

5

6

7

8

9

10

b

b

b

b

b

b

b

b

b

b

b

d

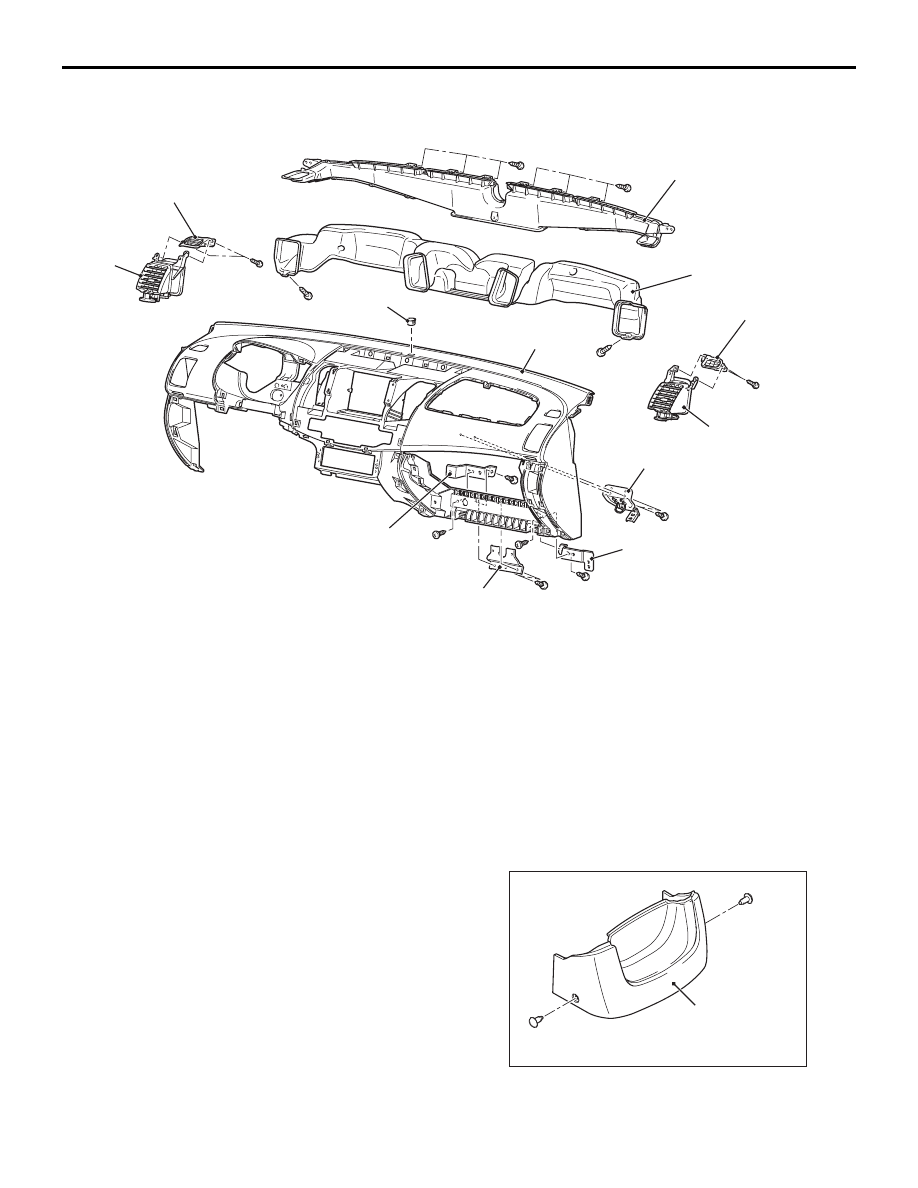

Disassembly steps

1.

Ventilator air distribution duct

2.

Side defroster grille

3.

Instrument panel side air outlet

4.

Defroster garnish

5.

Instrument panel

6.

Plug

7.

Glove box striker

8.

Bracket B

9.

Bracket A

10. Heater bracket

FLOOR CONSOLE ASSEMBLY

FRONT FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

M1521005200818

<Centre reinforce cover (Vehicles without

front floor console assembly) >

ACA00500

1

AB

Centre reinforce cover removal

1.

Centre reinforce cover

Disassembly steps (Continued)

FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-7

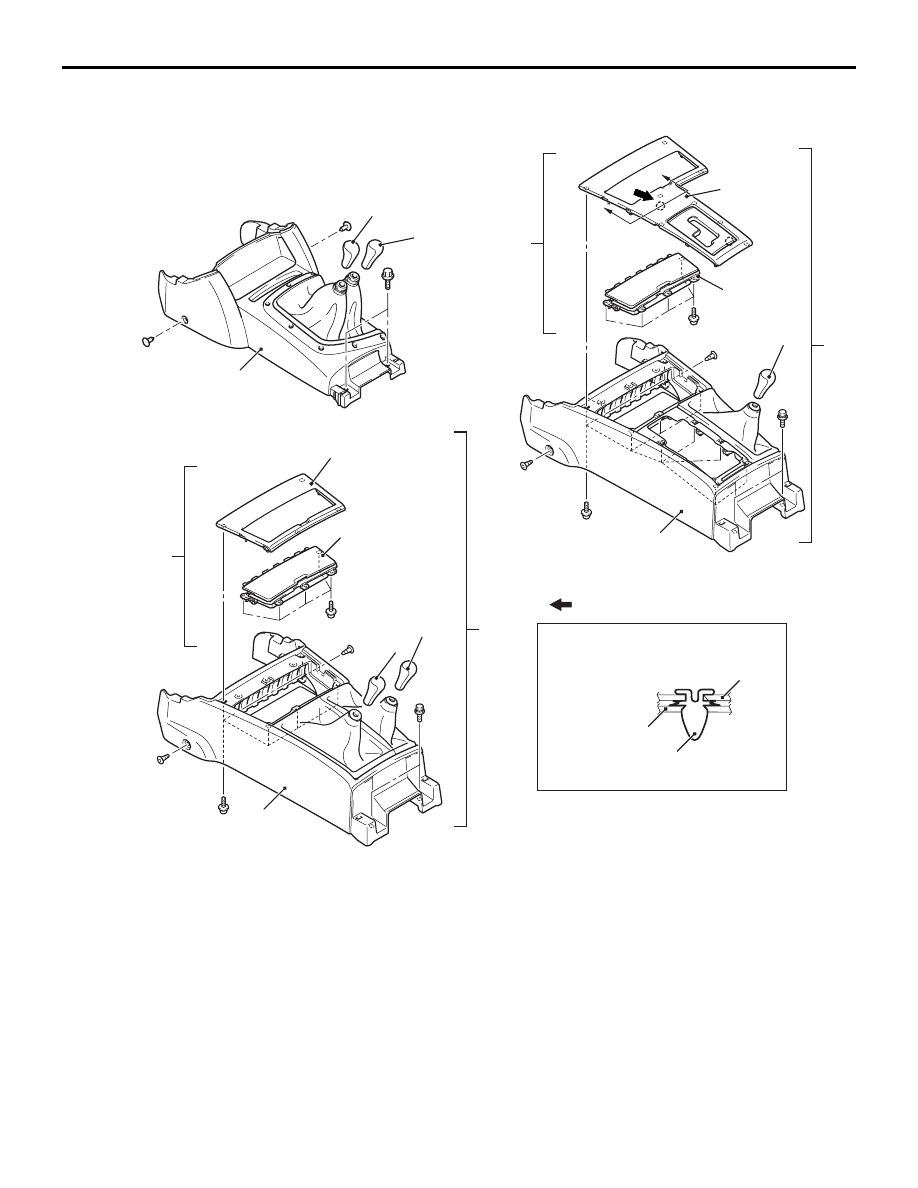

<Front floor console assembly (2WD)>

ACA00639

ACA00639

6

3

4

<GLX >

1

1

3

<GL>

Section A – A

5

Claw

3

: Claw positions

AB

A

A

Section B– B

4

Clip

6

7

B

B

2

5

<A/T>

Note
         : Clip positions

Front floor console assembly
removal steps

1.

Front floor console assembly <M/
T>

<<

A

>>

2.

Front floor console assembly <A/T>

3.

Shift knob

4.

Gearshift lever panel <M/T>

5.

Gearshift lever panel <A/T>

6.

Front floor console <M/T>

7.

Front floor console <A/T>

Front floor console assembly
removal steps (Continued)

FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-8

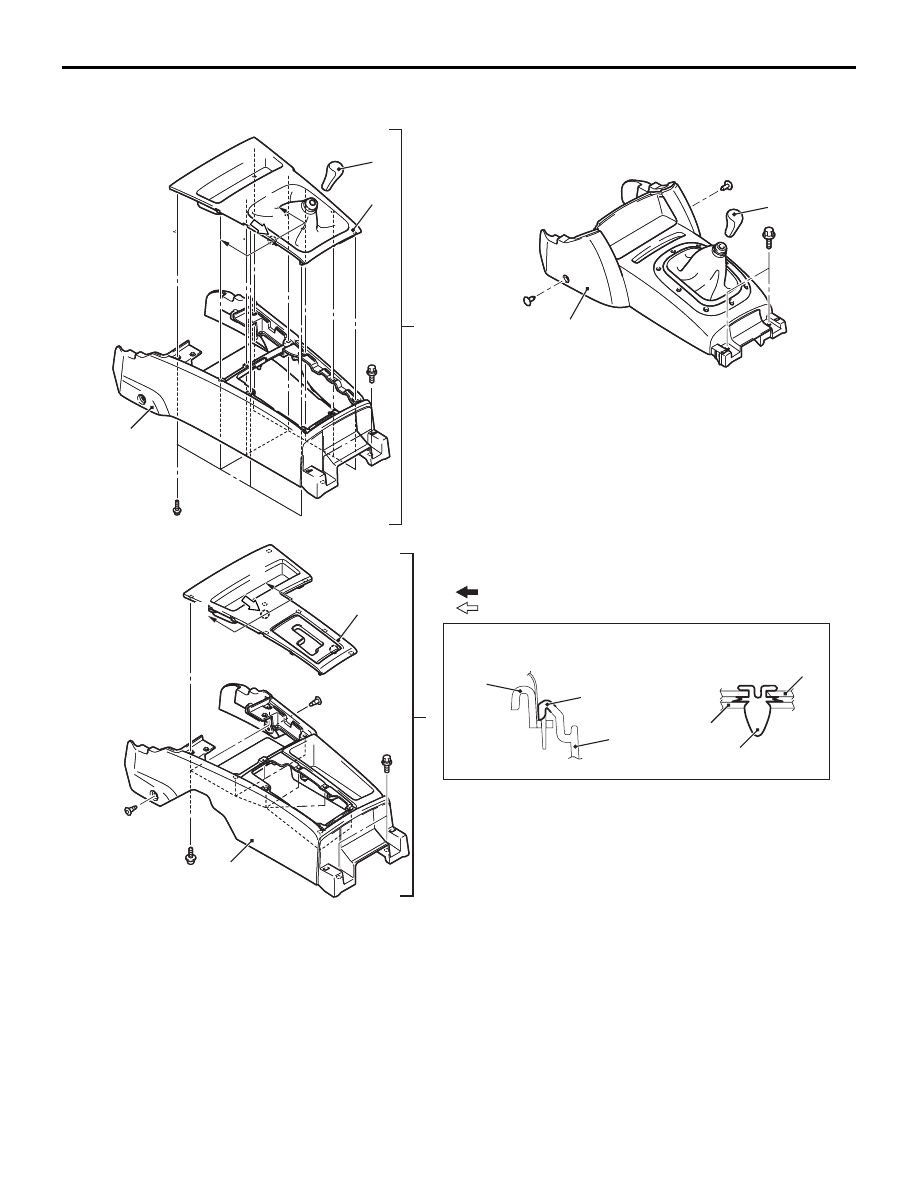

<Front floor console assembly (4WD)>

ACA00496

1

9

9

7

8

5

4

6

5

A

A

Note
         : Clip positions

<GL>

<GLX, GLS>

<A/T>

3

3

8

3

1

2

5

4

Section A– A

6

Clip

9

AC

Front floor console assembly
removal steps

1.

Front floor console assembly <M/
T>

<<

A

>>

2.

Front floor console assembly <A/T>

3.

Gearshift lever panel assembly

4.

Shift knob <M/T>

5.

Transfer shift lever knob

6.

Gearshift lever panel <A/T>

7.

Gearshift lever panel <M/T>

8.

Floor console tray

9.

Front floor console

Front floor console assembly
removal steps (Continued)

FLOOR CONSOLE ASSEMBLY

INTERIOR

52A-9

REMOVAL SERVICE POINT

<<A>> FRONT FLOOR CONSOLE ASSEMBLY
REMOVAL <A/T>

AC808446

Selector
lever knob

AB

Loosen the screw of the selector lever knob, and turn
the knob 90 degrees.

REAR FLOOR CONSOLE ASSEMBLY

 REMOVAL AND INSTALLATION

M1521005700619

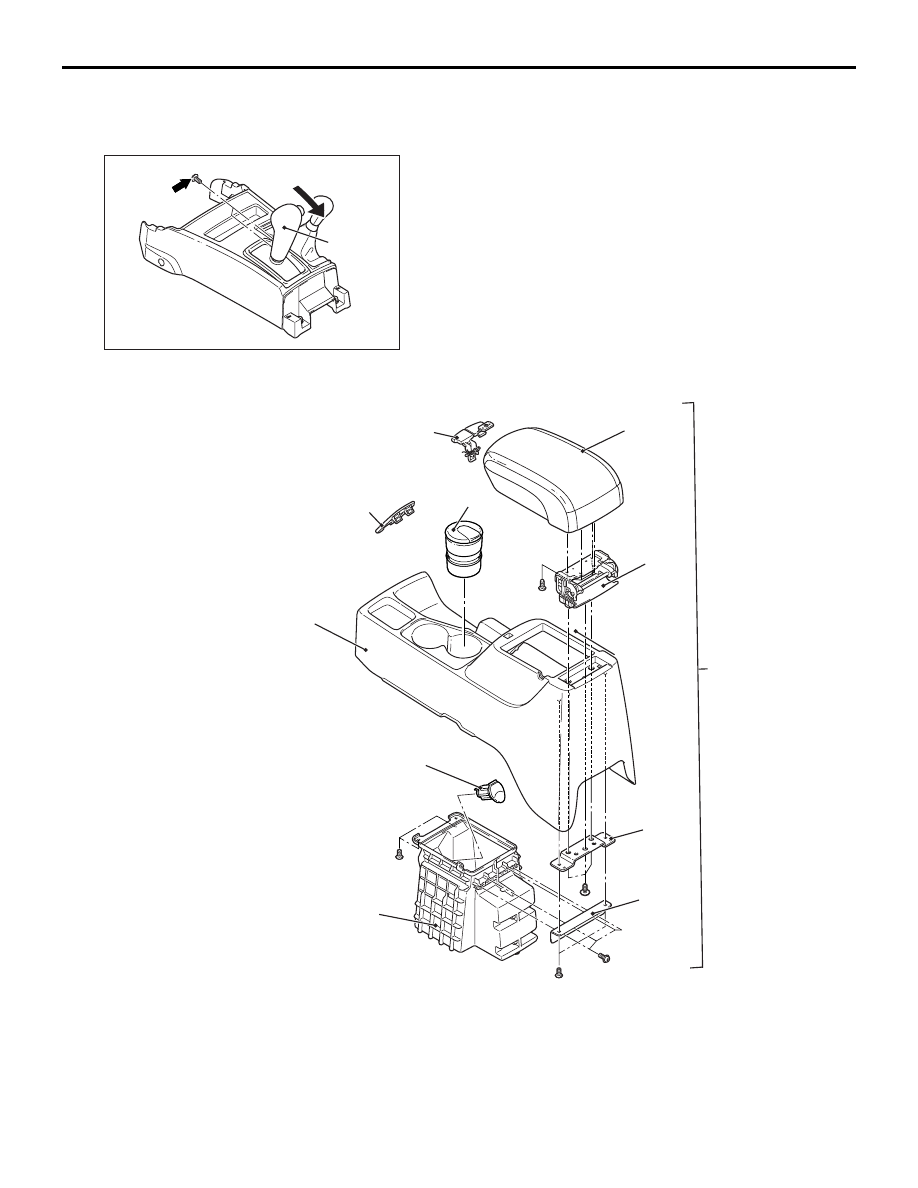

<Rear floor console assembly (GLS,GLX)>

AC809197

3

10

5

2

1

4

6

7

8

9

AB

11

Removal steps

1.

Service panel

2.

Cup holder

3.

Rear floor console assembly

4.

Floor console armrest assembly

5.

Armrest assembly hinge

6.

Striker

7.

Floor console bracket upper

8.

Floor console bracket lower

9.

Rear console box

10. Accessory socket
11

Rear floor console

Removal steps (Continued)
